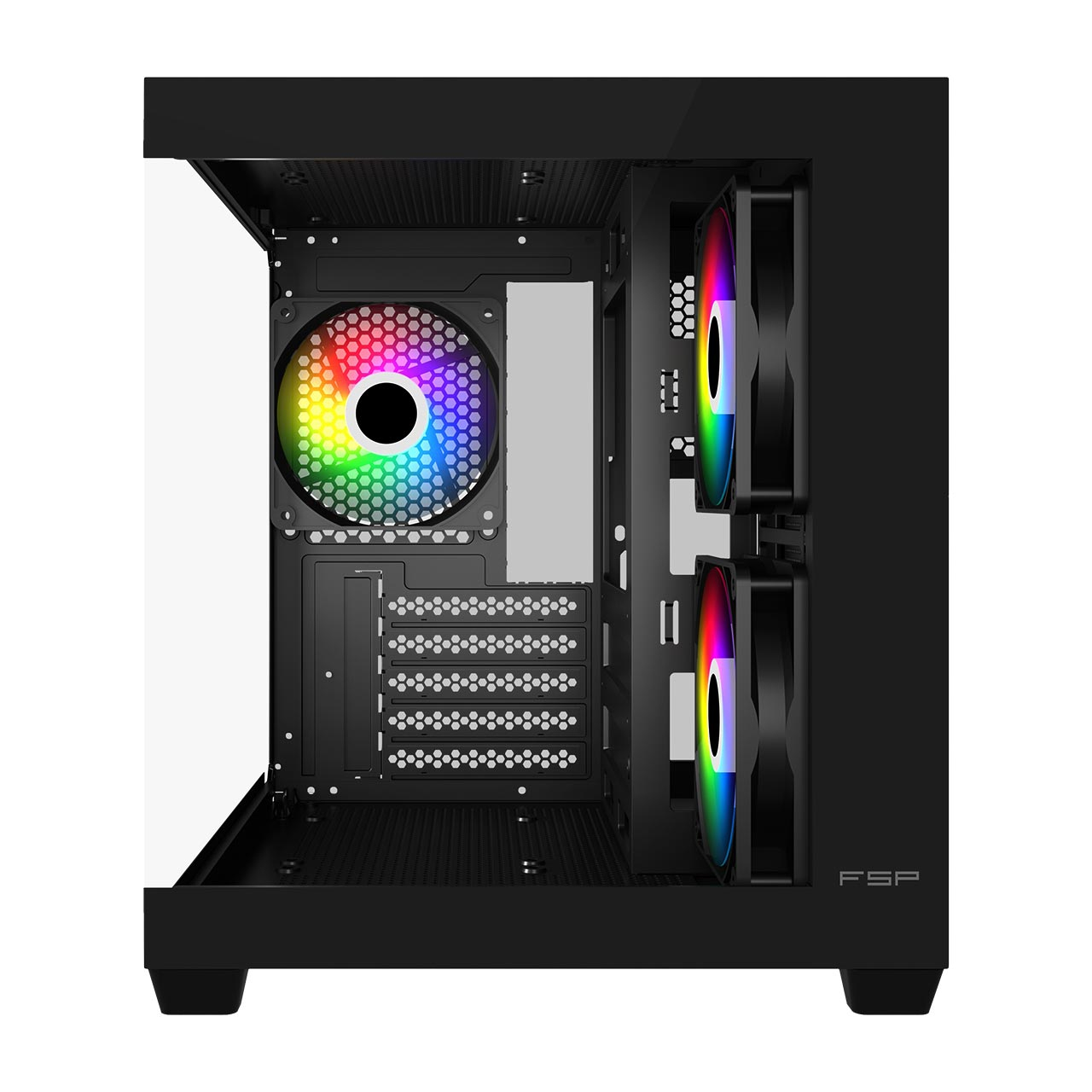

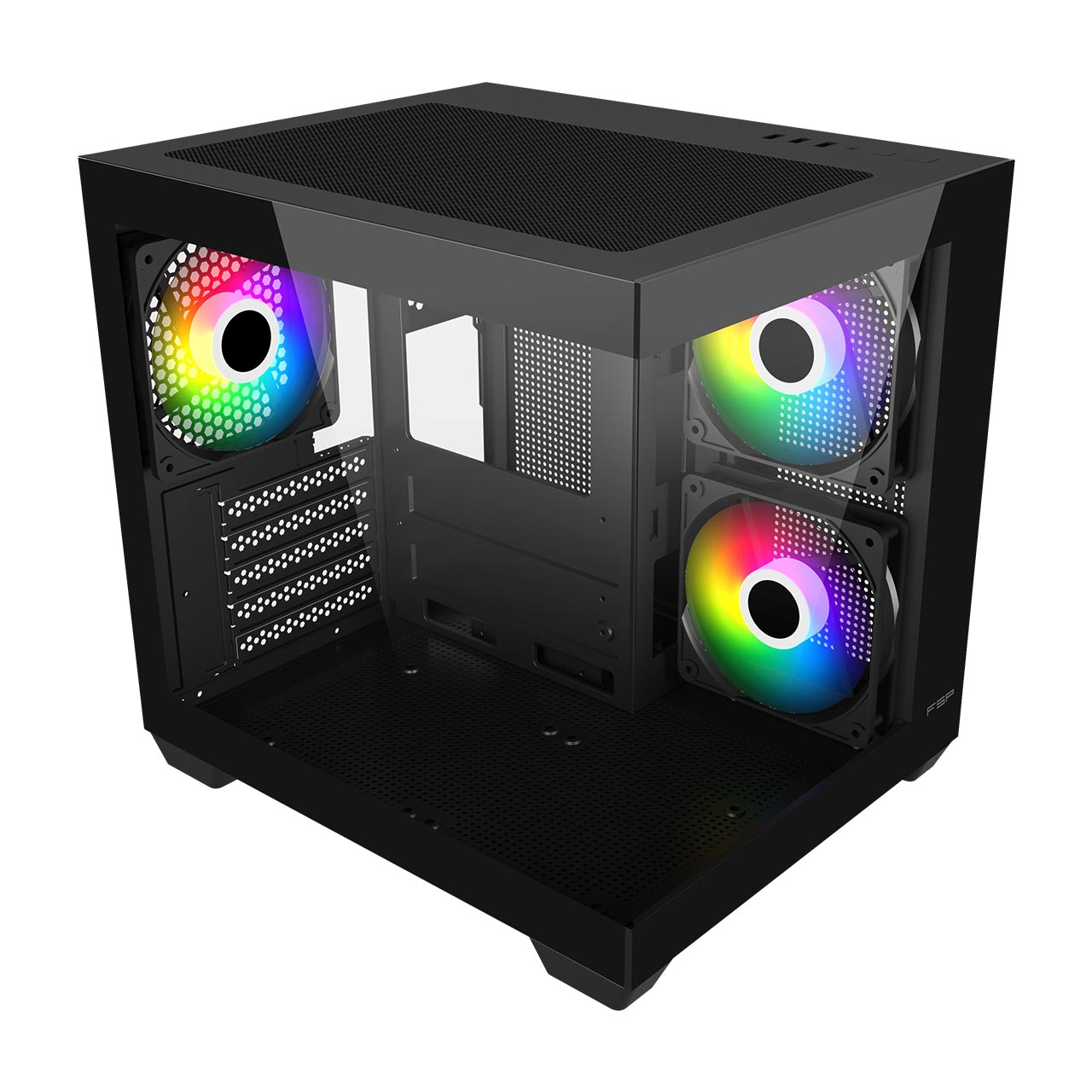

S140-BA Case Mini Tower mITX, mATX Black ARGB
Model S140-BAPart no. POC0000286EAN 845685015761
37 specifications
- TypeSmall Form Factor (SFF)
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity2
- Side fans installed2x 120 mm
- Supported HDD sizes3.5"
Overview
- Type
- Small Form Factor (SFF)
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 2
- Side fans installed
- 2x 120 mm
- Supported HDD sizes
- 3.5"
- Brand
- FSP
- Category
- Computer Case
- Model
- S140-BA
- Part number
- POC0000286
- EAN / UPC
- 845685015761, 4711498481603
- Also known as
- FSP S140-BA Case Mini Tower mITX, mATX Black ARGB
Specifications
37 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Small Form Factor (SFF) |
| Type | PC |
| Material | Glass, SPCC |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 1 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 5 |
| Side window | Yes |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Back, Side |
| Maximum CPU cooler height | 15.5 cm |
| Maximum graphics card length | 32.5 cm |
| Maximum PSU length | 15 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Cooling
| Specification | Value |
|---|---|
| Side fans installed | 2x 120 mm |
| Number of side fans supported (max) | 2 |
| Side fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 2 |
| Bottom fans diameters supported | 120 mm |
| Side radiator sizes supported | 240 mm |
| Bottom radiator sizes supported | 240 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 3.5" |
| SSD form factor | 2.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 275 mm |
| Depth | 333 mm |
| Height | 323 mm |
Packaging data
| Specification | Value |
|---|---|
| LED controller | Yes |
