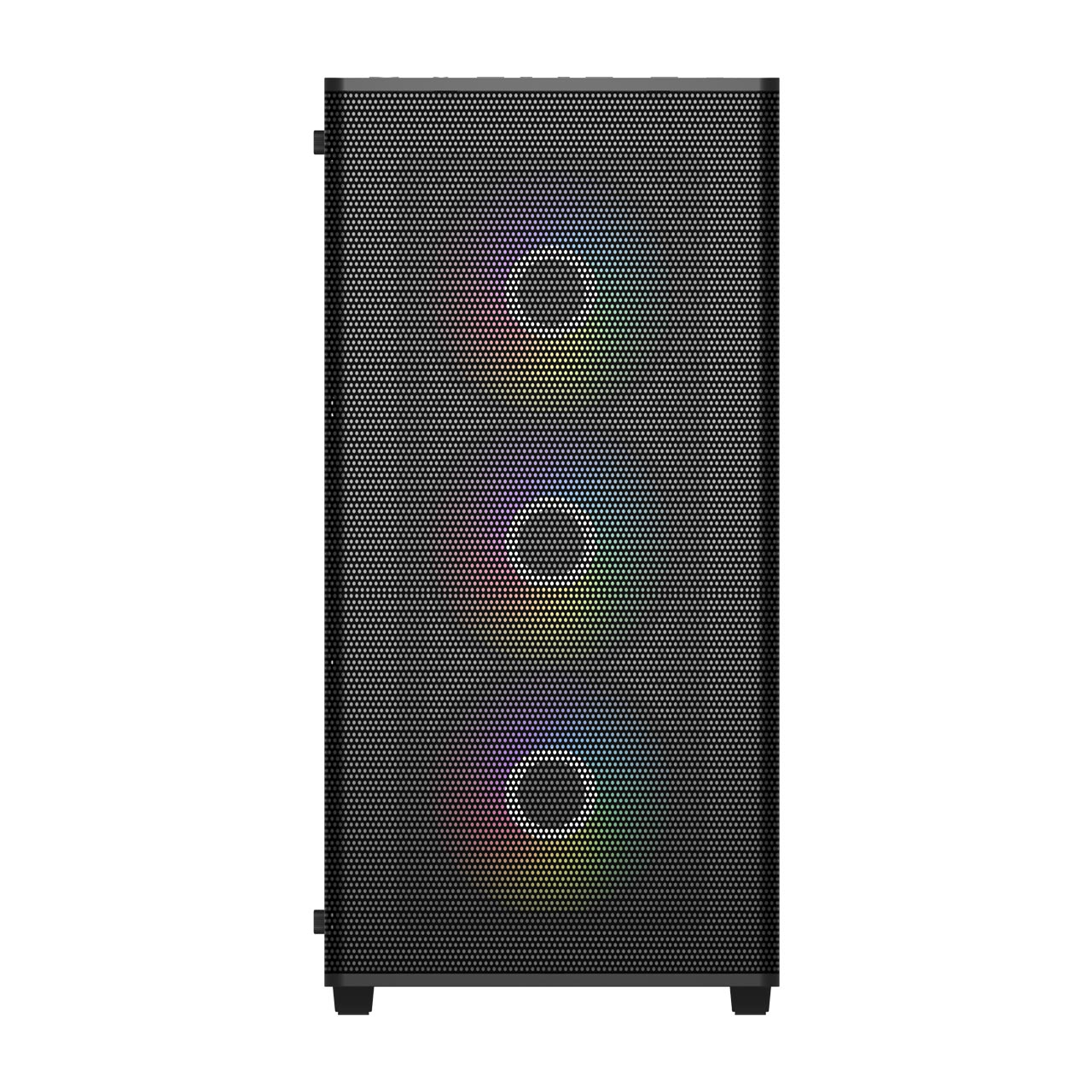

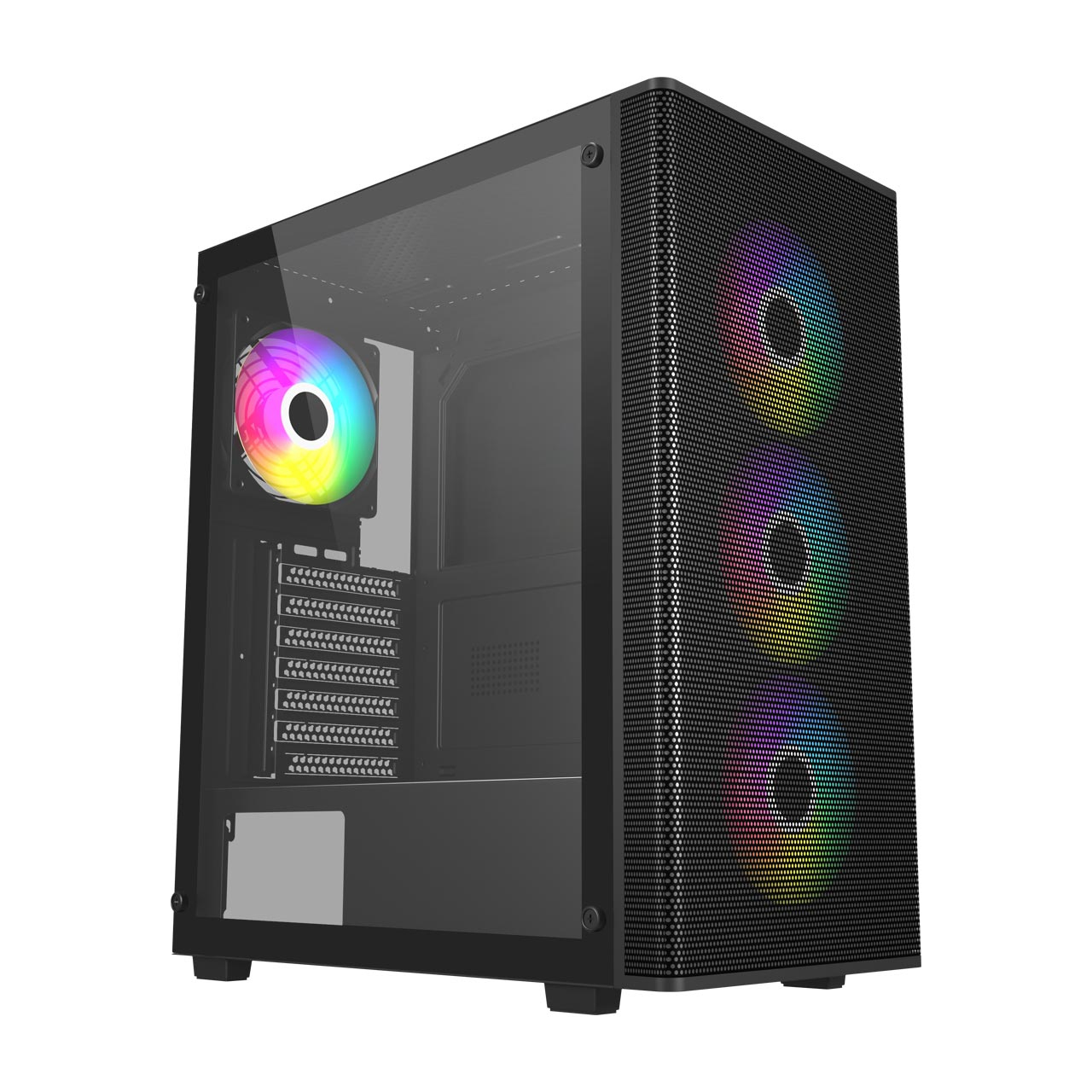

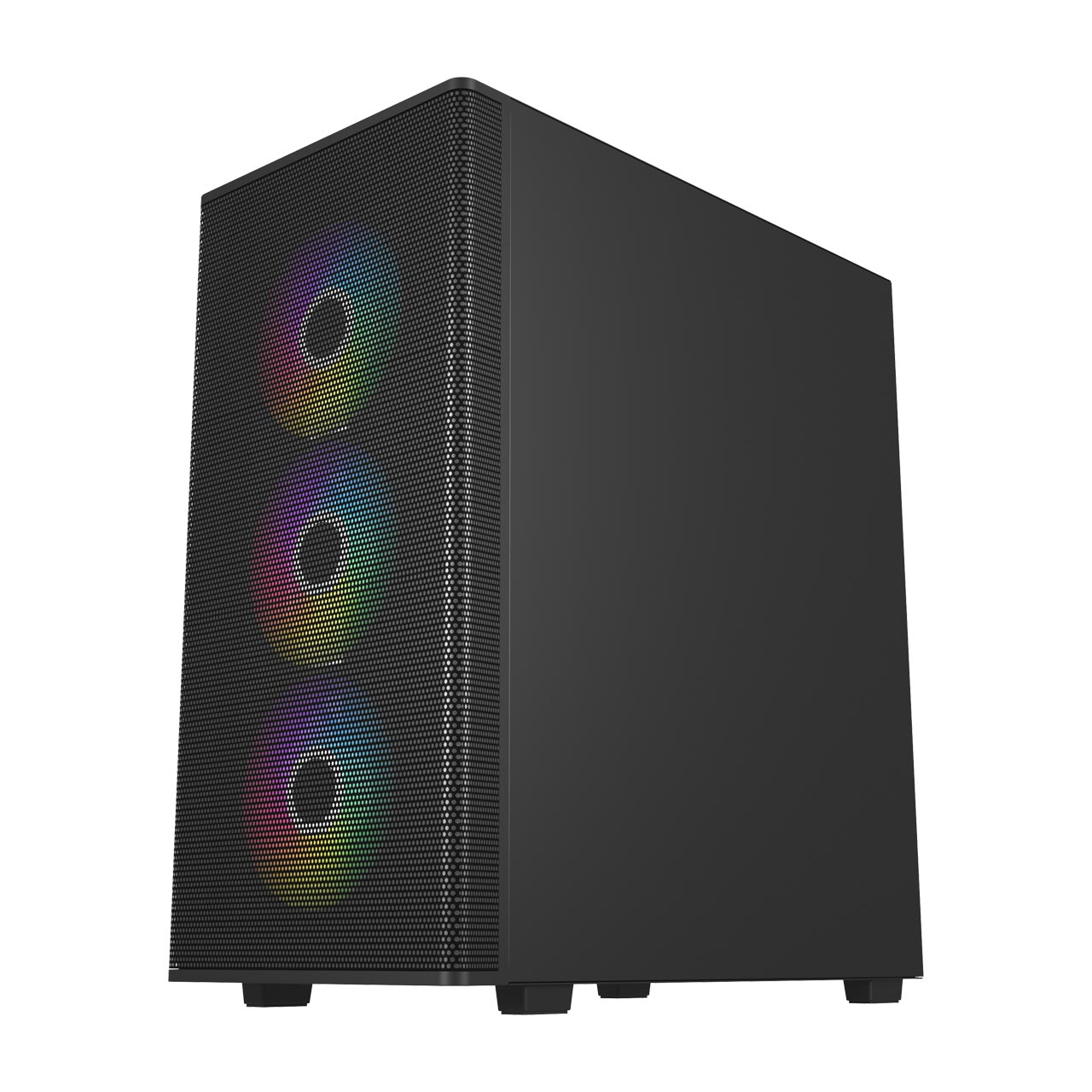

M220-BA Case Midi Tower mATX, ATX Black ARGB
Model M220-BAPart no. POC0000313EAN 845685016201
34 specifications
- TypeMidi Tower
- Weight6.2 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity1
- Front fans installed3x 120 mm
Overview
- Type
- Midi Tower
- Weight
- 6.2 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 1
- Front fans installed
- 3x 120 mm
- Brand
- FSP
- Category
- Computer Case
- Model
- M220-BA
- Part number
- POC0000313
- EAN / UPC
- 845685016201, 4711498482280
- Also known as
- FSP M220-BA Case Midi Tower mATX, ATX Black ARGB
Specifications
34 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Glass, SPCC |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 7 |
| Side window | Yes |
| Illumination location | Back, Front |
| Maximum CPU cooler height | 16.5 cm |
| Maximum graphics card length | 34 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120 mm |
| Front radiator sizes supported | 360 mm |
| Top radiator sizes supported | 240 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 3.5" |
| HDD/SSD combo cage | Yes |
| SSD form factor | 2.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 218 mm |
| Depth | 350 mm |
| Height | 435 mm |
| Weight | 6.2 kg |
Packaging data
| Specification | Value |
|---|---|
| LED controller | Yes |
