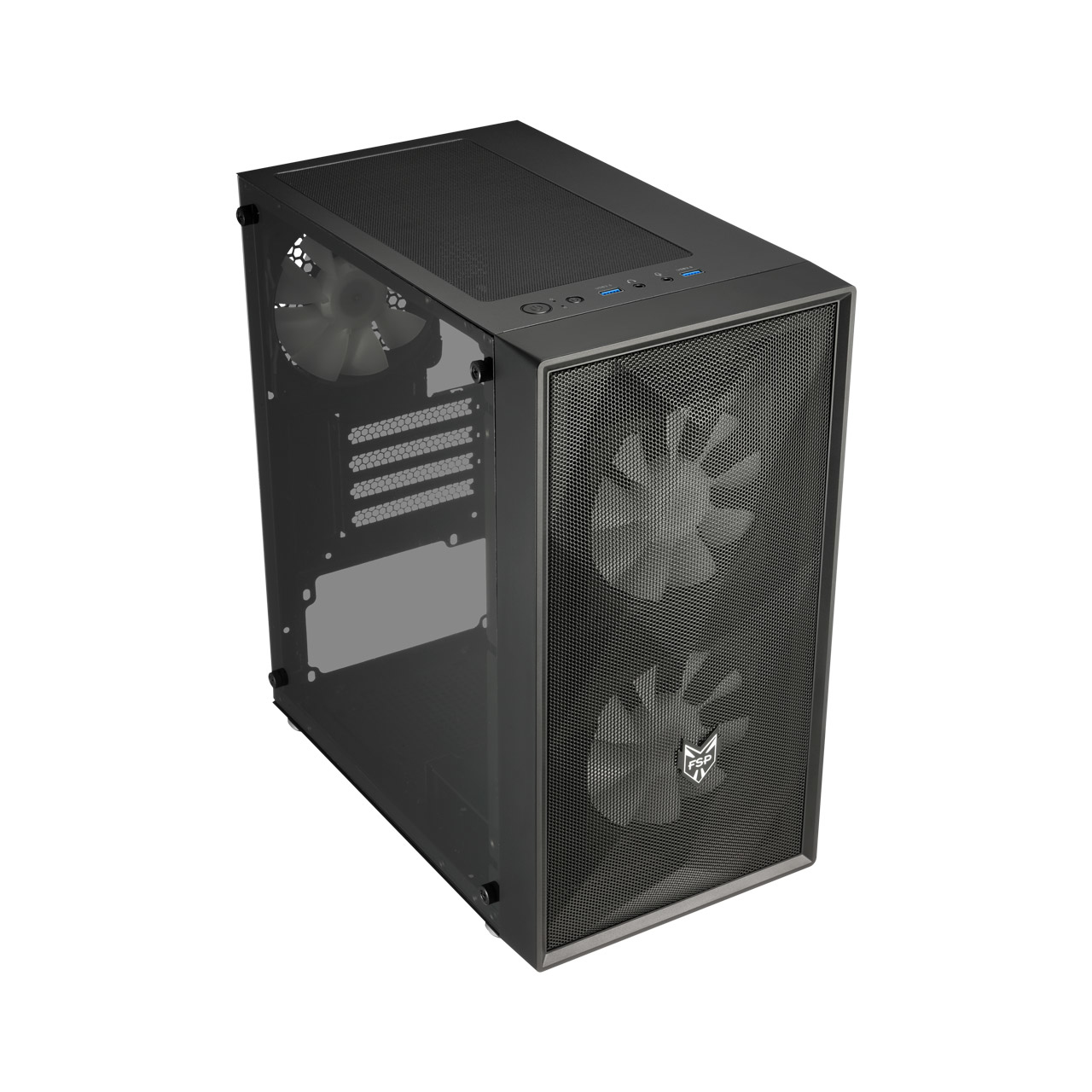

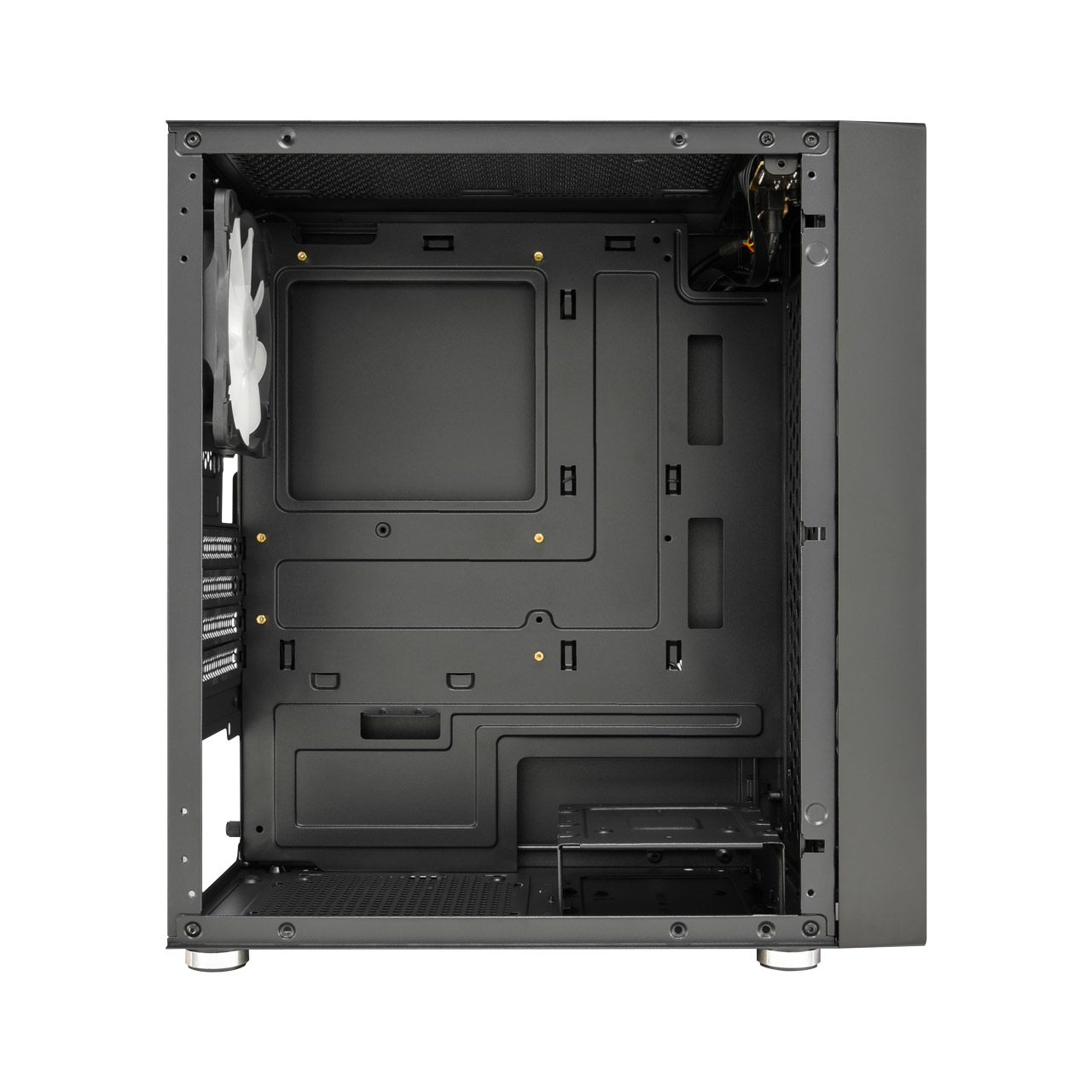

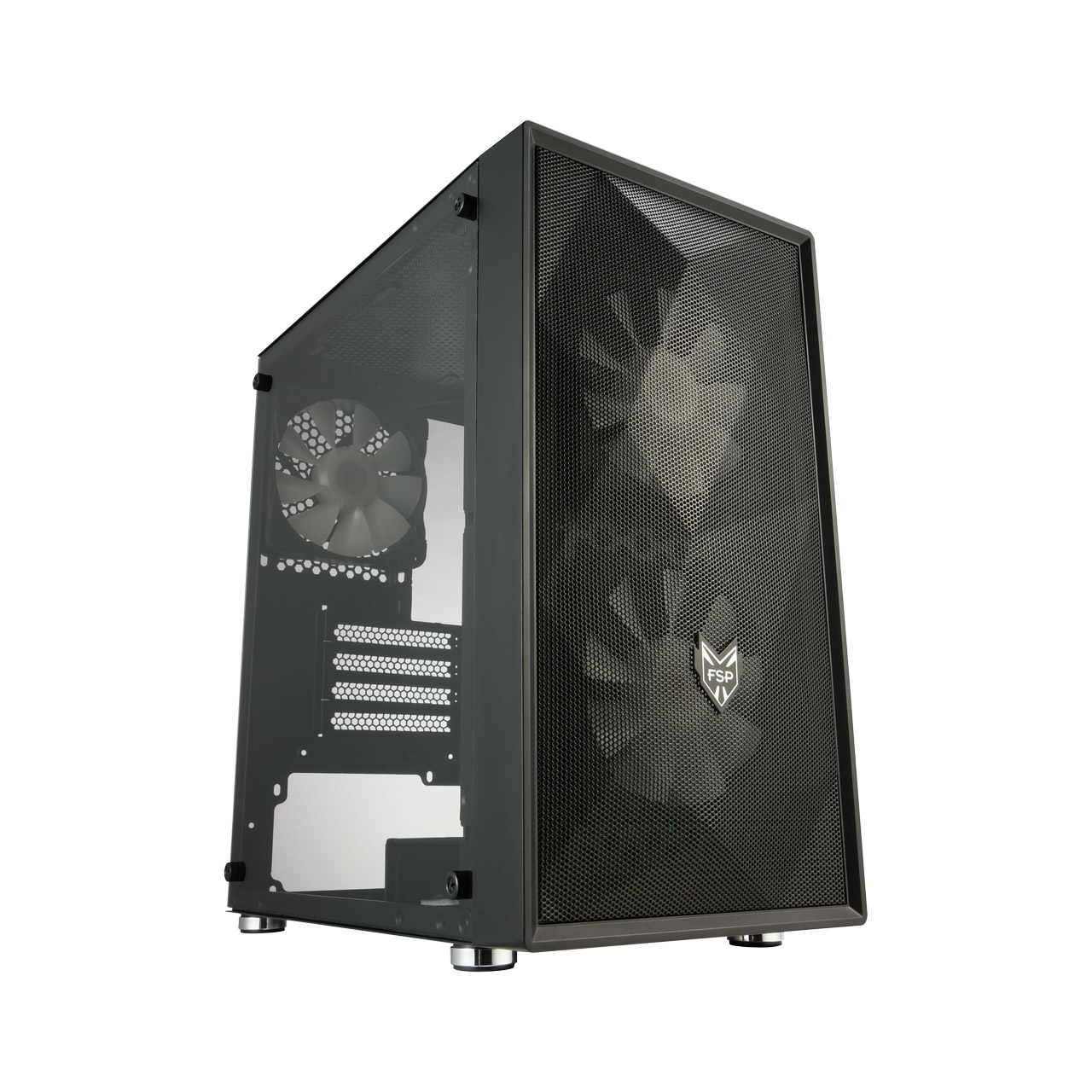

CST130 Basic
Model CST130 BasicPart no. POC0000151EAN 4713224527135
39 specifications
- TypeMini Tower
- Weight3.3 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity0
- Front fans installed2x 120 mm
Overview
- Type
- Mini Tower
- Weight
- 3.3 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Front fans installed
- 2x 120 mm
- Brand
- FSP
- Category
- Computer Case
- Model
- CST130 Basic
- Part number
- POC0000151
- EAN / UPC
- 4713224527135
- Also known as
- FSP CST130 Basic Mini Tower Black
Specifications
39 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Mini Tower |
| Type | PC |
| Material | Acrylic, SPCC |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 1 |
| Number of expansion slots | 4 |
| Cable management | Yes |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 16.5 cm |
| Maximum graphics card length | 30 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 2x 120 mm |
| Number of front fans supported (max) | 2 |
| Front fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120 mm |
| Front radiator sizes supported | 240 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 3.5" |
| HDD/SSD combo cage | Yes |
| SSD form factor | 2.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 350 mm |
| Height | 390 mm |
| Weight | 3.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 4.3 kg |
