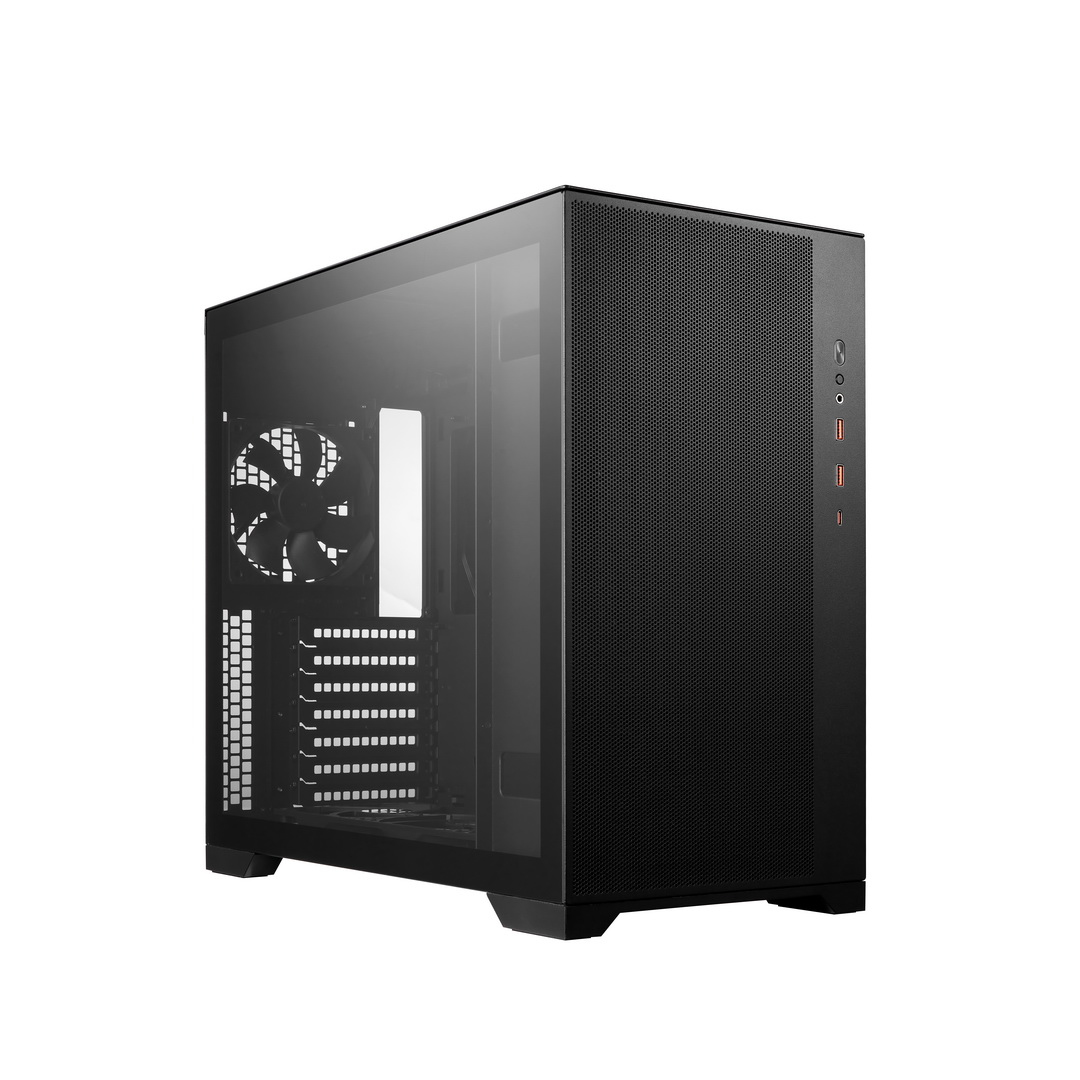

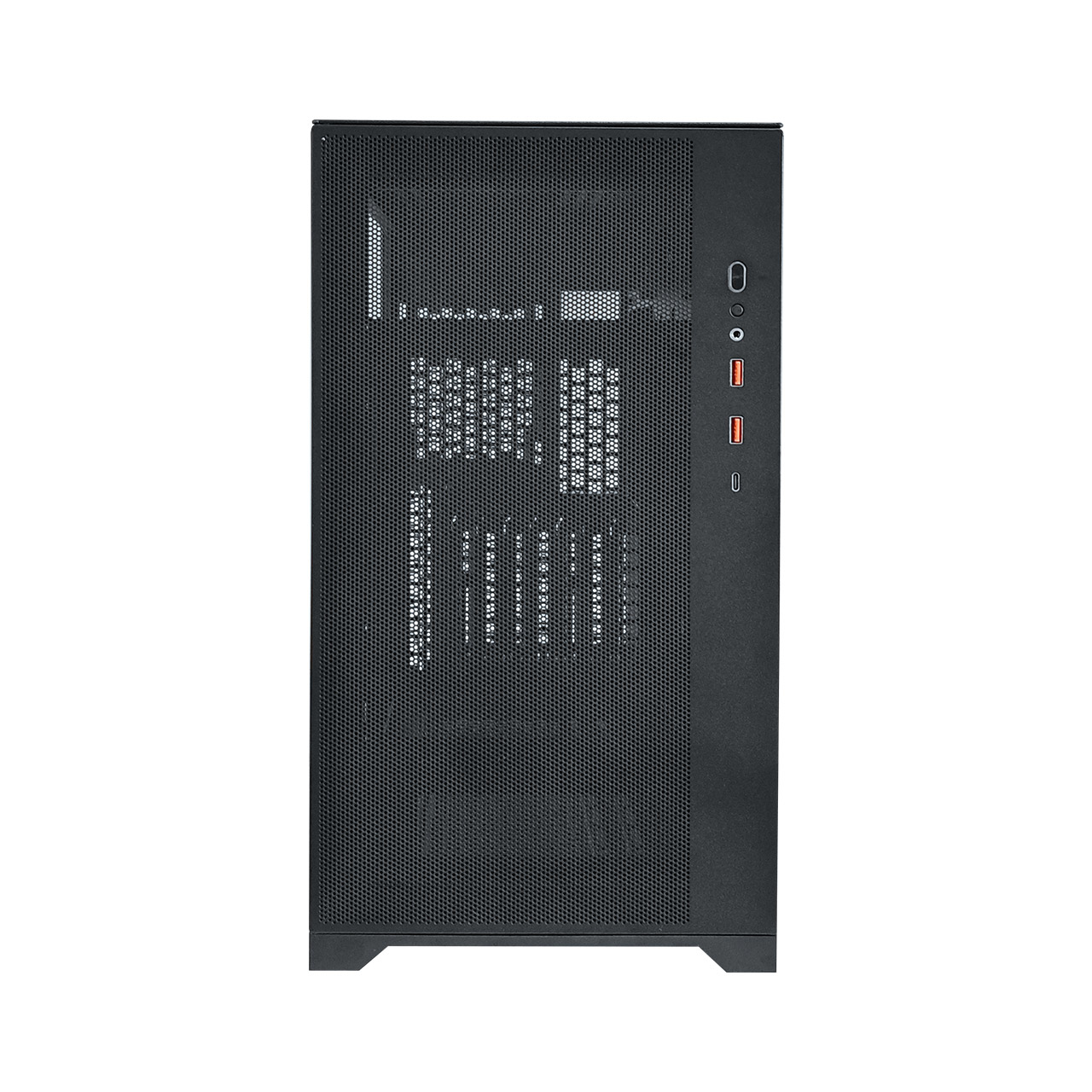

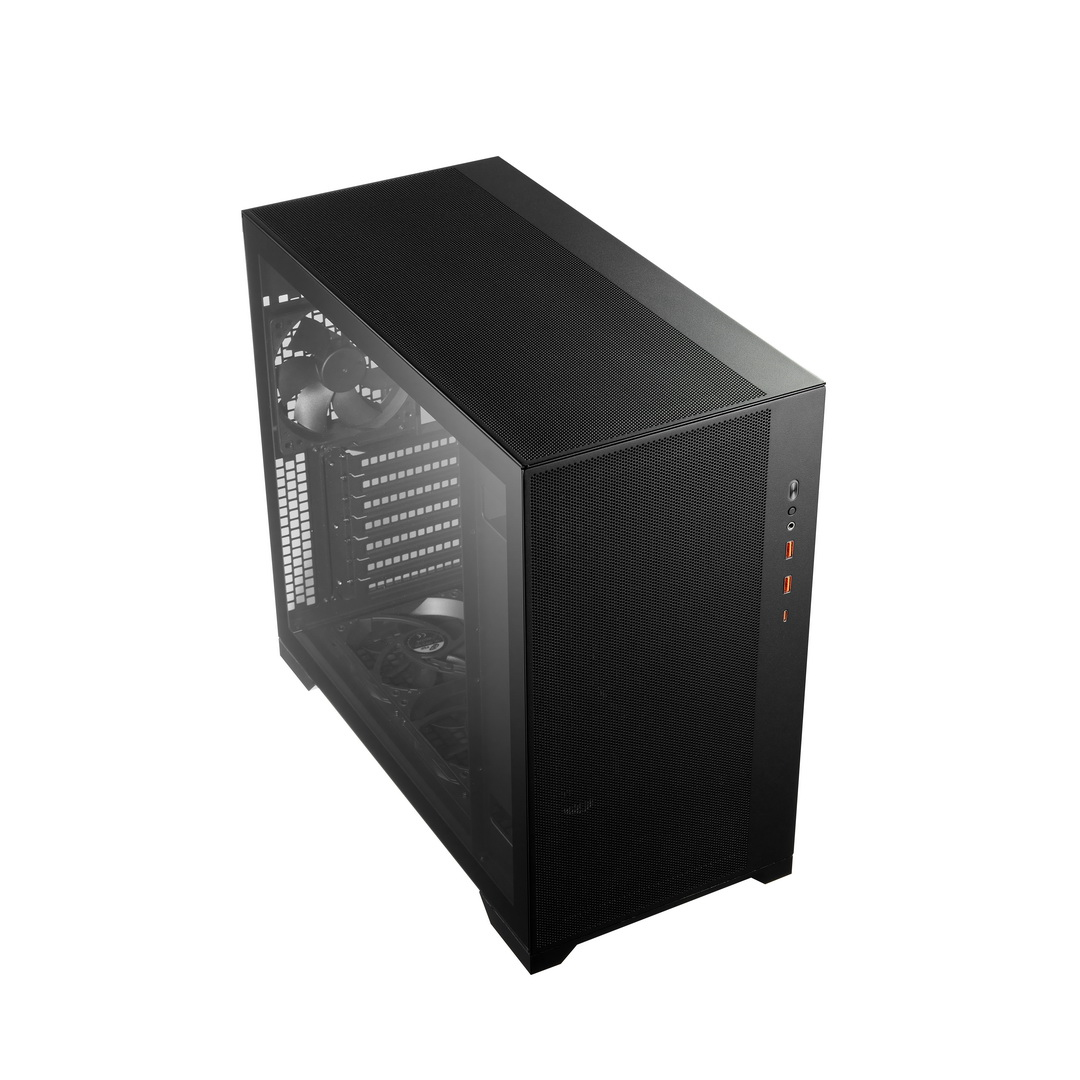

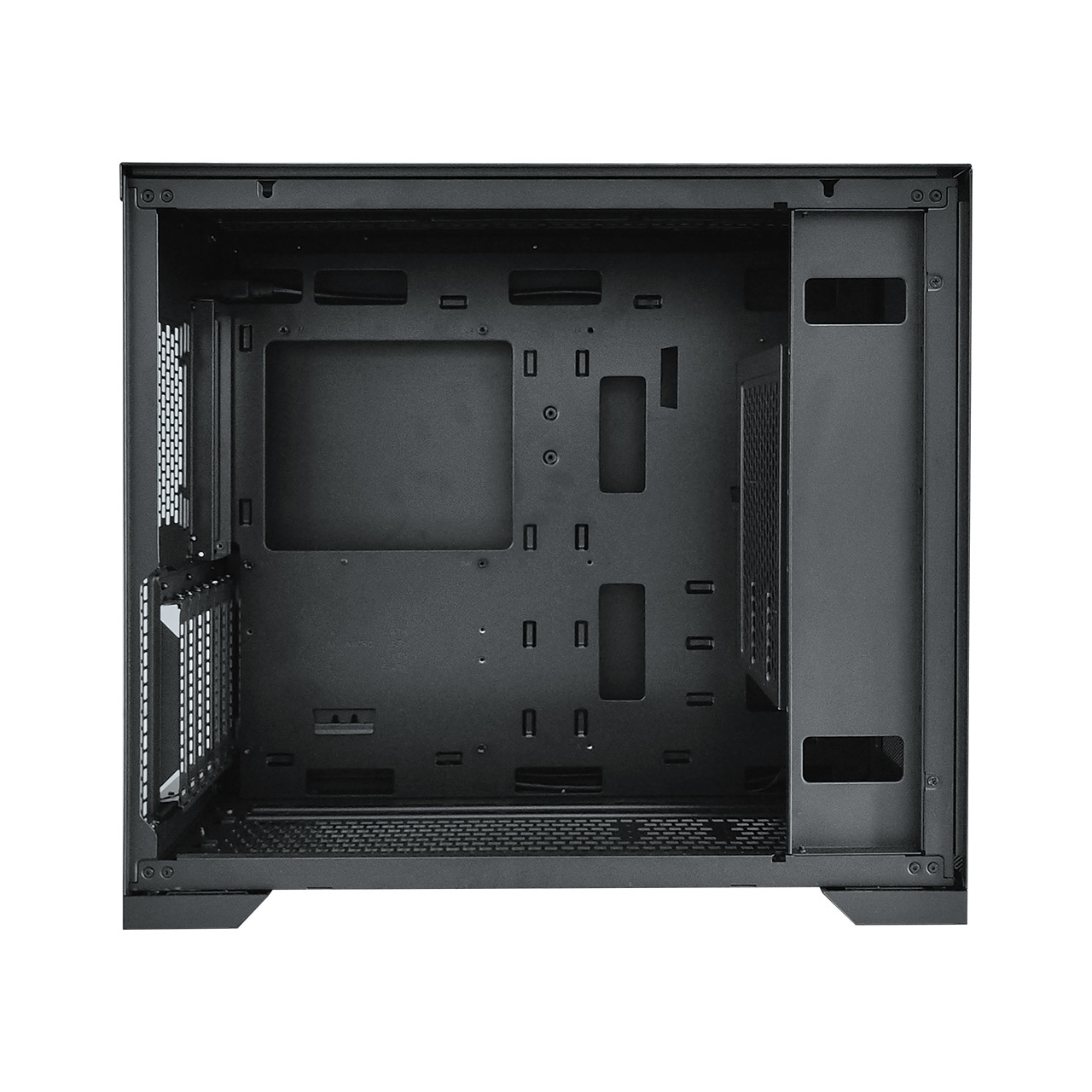

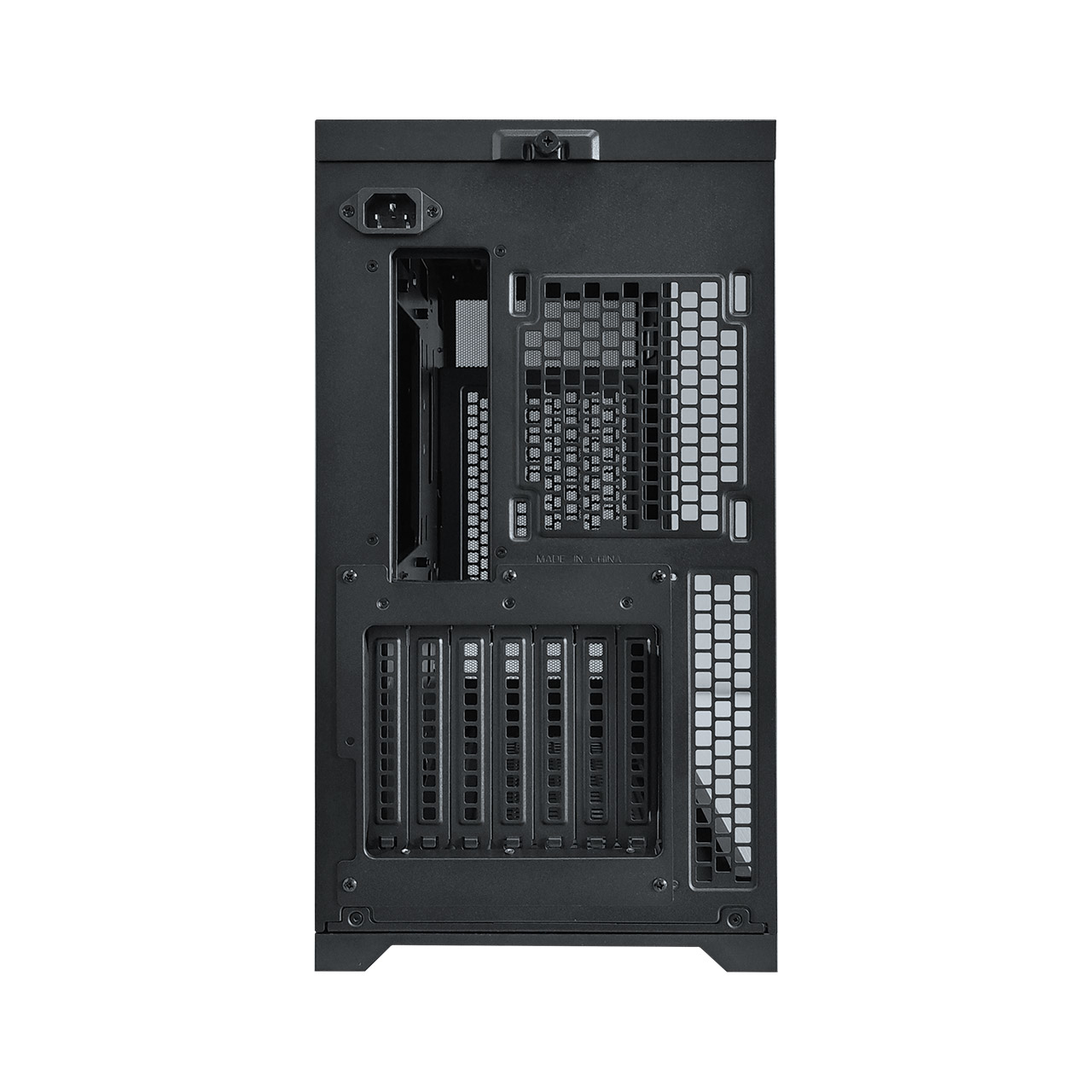

CMT580B Tower Black
Model CMT580BPart no. POC0000163EAN 4713224527876
44 specifications
- TypeTower
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity0
- Rear fans installed1x 120 mm
- Supported HDD sizes3.5"
Overview
- Type
- Tower
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Rear fans installed
- 1x 120 mm
- Supported HDD sizes
- 3.5"
- Brand
- FSP
- Category
- Computer Case
- Model
- CMT580B
- Part number
- POC0000163
- EAN / UPC
- 4713224527876
- Also known as
- FSP CMT580B Tower Black
Specifications
44 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Tower |
| Type | PC |
| Material | SPCC, Tempered glass |
| Product colour | Black |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 7 |
| Tempered glass panel(s) | Yes |
| Cable management | Yes |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 16 cm |
| Maximum graphics card length | 33.5 cm |
| Maximum PSU length | 17 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Bottom fans installed | 3x 120 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans diameters supported | 120,130 mm |
| Bottom radiator sizes supported | 280,360 mm |
| Top radiator sizes supported | 280,360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 3.5" |
| HDD/SSD combo cage | Yes |
| SSD form factor | 2.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 450 mm |
| Height | 408 mm |
| Material thickness | 0.8 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 500 mm |
| Package depth | 288 mm |
| Package height | 488 mm |
| Package weight | 8.8 kg |
