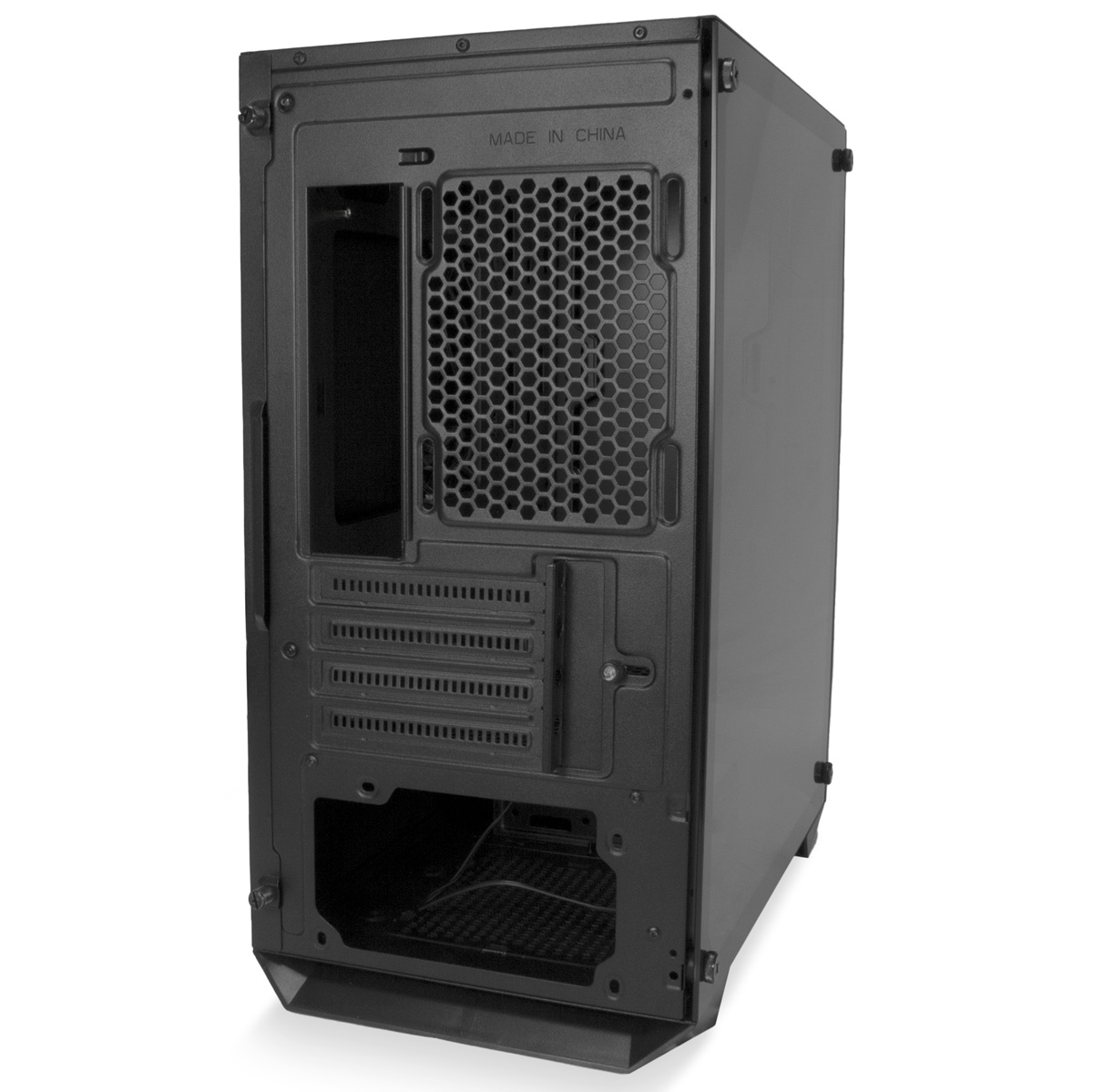

M235 Micro Tower Black
Model M235Part no. DG-CHA-M235-0EAN 2530012412396
50 specifications
- TypeMicro Tower
- Weight4 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity1
- Number of front fans supported (max)3
Overview
- Type
- Micro Tower
- Weight
- 4 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 1
- Number of front fans supported (max)
- 3
- Brand
- Deep Gaming
- Category
- Computer Case
- Model
- M235
- Part number
- DG-CHA-M235-0
- EAN / UPC
- 2530012412396, 8436556142208
- Also known as
- Deep Gaming M235 Micro Tower Black
Specifications
50 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Micro Tower |
| Type | PC |
| Material | ABS |
| Product colour | Black |
| Supported motherboard form factors | ITX, micro ATX |
| Number of 3.5" bays | 1 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 2 |
| Number of internal 3.5" bays | 1 |
| Number of expansion slots | 4 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination location | Front |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| On/off button | Yes |
| RGB control button | Yes |
| Reset button | Yes |
| LED indicators | Yes |
| Maximum CPU cooler height | 15 cm |
| Maximum graphics card length | 30 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 2 |
| Bottom fans diameters supported | 120 mm |
| Liquid cooling capability | Yes |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
| SSD form factor | 2.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 335 mm |
| Height | 405 mm |
| Weight | 4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 210 mm |
| Package depth | 390 mm |
| Package height | 430 mm |
