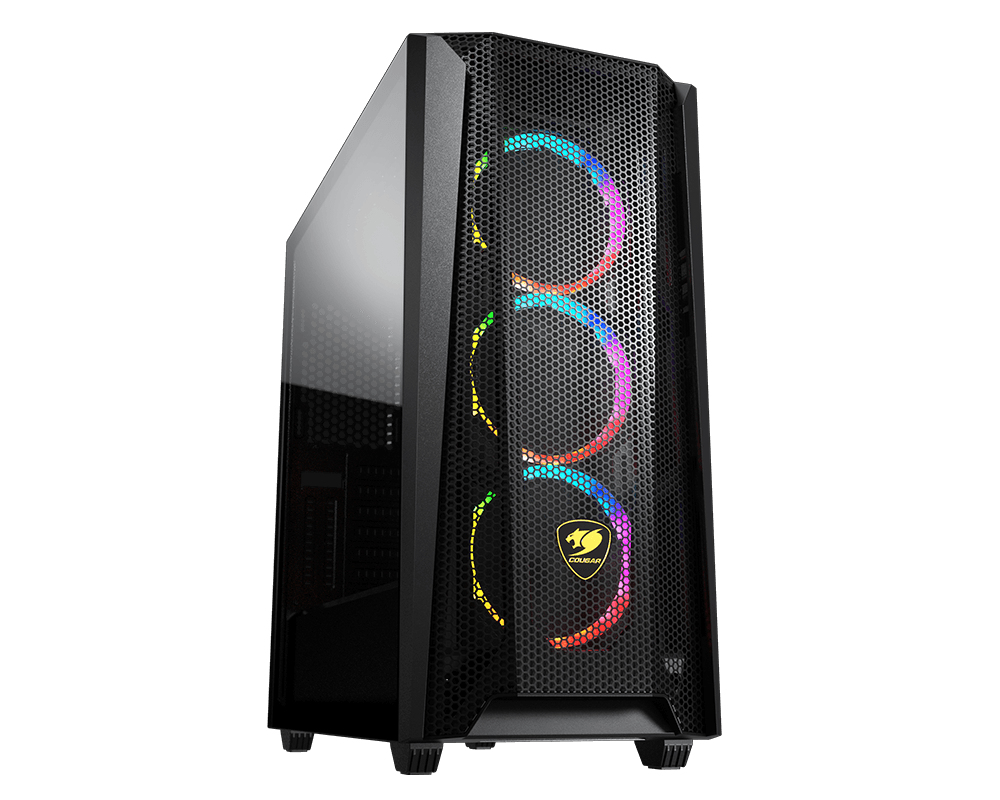

MX660 Mesh RGB
Model MX660 Mesh RGBPart no. 385BMS0.0004EAN 4710483771026
40 specifications
- TypeDesktop
- Weight6.3 kg
- ColourBlack
- Power supply includedNo
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
- Front fans installed3x 140 mm
Overview
- Type
- Desktop
- Weight
- 6.3 kg
- Colour
- Black
- Power supply included
- No
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Front fans installed
- 3x 140 mm
- Brand
- COUGAR
- Category
- Computer Case
- Model
- MX660 Mesh RGB
- Part number
- 385BMS0.0004
- EAN / UPC
- 4710483771026
- Also known as
- COUGAR MX660 Mesh RGB Desktop Black
Specifications
40 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Desktop |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX, CEB, EATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 5 |
| Number of expansion slots | 9 |
| Side window | Yes |
| On/off button | Yes |
| RGB control button | Yes |
| Maximum CPU cooler height | 16.5 cm |
| Maximum graphics card length | 41 cm |
| Maximum PSU length | 20 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 3x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Number of side fans supported (max) | 1 |
| Side fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Liquid cooling capability | Yes |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,140,240,280,360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 213 mm |
| Depth | 495 mm |
| Height | 474 mm |
| Weight | 6.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 270 mm |
| Package depth | 535 mm |
| Package height | 520 mm |
| Package weight | 7.5 kg |
