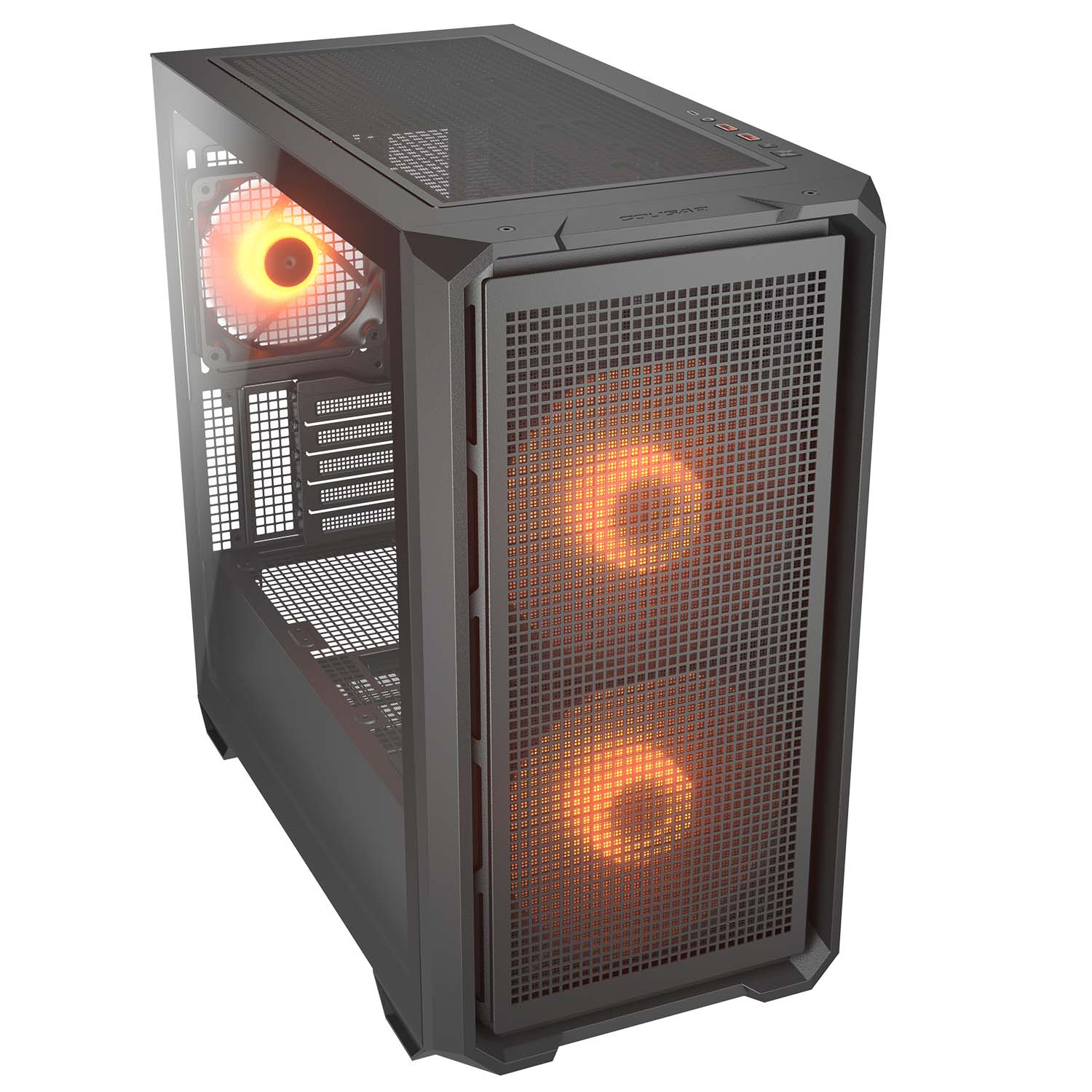

MX600 MINI
Model MX600 MINIPart no. 385GC90.0001
42 specifications
- TypeMini Tower
- Weight7.6 kg
- ColourBlack
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
- Front fans installed2x 160 mm
- Supported HDD sizes3.5"
Overview
- Type
- Mini Tower
- Weight
- 7.6 kg
- Colour
- Black
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Front fans installed
- 2x 160 mm
- Supported HDD sizes
- 3.5"
- Brand
- COUGAR
- Category
- Computer Case
- Model
- MX600 MINI
- Part numbers
- 385GC90.0001, 385GC90.0002
- Also known as
- COUGAR MX600 MINI Mini Tower Black
Specifications
42 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Form factor | Mini Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 3 |
| Number of expansion slots | 5 |
| Illumination | Yes |
| Illumination location | Case fans |
| Anti-dust filter | Yes |
| RGB control button | Yes |
| Maximum CPU cooler height | 17.5 cm |
| Maximum graphics card length | 38 cm |
| Maximum PSU length | 18 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Type-C ports quantity | 1 |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 2x 160 mm |
| Number of front fans supported (max) | 2 |
| Front fans diameters supported | 160 mm |
| Number of side fans supported (max) | 1 |
| Side fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Fan speed | 360 - 1540 RPM |
| Side radiator sizes supported | 120,240 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,140,240,280,360 mm |
| Pulse-width modulation (PWM) support | Yes |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 3.5" |
| SSD form factor | 2.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 232 mm |
| Depth | 456 mm |
| Height | 445 mm |
| Weight | 7.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 294 mm |
| Package depth | 504 mm |
| Package height | 508 mm |
| Package weight | 8.8 kg |
