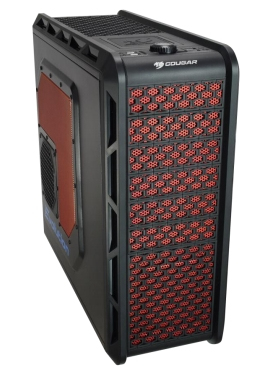

COUGAR Evolution BO
Model Evolution BOPart no. 6GR1BO-U3LEAN 4710918404277
45 specifications
- TypeFull Tower
- ColourBlack, Red
- Power supply includedNo
- USB 2.0 ports quantity2
- Supported HDD sizes2.5,3.5"
- Width223 mm
Overview
- Type
- Full Tower
- Colour
- Black, Red
- Power supply included
- No
- USB 2.0 ports quantity
- 2
- Supported HDD sizes
- 2.5,3.5"
- Width
- 223 mm
- Brand
- COUGAR
- Category
- Computer Case
- Model
- Evolution BO
- Part number
- 6GR1BO-U3L
- EAN / UPC
- 4710918404277
- Also known as
- COUGAR Evolution BO Full Tower Black, Red
Specifications
45 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Full Tower |
| Type | PC |
| Material | Steel |
| Product colour | Black, Red |
| Supported motherboard form factors | ATX, micro ATX |
| Number of 3.5" bays | 4 |
| Number of 5.25" bays | 6 |
| Number of 2.5" bays | 4 |
| Number of internal 3.5" bays | 4 |
| Number of expansion slots | 8 |
| Side window | Yes |
| Suitable for | Gaming |
| Built-in speaker(s) | No |
| Cable management | Yes |
| Transport wheels | No |
| Reset button | Yes |
| Maximum CPU cooler height | 18 cm |
| Maximum graphics card length | 30.5 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 2 |
| Front fans diameters supported | 120 mm |
| Number of side fans supported (max) | 1 |
| Side fans diameters supported | 140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 1 |
| Bottom fans diameters supported | 120,140 mm |
| Liquid cooling capability | Yes |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Card reader integrated | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 223 mm |
| Depth | 514 mm |
| Height | 523 mm |
| Material thickness | 0.8 mm |
Other features
| Specification | Value |
|---|---|
| Backplanes support | No |
| Built-in HDD dock station | Yes |
| On/off switch | Yes |
