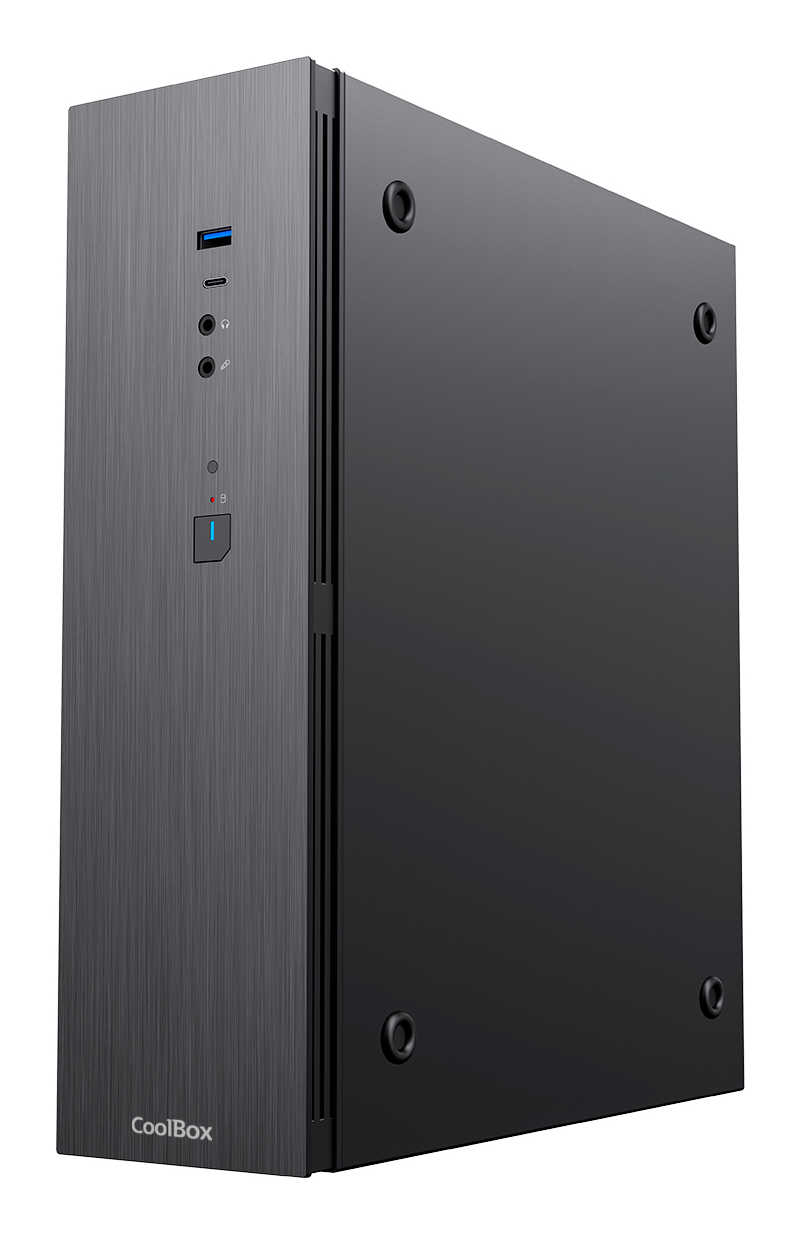

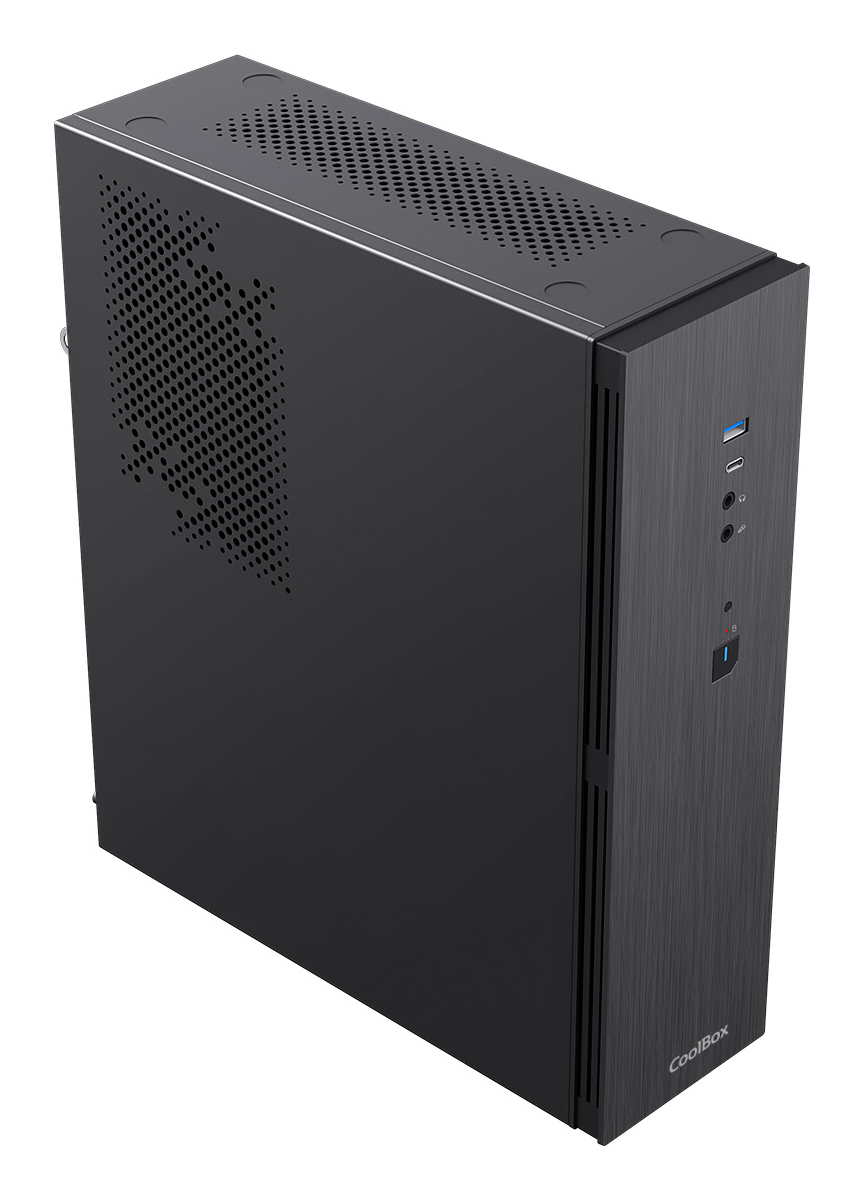

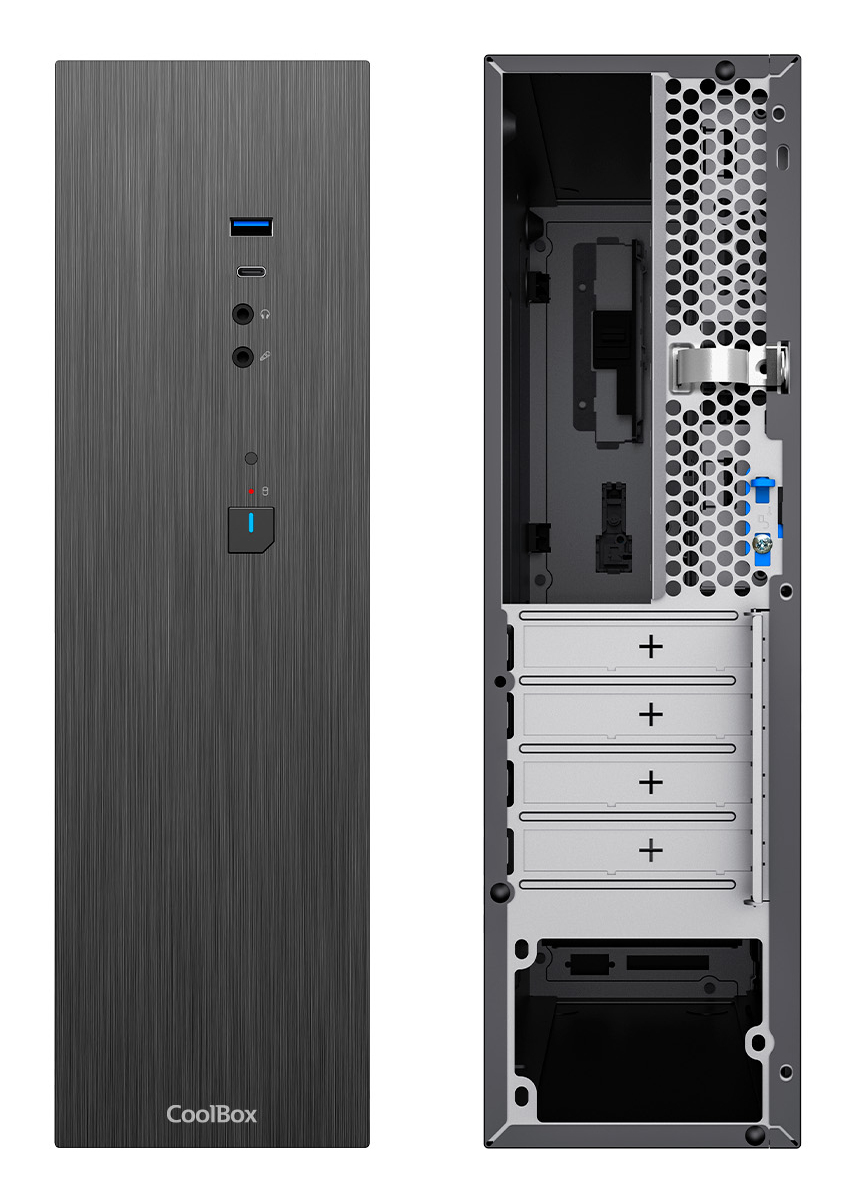

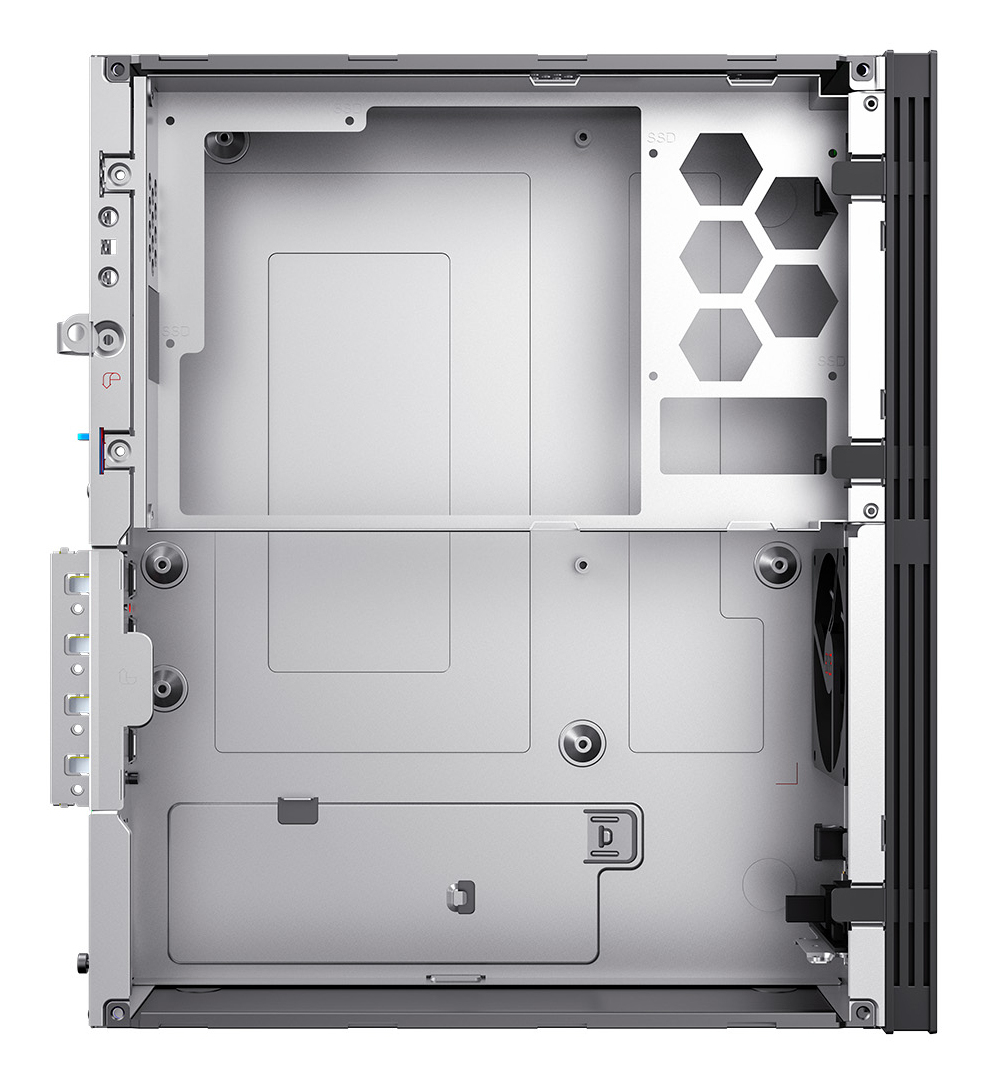

PC micro ATX T370 Slim
Model PC micro ATX T370 SlimPart no. COO-PCT370-1EAN 8436624420641
39 specifications
- TypeLow Profile (Slimline)
- Weight3.15 kg
- ColourBlack
- Power supply includedYes
- USB 2.0 ports quantity0
- Front fans installed1x 80 mm
Overview
- Type
- Low Profile (Slimline)
- Weight
- 3.15 kg
- Colour
- Black
- Power supply included
- Yes
- USB 2.0 ports quantity
- 0
- Front fans installed
- 1x 80 mm
- Brand
- CoolBox
- Category
- Computer Case
- Model
- PC micro ATX T370 Slim
- Part numbers
- COO-PCT370-1, COO-PCT370-BZ
- EAN / UPC
- 8436624420641, 8436624420658
- Also known as
- CoolBox PC micro ATX T370 Slim Low Profile (Slimline) Black 500 W
Specifications
39 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Form factor | Low Profile (Slimline) |
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), SGCC, SPCC |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 0 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 2 |
| Number of storage drives supported | 2 |
| Number of expansion slots | 4 |
| Suitable for | Home/Office |
| Cable management | Yes |
| On/off button | Yes |
| Reset button | Yes |
| LED indicators | Yes |
| Maximum CPU cooler height | 7.5 cm |
| Maximum graphics card length | 25.1 cm |
| Maximum PSU length | 17.5 cm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power supply
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Power supply | 500 W |
| Supported power supply form factors | TFX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 1x 80 mm |
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 80 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 95 mm |
| Depth | 266 mm |
| Height | 327 mm |
| Weight | 3.15 kg |
| Material thickness | 0.6 mm |
