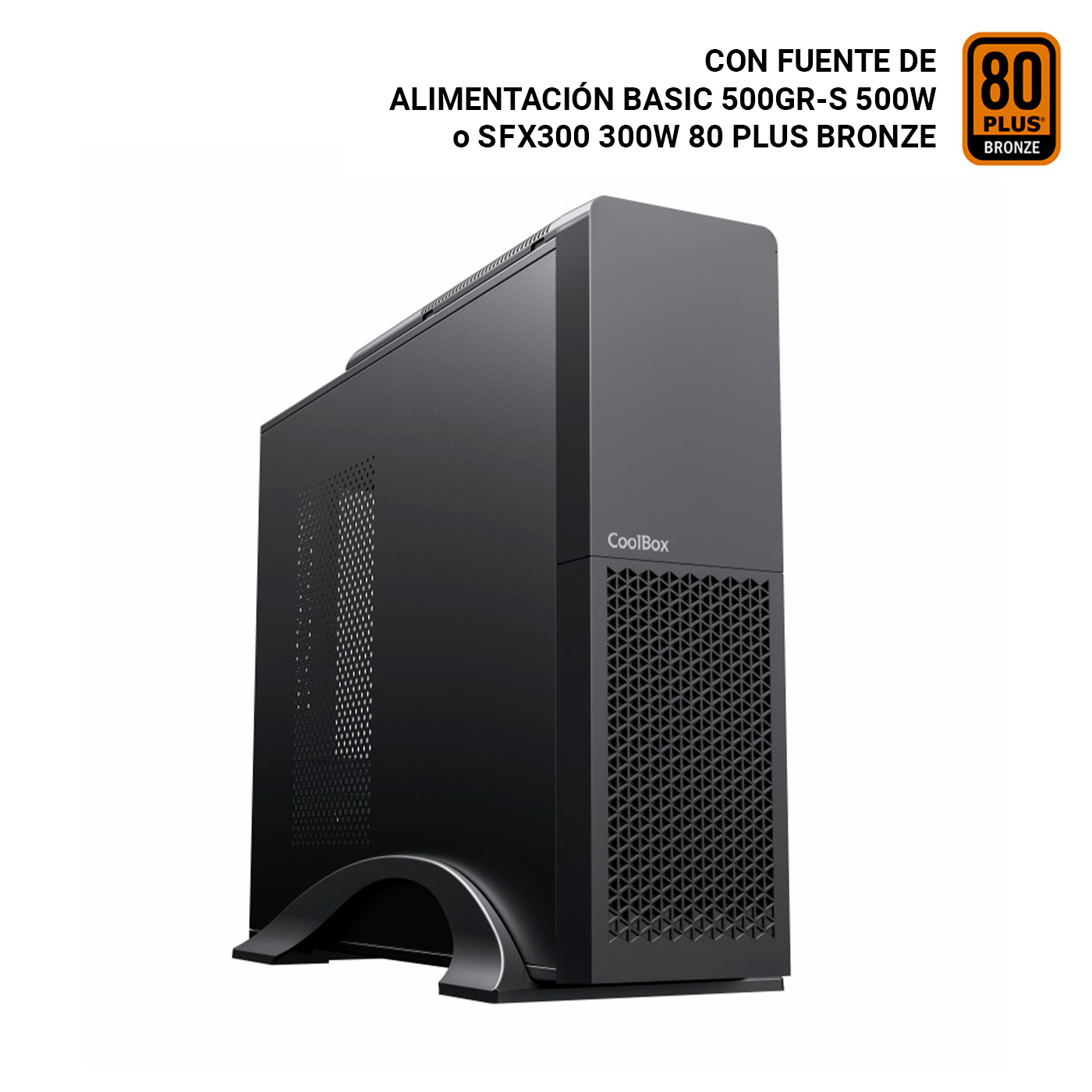

PC micro ATX T313 Slim
Model PC micro ATX T313 SlimPart no. COO-PCT313-BZEAN 8436624420634
38 specifications
- TypeLow Profile (Slimline)
- Weight3.05 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity0
- Number of top fans supported (max)1
Overview
- Type
- Low Profile (Slimline)
- Weight
- 3.05 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Number of top fans supported (max)
- 1
- Brand
- CoolBox
- Category
- Computer Case
- Model
- PC micro ATX T313 Slim
- Part number
- COO-PCT313-BZ
- EAN / UPC
- 8436624420634
- Also known as
- CoolBox PC micro ATX T313 Slim Low Profile (Slimline) Black
Specifications
38 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Form factor | Low Profile (Slimline) |
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), SGCC, SPCC |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 1 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 2 |
| Number of internal 3.5" bays | 1 |
| Number of storage drives supported | 3 |
| Number of expansion slots | 4 |
| Suitable for | Home/Office |
| On/off button | Yes |
| Reset button | Yes |
| LED indicators | Yes |
| Maximum CPU cooler height | 7.8 cm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Supported power supply form factors | SFX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of top fans supported (max) | 1 |
| Top fans diameters supported | 80 mm |
| Number of bottom fans supported (max) | 1 |
| Bottom fans diameters supported | 60 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 400 mm |
| Height | 314 mm |
| Weight | 3.05 kg |
| Material thickness | 0.5 mm |
