PC Gaming GA300 Grid Line
Model PC Gaming GA300 Grid LinePart no. COO-CHA-GA300B-0EAN 8436624420665
57 specifications
- TypeTower
- Weight4.28 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity0
- Front fans installed3x 120 mm
Overview
- Type
- Tower
- Weight
- 4.28 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Front fans installed
- 3x 120 mm
- Brand
- CoolBox
- Category
- Computer Case
- Model
- PC Gaming GA300 Grid Line
- Part number
- COO-CHA-GA300B-0
- EAN / UPC
- 8436624420665
- Also known as
- CoolBox PC Gaming GA300 Grid Line Tower Black
Specifications
57 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Form factor | Tower |
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), SPCC |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 1 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 3 |
| Number of internal 3.5" bays | 1 |
| Number of storage drives supported | 4 |
| Number of expansion slots | 7 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Case fans |
| Tempered glass panel(s) | Yes |
| Cable management | Yes |
| On/off button | Yes |
| RGB control button | Yes |
| Reset button | Yes |
| LED indicators | Yes |
| Maximum CPU cooler height | 16.4 cm |
| Maximum graphics card length | 34 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |

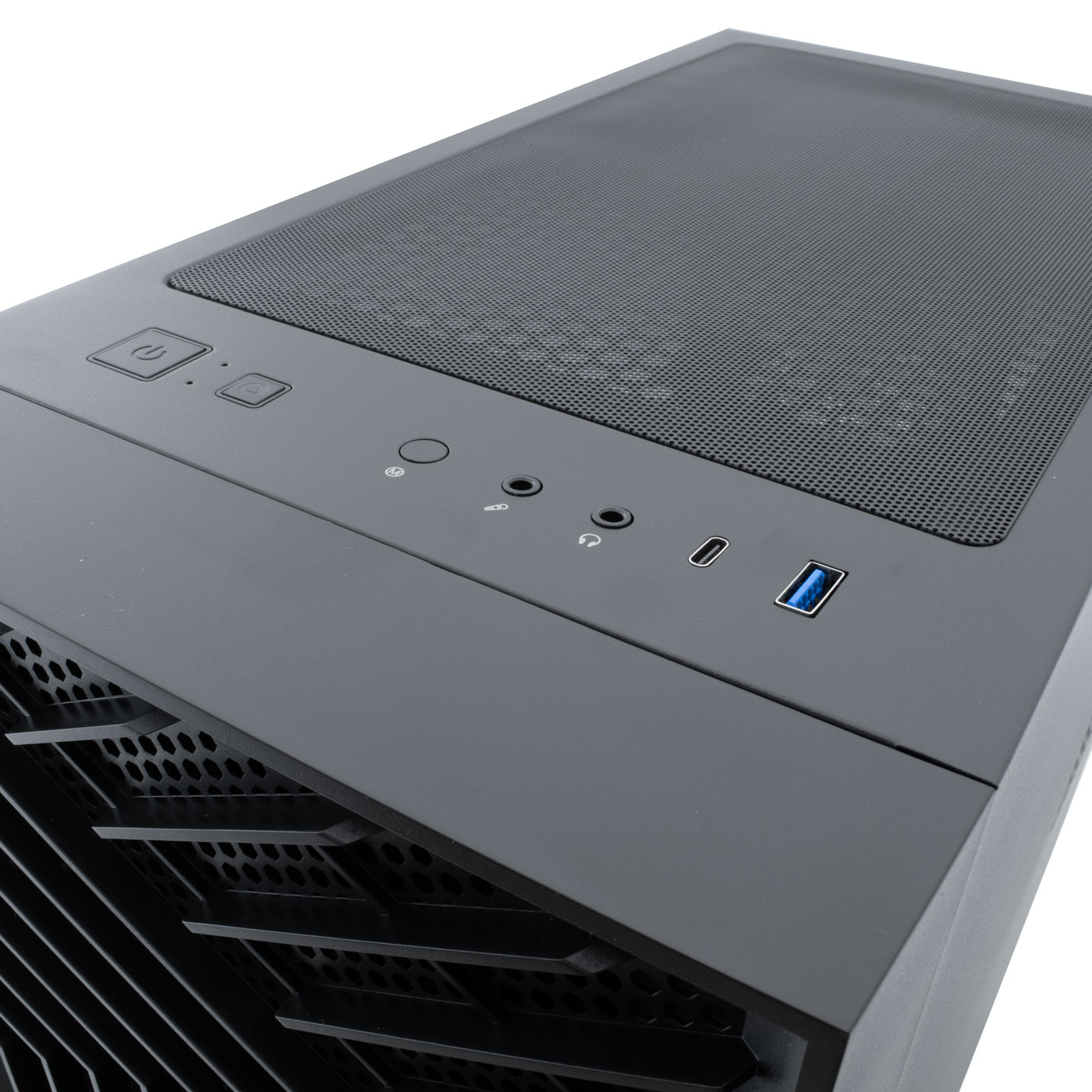

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |

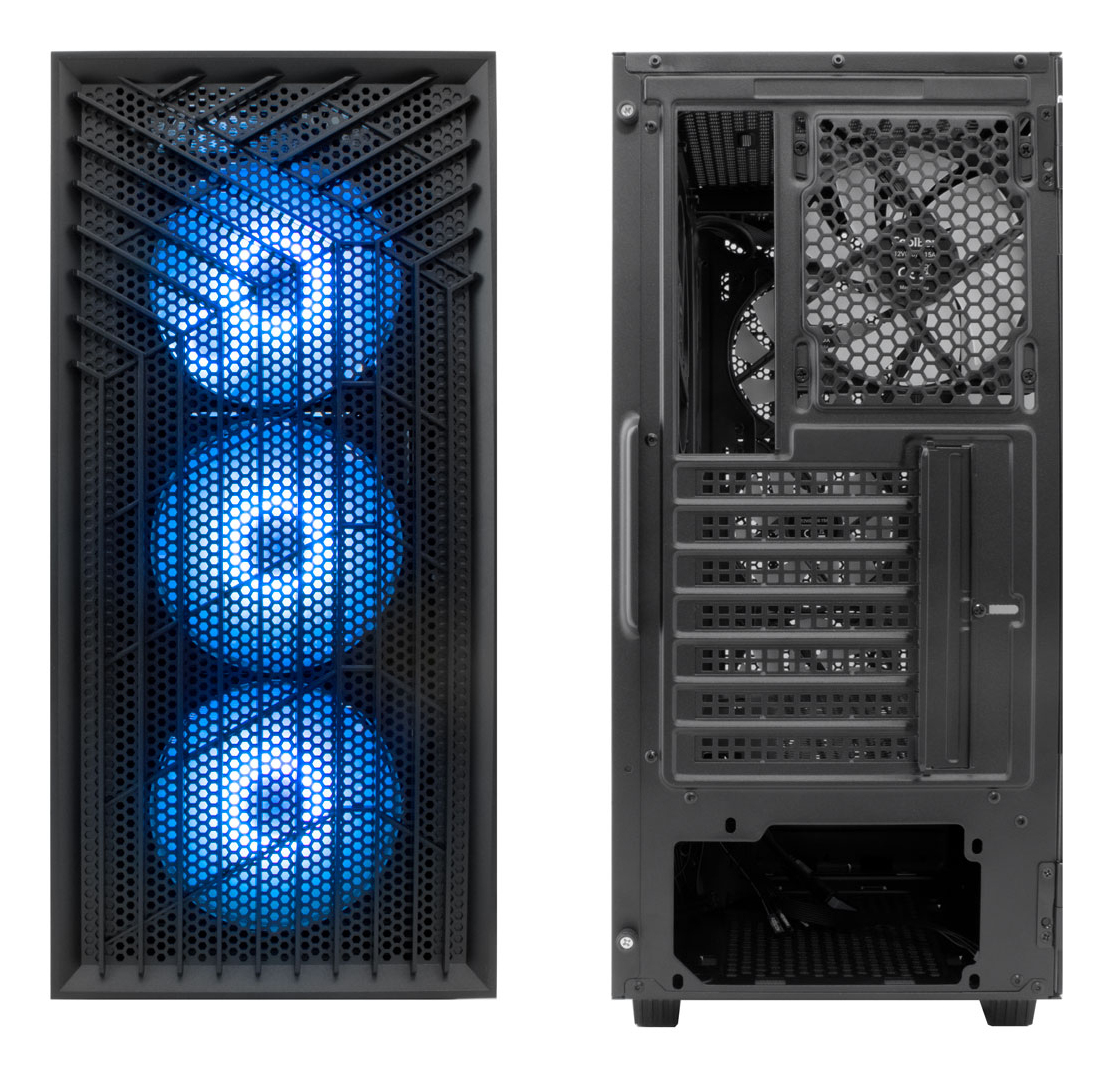

Cooling
| Specification | Value |
|---|---|
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120 mm |
| Side fans installed | 1x 140 mm |
| Number of side fans supported (max) | 1 |
| Side fans diameters supported | 140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120 mm |
| Liquid cooling capability | Yes |
| Front radiator sizes supported | 120,140,240,280 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,140,240 mm |
| Pulse-width modulation (PWM) support | Yes |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 360 mm |
| Height | 440 mm |
| Weight | 4.28 kg |
| Material thickness | 0.5 mm |
