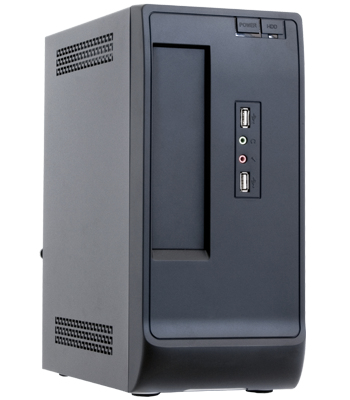

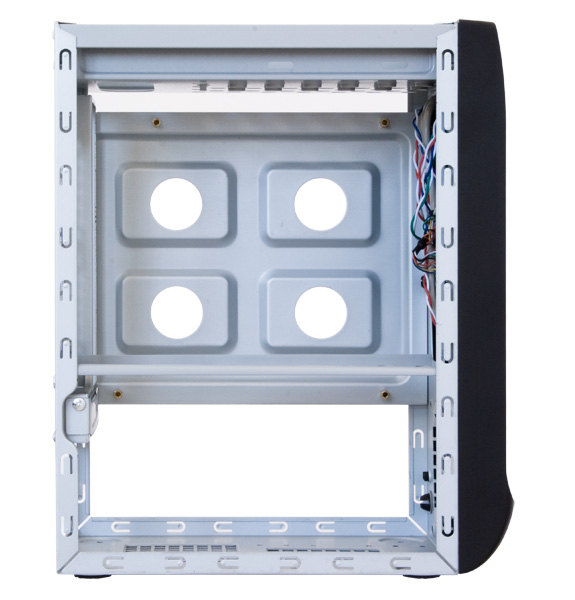

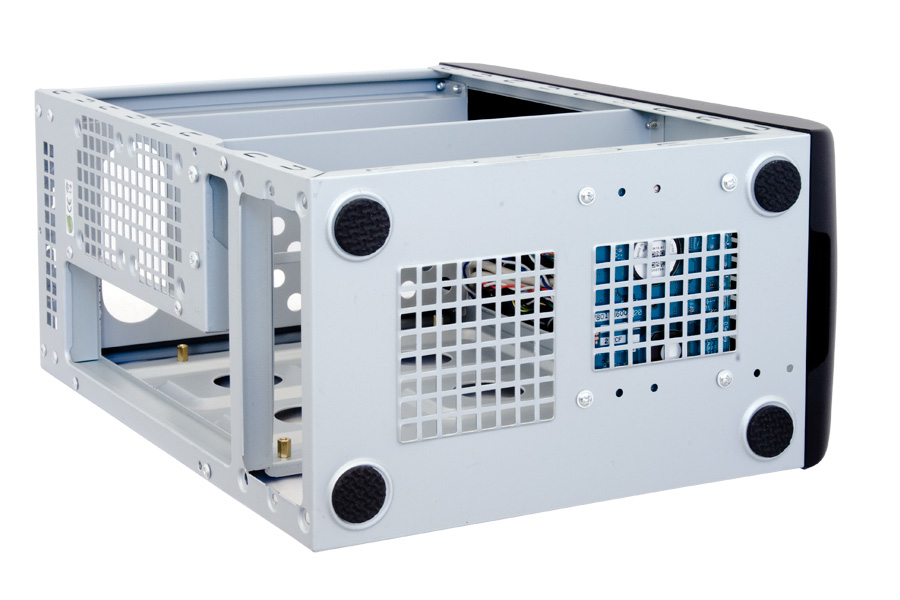

Chieftec Uni BT-03B
Model Uni BT-03BPart no. BT-03BEAN 4710713239302
38 specifications
- TypeMini Tower
- Weight3.5 kg
- ColourBlack
- Power supply includedYes
- USB 2.0 ports quantity2
- Number of front fans supported (max)1
Overview
- Type
- Mini Tower
- Weight
- 3.5 kg
- Colour
- Black
- Power supply included
- Yes
- USB 2.0 ports quantity
- 2
- Number of front fans supported (max)
- 1
- Brand
- Chieftec
- Category
- Computer Case
- Model
- Uni BT-03B
- Part number
- BT-03B
- EAN / UPC
- 4710713239302
- Also known as
- Chieftec Uni BT-03B Mini Tower Black 180 W
Specifications
38 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Mini Tower |
| Type | PC |
| Material | SECC |
| Product colour | Black |
| Supported motherboard form factors | Mini-ITX |
| Number of 3.5" bays | 0 |
| Number of 5.25" bays | 1 |
| Number of 2.5" bays | 1 |
| Number of expansion slots | 1 |
| Side window | No |
| Suitable for | Home/Office |
| Reset button | Yes |
Power supply
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Power supply | 180 W |
| Power supply location | Bottom |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 80 mm |
| Number of side fans supported (max) | 0 |
| Rear fans installed | 2x 60 mm |
| Number of rear fans supported (max) | 2 |
| Rear fans diameters supported | 60 mm |
| Number of top fans supported (max) | 0 |
| Number of bottom fans supported (max) | 0 |
| Liquid cooling capability | No |

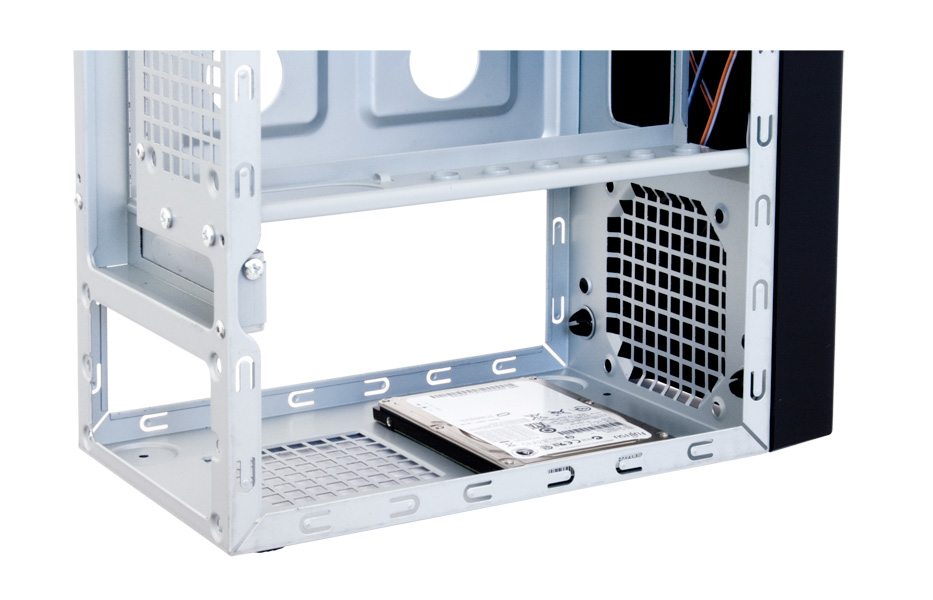

Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5" |
| Card reader integrated | No |
| Number of HDDs supported | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 135 mm |
| Depth | 240 mm |
| Height | 295 mm |
| Weight | 3.5 kg |
| Material thickness | 0.6 mm |
Other features
| Specification | Value |
|---|---|
| Backplanes support | No |
| Built-in HDD dock station | No |
| On/off switch | Yes |
