UNC-409S-AIO-OP computer case Rack Black
Model UNC-409S-AIO-OPEAN 753263079213
25 specifications
- TypeRack
- ColourBlack
- Number of front fans supported (max)3
- Supported HDD sizes2.5,3.5"
- Width480 mm
Overview
- Type
- Rack
- Colour
- Black
- Number of front fans supported (max)
- 3
- Supported HDD sizes
- 2.5,3.5"
- Width
- 480 mm
- Brand
- Chieftec
- Category
- Computer Case
- Model
- UNC-409S-AIO-OP
- Part number
- UNC-409S-AIO-OP
- EAN / UPC
- 753263079213
- Also known as
- Chieftec UNC-409S-AIO-OP computer case Rack Black
Specifications
25 specifications in 4 groups
Design
| Specification | Value |
|---|---|
| Form factor | Rack |
| Type | Server |
| Material | SGCC |
| Product colour | Black |
| Supported motherboard form factors | ATX, EATX, Mini-ITX, SSI CEB, SSI EEB |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |

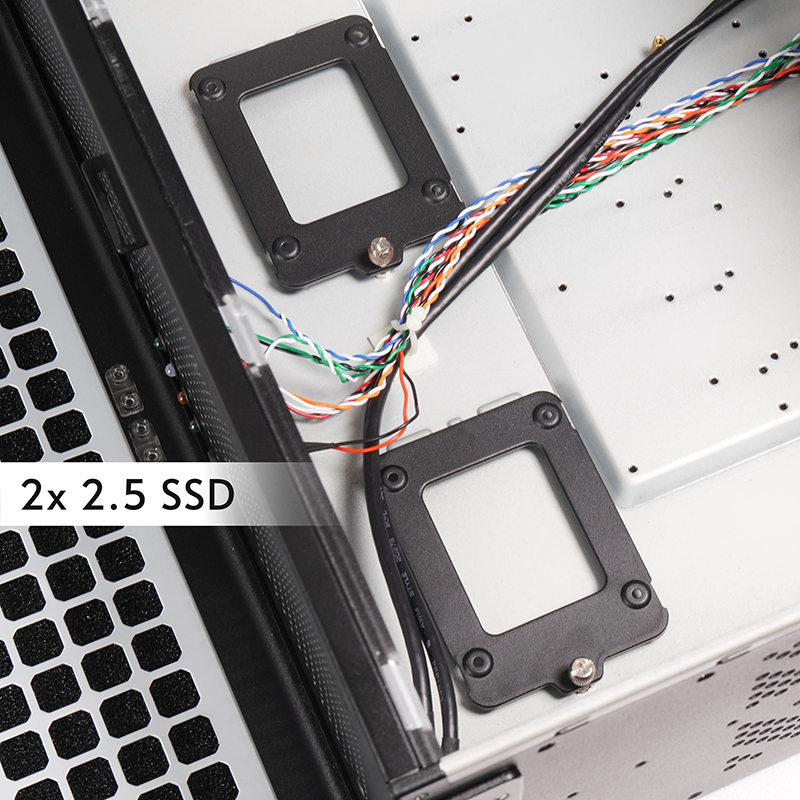

| Number of 2.5" bays | 2 |
| Number of internal 3.5" bays | 2 |
| Number of expansion slots | 7 |
| Rack mounting | Yes |
| Rack capacity | 4U |
| Side window | No |
| Illumination | No |
| Maximum CPU cooler height | 13 cm |
| Maximum graphics card length | 45 cm |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,240,360 mm |

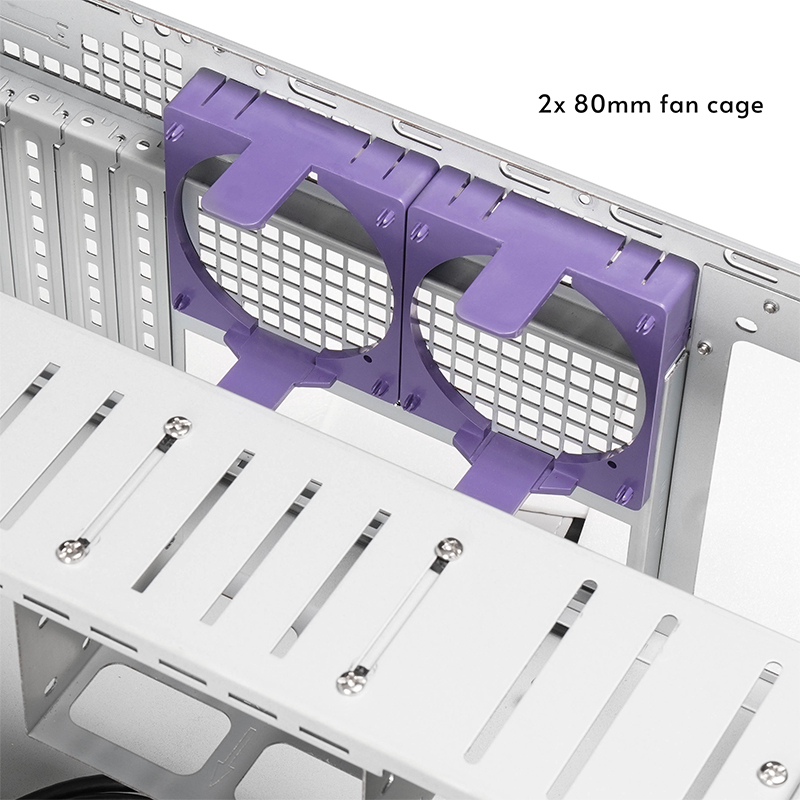

| Number of rear fans supported (max) | 2 |
| Rear fans diameters supported | 80 mm |
| Front radiator sizes supported | 120,240,360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 480 mm |
| Depth | 427 mm |
| Height | 176.8 mm |
