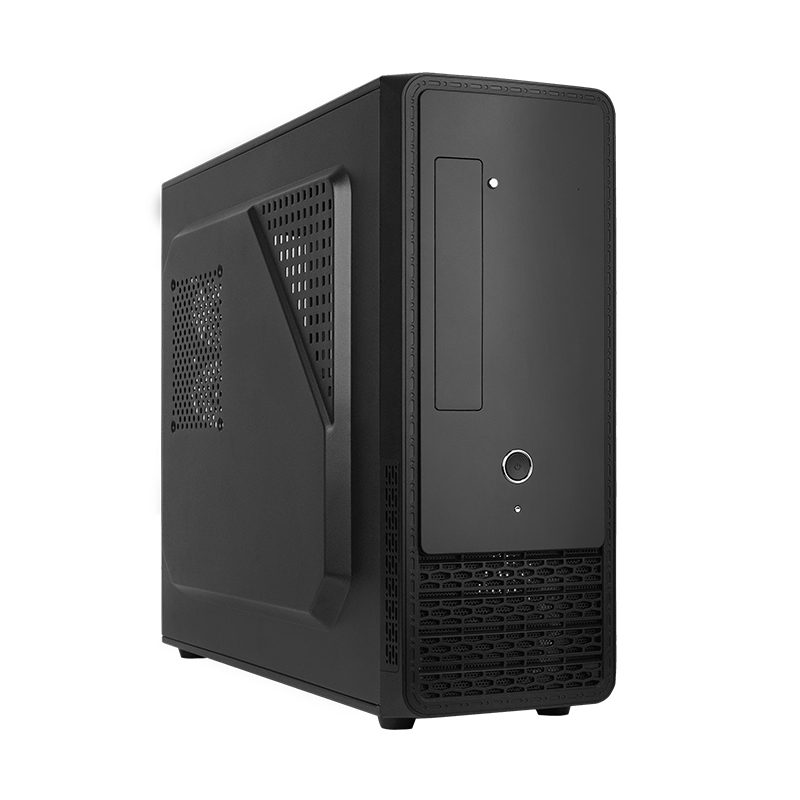

UC-03B-OP computer case Tower Black
Model UC-03B-OPEAN 753263078025
41 specifications
- TypeTower
- Weight3.15 kg
- ColourBlack
- Power supply includedNo
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
- Number of side fans supported (max)1
Overview
- Type
- Tower
- Weight
- 3.15 kg
- Colour
- Black
- Power supply included
- No
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Number of side fans supported (max)
- 1
- Brand
- Chieftec
- Category
- Computer Case
- Model
- UC-03B-OP
- Part number
- UC-03B-OP
- EAN / UPC
- 753263078025
- Also known as
- Chieftec UC-03B-OP computer case Tower Black
Specifications
41 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Form factor | Tower |
| Type | PC |
| Material | Carbon steel |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ATX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 1 |
| Number of 2.5" bays | 3 |
| Number of internal 3.5" bays | 1 |
| Number of external 5.25" bays | 1 |
| Number of expansion slots | 6 |
| Side window | No |
| Suitable for | Gaming |
| On/off button | Yes |
| Maximum CPU cooler height | 12 cm |
| Maximum graphics card length | 25 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of side fans supported (max) | 1 |
| Side fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 2 |
| Rear fans diameters supported | 60 mm |
| Number of top fans supported (max) | 1 |
| Top fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 1 |
| Bottom fans diameters supported | 120 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5,5.25" |
| HDD/SSD combo cage | Yes |
| SSD form factor | 2.5" |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, Memory Stick (MS), SD |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
| Warranty period | 2 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 166 mm |
| Depth | 443 mm |
| Height | 373 mm |
| Weight | 3.15 kg |
| Material thickness | 0.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 3.87 kg |
