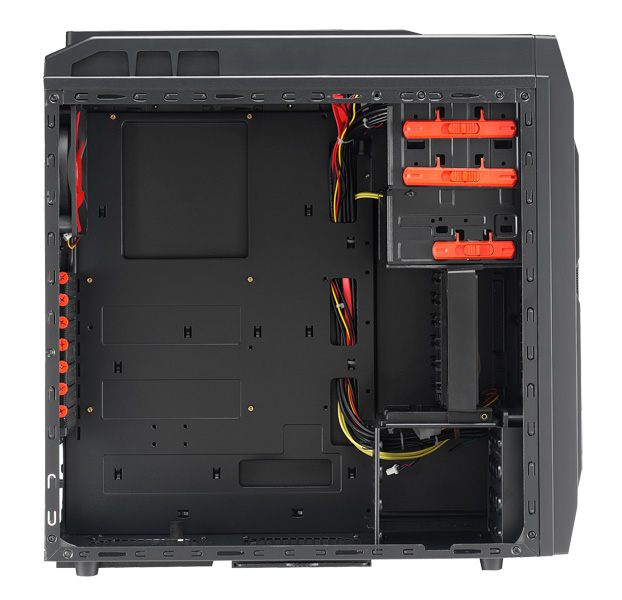

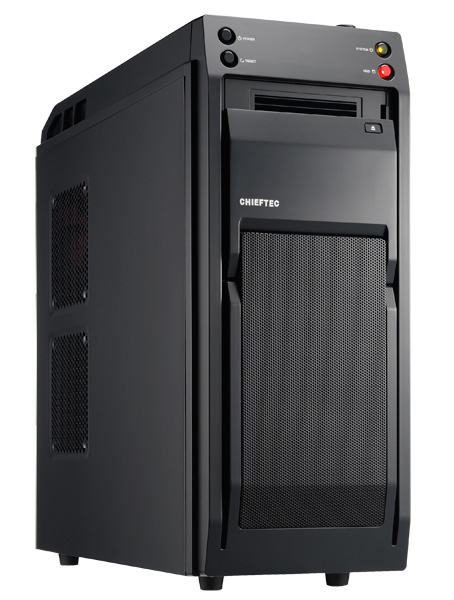

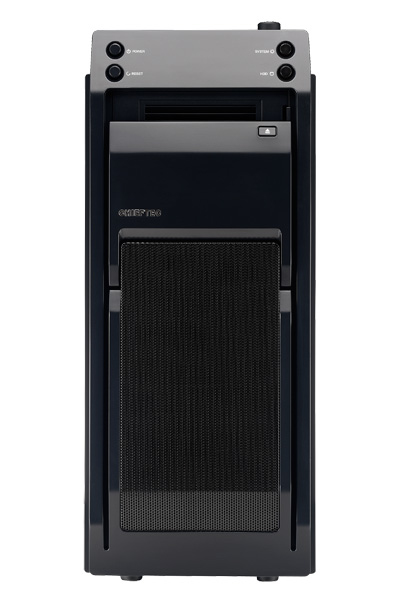

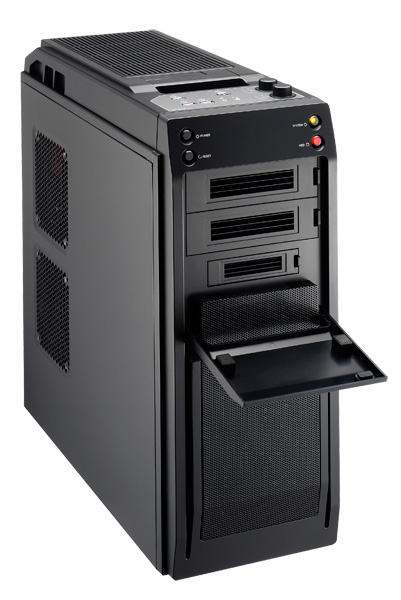

Chieftec Libra Series LF-01B
Model Libra Series LF-01BPart no. LF-01B
36 specifications
- TypeMidi Tower
- Weight7 kg
- ColourBlack
- Power supply locationBottom
- USB 2.0 ports quantity2
- Front fans installed1x 120 mm
Overview
- Type
- Midi Tower
- Weight
- 7 kg
- Colour
- Black
- Power supply location
- Bottom
- USB 2.0 ports quantity
- 2
- Front fans installed
- 1x 120 mm
- Brand
- Chieftec
- Category
- Computer Case
- Model
- Libra Series LF-01B
- Part number
- LF-01B
- Also known as
- Chieftec Libra Series LF-01B Midi Tower Black
Specifications
36 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX |
| Number of 3.5" bays | 5 |
| Number of 5.25" bays | 2 |
| Number of 2.5" bays | 1 |
| Number of internal 3.5" bays | 4 |
| Side window | Yes |
| Suitable for | Gaming |
| Built-in speaker(s) | No |
Power supply
| Specification | Value |
|---|---|
| Power supply location | Bottom |

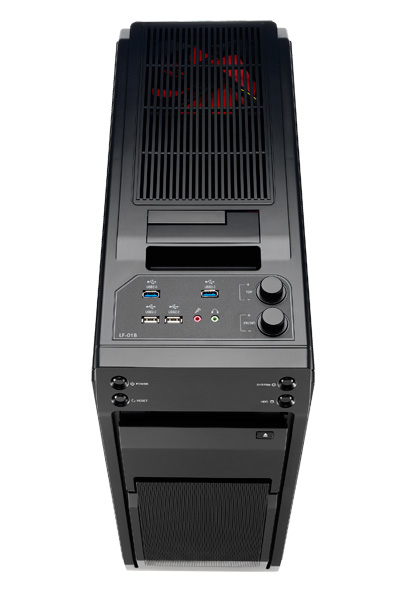

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio input | No |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 1x 120 mm |
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 120 mm |
| Number of side fans supported (max) | 2 |
| Side fans diameters supported | 120 mm |

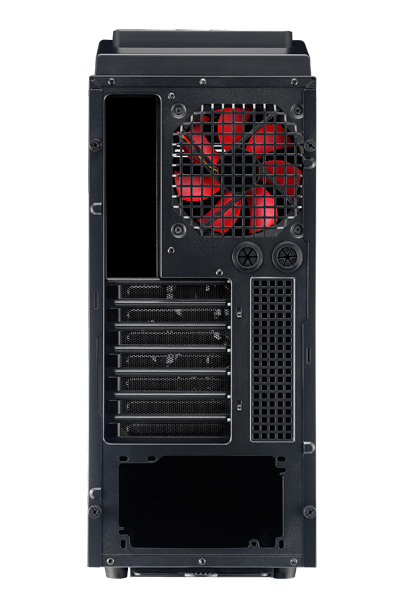

| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Top fans installed | 2x 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 1 |
| Bottom fans diameters supported | 120 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 485 mm |
| Height | 490 mm |
| Weight | 7 kg |
Other features
| Specification | Value |
|---|---|
| Built-in HDD dock station | Yes |
| Fan diameter | 12 cm |
What people say
Reviews & ratings
Chieftec Libra Series LF-01B
No reviews yet
Be the first to tell others how Chieftec Libra Series LF-01B works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Chieftec Libra Series LF-01B
All computer case comparisons- Chieftec Libra Series LF-01B vsChieftec Uni BT-03BCompare specs
- Chieftec Libra Series LF-01B vsChieftec LF-02B-OP computer case Midi Tower BlackCompare specs
- Chieftec Libra Series LF-01B vsChieftec LT-01B-OP computer case Mini Tower BlackCompare specs
- Chieftec Libra Series LF-01B vsChieftec CT-01B-OP computer case Mini Tower BlackCompare specs
- Chieftec Libra Series LF-01B vsGIGABYTE GZ-P5 computer case Midi Tower BlackCompare specs

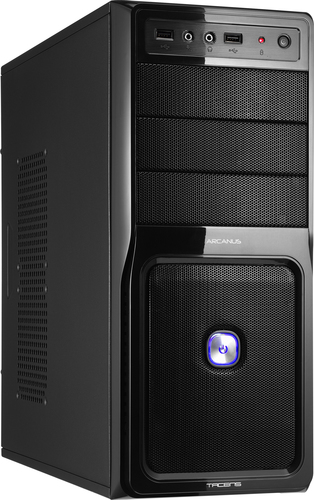

- Chieftec Libra Series LF-01B vsTacens Arcanus ProCompare specs
- Chieftec Libra Series LF-01B vsUNYKAch UK-8017 Full Tower BlackCompare specs

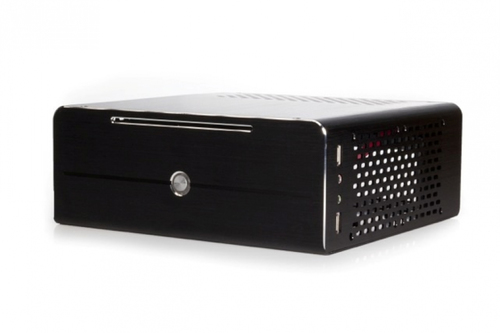

- Chieftec Libra Series LF-01B vsitek ITEI7 computer case Desktop BlackCompare specs
