HC-10B-OP computer case Mini Tower Black
Model HC-10B-OPEAN 753263075673
34 specifications
- TypeMini Tower
- Weight4 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity2
- Number of front fans supported (max)1
Overview
- Type
- Mini Tower
- Weight
- 4 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 2
- Number of front fans supported (max)
- 1
- Brand
- Chieftec
- Category
- Computer Case
- Model
- HC-10B-OP
- Part number
- HC-10B-OP
- EAN / UPC
- 753263075673, 7532630756734
- Also known as
- Chieftec HC-10B-OP computer case Mini Tower Black
Specifications
34 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Form factor | Mini Tower |
| Type | PC |
| Material | SECC |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 6 |
| Number of 5.25" bays | 3 |
| Number of 2.5" bays | 1 |
| Number of internal 3.5" bays | 5 |
| Number of external 5.25" bays | 3 |
| Side window | No |
| On/off button | Yes |
| Maximum CPU cooler height | 15.5 cm |
| Maximum graphics card length | 38 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|

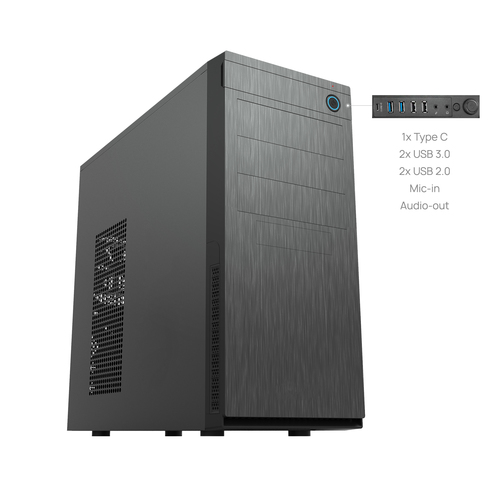

| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio input | Yes |
| Audio output | Yes |
| USB Type-C ports quantity | 1 |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 80,90,120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 80,90,120 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 185 mm |
| Depth | 450 mm |
| Height | 412 mm |
| Weight | 4 kg |
| Material thickness | 0.6 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 5 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
Other features
| Specification | Value |
|---|---|
| Expansion slots | 7 |
