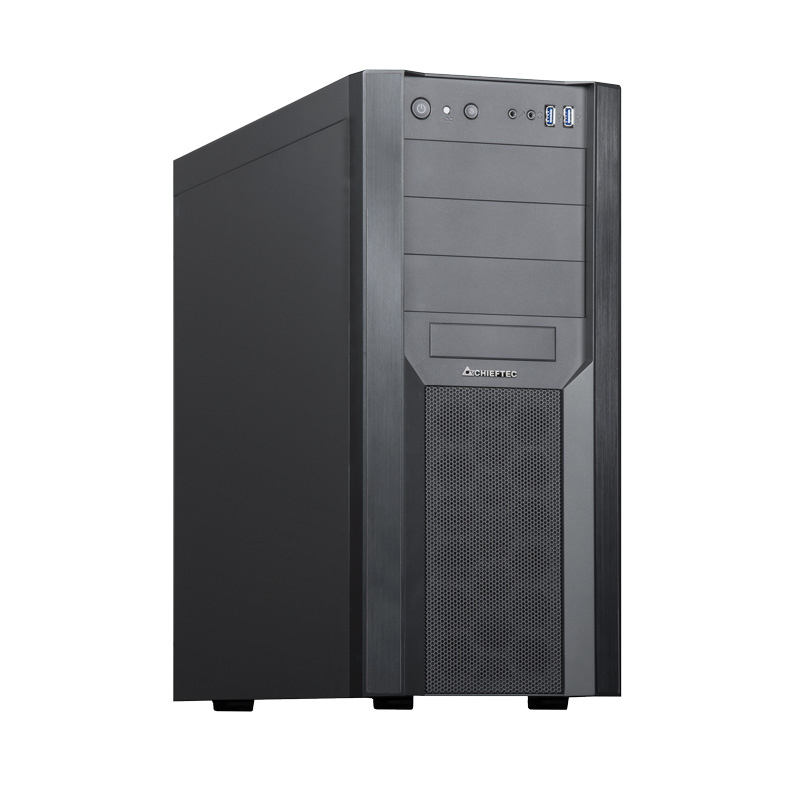

CW-01B-OP computer case Tower Black
Model CW-01B-OPEAN 753263076977
42 specifications
- TypeTower
- Weight6.8 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity0
- Number of front fans supported (max)2
Overview
- Type
- Tower
- Weight
- 6.8 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Number of front fans supported (max)
- 2
- Brand
- Chieftec
- Category
- Computer Case
- Model
- CW-01B-OP
- Part number
- CW-01B-OP
- EAN / UPC
- 753263076977, 7532630769772
- Also known as
- Chieftec CW-01B-OP computer case Tower Black
Specifications
42 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Form factor | Tower |
| Type | PC |
| Material | SPCC |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 7 |
| Number of 5.25" bays | 3 |
| Number of 2.5" bays | 7 |
| Number of internal 3.5" bays | 7 |
| Number of external 5.25" bays | 3 |
| Number of expansion slots | 7 |
| Side window | No |
| Illumination | No |
| Anti-dust filter | Yes |
| Maximum CPU cooler height | 16.5 cm |
| Maximum graphics card length | 41 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 2 |
| Front fans diameters supported | 120 mm |
| Number of side fans supported (max) | 1 |
| Side fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 1 |
| Bottom fans diameters supported | 120,140 mm |
| Top radiator sizes supported | 280 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 490 mm |
| Height | 471 mm |
| Weight | 6.8 kg |
| Material thickness | 0.7 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 7.8 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
