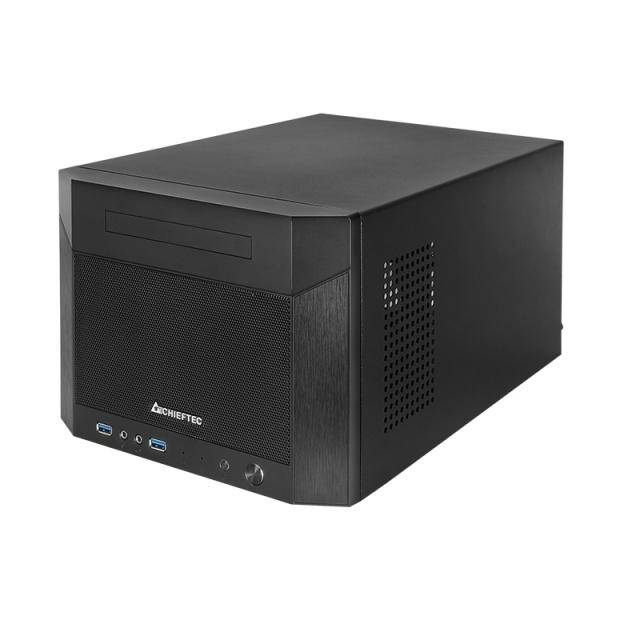

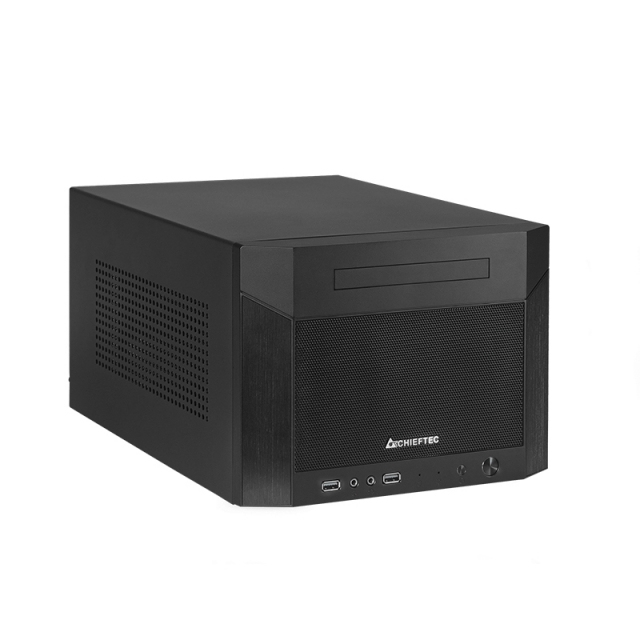

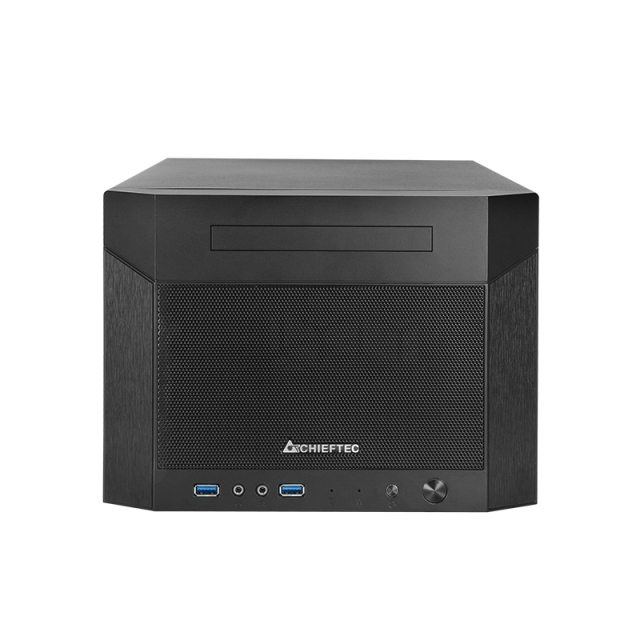

CN-01B-OP computer case Cube Black
Model CN-01B-OPEAN 753263077837
29 specifications
- TypeCube
- Weight3.79 kg
- ColourBlack
- Power supply locationBottom
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
- Number of rear fans supported (max)1
Overview
- Type
- Cube
- Weight
- 3.79 kg
- Colour
- Black
- Power supply location
- Bottom
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Number of rear fans supported (max)
- 1
- Brand
- Chieftec
- Category
- Computer Case
- Model
- CN-01B-OP
- Part number
- CN-01B-OP
- EAN / UPC
- 753263077837
- Also known as
- Chieftec CN-01B-OP computer case Cube Black
Specifications
29 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Form factor | Cube |
| Type | PC |
| Material | SPCC |
| Product colour | Black |
| Supported motherboard form factors | Mini-ITX |
| Number of 3.5" bays | 3 |
| Number of 5.25" bays | 1 |
| Number of 2.5" bays | 3 |
| Number of internal 3.5" bays | 3 |
| Number of internal 5.25" bays | 1 |
| Number of storage drives supported | 3 |
| Number of expansion slots | 2 |
| Suitable for | Home/Office |
| Anti-dust filter | Yes |
| On/off button | Yes |
| Maximum CPU cooler height | 14.5 cm |
| Maximum graphics card length | 32 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply location | Bottom |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5,5.25" |
| Number of HDDs supported | 3 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 260 mm |
| Depth | 356 mm |
| Height | 195 mm |
| Weight | 3.79 kg |
| Material thickness | 0.8 mm |
