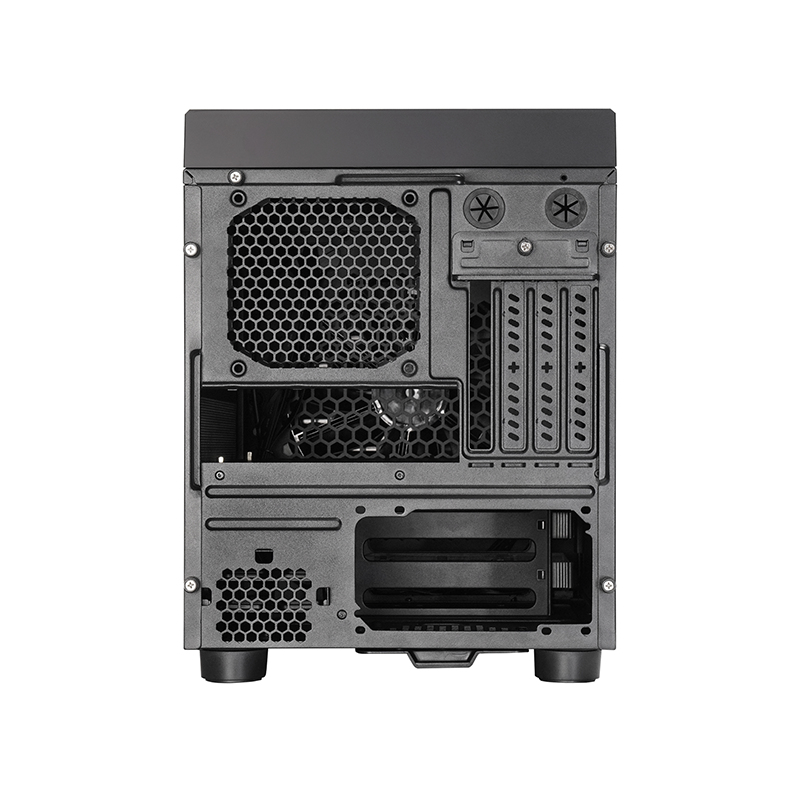

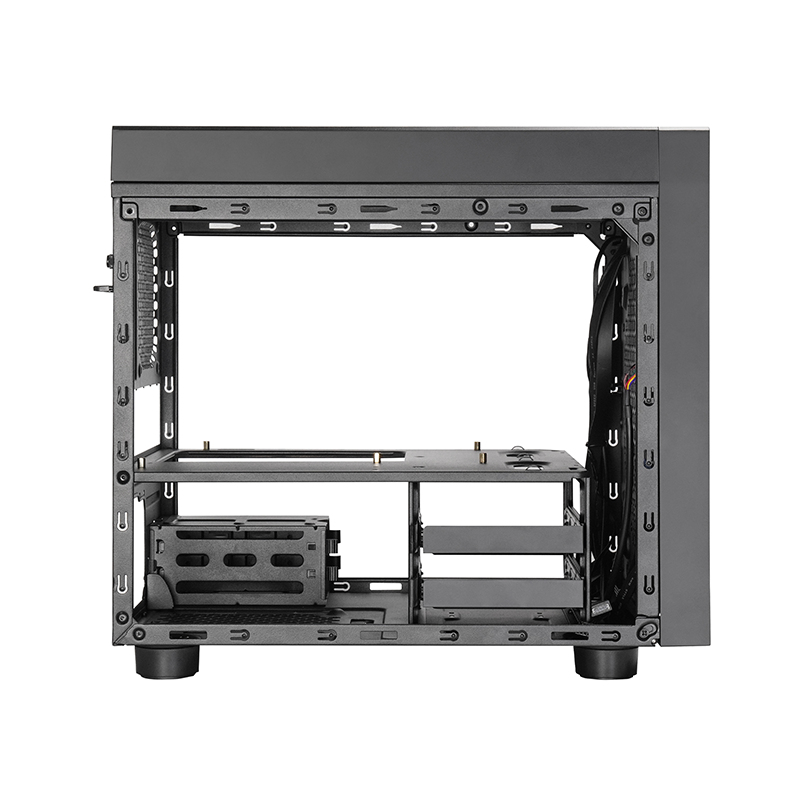

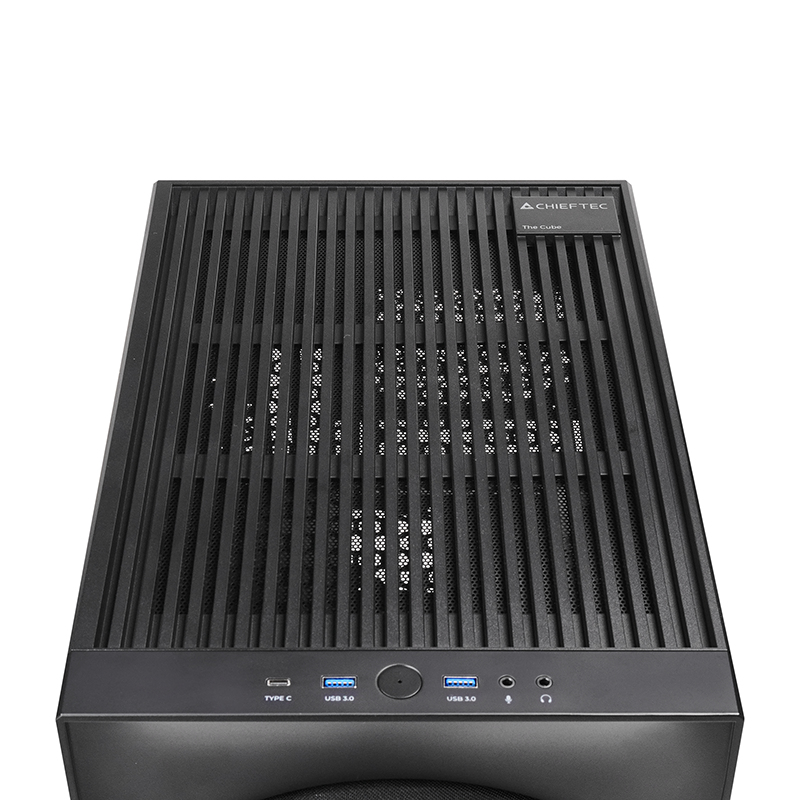

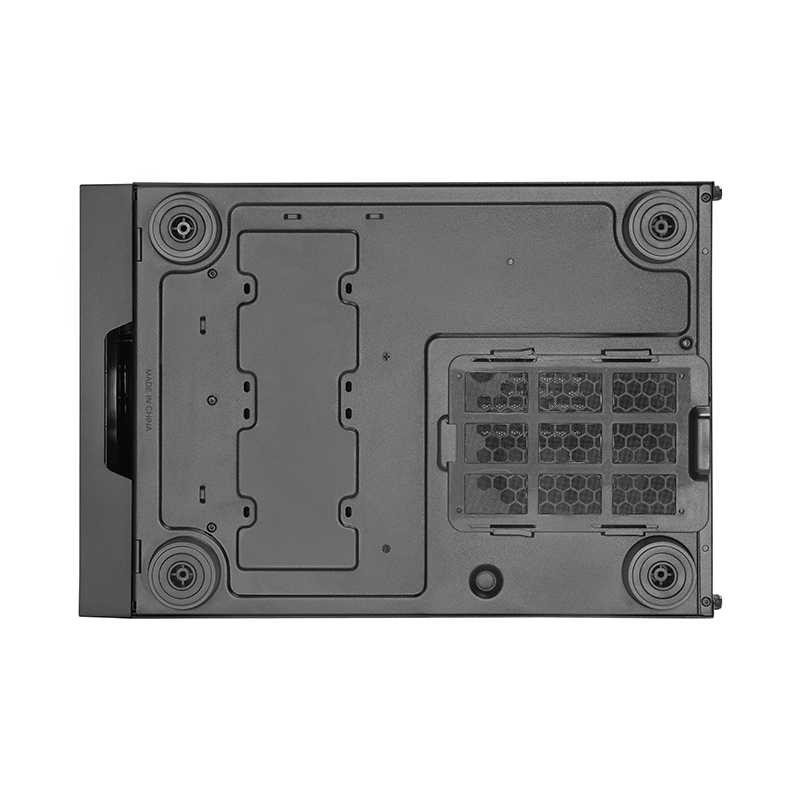

CI-03B-OP computer case Cube Black
Model CI-03B-OPEAN 753263079275
45 specifications
- TypeCube
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity0
- Front fans installed1x 200 mm
- Supported HDD sizes2.5,3.5"
Overview
- Type
- Cube
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Front fans installed
- 1x 200 mm
- Supported HDD sizes
- 2.5,3.5"
- Brand
- Chieftec
- Category
- Computer Case
- Model
- CI-03B-OP
- Part number
- CI-03B-OP
- EAN / UPC
- 753263079275
- Also known as
- Chieftec CI-03B-OP computer case Cube Black
Specifications
45 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Form factor | Cube |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ATX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 2 |
| Number of internal 3.5" bays | 2 |
| Number of expansion slots | 4 |
| Side window | No |
| Suitable for | Home/Office |
| Illumination | No |
| Tempered glass panel(s) | No |
| Anti-dust filter | Yes |
| On/off button | Yes |
| RGB control button | No |
| Reset button | Yes |
| Maximum CPU cooler height | 16 cm |
| Maximum graphics card length | 33.5 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
| USB Type-C ports quantity | 1 |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 1x 200 mm |
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 200 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,200,240 mm |
| Liquid cooling capability | Yes |
| Suitable location | Computer case |
| Front radiator sizes supported | 200 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,240 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 265 mm |
| Depth | 385 mm |
| Height | 355 mm |
| Material thickness | 0.6 mm |
