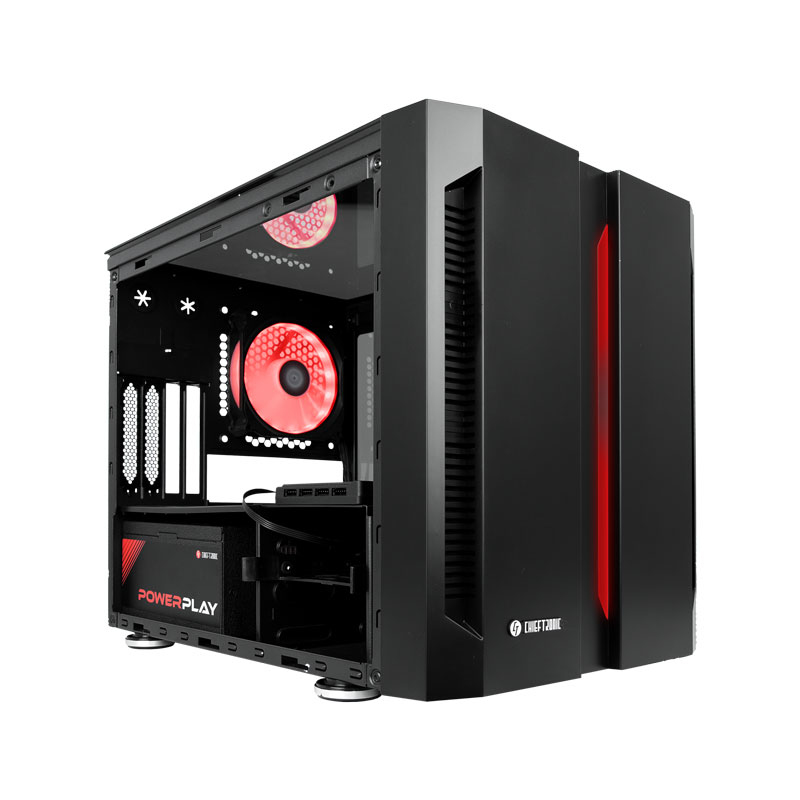

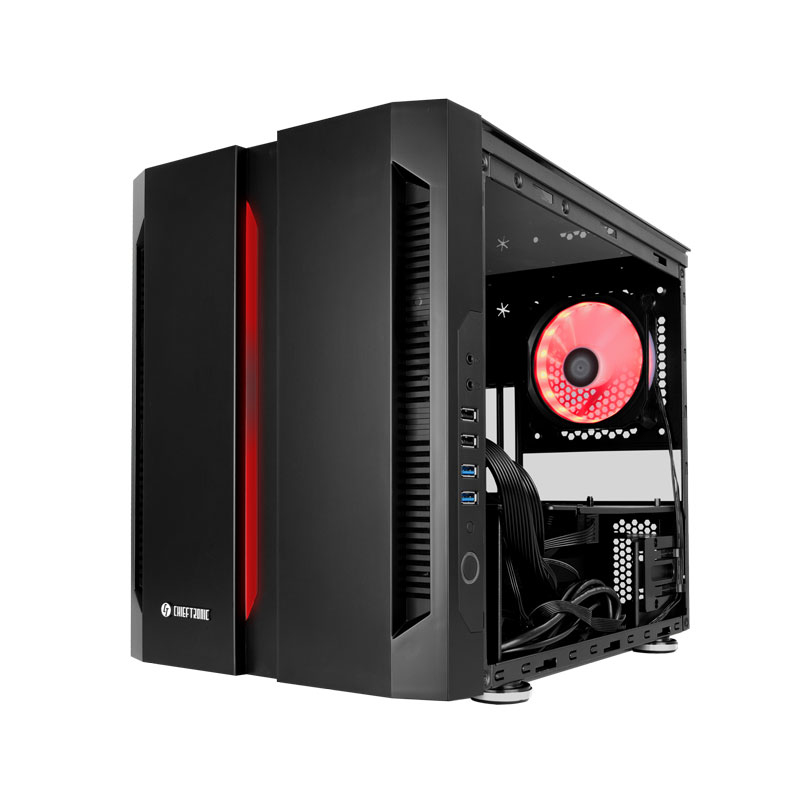

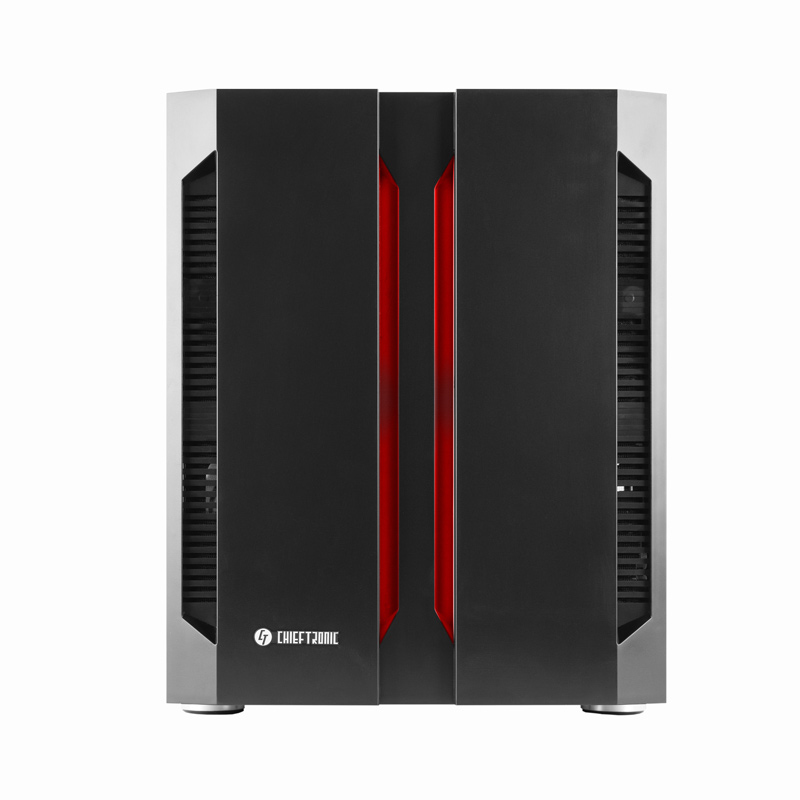

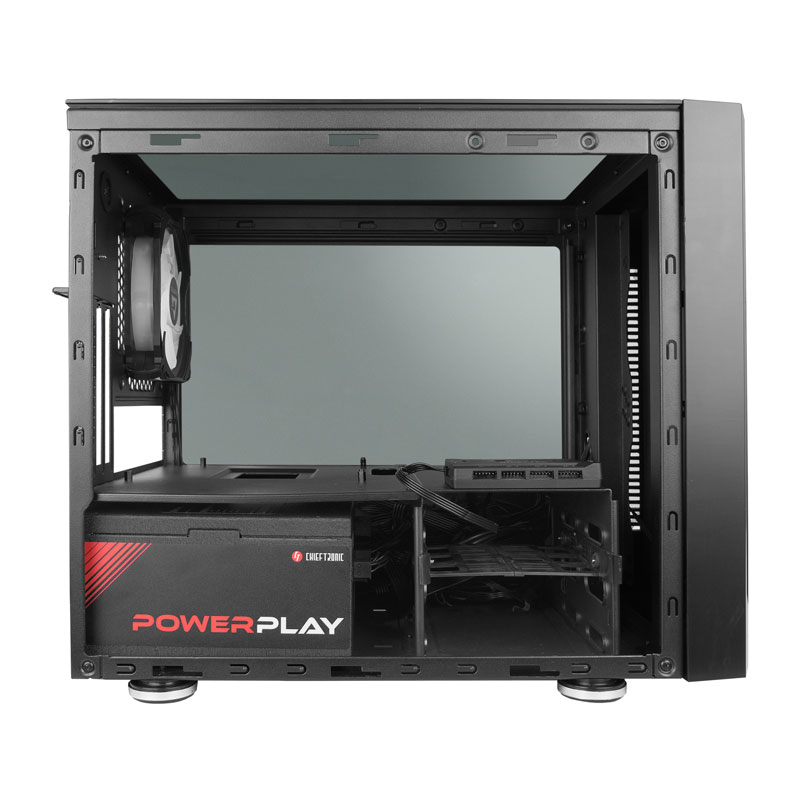

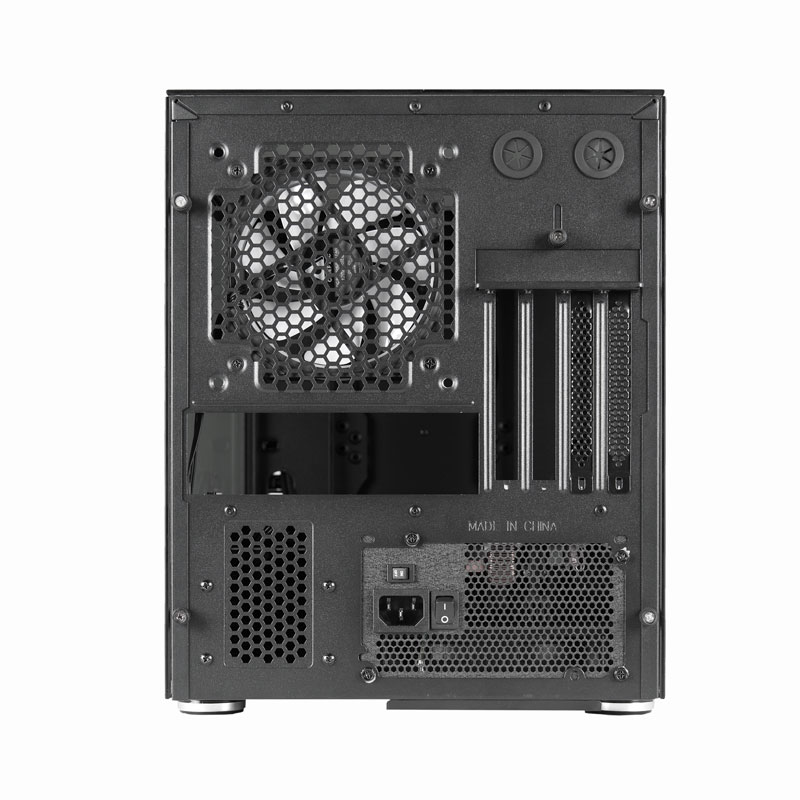

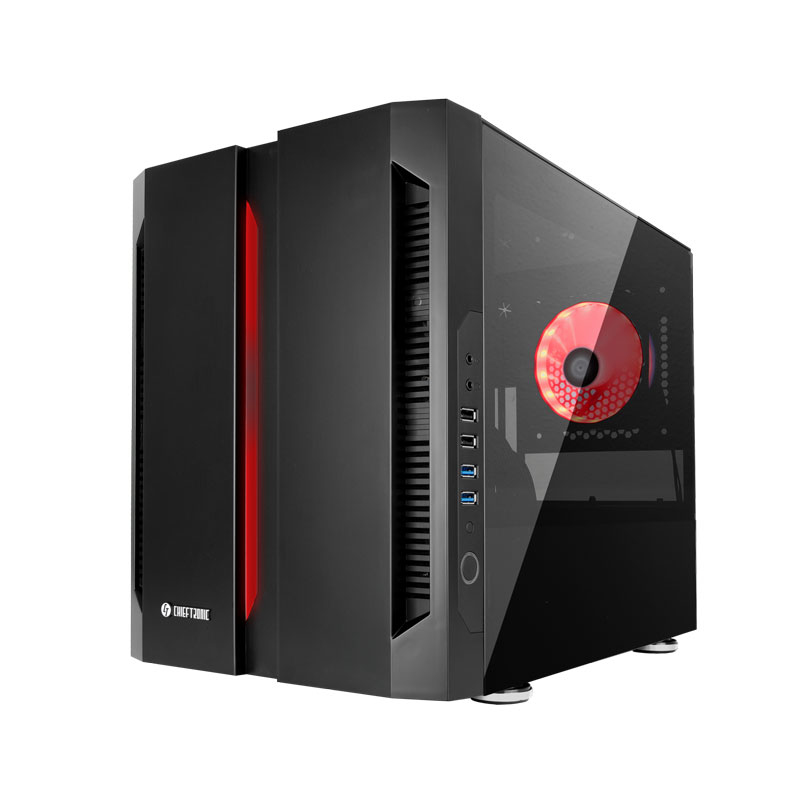

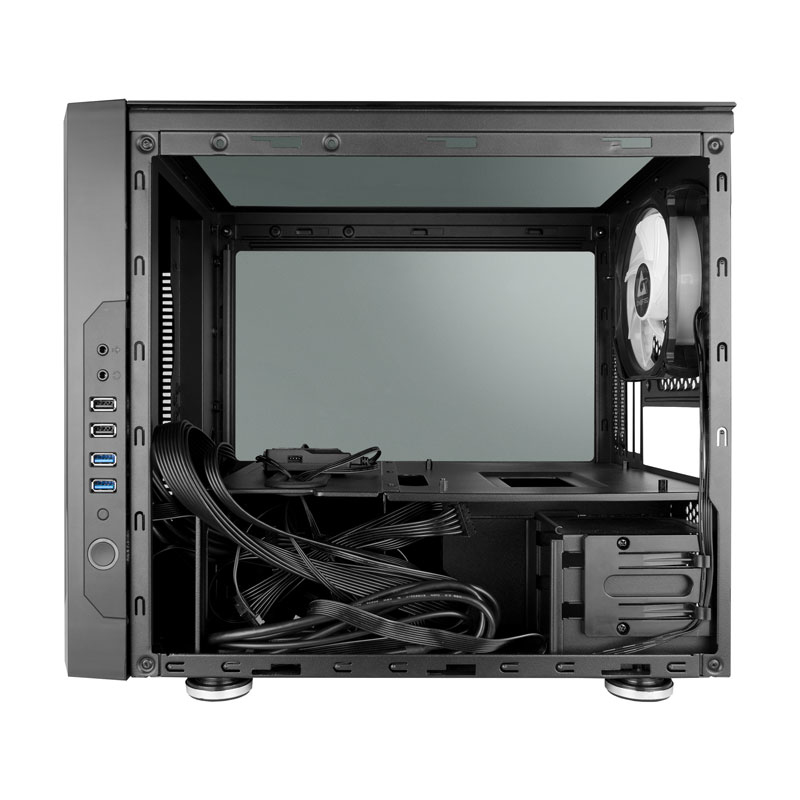

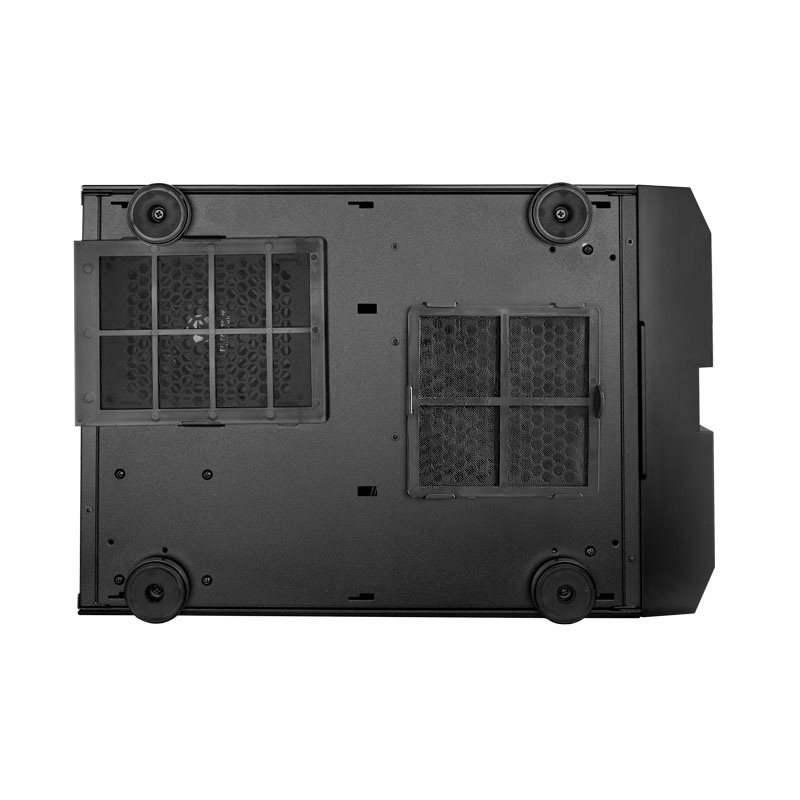

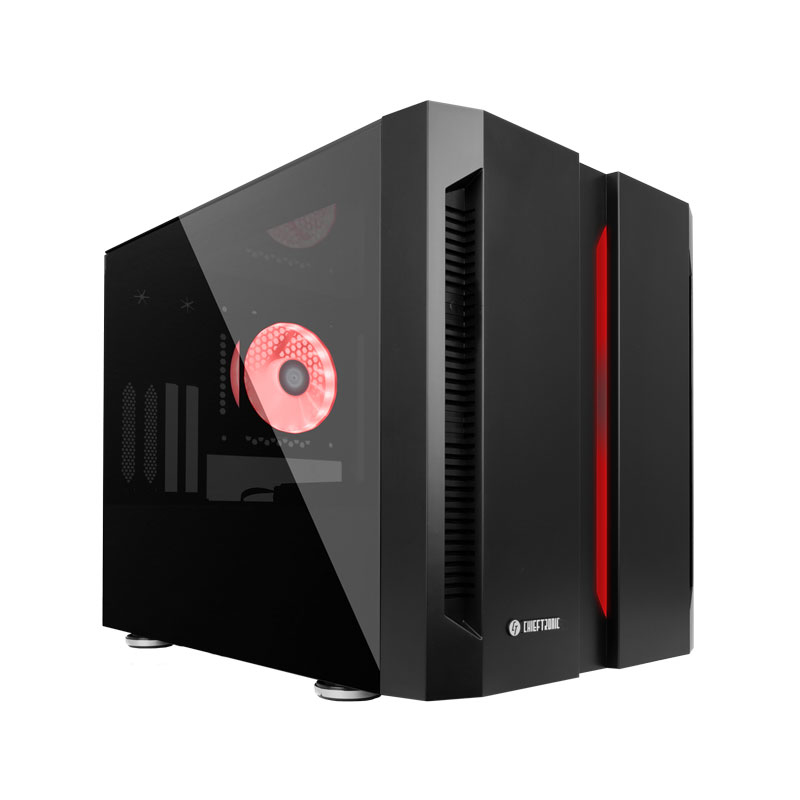

Chieftronic M1
Model Chieftronic M1Part no. GM-01B-OPEAN 753263076380
43 specifications
- TypeCube
- Weight7.92 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity2
- Supported HDD sizes2.5,3.5"
Overview
- Type
- Cube
- Weight
- 7.92 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 2
- Supported HDD sizes
- 2.5,3.5"
- Brand
- Chieftec
- Category
- Computer Case
- Model
- Chieftronic M1
- Part number
- GM-01B-OP
- EAN / UPC
- 753263076380, 7532630763800
- Also known as
- Chieftec Chieftronic M1 Cube Black
Specifications
43 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| Form factor | Cube |
| Type | PC |
| Material | SPCC, Tempered glass |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 4 |
| Side window | Yes |
| Illumination | Yes |
| Illumination colour | Blue, Green, Red |
| Illumination location | Case fans |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 18 cm |
| Maximum graphics card length | 32 cm |
| Maximum PSU length | 18 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 2 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Fan rated voltage | 5 V |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 270 mm |
| Depth | 400 mm |
| Height | 345 mm |
| Weight | 7.92 kg |
| Material thickness | 0.8 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 9.22 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
Other features
| Specification | Value |
|---|---|
| Remote control included | Yes |
