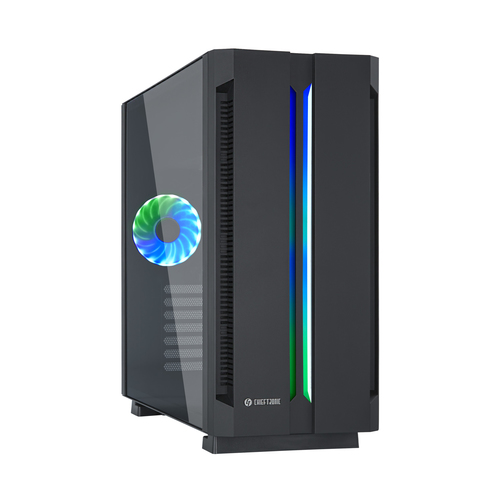

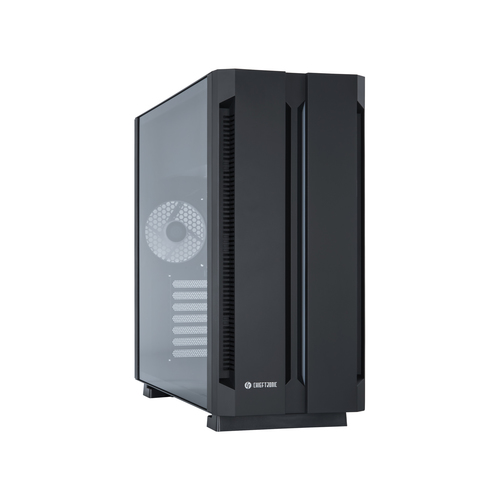

Chieftronic G1
Model Chieftronic G1Part no. GR-01B-OPEAN 753263076052
38 specifications
- TypeTower
- Weight8 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity1
- Number of front fans supported (max)2
Overview
- Type
- Tower
- Weight
- 8 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 1
- Number of front fans supported (max)
- 2
- Brand
- Chieftec
- Category
- Computer Case
- Model
- Chieftronic G1
- Part number
- GR-01B-OP
- EAN / UPC
- 753263076052, 7532630760526
- Also known as
- Chieftec Chieftronic G1 Tower Black
Specifications
38 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Form factor | Tower |
| Type | PC |
| Material | SPCC |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 4 |
| Number of expansion slots | 7 |
| Side window | Yes |

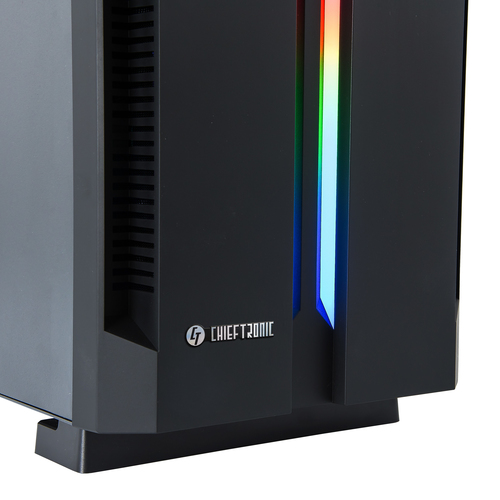

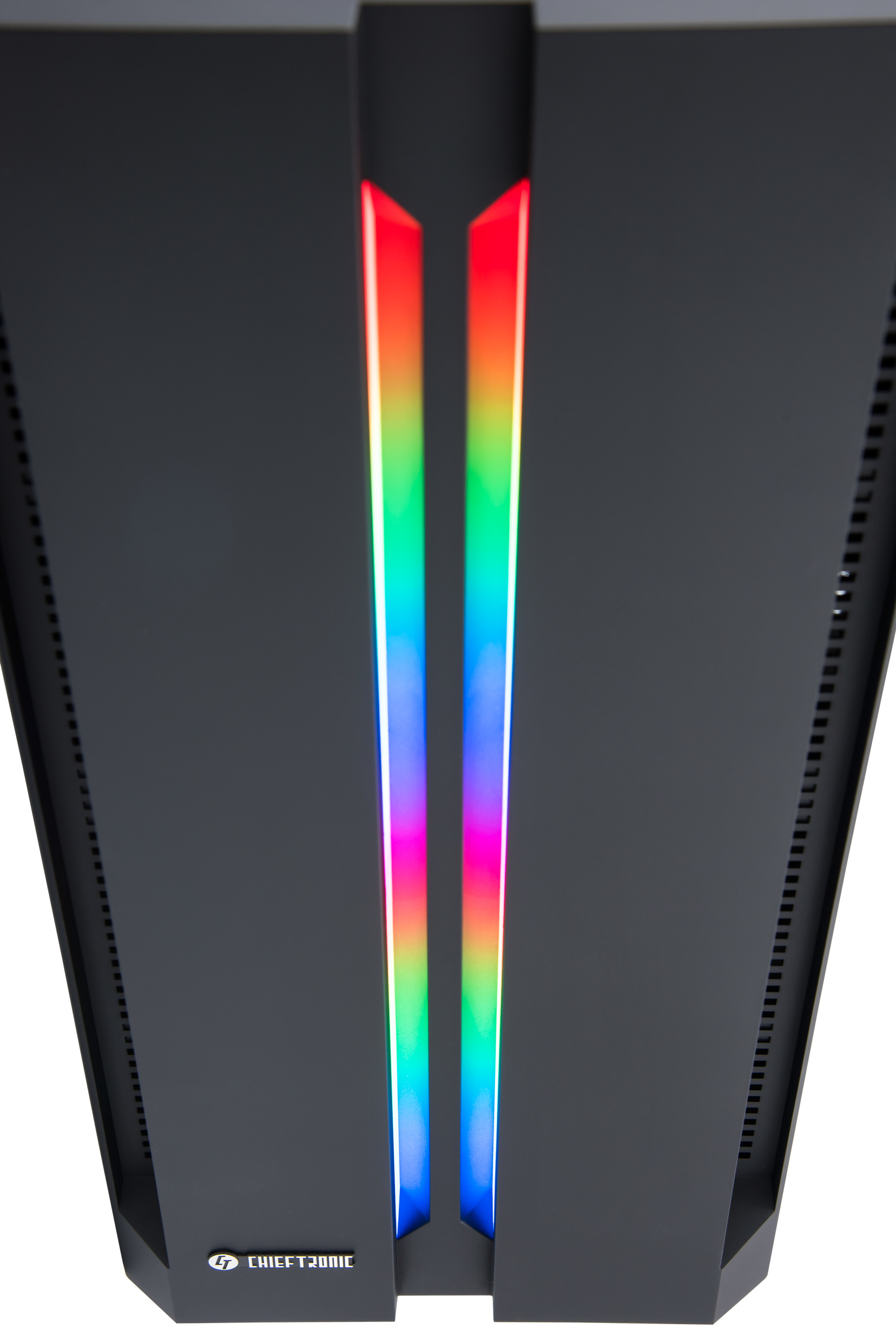

| Illumination | Yes |
| Illumination colour | Blue, Green, Red |
| Illumination location | Case fans, Front |
| Maximum CPU cooler height | 16 cm |
| Maximum graphics card length | 40 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | No |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 2 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans diameters supported | 120 mm |
| Front radiator sizes supported | 280 mm |
| Bottom radiator sizes supported | 360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 502 mm |
| Height | 476 mm |
| Weight | 8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 9.3 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
