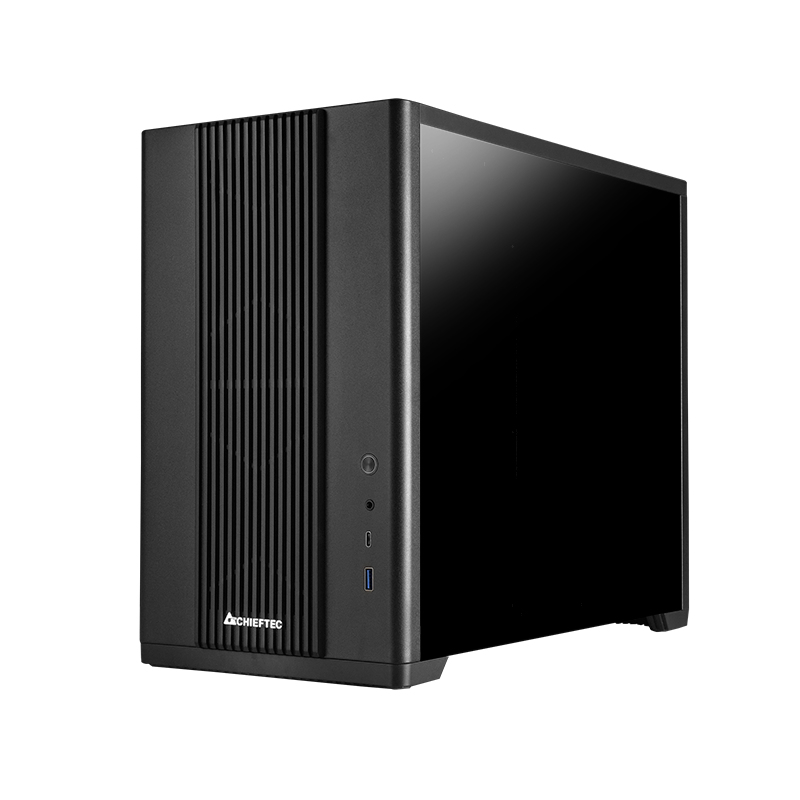

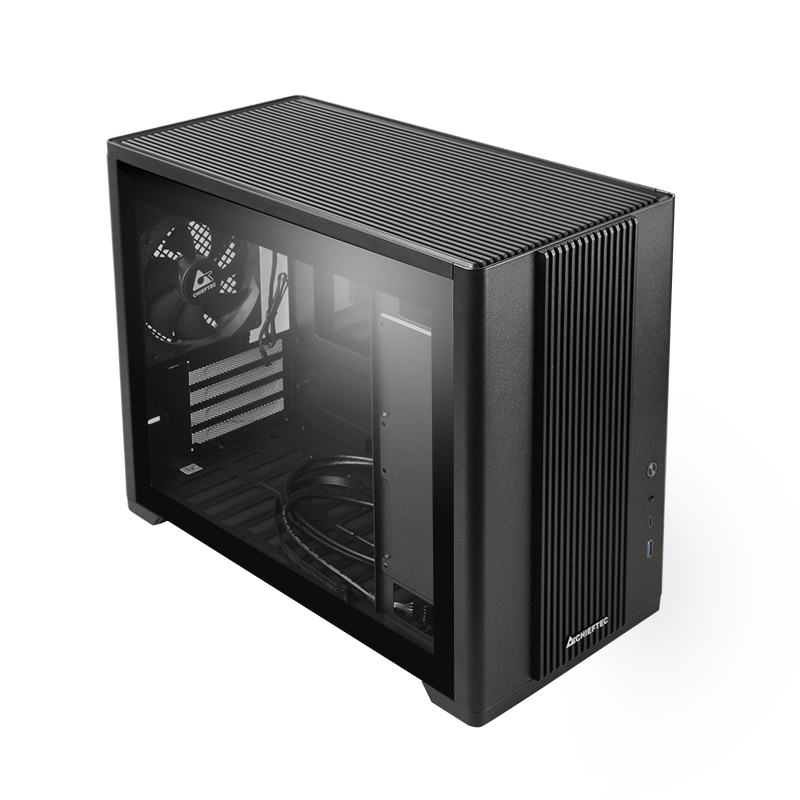

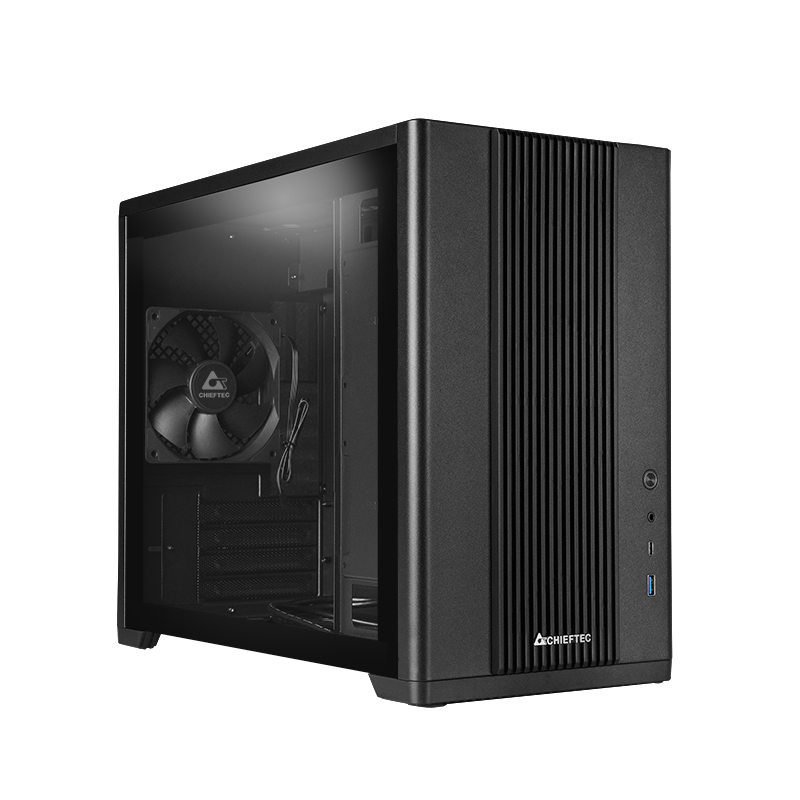

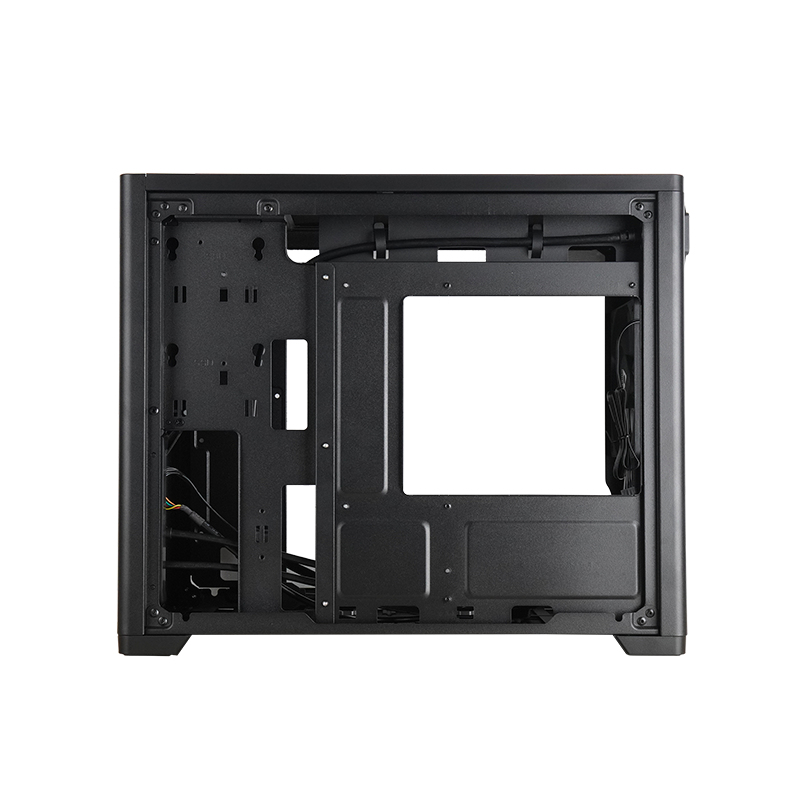

BX-10B-OP computer case Tower Black
Model BX-10B-OPEAN 753263078063
41 specifications
- TypeTower
- Weight4.78 kg
- ColourBlack
- Power supply includedNo
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
- Number of front fans supported (max)0
Overview
- Type
- Tower
- Weight
- 4.78 kg
- Colour
- Black
- Power supply included
- No
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- Number of front fans supported (max)
- 0
- Brand
- Chieftec
- Category
- Computer Case
- Model
- BX-10B-OP
- Part number
- BX-10B-OP
- EAN / UPC
- 753263078063
- Also known as
- Chieftec BX-10B-OP computer case Tower Black
Specifications
41 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Form factor | Tower |
| Type | PC |
| Material | SPCC, Carbon steel |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 1 |
| Number of 2.5" bays | 4 |
| Full-Height expansion slots | 4 |
| Number of expansion slots | 4 |
| Side window | Yes |
| Illumination | No |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| On/off button | Yes |
| Maximum CPU cooler height | 16.5 cm |
| Maximum graphics card length | 38 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 0 |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans diameters supported | 120,140 mm |
| Liquid cooling capability | Yes |
| Liquid cooling installed | No |
| Top radiator sizes supported | 240 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
| Warranty period | 2 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 204 mm |
| Depth | 415 mm |
| Height | 325 mm |
| Weight | 4.78 kg |
| Material thickness | 0.6 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 5.48 kg |
