BE-10B-300 computer case Small Form Factor (SFF) Black
300 W
Model BE-10B-300EAN 753263077882
35 specifications
- TypeSmall Form Factor (SFF)
- ColourBlack
- Power supply includedYes
- USB 2.0 ports quantity2
- Front fans installed1x 80 mm
- Supported HDD sizes2.5,3.5,5.25"
Overview
- Type
- Small Form Factor (SFF)
- Colour
- Black
- Power supply included
- Yes
- USB 2.0 ports quantity
- 2
- Front fans installed
- 1x 80 mm
- Supported HDD sizes
- 2.5,3.5,5.25"
- Brand
- Chieftec
- Category
- Computer Case
- Model
- BE-10B-300
- Part number
- BE-10B-300
- EAN / UPC
- 753263077882, 7532630778828
- Also known as
- Chieftec BE-10B-300 computer case Small Form Factor (SFF) Black 300 W
Specifications
35 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Form factor | Small Form Factor (SFF) |
| Type | PC |
| Material | SGCC |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 1 |
| Number of 5.25" bays | 1 |
| Number of 2.5" bays | 1 |
| Number of expansion slots | 4 |
| Side window | No |
| Suitable for | Home/Office |
| Illumination | No |
| Maximum CPU cooler height | 5 cm |
| Maximum graphics card length | 22 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Power supply | 300 W |
| Power supply location | Bottom |
| 80 PLUS certification | 80 PLUS Bronze |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 1x 80 mm |
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 80 mm |
Storage
| Specification | Value |
|---|---|

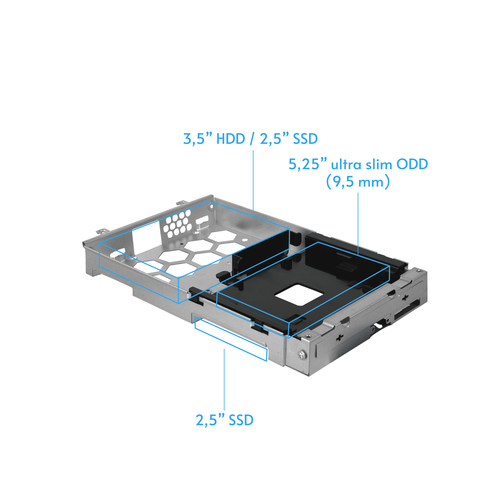

| Supported HDD sizes | 2.5,3.5,5.25" |
| SSD form factor | 2.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 95 mm |
| Depth | 283 mm |
| Height | 327 mm |
| Material thickness | 0.6 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
Other features
| Specification | Value |
|---|---|
| Volume | 9 L |
