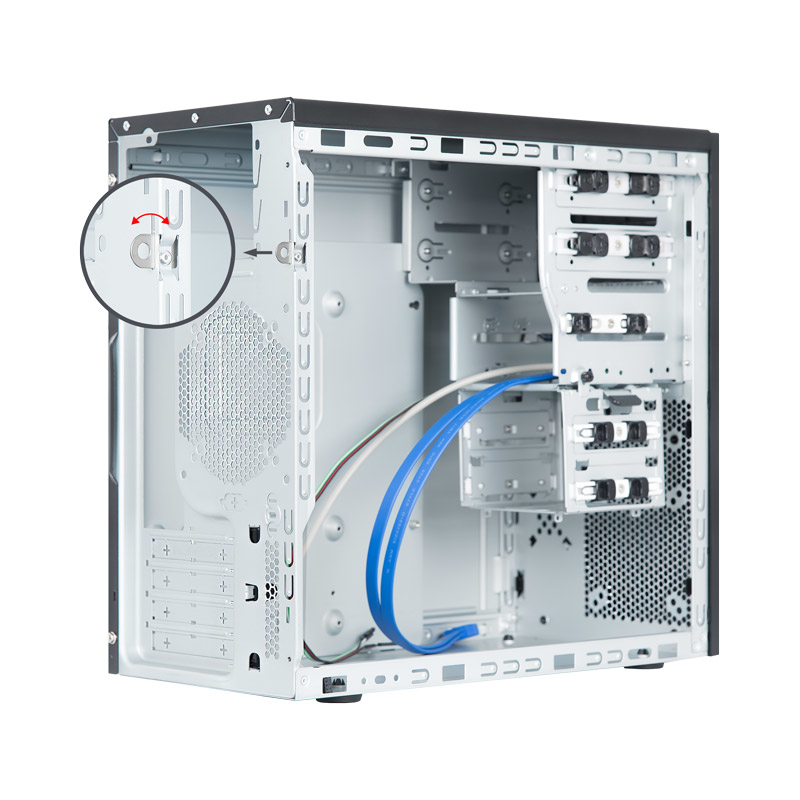

BD-25B-OP computer case Black
Model BD-25B-OPEAN 753263076403
29 specifications
- TypePC
- ColourBlack
- Power supply includedNo
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
- Number of front fans supported (max)1
- Supported HDD sizes2.5,3.5,5.25"
Overview
- Type
- PC
- Colour
- Black
- Power supply included
- No
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Number of front fans supported (max)
- 1
- Supported HDD sizes
- 2.5,3.5,5.25"
- Brand
- Chieftec
- Category
- Computer Case
- Model
- BD-25B-OP
- Part number
- BD-25B-OP
- EAN / UPC
- 753263076403, 7532630764036
- Also known as
- Chieftec BD-25B-OP computer case Black
Specifications
29 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Type | PC |
| Material | SECC |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 3 |
| Number of 5.25" bays | 2 |
| Number of 2.5" bays | 1 |
| Number of internal 3.5" bays | 2 |
| Number of external 5.25" bays | 2 |
| Number of expansion slots | 4 |
| Side window | No |
| Maximum CPU cooler height | 14 cm |
| Maximum graphics card length | 34 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 80,90 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 80,90,120 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5,5.25" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 198 mm |
| Depth | 395 mm |
| Height | 376 mm |
| Material thickness | 0.7 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
Other features
| Specification | Value |
|---|---|
| Screws included | Yes |
