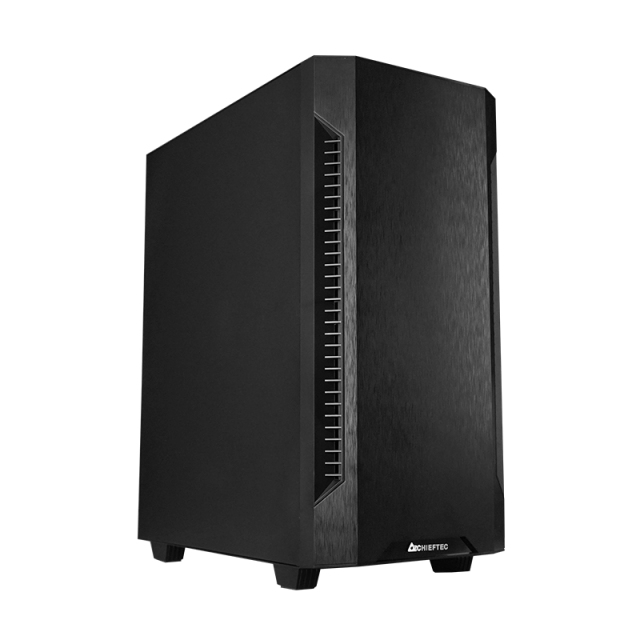

AS-01B-OP computer case Full Tower Black
Model AS-01B-OPEAN 753263078032
34 specifications
- TypeFull Tower
- Weight4.29 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity1
- Number of front fans supported (max)3
Overview
- Type
- Full Tower
- Weight
- 4.29 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 1
- Number of front fans supported (max)
- 3
- Brand
- Chieftec
- Category
- Computer Case
- Model
- AS-01B-OP
- Part number
- AS-01B-OP
- EAN / UPC
- 753263078032
- Also known as
- Chieftec AS-01B-OP computer case Full Tower Black
Specifications
34 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Form factor | Full Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 2 |
| Number of internal 3.5" bays | 2 |

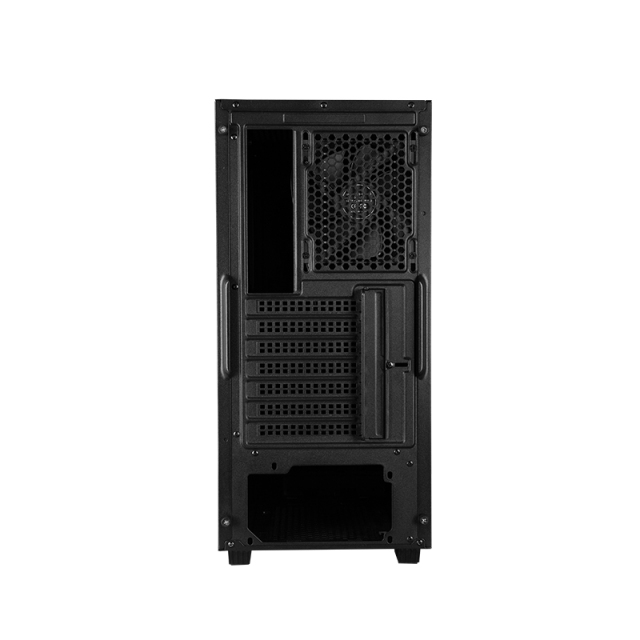

| Number of expansion slots | 7 |

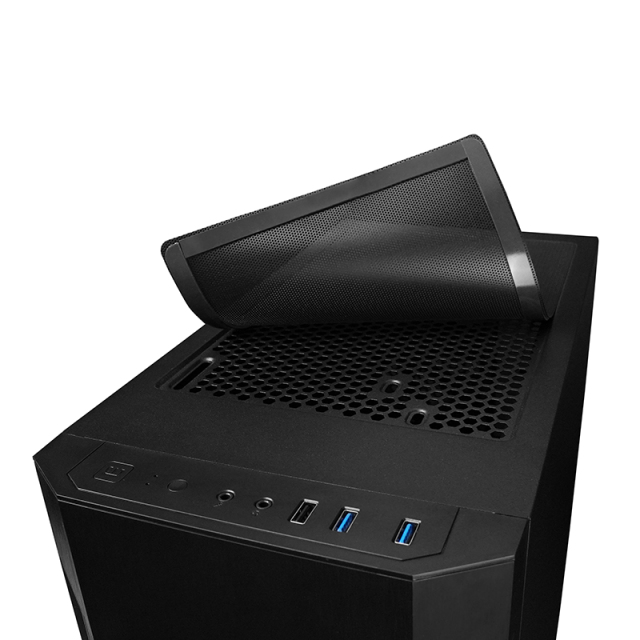

| Anti-dust filter | Yes |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 17 cm |
| Maximum graphics card length | 32 cm |
| Certification | CE, EAC, RoHS |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Front radiator sizes supported | 280 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 212 mm |
| Depth | 405 mm |
| Height | 462 mm |
| Weight | 4.29 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 5.1 kg |
