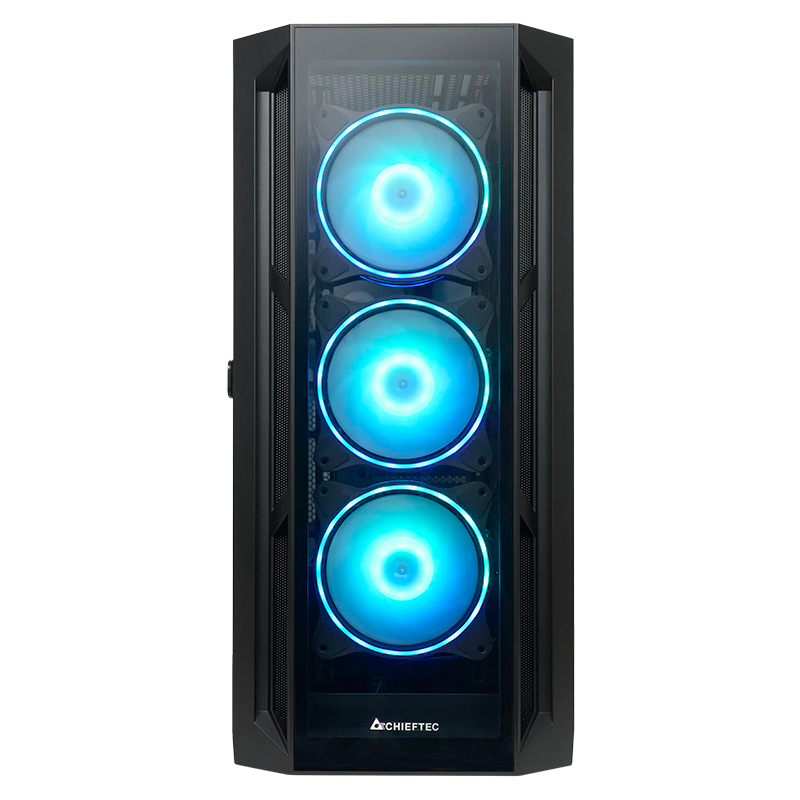

APEX GA-01B-TG-OP ATX
Model APEX GA-01B-TG-OP ATXPart no. GA-01B-TG-OPEAN 753263078520
60 specifications
- TypeMidi Tower
- Weight8 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity0
- Fan speed controlYes
Overview
- Type
- Midi Tower
- Weight
- 8 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Fan speed control
- Yes
- Brand
- Chieftec
- Category
- Computer Case
- Model
- APEX GA-01B-TG-OP ATX
- Part number
- GA-01B-TG-OP
- EAN / UPC
- 753263078520, 7532630785208
- Also known as
- Chieftec APEX GA-01B-TG-OP ATX Midi Tower Black
Specifications
60 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | SPCC |
| Product colour | Black |
| Supported motherboard form factors | ATX, EATX, ITX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 3 |
| Number of internal 3.5" bays | 2 |
| Number of storage drives supported | 5 |
| Full-Height expansion slots | 7 |
| Number of expansion slots | 7 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Case fans |
| Tempered glass panel(s) | Yes |

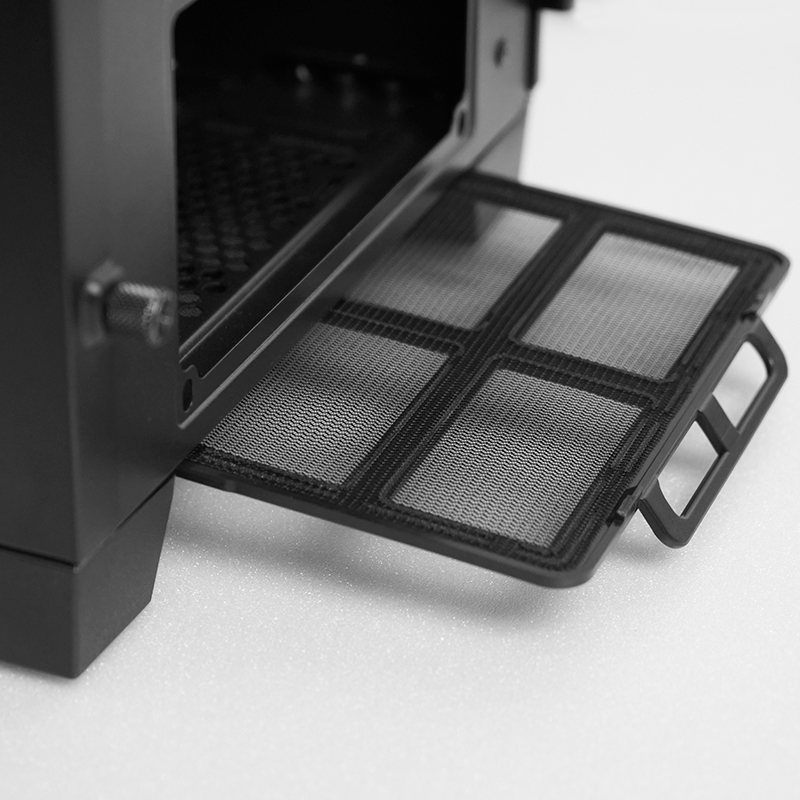

| Anti-dust filter | Yes |

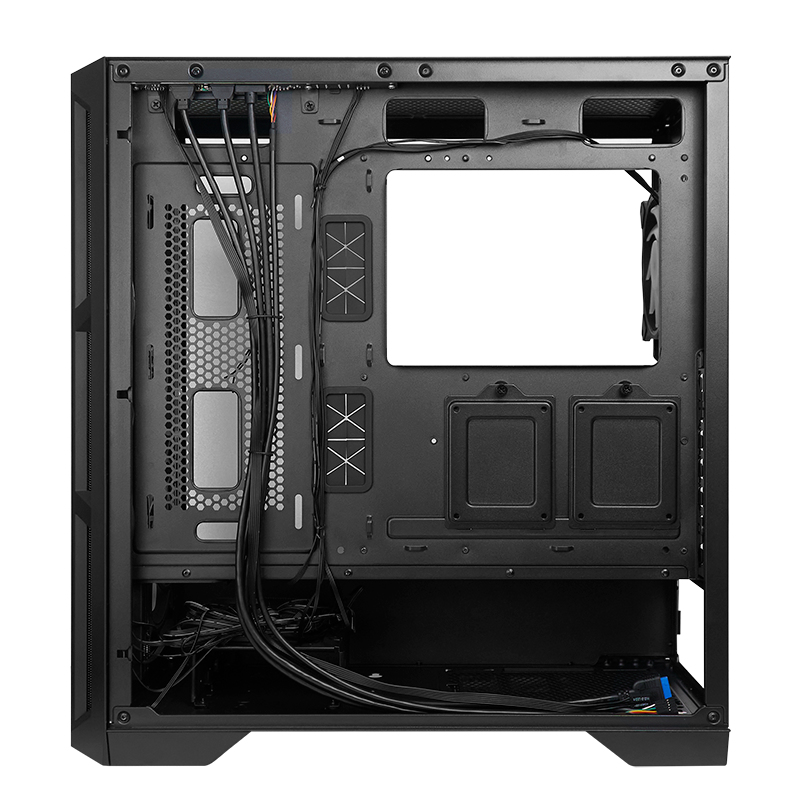

| Cable management | Yes |
| On/off button | Yes |
| RGB control button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 17.5 cm |
| Maximum graphics card length | 40 cm |
| Maximum PSU length | 22 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| USB Type-C ports quantity | 1 |
Cooling
| Specification | Value |
|---|---|
| Fan speed control | Yes |
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Number of side fans supported (max) | 2 |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 2 |
| Bottom fans diameters supported | 120 mm |
| Liquid cooling capability | Yes |
| Liquid cooling installed | No |
| Front radiator sizes supported | 240,280,360,420 mm |
| Side radiator sizes supported | 240 mm |
| Top radiator sizes supported | 240,280,360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 230 mm |
| Depth | 465 mm |
| Height | 495 mm |
| Weight | 8 kg |
| Material thickness | 0.6 mm |
Packaging data
| Specification | Value |
|---|---|
| LED controller | Yes |
| Package weight | 9.5 kg |
