Silent Base 801
Model Silent Base 801Part no. BG028EAN 4260052187074
49 specifications
- Noise18.8 dB
- TypeMidi Tower
- Weight10.8 kg
- ColourBlack, Orange
- Power supply includedNo
- USB 2.0 ports quantity1
Overview
- Noise
- 18.8 dB
- Type
- Midi Tower
- Weight
- 10.8 kg
- Colour
- Black, Orange
- Power supply included
- No
- USB 2.0 ports quantity
- 1
- Brand
- be quiet!
- Category
- Computer Case
- Model
- Silent Base 801
- Part numbers
- BG028, BG029, BG030
- EAN / UPC
- 4260052187074, 4260052187050, 4260052187067
- Also known as
- be quiet! Silent Base 801 Midi Tower Black, Orange
Specifications
49 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), SECC |
| Product colour | Black, Orange |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 5 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 11 |
| Number of expansion slots | 9 |
| Side window | No |
| Anti-dust filter | Yes |
| LED indicators | HDD |
| Maximum CPU cooler height | 18.5 cm |
| Maximum graphics card length | 44.9 cm |
| Maximum PSU length | 28.8 cm |
| Certification | CE, RoHS |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Supported power supply form factors | ATX, PS2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 2x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Fan power consumption | 1.44 W |
| Fan rated current | 0.12 A |
| Maximum airflow | 61.2 cfm |
| Noise level (high speed) | 18.8 dB |
| Front radiator sizes supported | 120,140,240,280,360,420 mm |
| Rear radiator sizes supported | 120,140 mm |
| Top radiator sizes supported | 120,240,360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Card reader integrated | No |

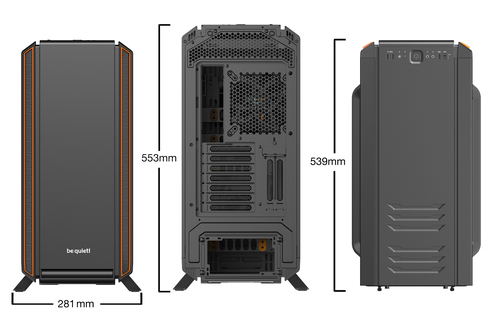

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 281 mm |
| Depth | 539 mm |
| Height | 553 mm |
| Weight | 10.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 305 mm |
| Package depth | 651 mm |
| Package height | 572 mm |
| Package weight | 12.8 kg |
Other features
| Specification | Value |
|---|---|
| Fan connector | 4-pin |
