Silent Base 601 Window
Model Silent Base 601 WindowPart no. BGW25EAN 4260052187043
52 specifications
- Noise18.8 dB
- TypeMidi Tower
- Weight11.2 kg
- ColourBlack, Orange
- Power supply includedNo
- USB 2.0 ports quantity1
Overview
- Noise
- 18.8 dB
- Type
- Midi Tower
- Weight
- 11.2 kg
- Colour
- Black, Orange
- Power supply included
- No
- USB 2.0 ports quantity
- 1
- Brand
- be quiet!
- Category
- Computer Case
- Model
- Silent Base 601 Window
- Part numbers
- BGW25, BGW26, BGW27
- EAN / UPC
- 4260052187043, 4260052187029, 4260052187036
- Also known as
- be quiet! Silent Base 601 Window Midi Tower Black, Orange
Specifications
52 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), SECC, Tempered glass |
| Product colour | Black, Orange |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 3 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 6 |
| Number of expansion slots | 9 |
| Side window | Yes |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Built-in speaker(s) | No |
| LED indicators | HDD |
| Maximum CPU cooler height | 18.5 cm |
| Maximum graphics card length | 44.9 cm |
| Maximum PSU length | 28.8 cm |
| Certification | CE, RoHS |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Supported power supply form factors | ATX, PS2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 1x 140 mm |
| Number of front fans supported (max) | 2 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Fan power consumption | 1.44 W |
| Fan rated current | 0.12 A |
| Maximum airflow | 61.2 cfm |
| Noise level (high speed) | 18.8 dB |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator sizes supported | 120,140 mm |
| Top radiator sizes supported | 120,240,360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Card reader integrated | No |

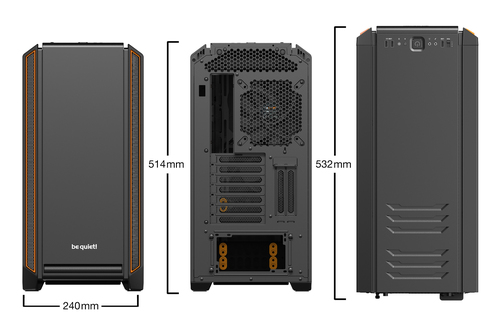

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 240 mm |
| Depth | 532 mm |
| Height | 514 mm |
| Weight | 11.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 325 mm |
| Package depth | 566 mm |
| Package height | 615 mm |
| Package weight | 13.2 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
Other features
| Specification | Value |
|---|---|
| Tempered glass panel thickness | 4 mm |
| Fan connector | 3-pin |
