PURE BASE 501 Airflow Black
Model PURE BASE 501 Airflow BlackPart no. BG074EAN 4260052191804
52 specifications
- TypeMidi Tower
- Weight6.8 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity0
- Front fans installed1x 140 mm
Overview
- Type
- Midi Tower
- Weight
- 6.8 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Front fans installed
- 1x 140 mm
- Brand
- be quiet!
- Category
- Computer Case
- Model
- PURE BASE 501 Airflow Black
- Part number
- BG074
- EAN / UPC
- 4260052191804
- Also known as
- be quiet! PURE BASE 501 Airflow Black Midi Tower
Specifications
52 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), Steel |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 5 |
| Number of expansion slots | 7 |
| Side window | No |
| Suitable for | Gaming |
| Illumination | No |
| Anti-dust filter | Yes |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 17.8 cm |
| Maximum graphics card length | 36.8 cm |
| Maximum PSU length | 18 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Supported power supply form factors | ATX, PS2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 1x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Maximum air pressure | 0.96 mmH2O |
| Maximum airflow | 57.4 cfm |
| Liquid cooling capability | Yes |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator sizes supported | 120,140 mm |
| Top radiator sizes supported | 120,240 mm |
| Pulse-width modulation (PWM) support | Yes |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS |

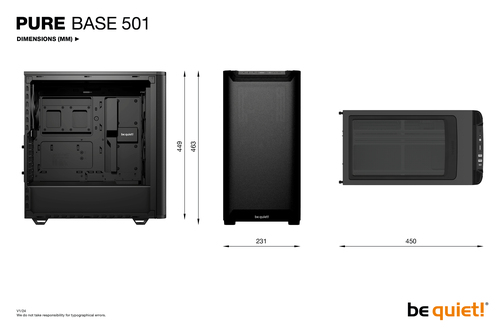

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 231 mm |
| Depth | 450 mm |
| Height | 463 mm |
| Weight | 6.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 292 mm |
| Package depth | 518 mm |
| Package height | 503 mm |
| Package weight | 8 kg |
