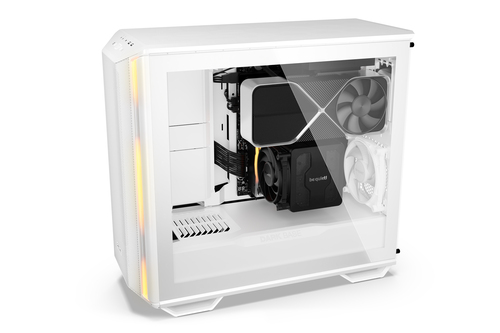

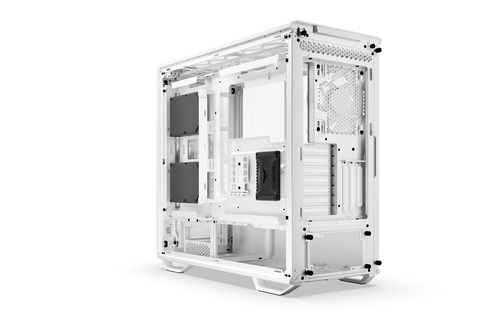

Dark Base 701
Model Dark Base 701Part no. BGW59EAN 4260052190661
51 specifications
- TypeTower
- Weight12.8 kg
- ColourWhite
- Power supply includedNo
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
- Front fans installed3x 120 mm
Overview
- Type
- Tower
- Weight
- 12.8 kg
- Colour
- White
- Power supply included
- No
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Front fans installed
- 3x 120 mm
- Brand
- be quiet!
- Category
- Computer Case
- Model
- Dark Base 701
- Part number
- BGW59
- EAN / UPC
- 4260052190661
- Also known as
- be quiet! Dark Base 701 Tower White
Specifications
51 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Form factor | Tower |
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), Glass, Steel |
| Product colour | White |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ATX |
| Number of 3.5" bays | 3 |
| Number of 2.5" bays | 5 |
| Number of expansion slots | 10 |
| Side window | Yes |
| Illumination | Yes |
| Illumination colour | Amber, Blue, Green, Red |
| LED indicators | Yes |
| Maximum CPU cooler height | 18.5 cm |
| Maximum graphics card length | 41.5 cm |
| Maximum PSU length | 25 cm |
| Certification | CE, UKCA, RoHS, Reach, WEEE, Triman |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Combo headphone/mic port | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140,240,280,360 mm |
| Rear fans installed | 1x 120 mm/1x 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Top fans installed | 3x 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140,240,280,360 mm |
| Bottom fans installed | 1x 140 mm |
| Number of bottom fans supported (max) | 1 |
| Bottom fans diameters supported | 120,140 mm |
| Maximum air pressure | 2.36 mmH2O |
| Maximum airflow | 133.2 cfm |
| Liquid cooling capability | Yes |
| Front radiator sizes supported | 120,140,240,360,420 mm |
| Side radiator sizes supported | 120,240,360 mm |
| Rear radiator sizes supported | 120,240 mm |
| Top radiator sizes supported | 120,240,360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | Triman |
| Warranty period | 3 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 249 mm |
| Depth | 565 mm |
| Height | 495 mm |
| Weight | 12.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 319 mm |
| Package depth | 575 mm |
| Package height | 628 mm |
| Package weight | 15.5 kg |
