Dark Base 700
Model Dark Base 700Part no. BGW23EAN 4260052185742
55 specifications
- Noise28.1 dB
- TypeMidi Tower
- Weight13.2 kg
- ColourBlack
- Power supply locationBottom
- USB 2.0 ports quantity0
Overview
- Noise
- 28.1 dB
- Type
- Midi Tower
- Weight
- 13.2 kg
- Colour
- Black
- Power supply location
- Bottom
- USB 2.0 ports quantity
- 0
- Brand
- be quiet!
- Category
- Computer Case
- Model
- Dark Base 700
- Part number
- BGW23
- EAN / UPC
- 4260052185742
- Also known as
- be quiet! Dark Base 700 Midi Tower Black
Specifications
55 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), Aluminium, Steel, Tempered glass |
| Product colour | Black |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 7 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 17 |
| Number of expansion slots | 9 |
| Side window | Yes |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Front |
| Top cover | Yes |
| Maximum CPU cooler height | 18 cm |
| Maximum graphics card length | 43 cm |
| Maximum PSU length | 28.5 cm |
| Certification | CE, RoHS |
Power supply
| Specification | Value |
|---|---|
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 1x 140 mm |
| Number of front fans supported (max) | 2 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 1 |
| Bottom fans diameters supported | 120,140 mm |
| Fan power consumption | 1.68 W |
| Fan rated current | 0.5 A |
| Fan rated voltage | 12 V |
| Maximum airflow | 77.57 cfm |
| Noise level (high speed) | 28.1 dB |
| Liquid cooling capability | Yes |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator sizes supported | 120,140 mm |
| Top radiator sizes supported | 120,240,360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Weight & dimensions
| Specification | Value |
|---|---|

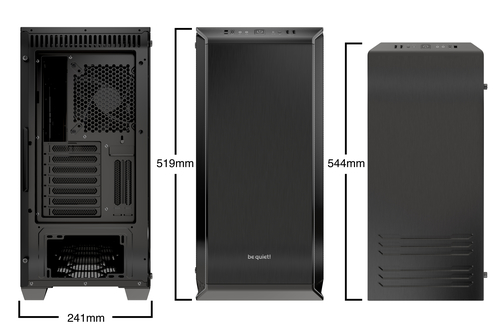

| Width | 241 mm |
| Depth | 544 mm |
| Height | 519 mm |
| Weight | 13.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 325 mm |
| Package depth | 580 mm |
| Package height | 640 mm |
| Package weight | 14.4 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
Other features
| Specification | Value |
|---|---|
| Backplanes support | Yes |
| Fan connector | 4-pin |
