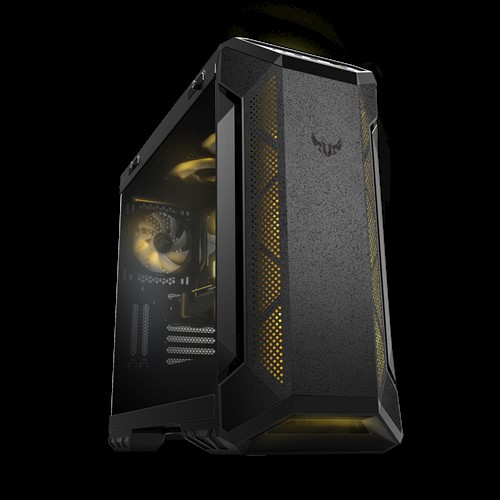

TUF Gaming GT501VC
Model TUF Gaming GT501VCPart no. 90DC00A2-B09000EAN 4718017376051
38 specifications
- TypePC
- Weight9.9 kg
- Power supply includedNo
- USB 2.0 ports quantity0
- Number of front fans supported (max)3
- Supported HDD sizes2.5,3.5"
Overview
- Type
- PC
- Weight
- 9.9 kg
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Number of front fans supported (max)
- 3
- Supported HDD sizes
- 2.5,3.5"
- Brand
- ASUS
- Category
- Computer Case
- Model
- TUF Gaming GT501VC
- Part number
- 90DC00A2-B09000
- EAN / UPC
- 4718017376051
- Also known as
- ASUS TUF Gaming GT501VC
Specifications
38 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Type | PC |
| Material | Metal, SGCC |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 4 |
| Number of 2.5" bays | 3 |
| Number of expansion slots | 7 |
| Side window | Yes |
| Suitable for | Gaming |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 18 cm |
| Maximum graphics card length | 42 cm |
| Maximum PSU length | 24 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Liquid cooling capability | Yes |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator sizes supported | 120,140 mm |
| Top radiator sizes supported | 120,140,240,280,360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 251 mm |
| Depth | 545 mm |
| Height | 552 mm |
| Weight | 9.9 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
