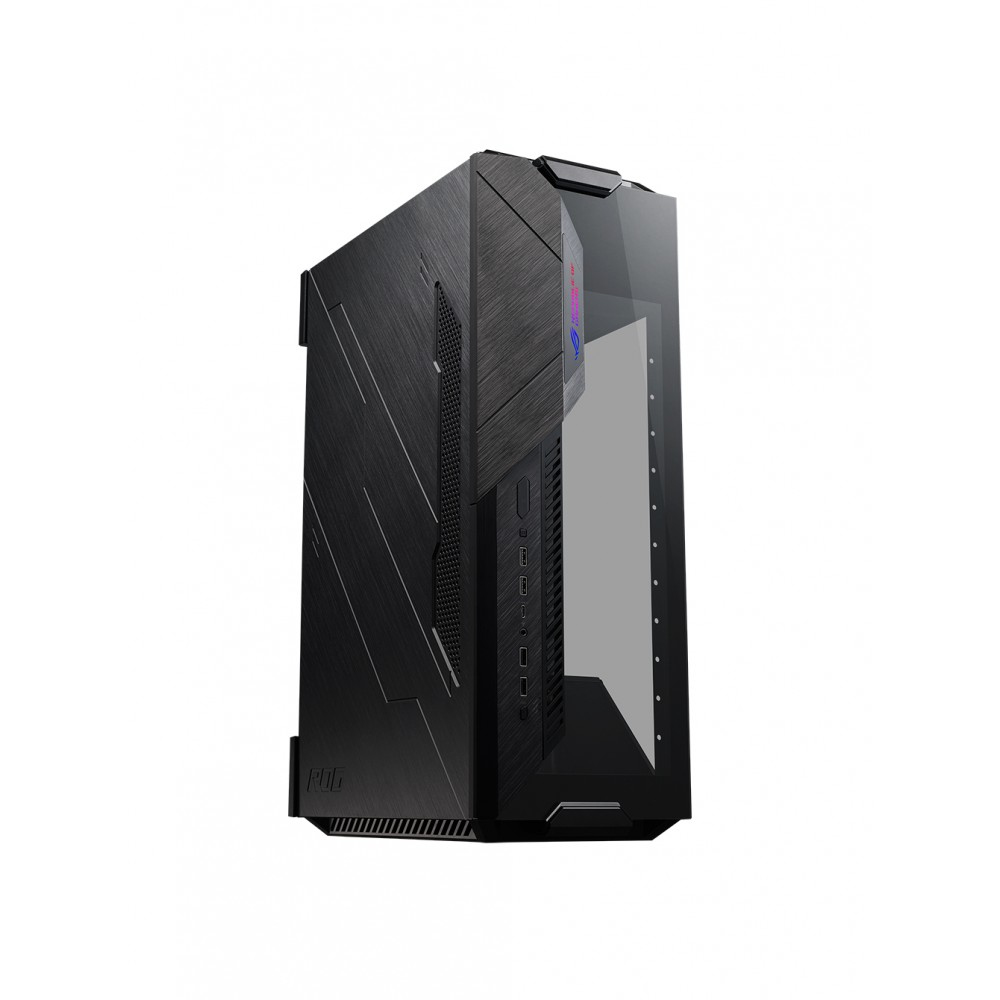

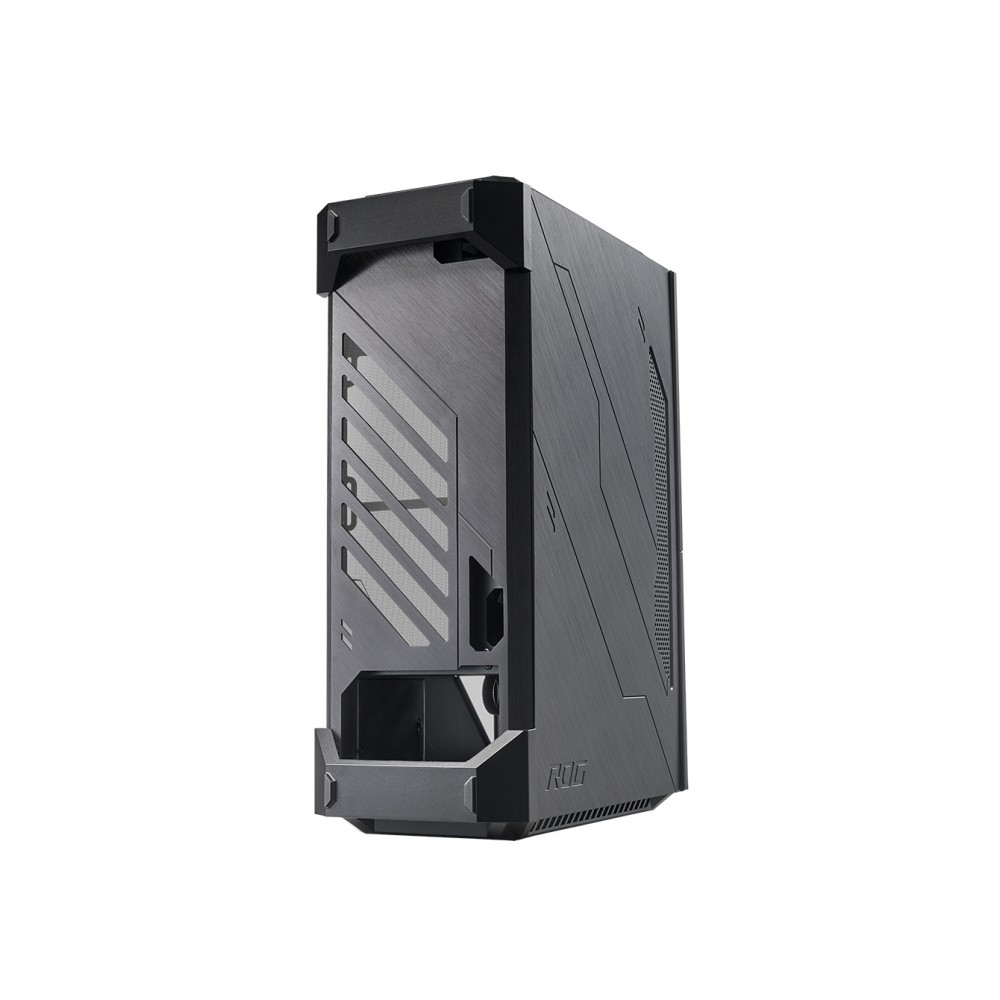

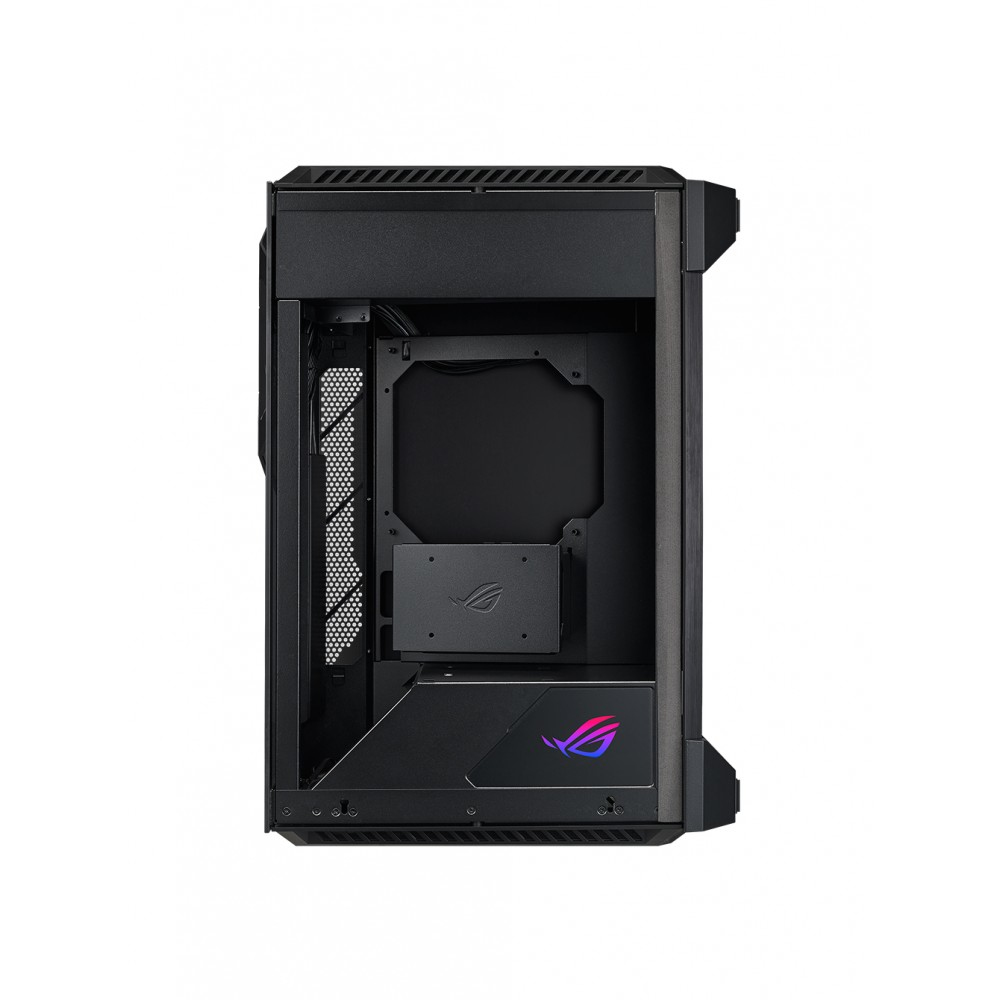

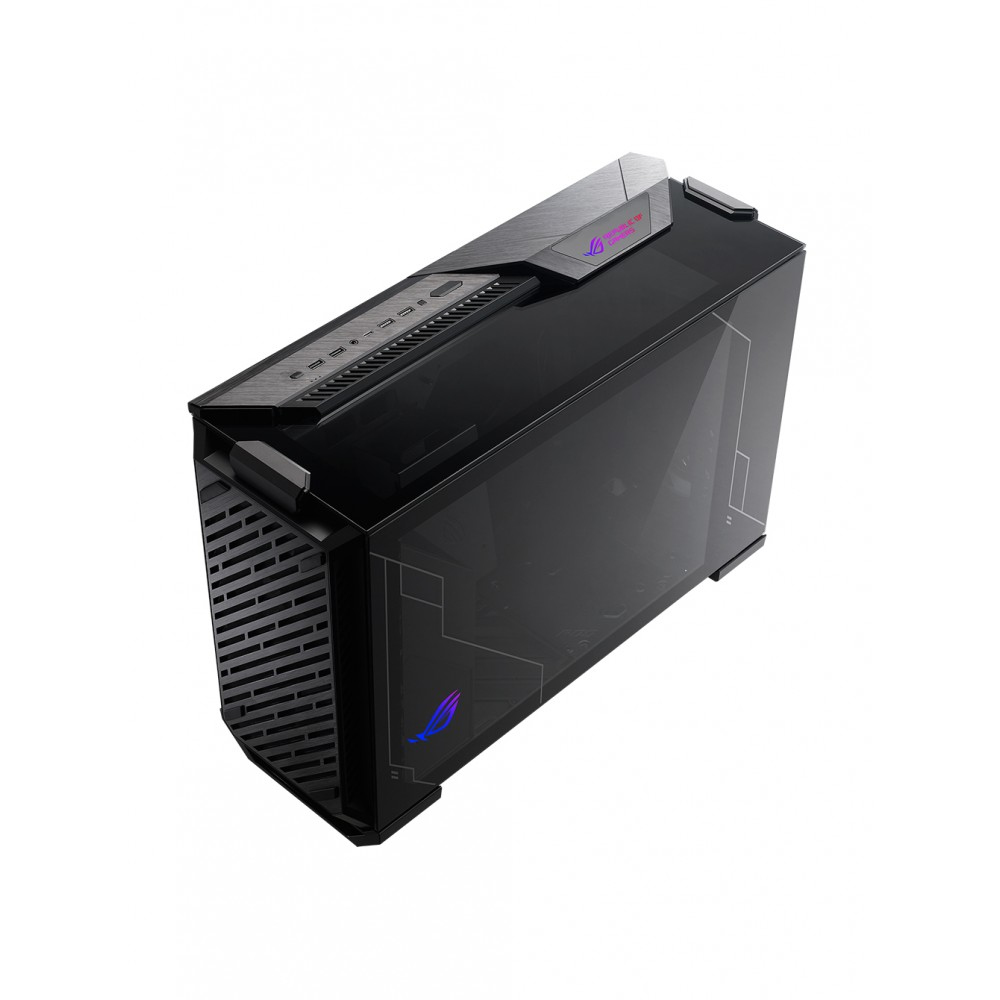

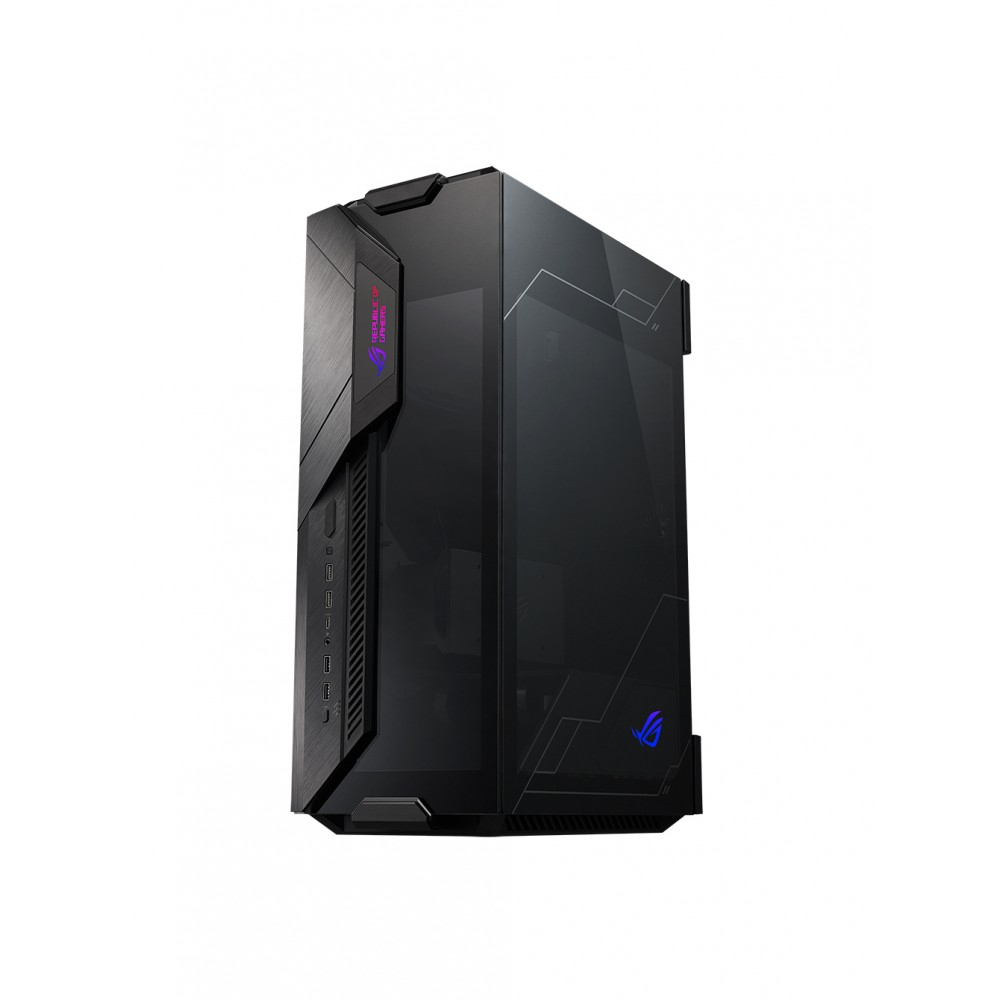

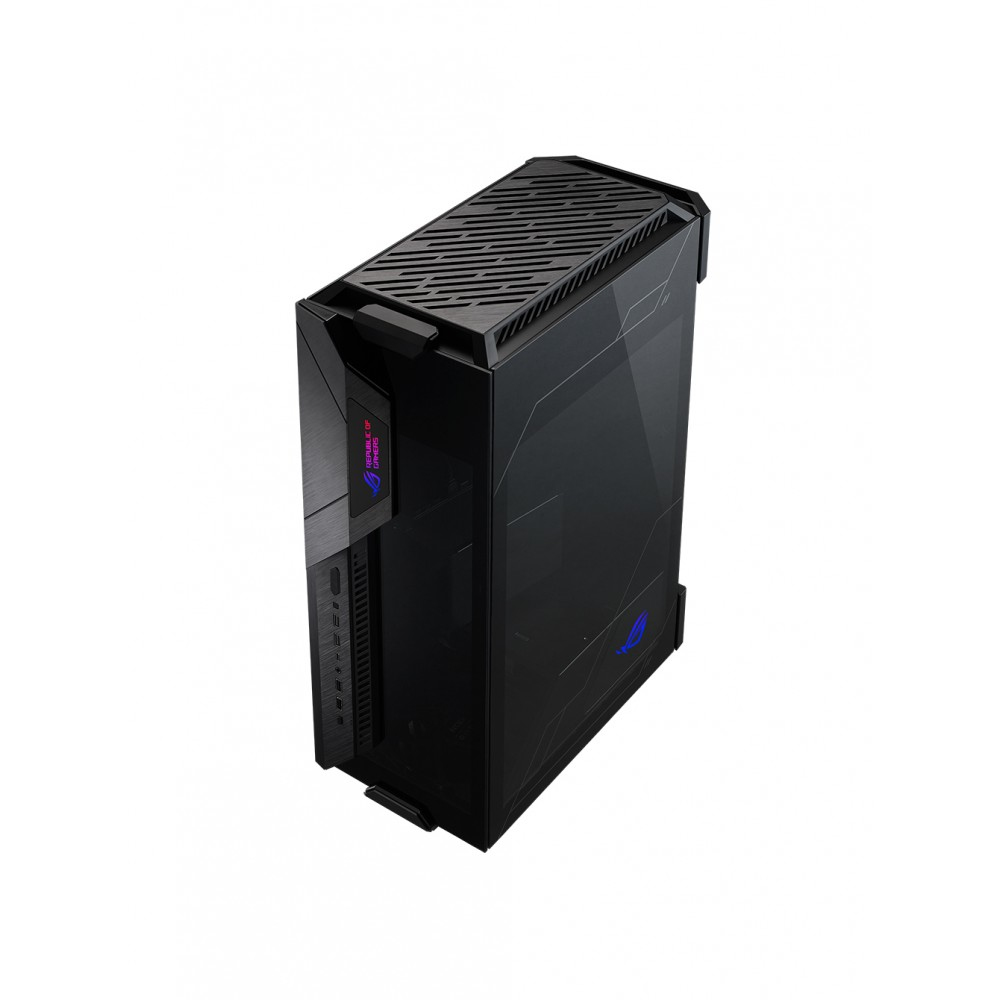

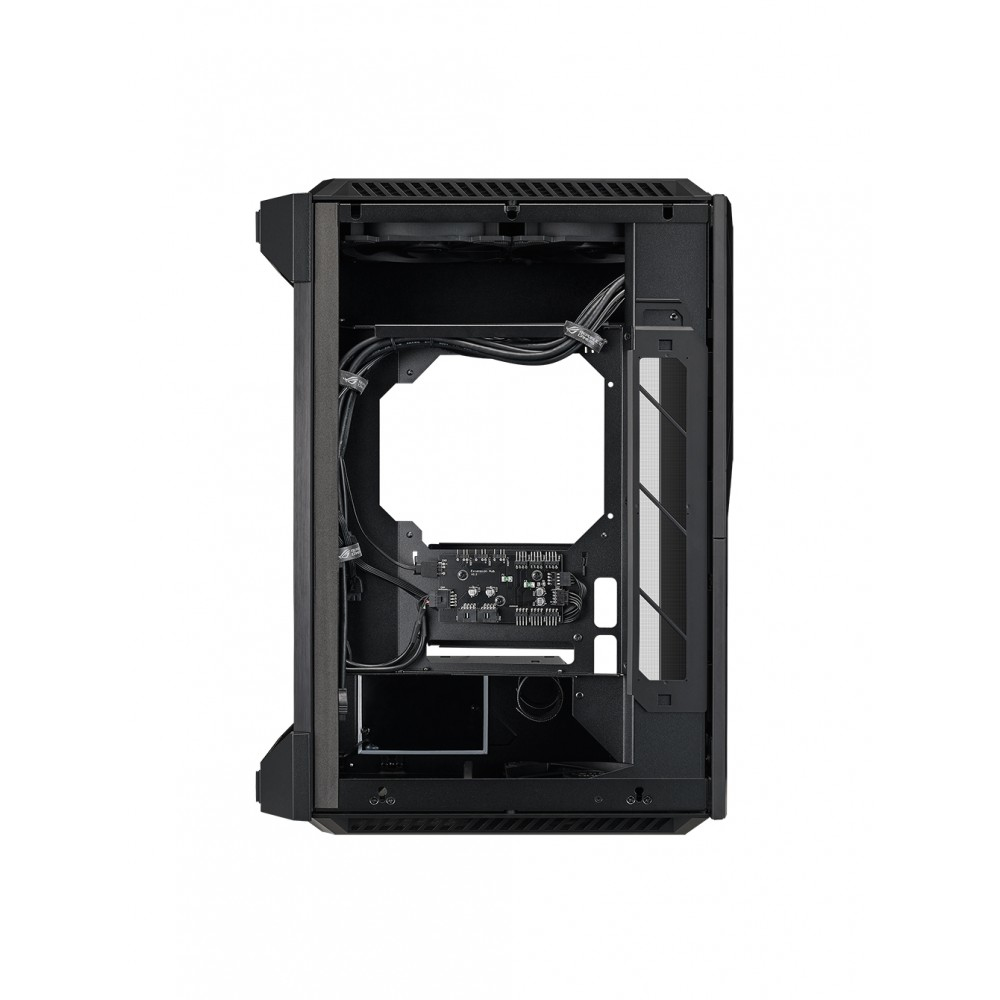

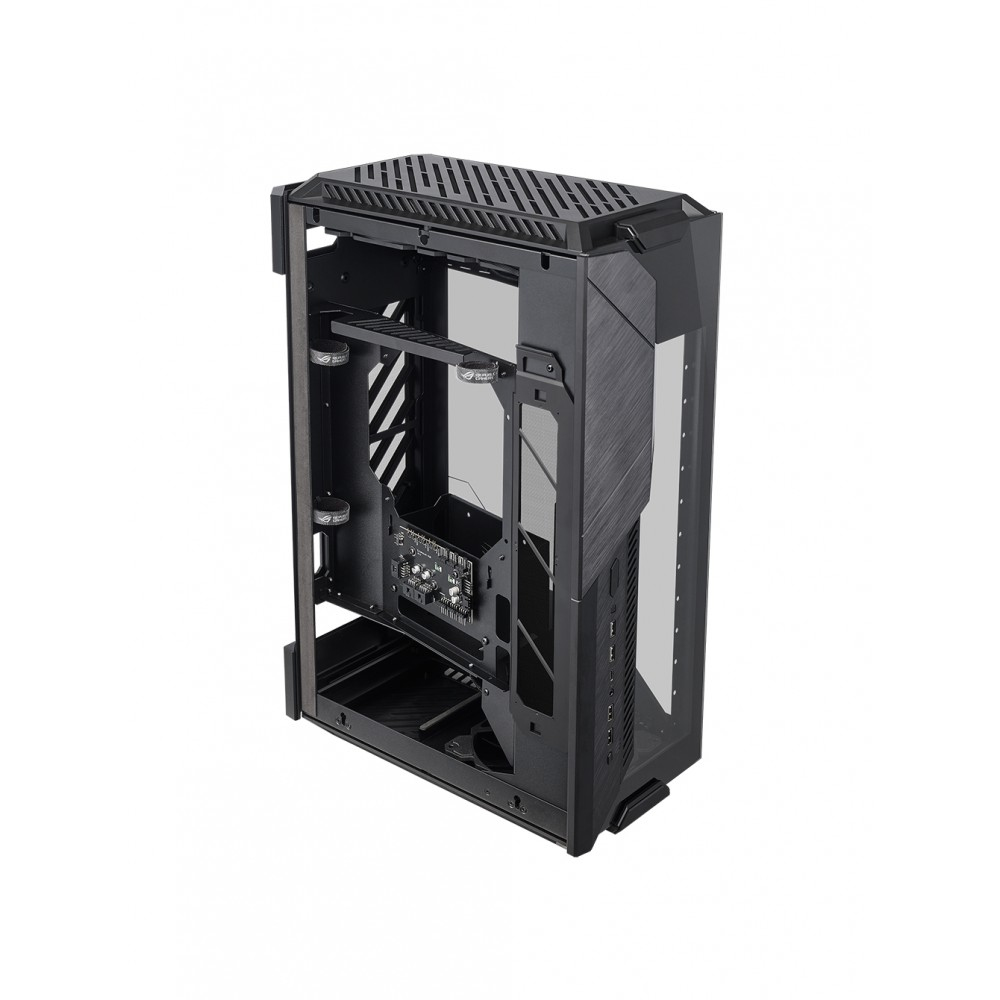

ROG Z11 Mini-ITX/DTX
Model ROG Z11 Mini-ITX/DTXPart no. 90DC00B0-B30000
35 specifications
- TypeMidi Tower
- Weight8.73 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity2
- Top fans installed2x 140 mm
Overview
- Type
- Midi Tower
- Weight
- 8.73 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 2
- Top fans installed
- 2x 140 mm
- Brand
- ASUS
- Category
- Computer Case
- Model
- ROG Z11 Mini-ITX/DTX
- Part number
- 90DC00B0-B30000
- Also known as
- ASUS ROG Z11 Mini-ITX/DTX Midi Tower Black
Specifications
35 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), Aluminium, Steel, Tempered glass |
| Product colour | Black |
| Supported motherboard form factors | Mini-DTX, Mini-ITX |
| Number of 3.5" bays | 1 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 4 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| On/off button | Yes |
| RGB control button | Yes |
| Reset button | Yes |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | No |
| Audio output | No |
Cooling
| Specification | Value |
|---|---|
| Top fans installed | 2x 140 mm |
| Bottom fans installed | 1x 140 mm |
| Liquid cooling capability | Yes |
| Rear radiator sizes supported | 120,140 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 3.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 194 mm |
| Depth | 386 mm |
| Height | 531 mm |
| Weight | 8.73 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
