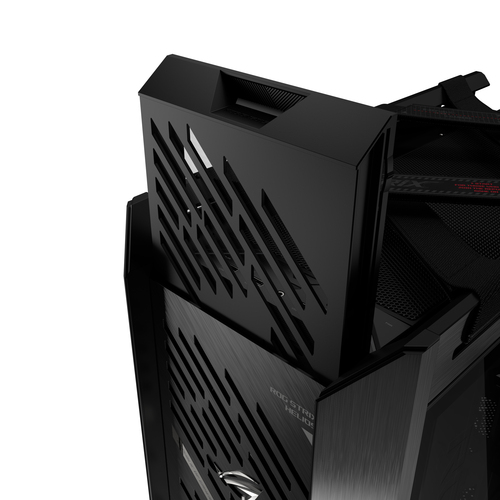

ROG STRIX HELIOS II GX601S BLACK
Model ROG STRIX HELIOS II GX601S BLACKPart no. 90DC00W0-B30000EAN 199291061156
46 specifications
- TypeMidi Tower
- Weight18 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity0
- Front fans installed3x 140 mm
Overview
- Type
- Midi Tower
- Weight
- 18 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Front fans installed
- 3x 140 mm
- Brand
- ASUS
- Category
- Computer Case
- Model
- ROG STRIX HELIOS II GX601S BLACK
- Part number
- 90DC00W0-B30000
- EAN / UPC
- 199291061156, 199291061187, 4711636061155
- Also known as
- ASUS ROG STRIX HELIOS II GX601S BLACK Midi Tower
Specifications
46 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Aluminium, Tempered glass |
| Product colour | Black |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 4 |
| Number of expansion slots | 8 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Front |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| On/off button | Yes |
| Maximum CPU cooler height | 19 cm |
| Maximum graphics card length | 45 cm |
| Maximum PSU length | 22 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 2 |
| Combo headphone/mic port | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 3x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Liquid cooling capability | Yes |
| Front radiator sizes supported | 120,140,240,280,360,420 mm |
| Rear radiator sizes supported | 120,140 mm |
| Top radiator sizes supported | 120,140,240,280,360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 250 mm |
| Depth | 565 mm |
| Height | 591 mm |
| Weight | 18 kg |
