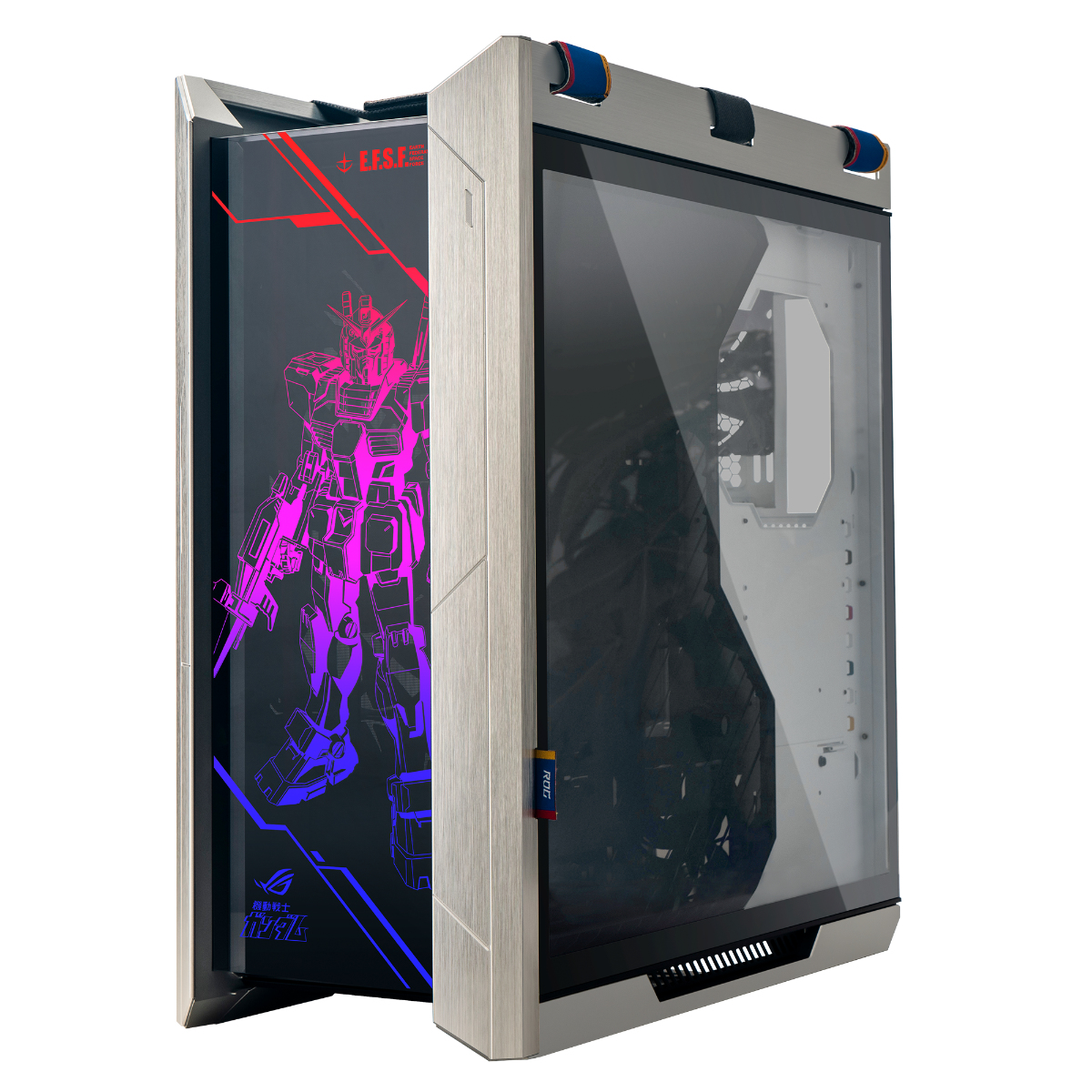

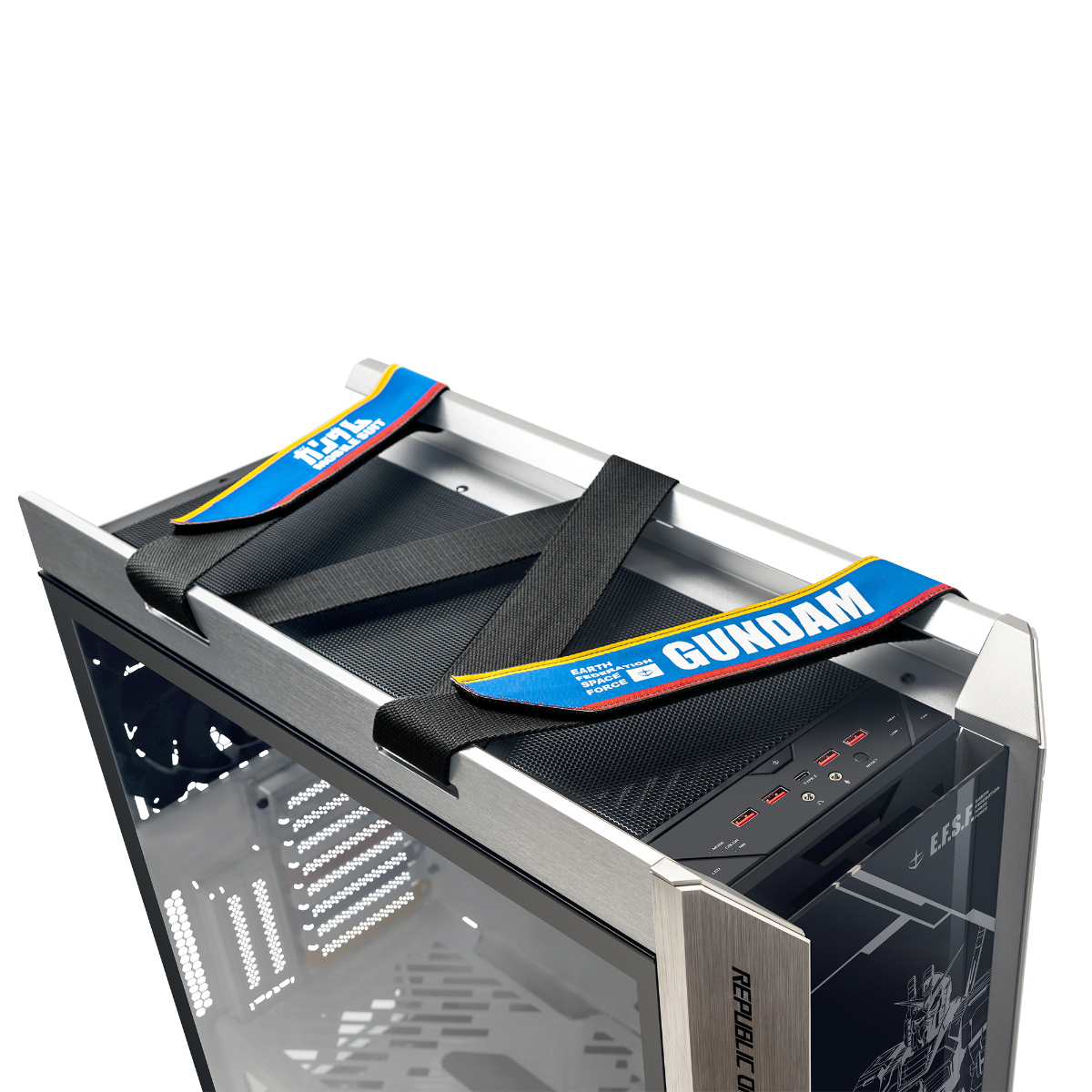

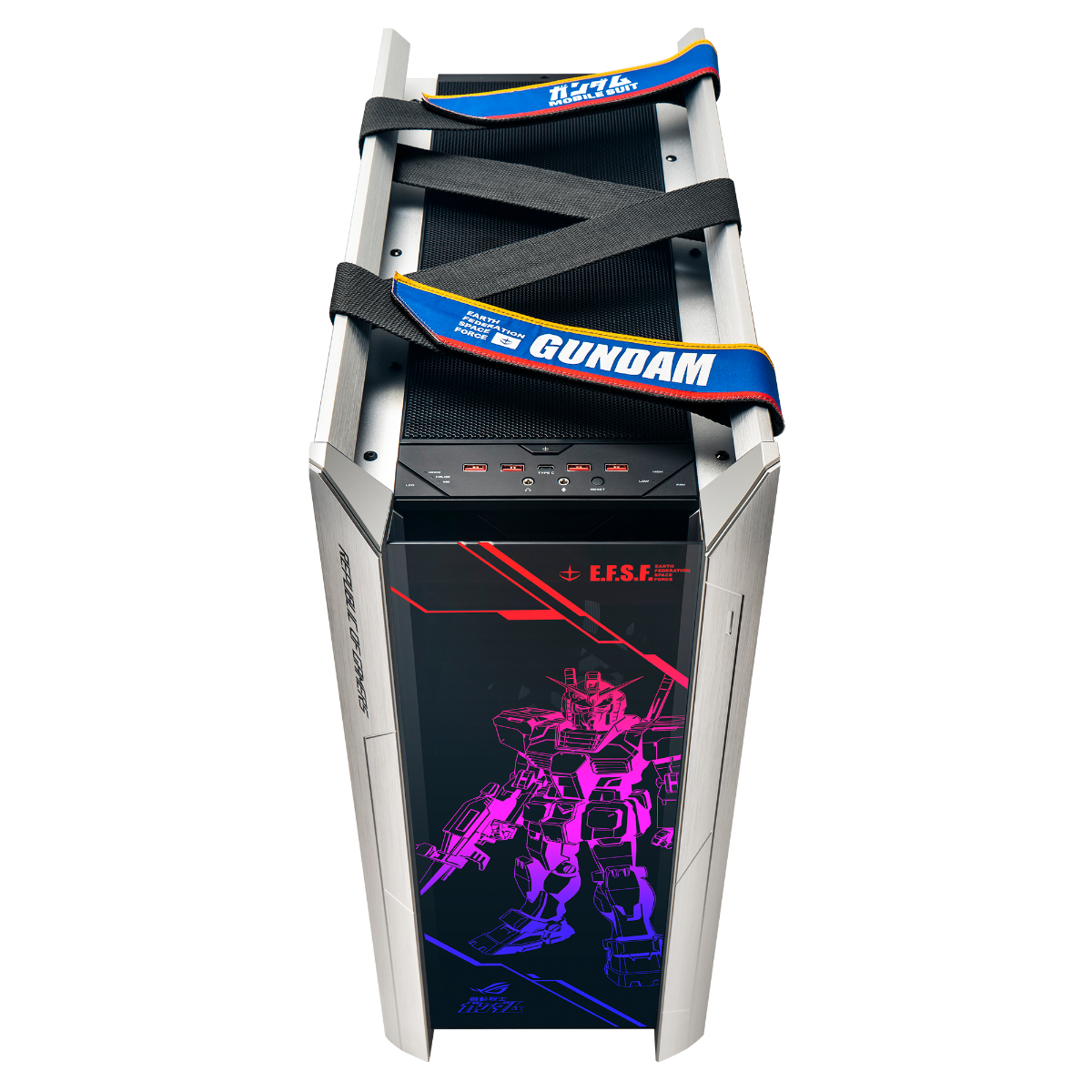

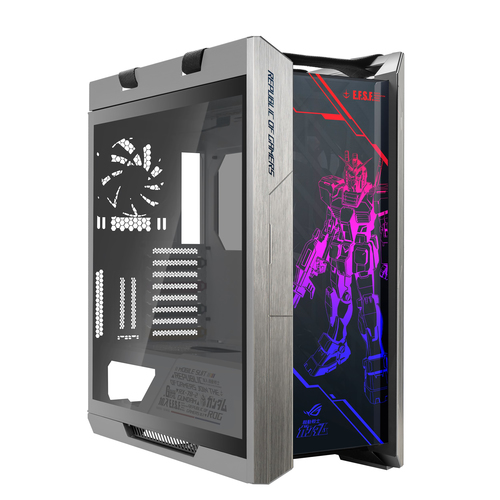

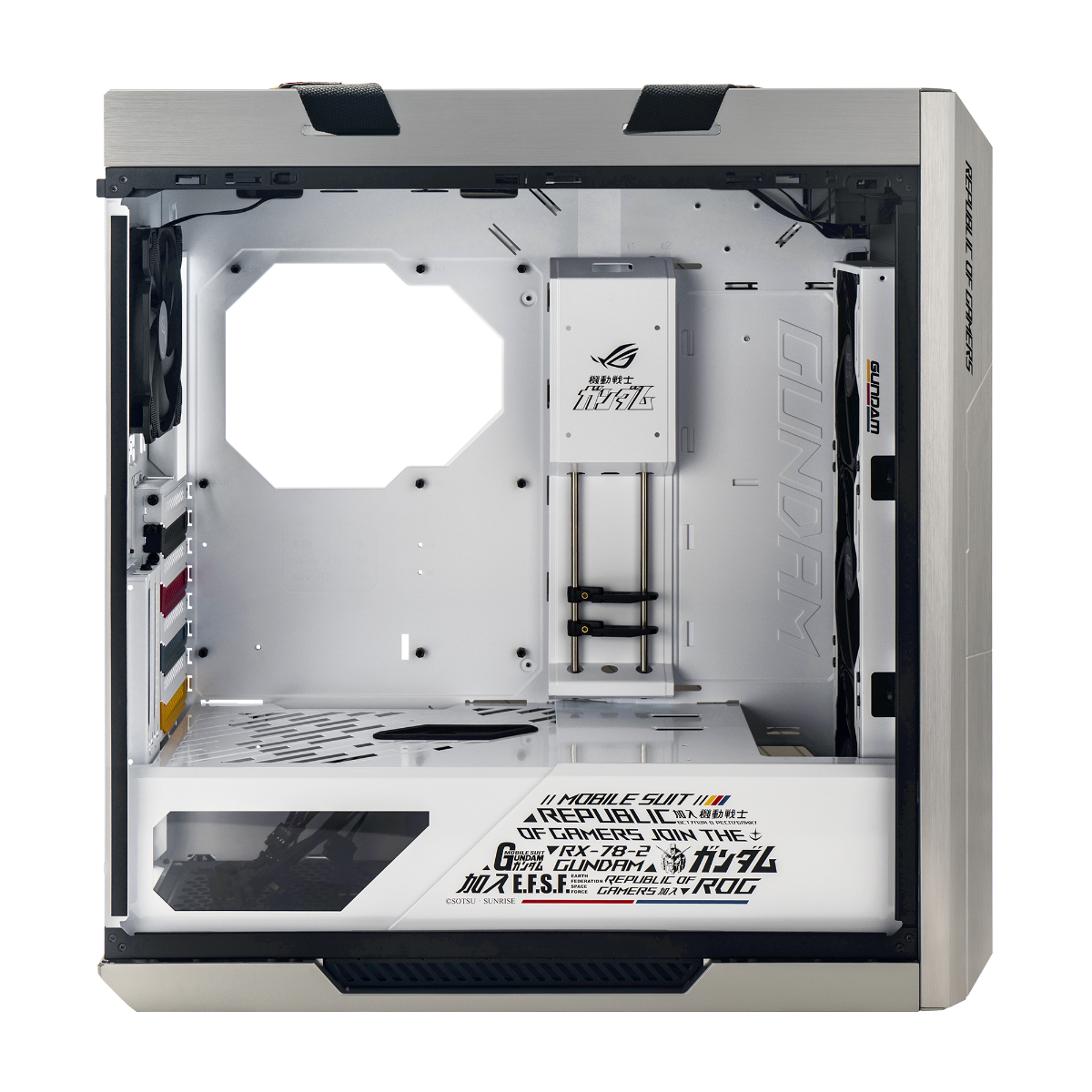

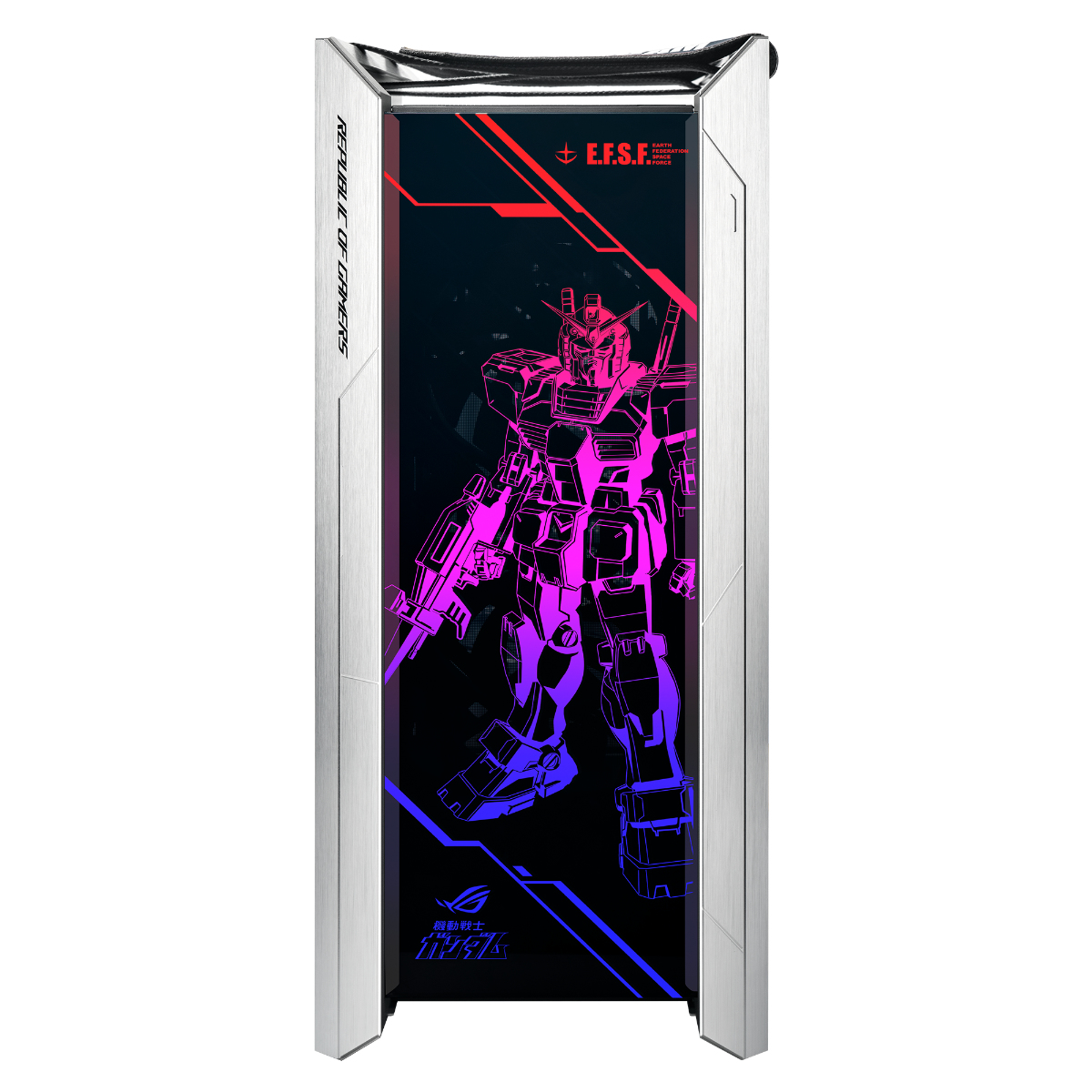

ROG Strix Helios GUNDAM EDITION
Model ROG Strix Helios GUNDAM EDITIONPart no. 90DC0023-B30010EAN 4711081063292
46 specifications
- TypeMidi Tower
- Weight18 kg
- ColourGrey, Transparent
- USB 2.0 ports quantity0
- Fan speed controlYes
- Supported HDD sizes2.5,3.5"
Overview
- Type
- Midi Tower
- Weight
- 18 kg
- Colour
- Grey, Transparent
- USB 2.0 ports quantity
- 0
- Fan speed control
- Yes
- Supported HDD sizes
- 2.5,3.5"
- Brand
- ASUS
- Category
- Computer Case
- Model
- ROG Strix Helios GUNDAM EDITION
- Part number
- 90DC0023-B30010
- EAN / UPC
- 4711081063292
- Also known as
- ASUS ROG Strix Helios GUNDAM EDITION Midi Tower Grey, Transparent
Specifications
46 specifications in 5 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Aluminium |
| Product colour | Grey, Transparent |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ATX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 4 |
| Number of expansion slots | 10 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Blue, Green, Red |
| Illumination location | Top |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| Transport wheels | No |
| On/off button | Yes |
| RGB control button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 19 cm |
| Maximum graphics card length | 45 cm |
| Maximum PSU length | 22 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Fan speed control | Yes |
| Front fans installed | 3x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Front radiator sizes supported | 120,140,240,280,360,420 mm |
| Rear radiator sizes supported | 120,140 mm |
| Top radiator sizes supported | 120,140,240,280,360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 250 mm |
| Depth | 591 mm |
| Height | 565 mm |
| Weight | 18 kg |
