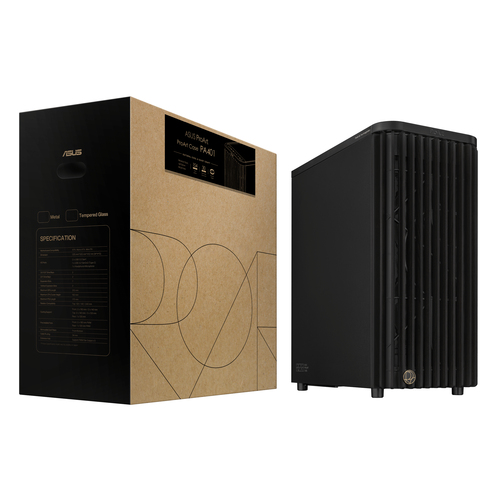

ProArt PA401 Wood Edition - Metal Panel
Model ProArt PA401 Wood Edition - Metal PanelPart no. 90DC00M0-B30010EAN 197105654686
37 specifications
- TypeTower
- Weight8.61 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity0
- Fan speed controlYes
Overview
- Type
- Tower
- Weight
- 8.61 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Fan speed control
- Yes
- Brand
- ASUS
- Category
- Computer Case
- Model
- ProArt PA401 Wood Edition - Metal Panel
- Part number
- 90DC00M0-B30010
- EAN / UPC
- 197105654686, 4711387654682
- Also known as
- ASUS ProArt PA401 Wood Edition - Metal Panel Tower Black
Specifications
37 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Form factor | Tower |
| Type | PC |
| Material | Metal |
| Product colour | Black |
| Supported motherboard form factors | ATX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 7 |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 16 cm |
| Maximum graphics card length | 31.5 cm |
| Maximum PSU length | 17 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Combo headphone/mic port | Yes |
Cooling
| Specification | Value |
|---|---|
| Fan speed control | Yes |
| Front fans installed | 2x 160 mm |
| Number of front fans supported (max) | 2 |
| Front fans diameters supported | 140,160 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Top radiator sizes supported | 120,140,240 mm |
| Pulse-width modulation (PWM) support | Yes |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 225 mm |
| Depth | 412 mm |
| Height | 503 mm |
| Weight | 8.61 kg |
