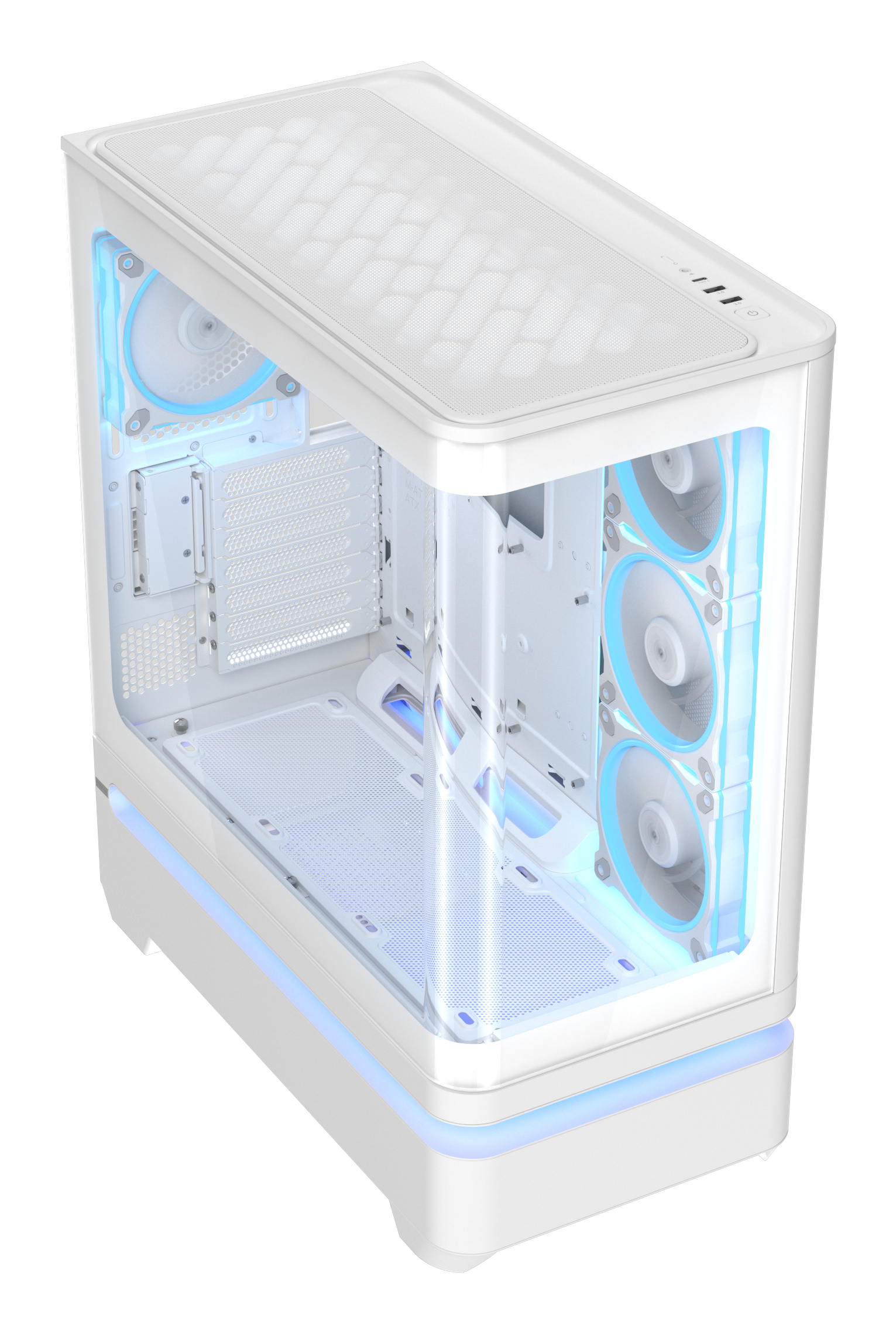

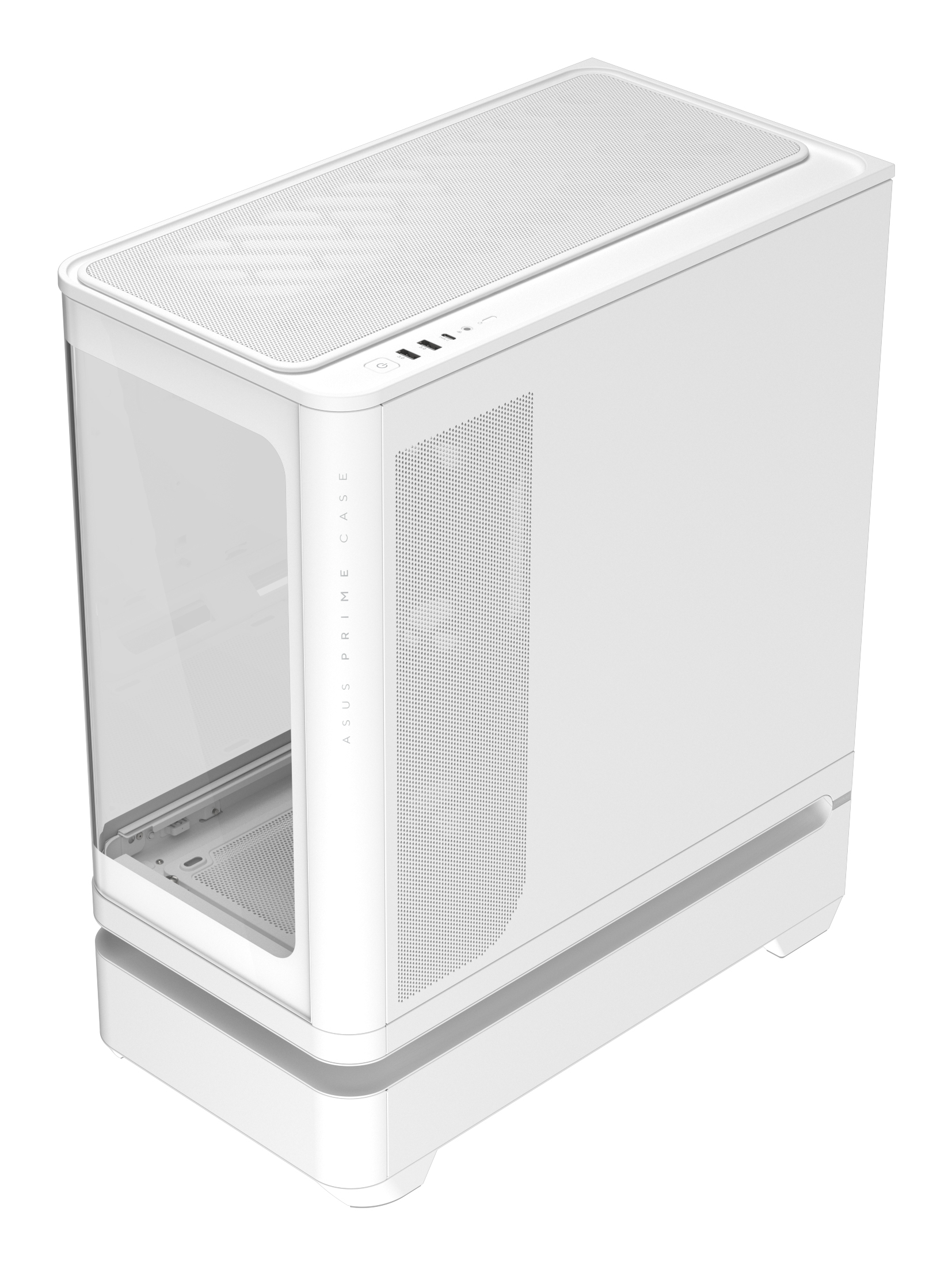

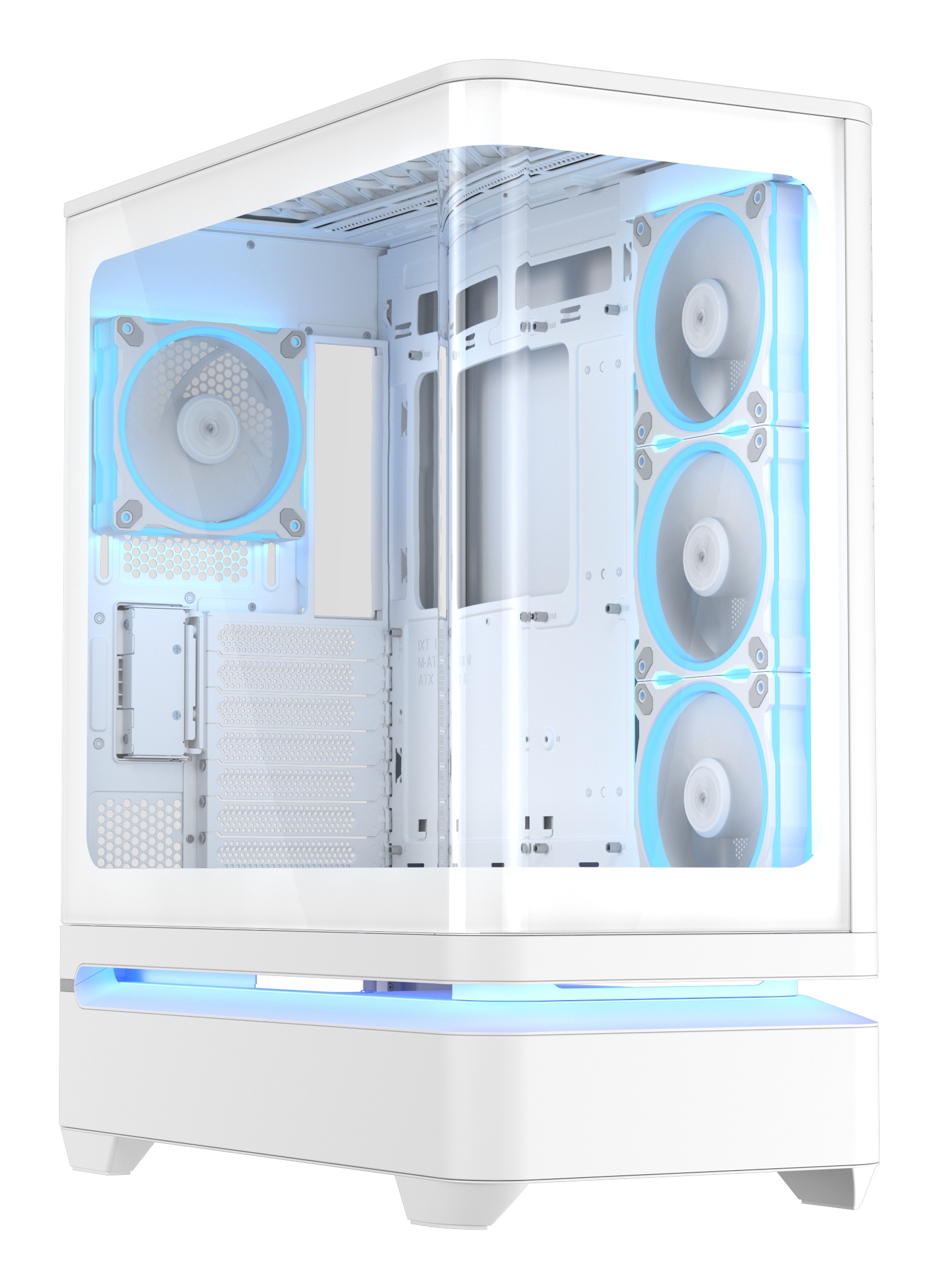

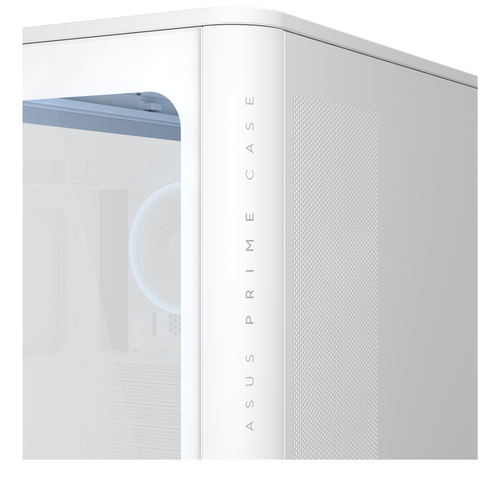

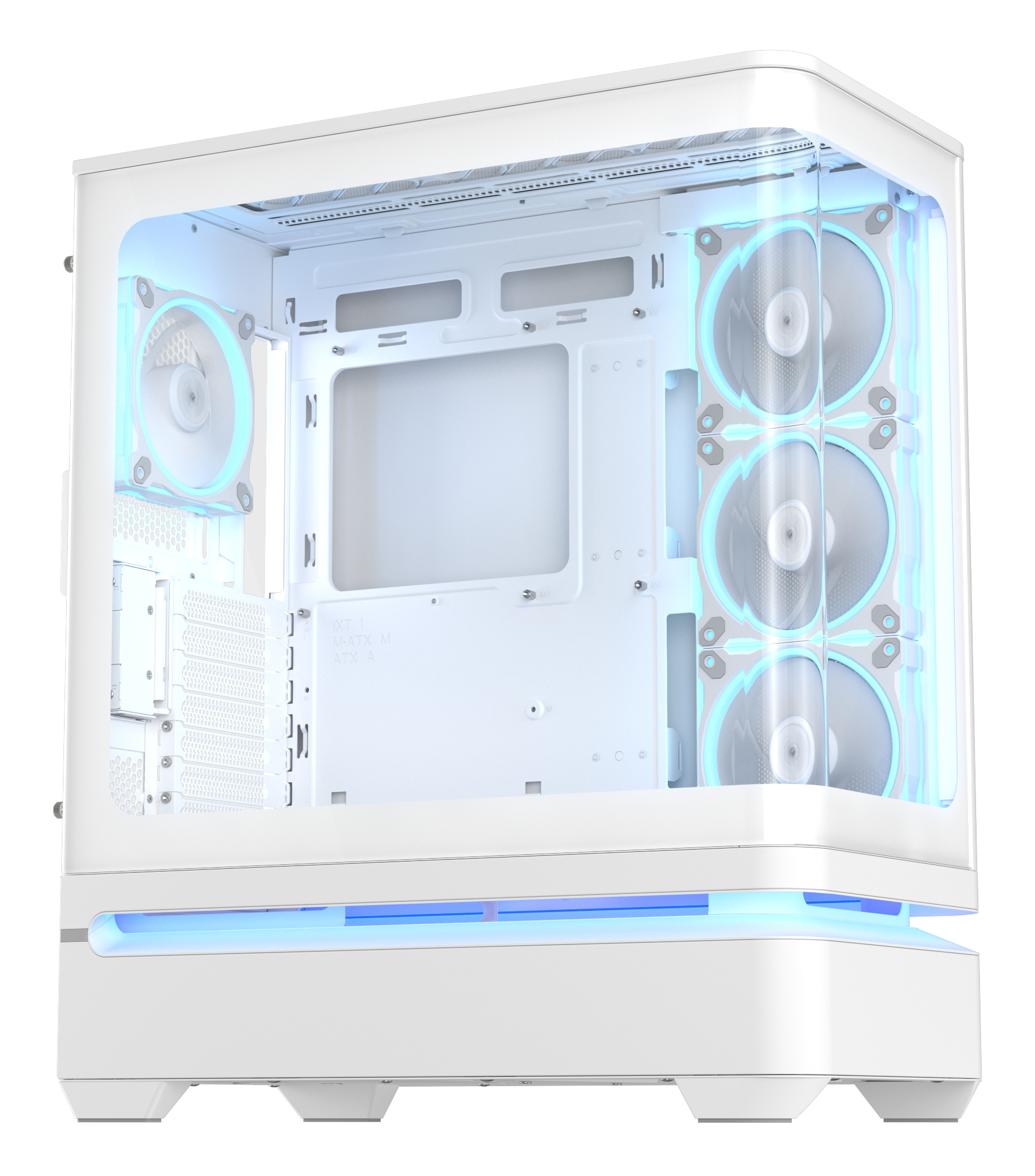

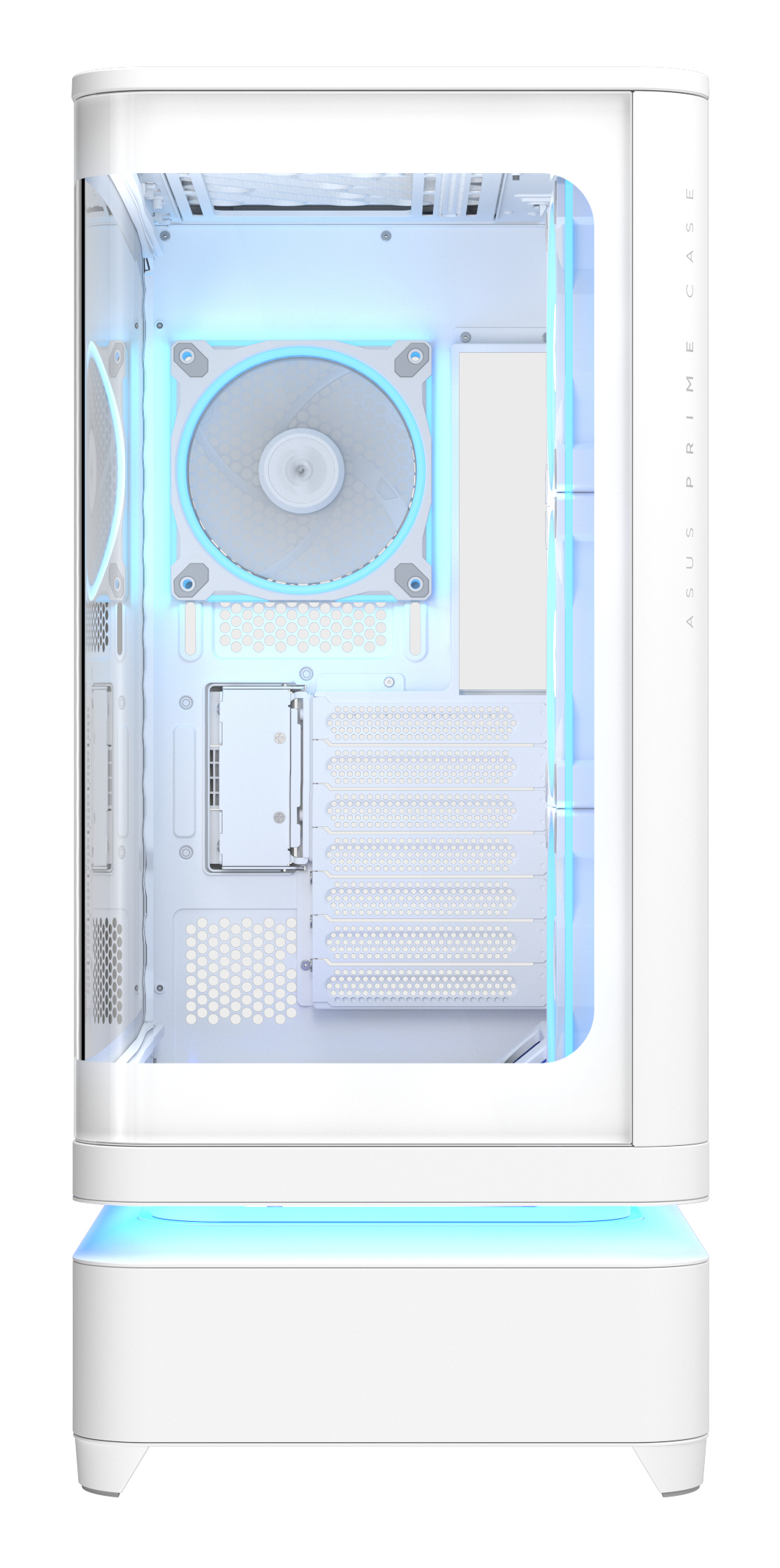

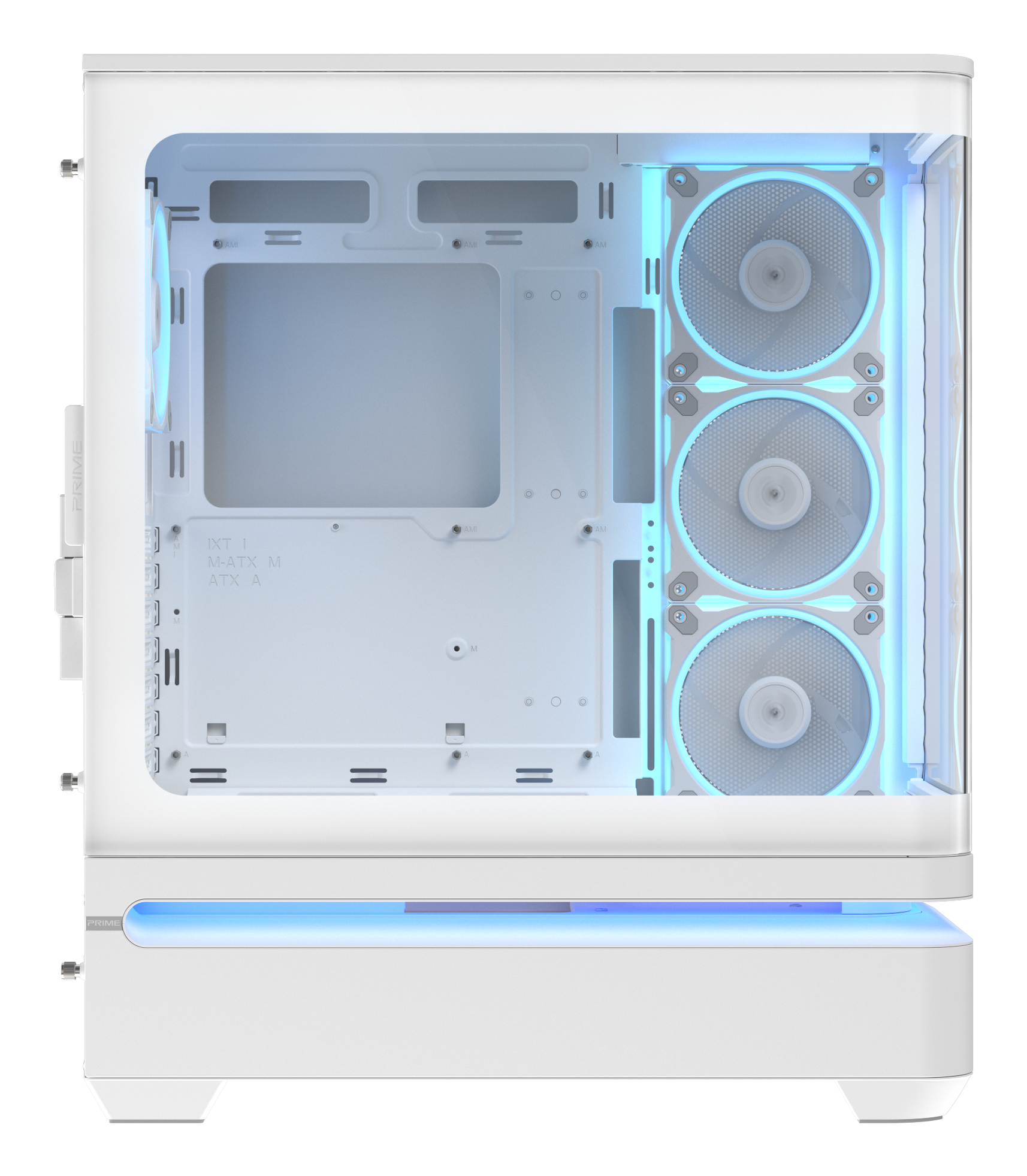

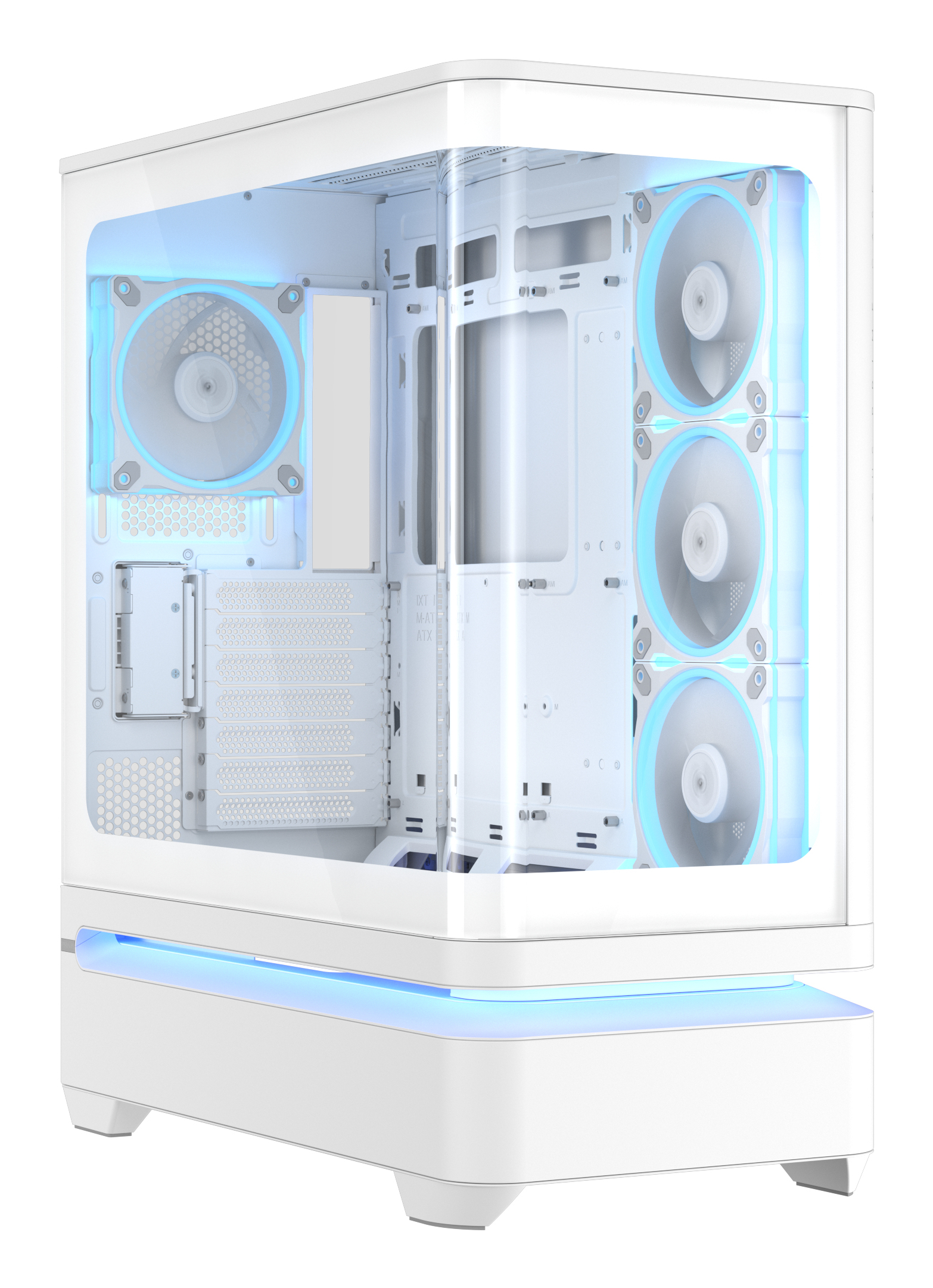

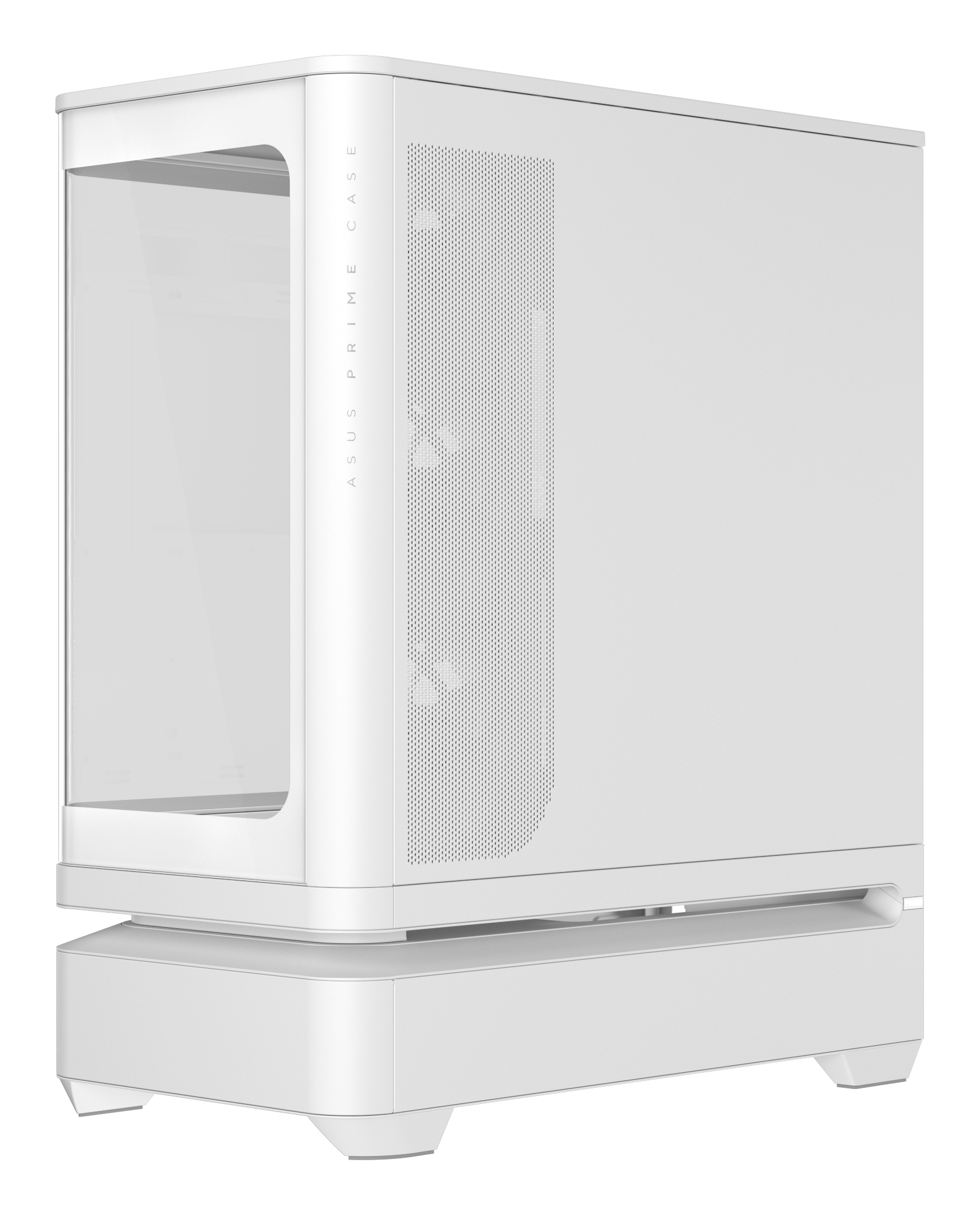

PRIME AP304 TG ARGB WHITE
Model PRIME AP304 TG ARGB WHITEPart no. 90DC0113-B19000EAN 199291559707
40 specifications
- TypePC
- Weight11.5 kg
- ColourWhite
- USB 2.0 ports quantity0
- Built-in displayNo
- Side fans installed3x 120 mm
Overview
- Type
- PC
- Weight
- 11.5 kg
- Colour
- White
- USB 2.0 ports quantity
- 0
- Built-in display
- No
- Side fans installed
- 3x 120 mm
- Brand
- ASUS
- Category
- Computer Case
- Model
- PRIME AP304 TG ARGB WHITE
- Part number
- 90DC0113-B19000
- EAN / UPC
- 199291559707, 4711636559706
- Also known as
- ASUS PRIME AP304 TG ARGB WHITE
Specifications
40 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Type | PC |
| Product colour | White |
| Supported motherboard form factors | Mini-ITX, ATX, micro ATX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of expansion slots | 7 |
| Side window | Yes |
| Illumination | Yes |
| Illumination colour | Multi |
| Anti-dust filter | Yes |
| Cable management | Yes |
| On/off button | Yes |
| Maximum CPU cooler height | 17.5 cm |
| Maximum graphics card length | 42 cm |
| Maximum PSU length | 20 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Combo headphone/mic port | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Cooling
| Specification | Value |
|---|---|
| Side fans installed | 3x 120 mm |
| Number of side fans supported (max) | 3 |
| Side fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Top radiator sizes supported | 360,240,120 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 3.5,2.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 240 mm |
| Depth | 535 mm |
| Height | 450 mm |
| Weight | 11.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 530 mm |
| Package depth | 325 mm |
| Package height | 625 mm |
| Package weight | 13 kg |
