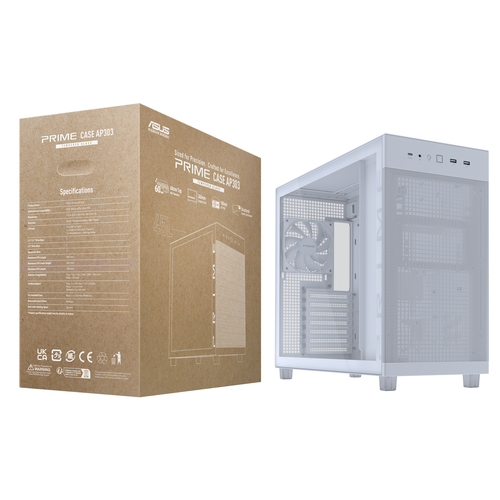

Prime AP303 - Tempered Glass Panel
Model Prime AP303 - Tempered Glass PanelPart no. 90DC00V0-B30010EAN 199291165007
33 specifications
- TypePC
- Weight7.8 kg
- ColourWhite
- USB 2.0 ports quantity0
- Rear fans installed1x 120 mm
- Supported HDD sizes2.5,3.5"
Overview
- Type
- PC
- Weight
- 7.8 kg
- Colour
- White
- USB 2.0 ports quantity
- 0
- Rear fans installed
- 1x 120 mm
- Supported HDD sizes
- 2.5,3.5"
- Brand
- ASUS
- Category
- Computer Case
- Model
- Prime AP303 - Tempered Glass Panel
- Part numbers
- 90DC00V0-B30010, 90DC00V3-B30010
- EAN / UPC
- 199291165007, 199291165106, 4711636165105, 4711636165006
- Also known as
- ASUS Prime AP303 - Tempered Glass Panel White
Specifications
33 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Type | PC |
| Product colour | White |
| Supported motherboard form factors | micro ATX, Mini-ITX, ATX |
| Number of 3.5" bays | 1 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 7 |
| Side window | Yes |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| On/off button | Yes |
| Maximum CPU cooler height | 16.5 cm |
| Maximum graphics card length | 36 cm |
| Maximum PSU length | 18 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Combo headphone/mic port | Yes |
Cooling
| Specification | Value |
|---|---|
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 360,120,140,240,280 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 215 mm |
| Depth | 485 mm |
| Height | 425 mm |
| Weight | 7.8 kg |
Other features
| Specification | Value |
|---|---|
| Volume | 44 L |
