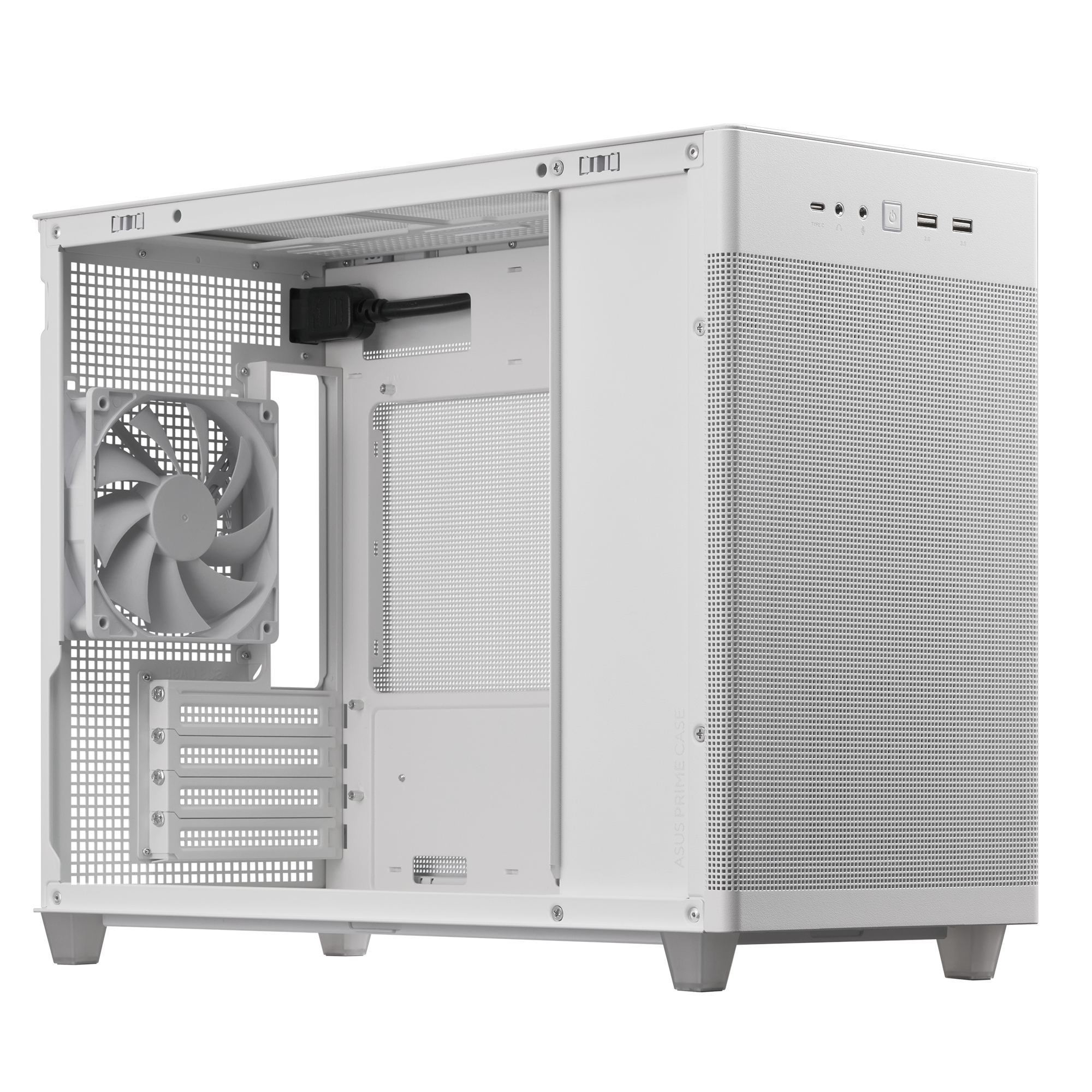

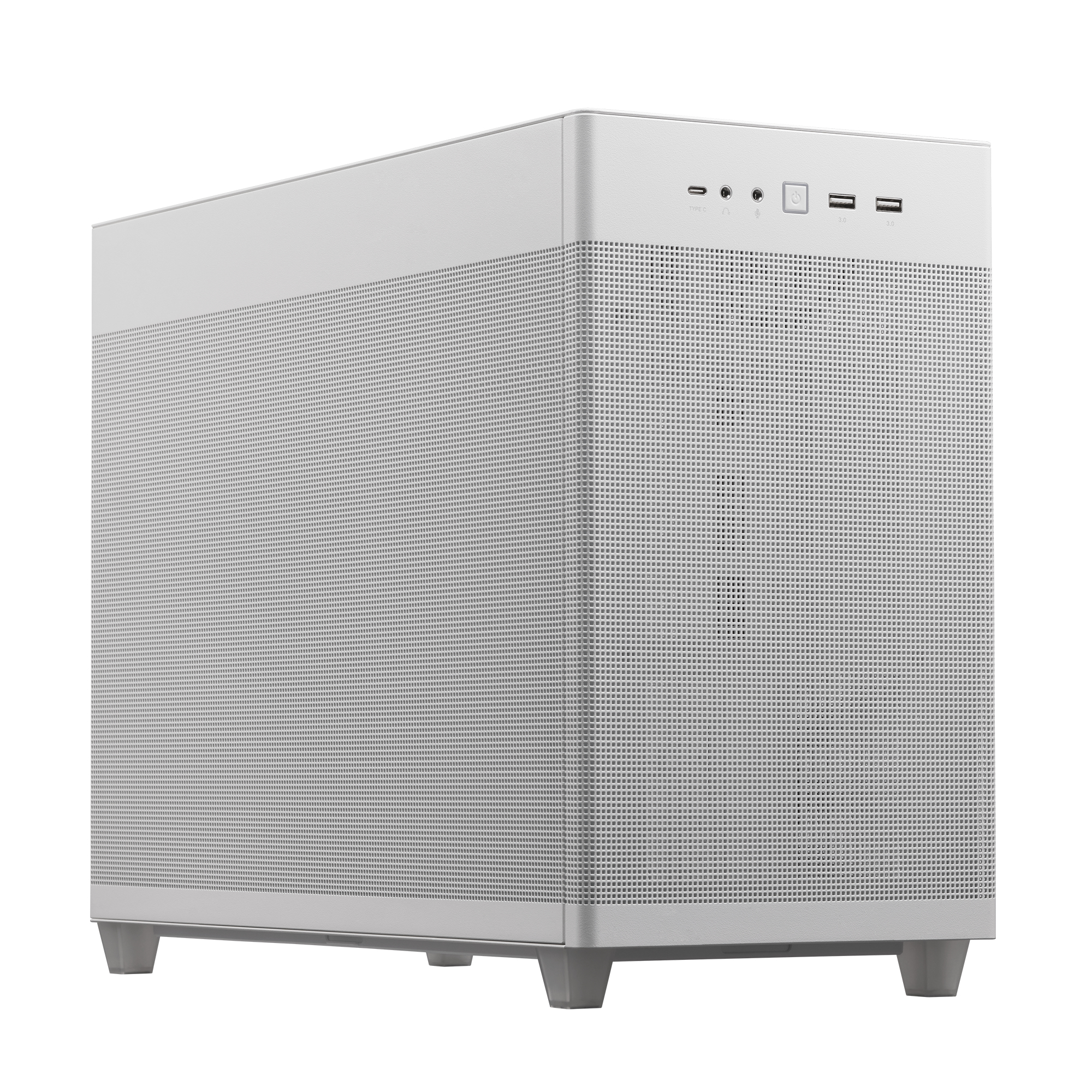

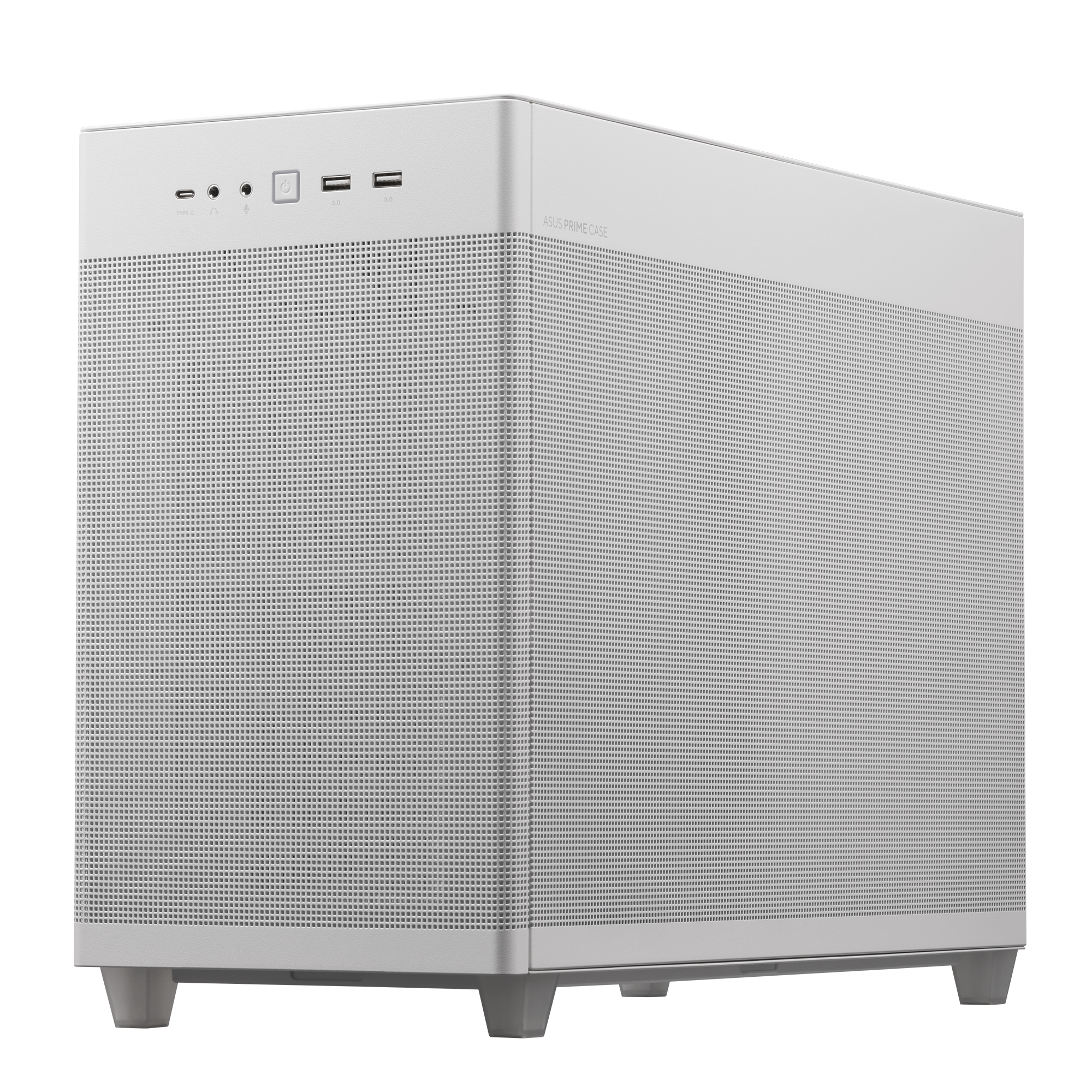

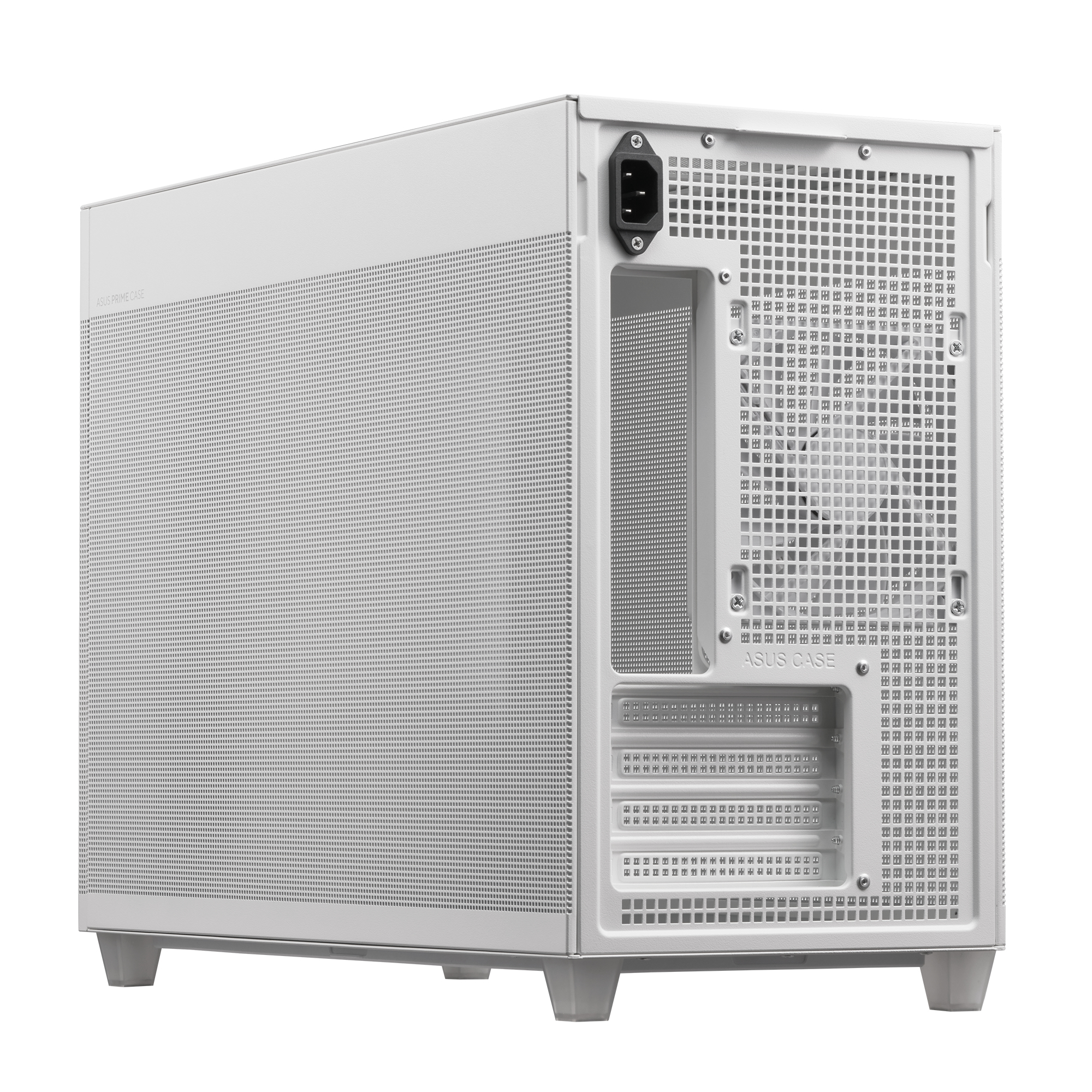

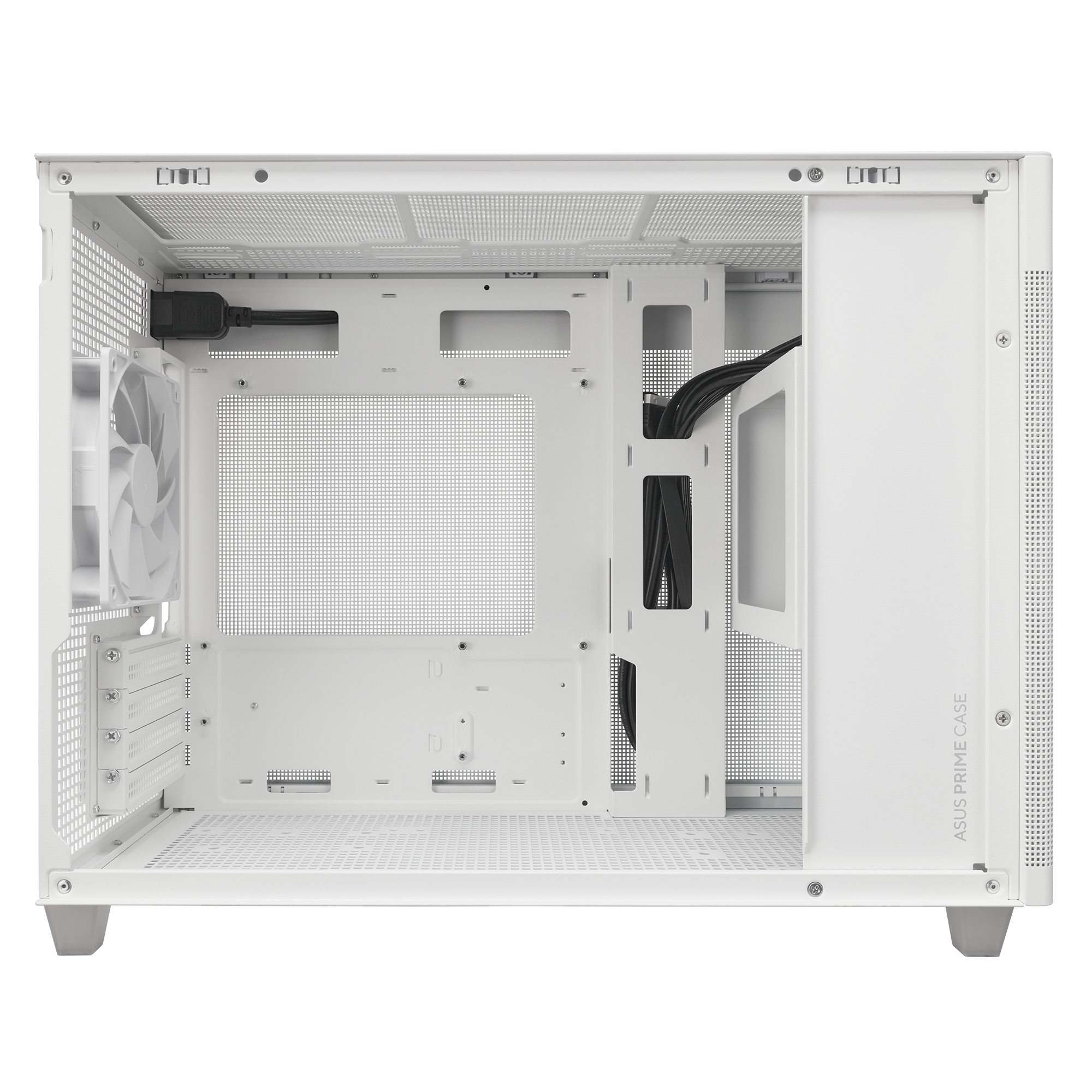

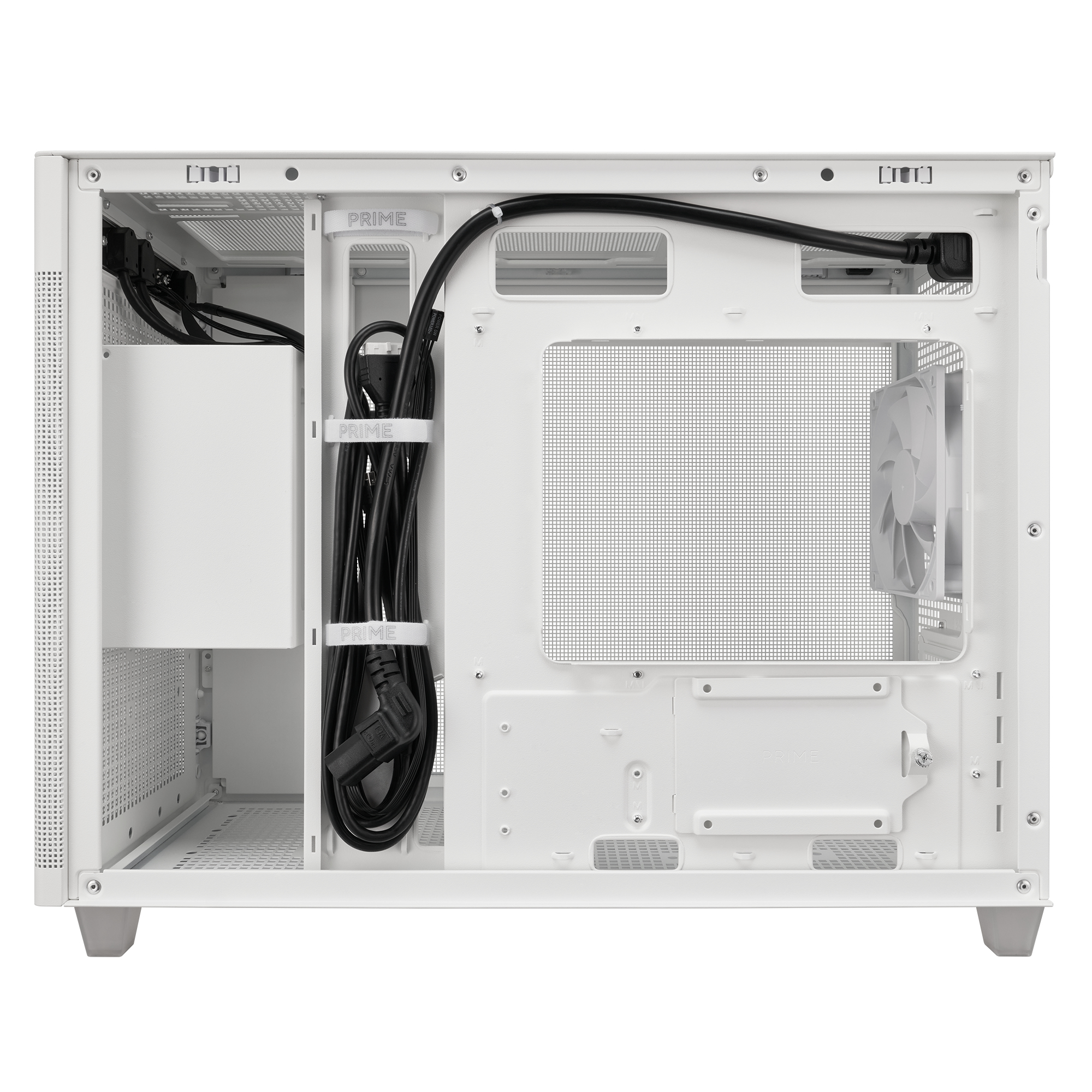

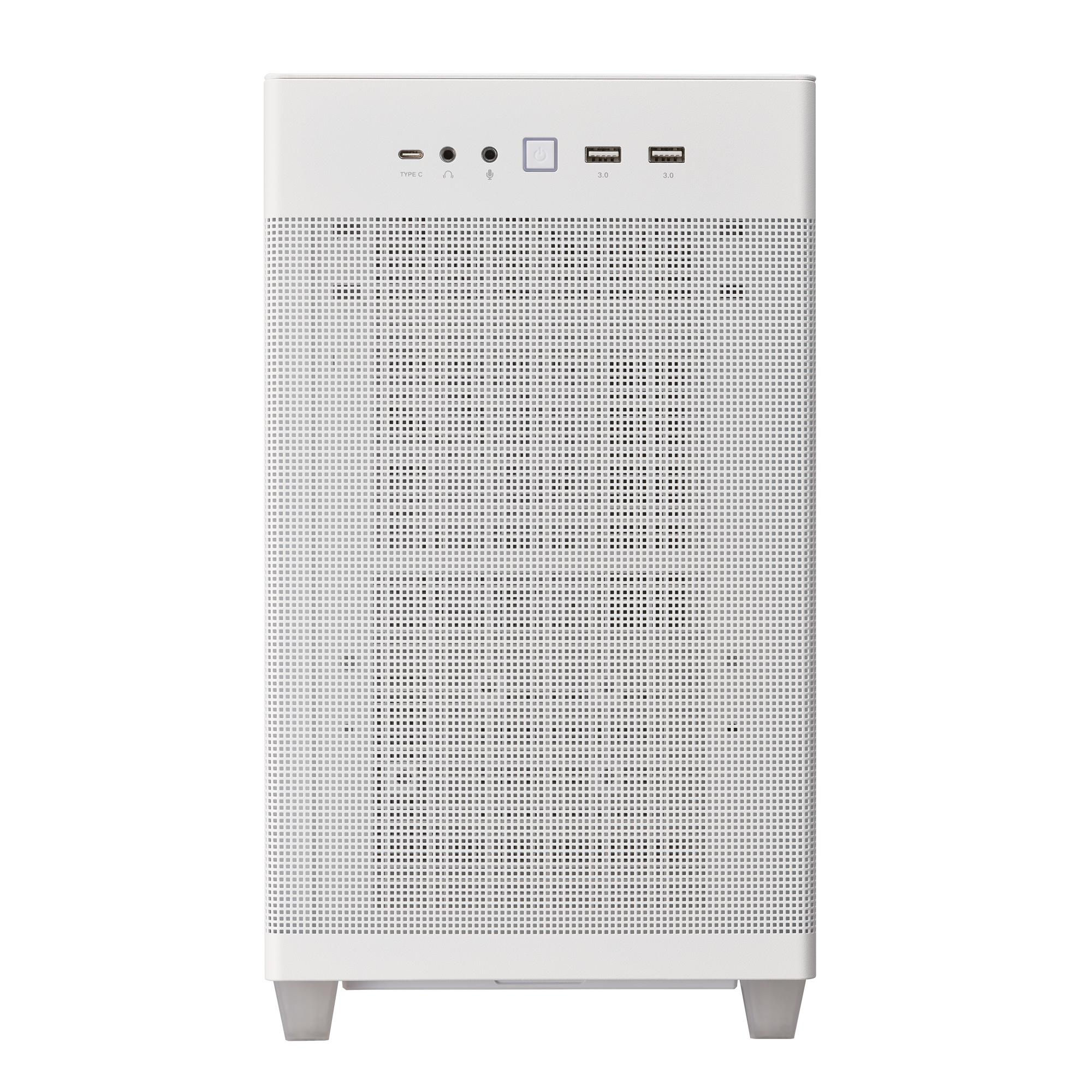

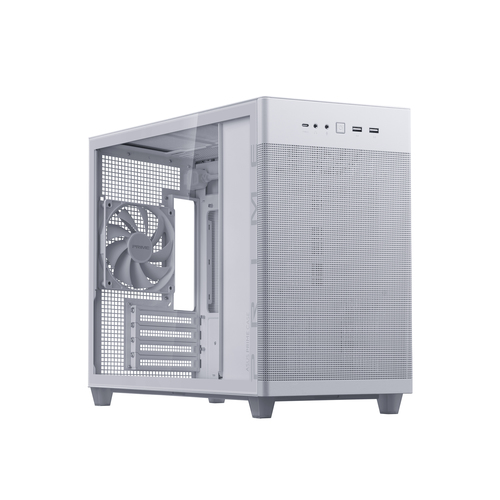

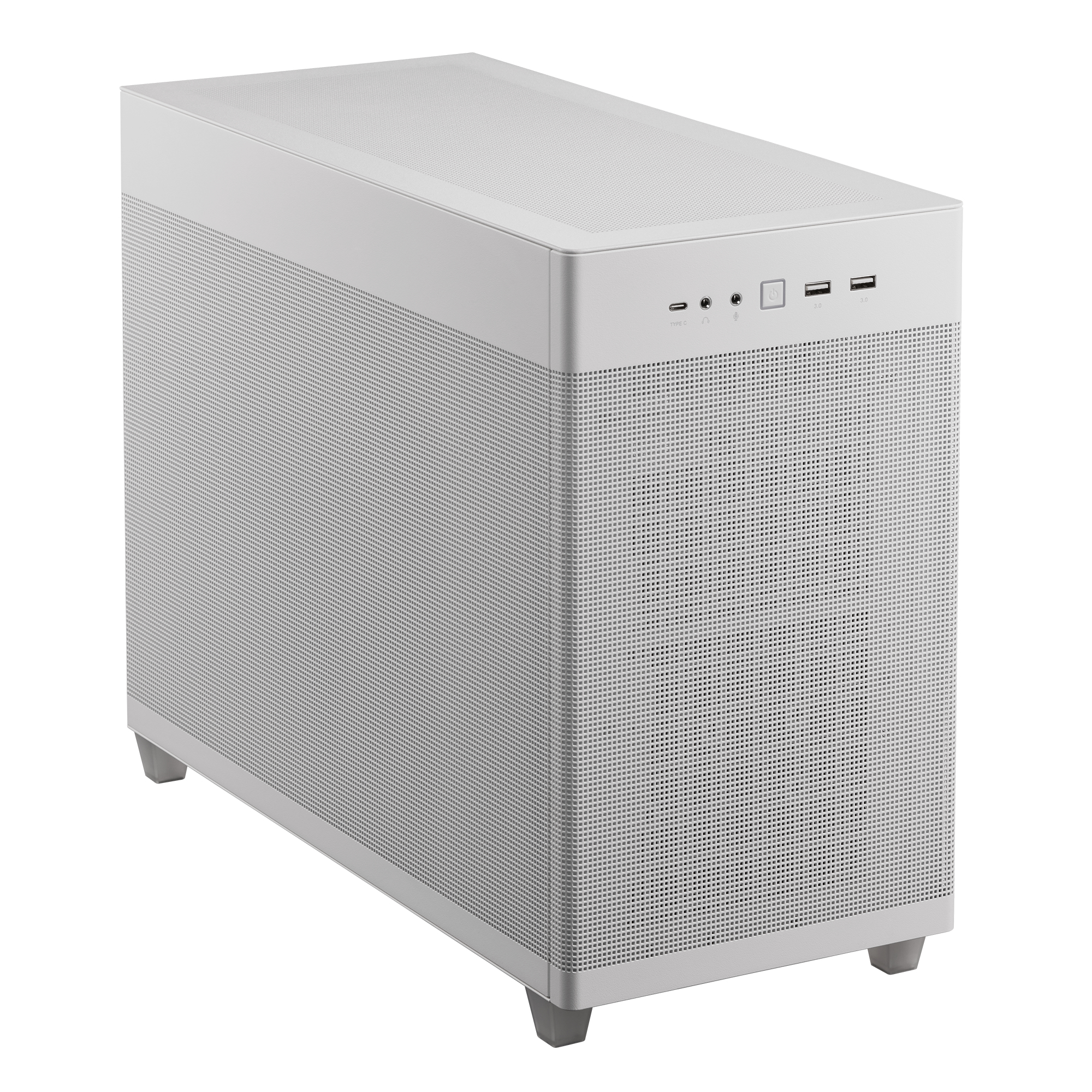

Prime AP201 MicroATX Case
Model Prime AP201 MicroATX CasePart no. 90DC00G3-B30010EAN 197105675384
29 specifications
- TypeMini Tower
- Weight5.8 kg
- ColourWhite
- Power supply includedNo
- USB 2.0 ports quantity0
- Rear fans installed1x 120 mm
Overview
- Type
- Mini Tower
- Weight
- 5.8 kg
- Colour
- White
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Rear fans installed
- 1x 120 mm
- Brand
- ASUS
- Category
- Computer Case
- Model
- Prime AP201 MicroATX Case
- Part numbers
- 90DC00G3-B30010, 90DC00G3-B30000, 90DC00G0-B30000
- EAN / UPC
- 197105675384, 4711081771845, 4711081771753, 195553771894
- Also known as
- ASUS Prime AP201 MicroATX Case Mini Tower White
Specifications
29 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Form factor | Mini Tower |
| Type | PC |
| Product colour | White |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 3 |
| Number of 2.5" bays | 1 |
| Number of storage drives supported | 4 |
| Number of expansion slots | 4 |
| Anti-dust filter | Yes |
| Cable management | Yes |
| Maximum CPU cooler height | 17 cm |
| Maximum graphics card length | 33.8 cm |
| Maximum PSU length | 18 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Cooling
| Specification | Value |
|---|---|
| Rear fans installed | 1x 120 mm |
| Rear fans diameters supported | 120 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,140,240,280,360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
| SSD form factor | 2.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 205 mm |
| Depth | 350 mm |
| Height | 460 mm |
| Weight | 5.8 kg |
