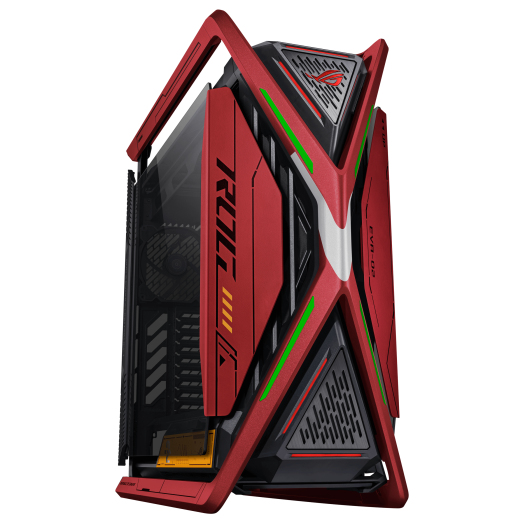

Hyperion EVA-02
Model Hyperion EVA-02Part no. ROG HYPERION EVA-02 EDITION
48 specifications
- TypeTower
- Weight20.8 kg
- ColourBlack, Red
- Power supply includedNo
- USB 2.0 ports quantity0
- Fan speed controlYes
Overview
- Type
- Tower
- Weight
- 20.8 kg
- Colour
- Black, Red
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Fan speed control
- Yes
- Brand
- ASUS
- Category
- Computer Case
- Model
- Hyperion EVA-02
- Part number
- ROG HYPERION EVA-02 EDITION
- Also known as
- ASUS Hyperion EVA-02 Tower Black, Red
Specifications
48 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Form factor | Tower |
| Type | PC |
| Product colour | Black, Red |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of storage drives supported | 7 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Multi |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| On/off button | Yes |
| RGB control button | Yes |
| Reset button | Yes |
| LED indicators | Yes |
| Maximum CPU cooler height | 19 cm |
| Maximum graphics card length | 46 cm |
| Maximum PSU length | 24 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Fan speed control | Yes |
| Front fans installed | 3x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 420,120,140,240,280,360 mm |
| Rear fans installed | 1x 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140,240,280,360,420 mm |
| Front radiator sizes supported | 120,140,240,280,360,420 mm |
| Rear radiator sizes supported | 120,140 mm |
| Top radiator sizes supported | 120,140,240,280,360,420 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
| SSD form factor | 2.5" |
| Number of HDDs supported | 7 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 268 mm |
| Depth | 639 mm |
| Height | 659 mm |
| Weight | 20.8 kg |
