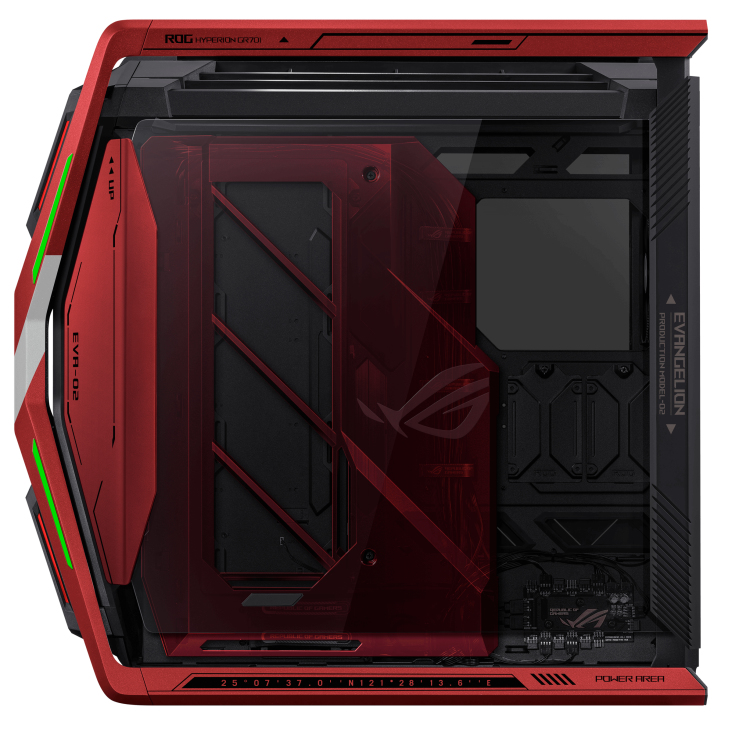

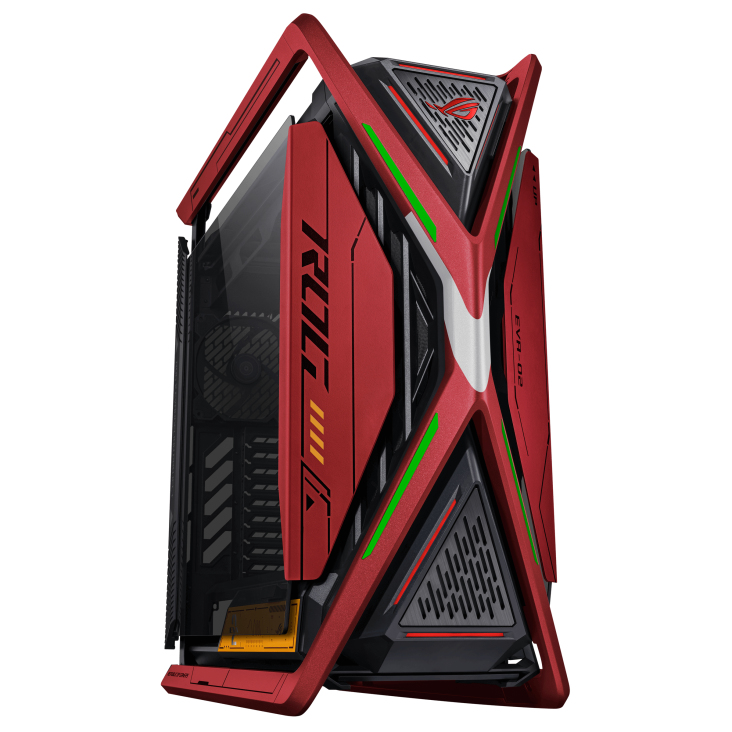

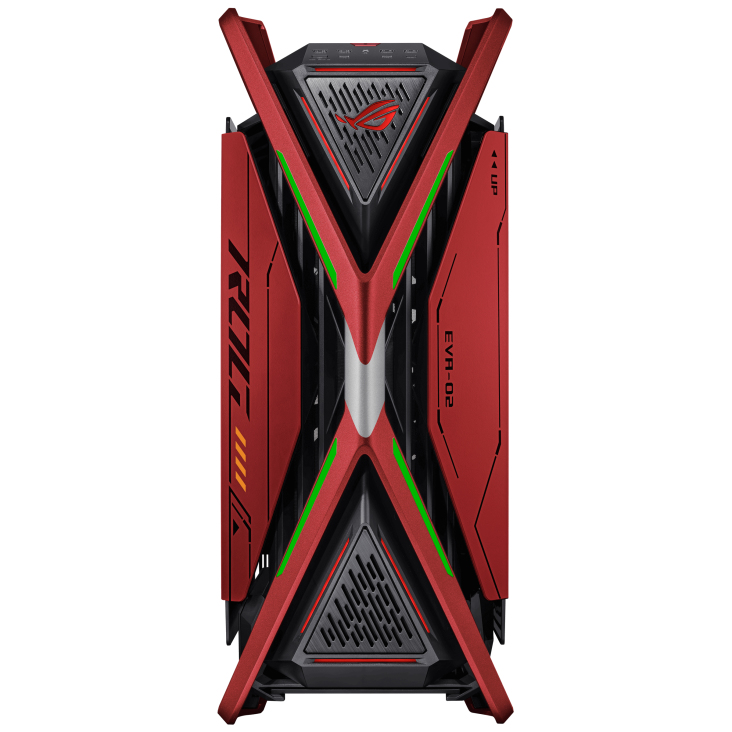

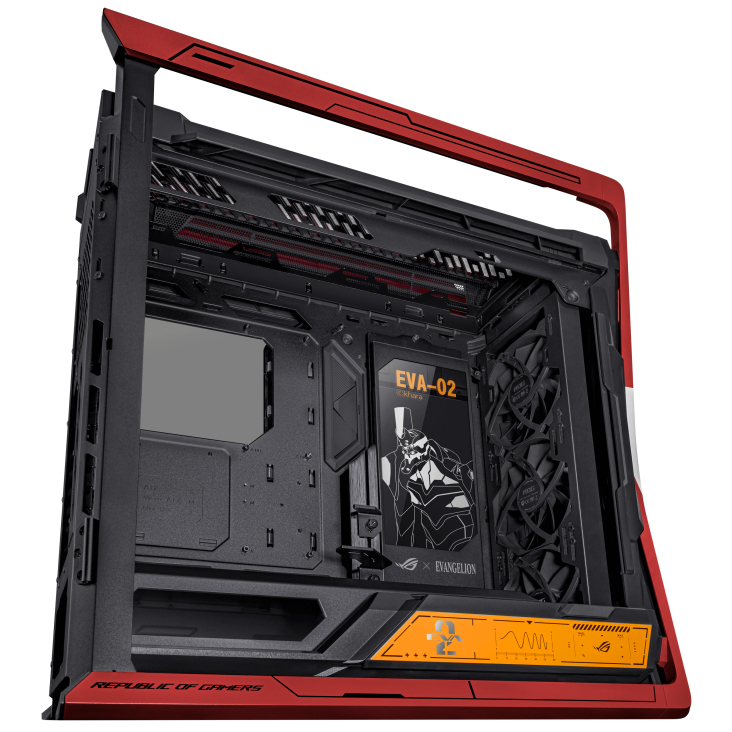

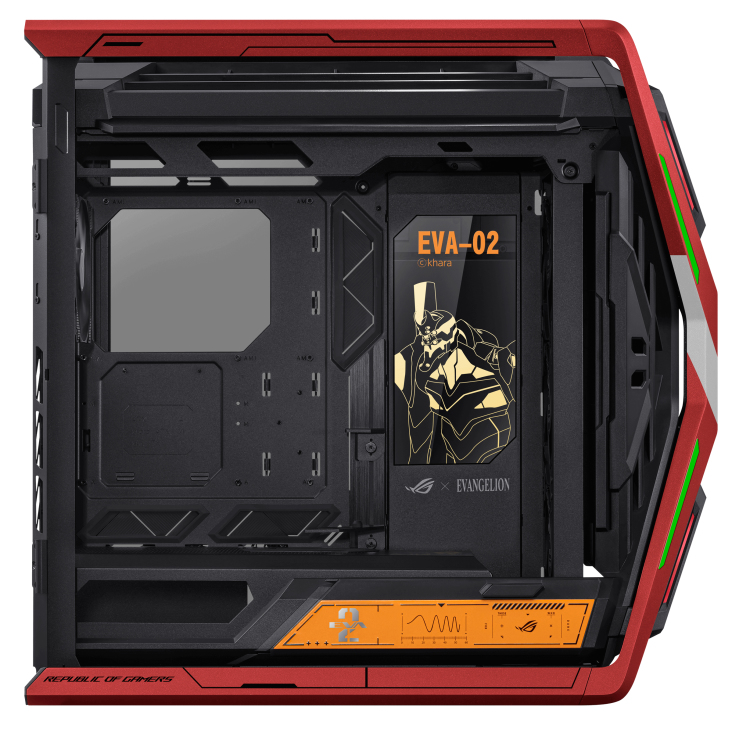

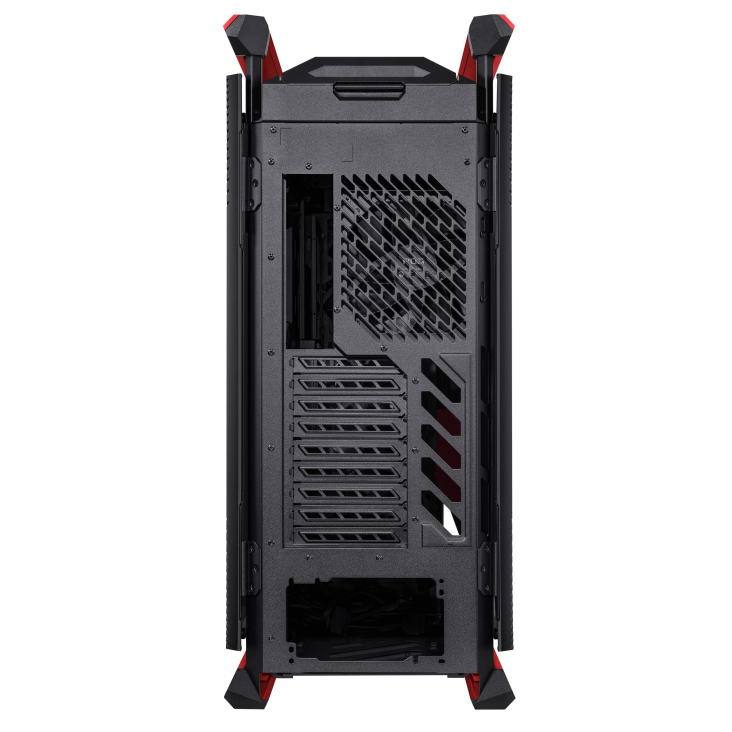

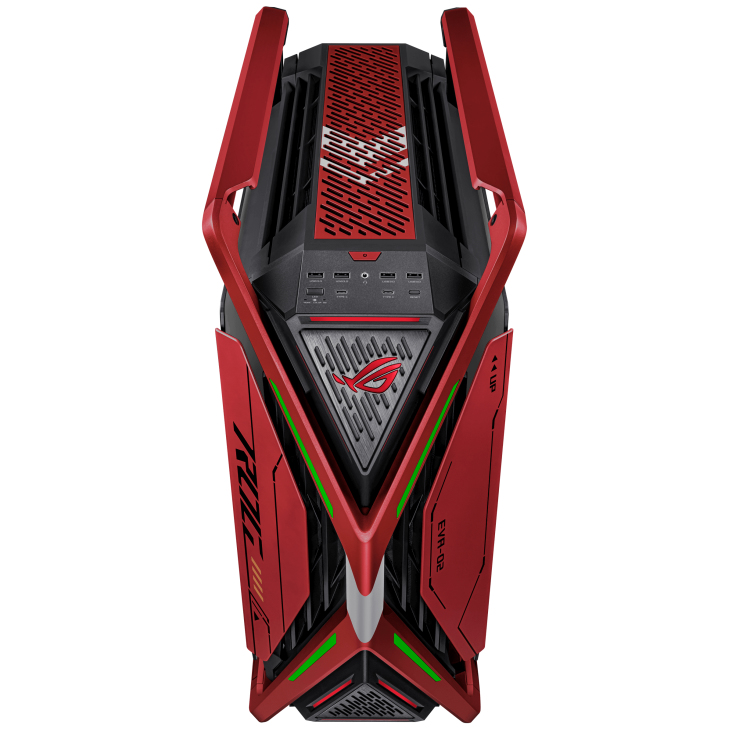

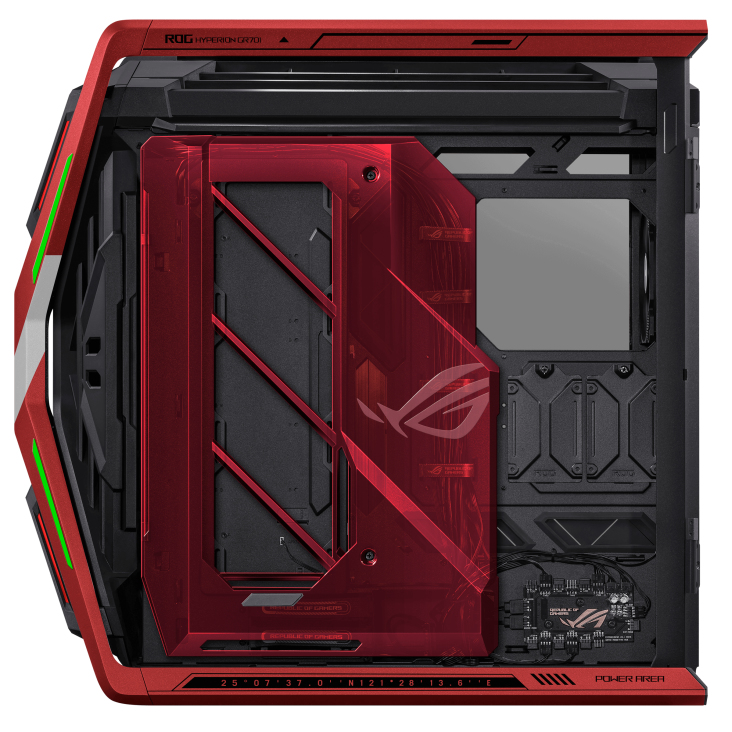

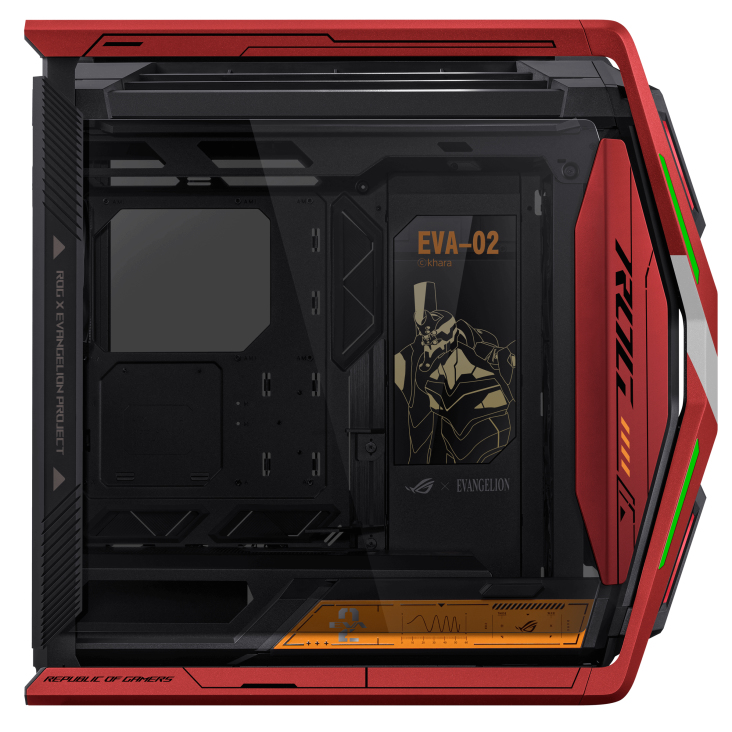

GR701 ROG HYPERION EVA-02 EDITION
Model GR701 ROG HYPERION EVA-02 EDITIONPart no. 90DC00F4-B39000EAN 4711387175972
43 specifications
- TypePC
- Weight20.8 kg
- ColourMulticolour
- USB 2.0 ports quantity0
- Front fans installed3x 140 mm
- Supported HDD sizes2.5,3.5"
Overview
- Type
- PC
- Weight
- 20.8 kg
- Colour
- Multicolour
- USB 2.0 ports quantity
- 0
- Front fans installed
- 3x 140 mm
- Supported HDD sizes
- 2.5,3.5"
- Brand
- ASUS
- Category
- Computer Case
- Model
- GR701 ROG HYPERION EVA-02 EDITION
- Part number
- 90DC00F4-B39000
- EAN / UPC
- 4711387175972
- Also known as
- ASUS GR701 ROG HYPERION EVA-02 EDITION Multicolour
Specifications
43 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Type | PC |
| Material | Aluminium, Metal |
| Product colour | Multicolour |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 5 |
| Number of expansion slots | 9 |
| Illumination | Yes |
| Illumination colour | Multi |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| RGB control button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 19 cm |
| Maximum graphics card length | 46 cm |
| Maximum PSU length | 24 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Combo headphone/mic port | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 3x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Front radiator sizes supported | 120,140,240,280,360,420 mm |
| Rear radiator sizes supported | 120,140 mm |
| Top radiator sizes supported | 120,140,240,280,360,420 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 268 mm |
| Depth | 639 mm |
| Height | 659 mm |
| Weight | 20.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 720 mm |
| Package depth | 350 mm |
| Package height | 715 mm |
| Package weight | 25.2 kg |
