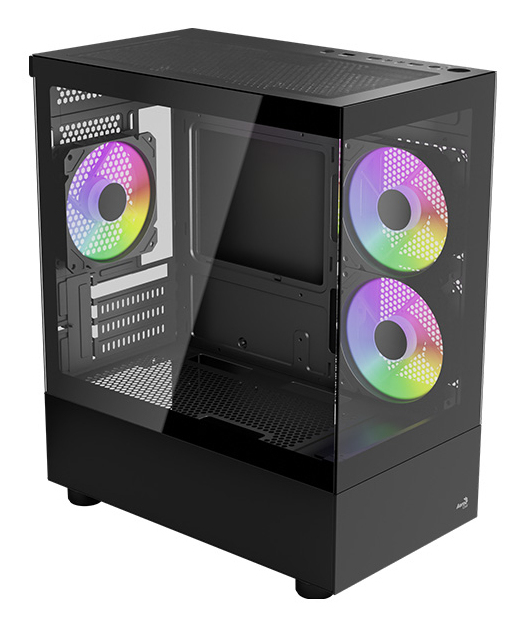

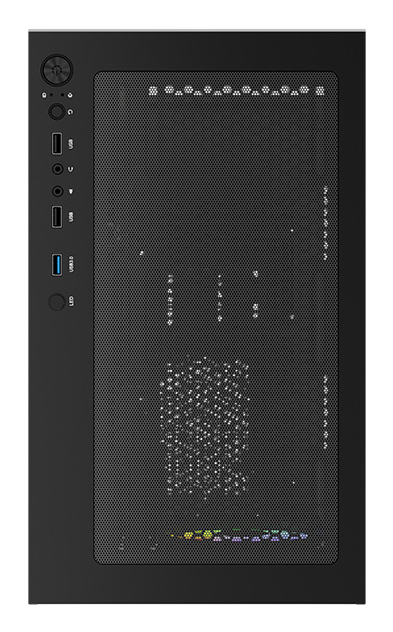

Viewport-Mini-BK-v2 Mini Tower Black
Model Viewport-Mini-BK-v2Part no. ACCM-ES09133.11EAN 4711099477463
49 specifications
- TypeMini Tower
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity2
- Side fans installed2x 120 mm
- Supported HDD sizes2.5,3.5"
Overview
- Type
- Mini Tower
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 2
- Side fans installed
- 2x 120 mm
- Supported HDD sizes
- 2.5,3.5"
- Brand
- Aerocool
- Category
- Computer Case
- Model
- Viewport-Mini-BK-v2
- Part number
- ACCM-ES09133.11
- EAN / UPC
- 4711099477463
- Also known as
- Aerocool Viewport-Mini-BK-v2 Mini Tower Black
Specifications
49 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Form factor | Mini Tower |
| Type | PC |
| Material | SPCC, Steel, Tempered glass |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 1 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 3 |
| Number of internal 3.5" bays | 1 |
| Number of expansion slots | 4 |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Case fans |

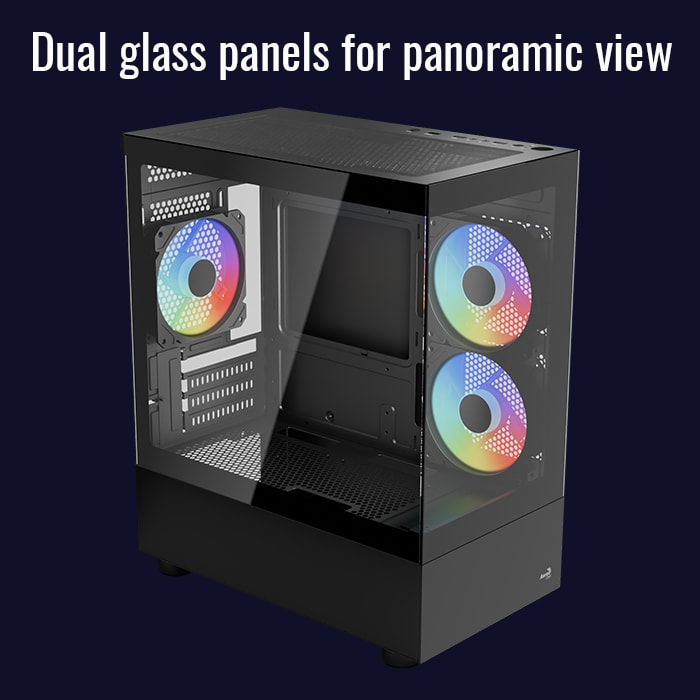

| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 16.5 cm |
| Maximum graphics card length | 35.5 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| Combo headphone/mic port | Yes |
Cooling
| Specification | Value |
|---|---|

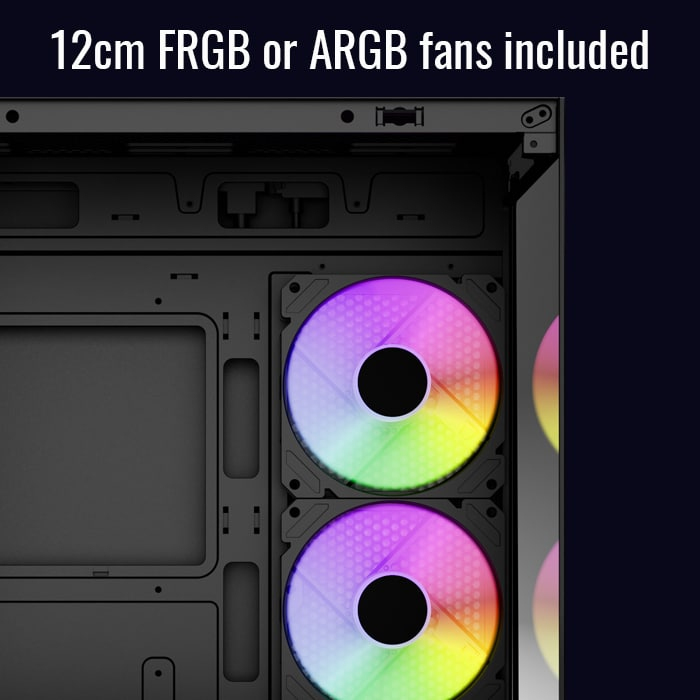

| Side fans installed | 2x 120 mm |
| Number of side fans supported (max) | 2 |
| Side fans diameters supported | 120 mm |

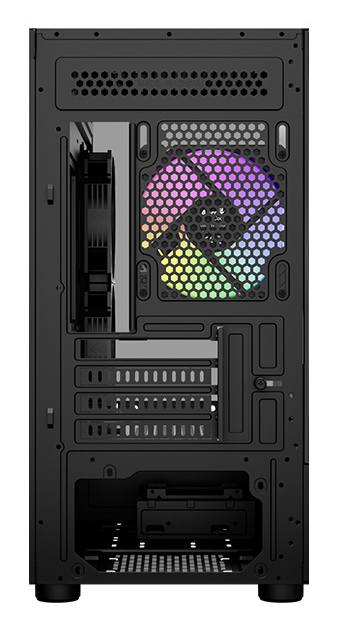

| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 2 |
| Bottom fans diameters supported | 120 mm |
| Liquid cooling capability | Yes |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 240,280 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 212 mm |
| Depth | 377.5 mm |
| Height | 437 mm |
| Material thickness | 0.5 mm |
