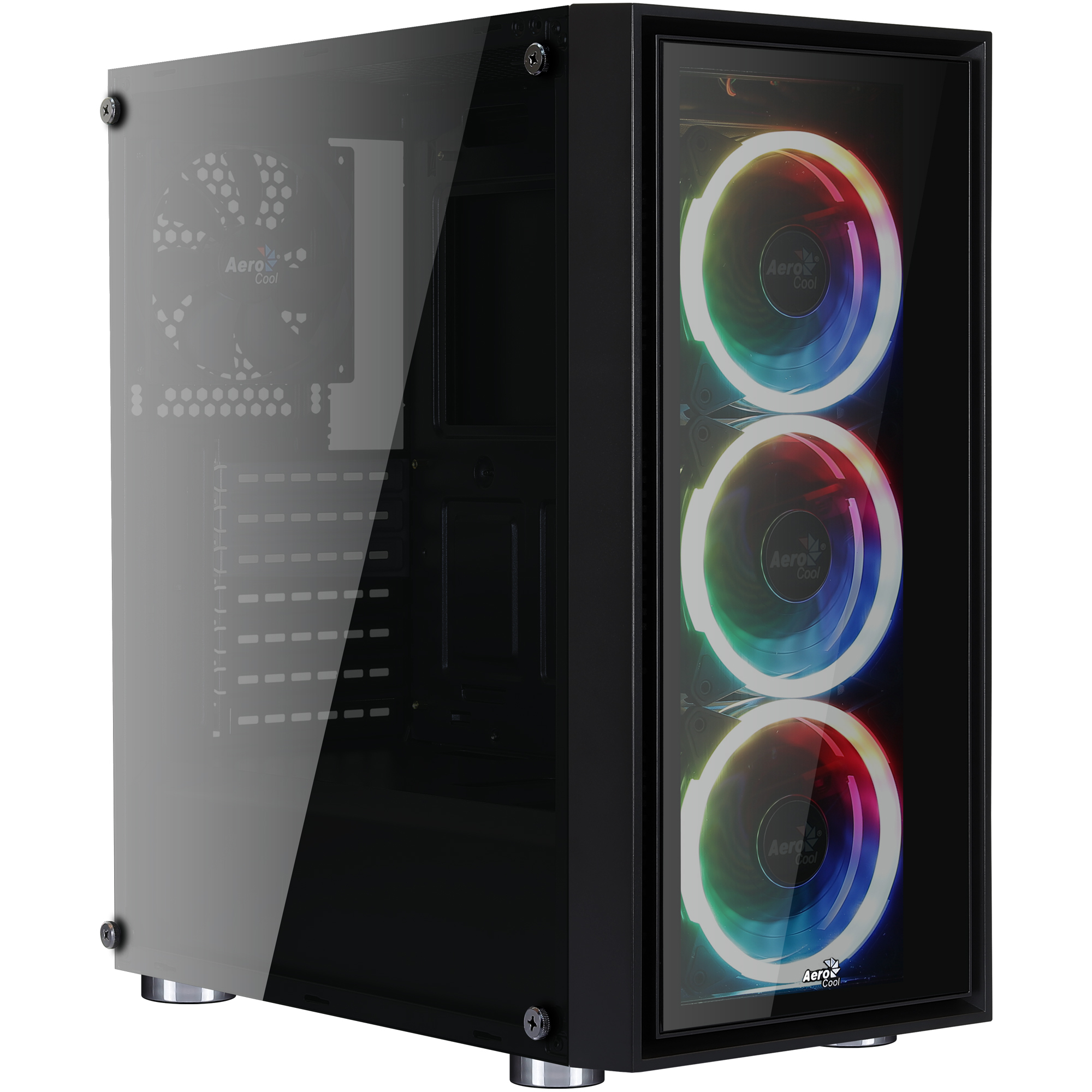

Aerocool Quartz REVO
Model Quartz REVOPart no. QUARTZREVOEAN 4718009153097
48 specifications
- TypeMidi Tower
- Weight5.9 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity2
- Front fans installed3x 120 mm
Overview
- Type
- Midi Tower
- Weight
- 5.9 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 2
- Front fans installed
- 3x 120 mm
- Brand
- Aerocool
- Category
- Computer Case
- Model
- Quartz REVO
- Part number
- QUARTZREVO
- EAN / UPC
- 4718009153097
- Also known as
- Aerocool Quartz REVO Midi Tower Black
Specifications
48 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Steel |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 4 |
| Number of internal 3.5" bays | 2 |
| Number of expansion slots | 7 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Blue, Green, Red |
| Illumination location | Case fans |
| Tempered glass panel(s) | Yes |
| Maximum CPU cooler height | 15.2 cm |
| Maximum graphics card length | 34.1 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 140 mm |
| Front radiator sizes supported | 240,360 mm |
| Top radiator sizes supported | 240 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 206.1 mm |
| Depth | 408 mm |
| Height | 455 mm |
| Weight | 5.9 kg |
| Material thickness | 0.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 6.6 kg |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross width | 120 cm |
| Pallet gross length | 100 cm |
| Pallet gross height | 12 cm |
| Master (outer) case width | 276 mm |
| Master (outer) case length | 510 mm |
| Master (outer) case height | 483 mm |
