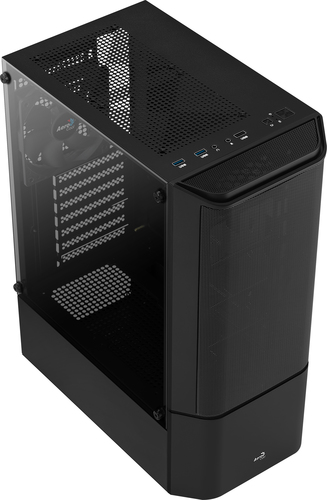

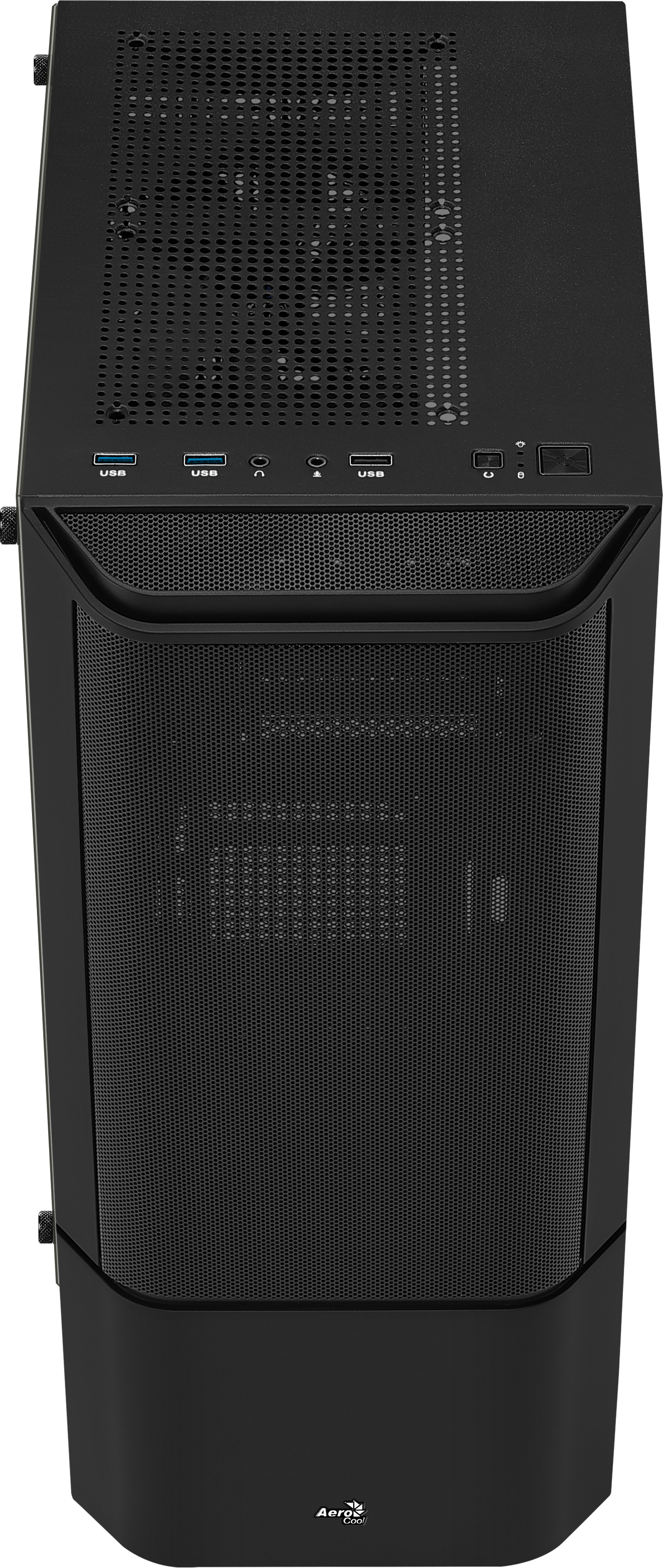

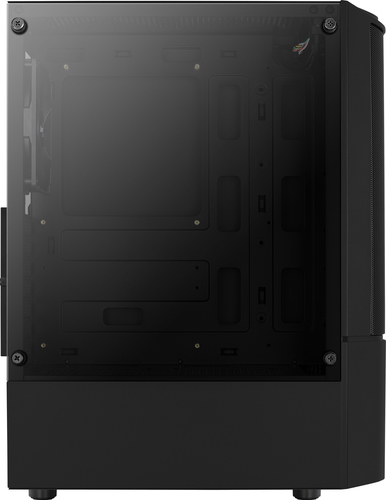

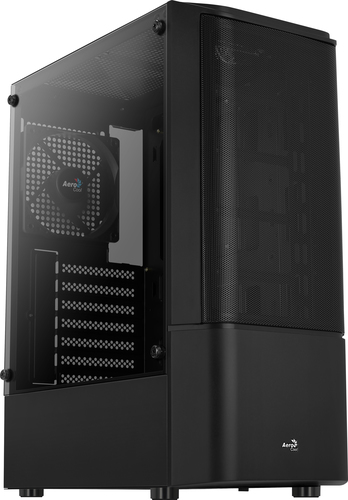

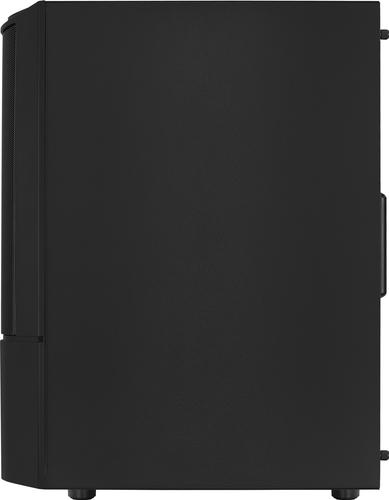

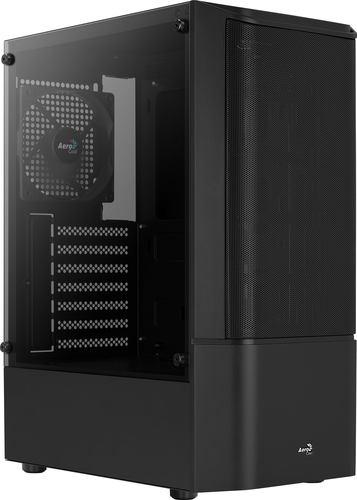

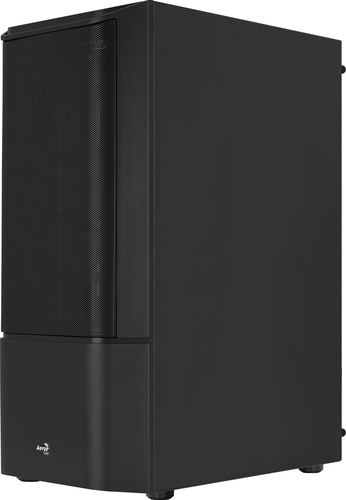

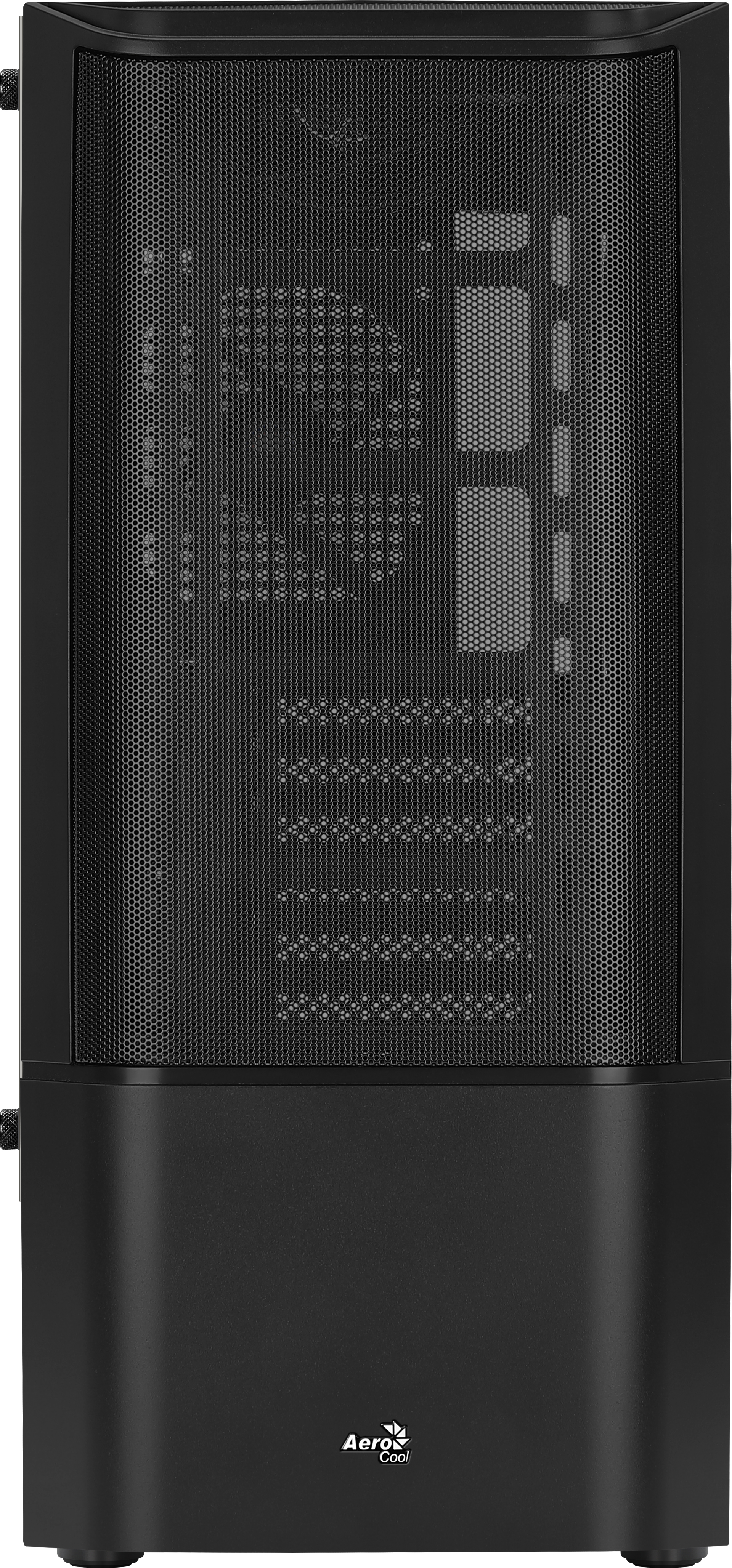

Quantum Mesh
Model Quantum MeshPart no. QUANTUMMESHV1BKEAN 4710562758566
39 specifications
- TypeMidi Tower
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity1
- Number of front fans supported (max)3
- Supported HDD sizes2.5,3.5"
Overview
- Type
- Midi Tower
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 1
- Number of front fans supported (max)
- 3
- Supported HDD sizes
- 2.5,3.5"
- Brand
- Aerocool
- Category
- Computer Case
- Model
- Quantum Mesh
- Part numbers
- QUANTUMMESHV1BK, QUANTUMMESHV3BK
- EAN / UPC
- 4710562758566, 4710562758580
- Also known as
- Aerocool Quantum Mesh Midi Tower Black
Specifications
39 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), SPCC, Steel |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 6 |
| Number of expansion slots | 7 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Blue, Green, Red |
| Tempered glass panel(s) | Yes |
| Cable management | Yes |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 15.8 cm |
| Maximum graphics card length | 29.7 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120 mm |
| Liquid cooling capability | Yes |
| Front radiator sizes supported | 120,240,280 mm |
| Rear radiator sizes supported | 120 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 206 mm |
| Depth | 360 mm |
| Height | 450 mm |
| Material thickness | 0.5 mm |
