Aerocool QS-183 Advance
Model QS-183 AdvancePart no. QS183ADBLEAN 4713105955484
53 specifications
- Noise21.6 dB
- TypeMini Tower
- Weight2.7 kg
- ColourBlack, Red
- Power supply includedNo
- USB 2.0 ports quantity0
Overview
- Noise
- 21.6 dB
- Type
- Mini Tower
- Weight
- 2.7 kg
- Colour
- Black, Red
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Brand
- Aerocool
- Category
- Computer Case
- Model
- QS-183 Advance
- Part numbers
- QS183ADBL, QS183ADRD, QS183ADBK
- EAN / UPC
- 4713105955484, 841269050234, 4713105955477, 841269050227 +2 more
- Also known as
- Aerocool QS-183 Advance Mini Tower Black, Red
Specifications
53 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| Form factor | Mini Tower |
| Type | PC |
| Material | Steel |
| Product colour | Black, Red |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 5.25" bays | 1 |
| Number of expansion slots | 4 |
| Side window | No |
| Suitable for | Gaming |
| Reset button | Yes |
| LED indicators | Yes |
| Maximum CPU cooler height | 15 cm |

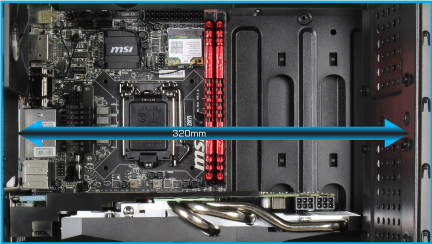

| Maximum graphics card length | 32 cm |
| Certification | CE |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Top |
| Supported power supply form factors | ATX |

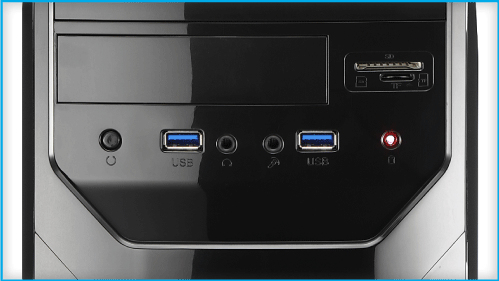

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 120 mm |

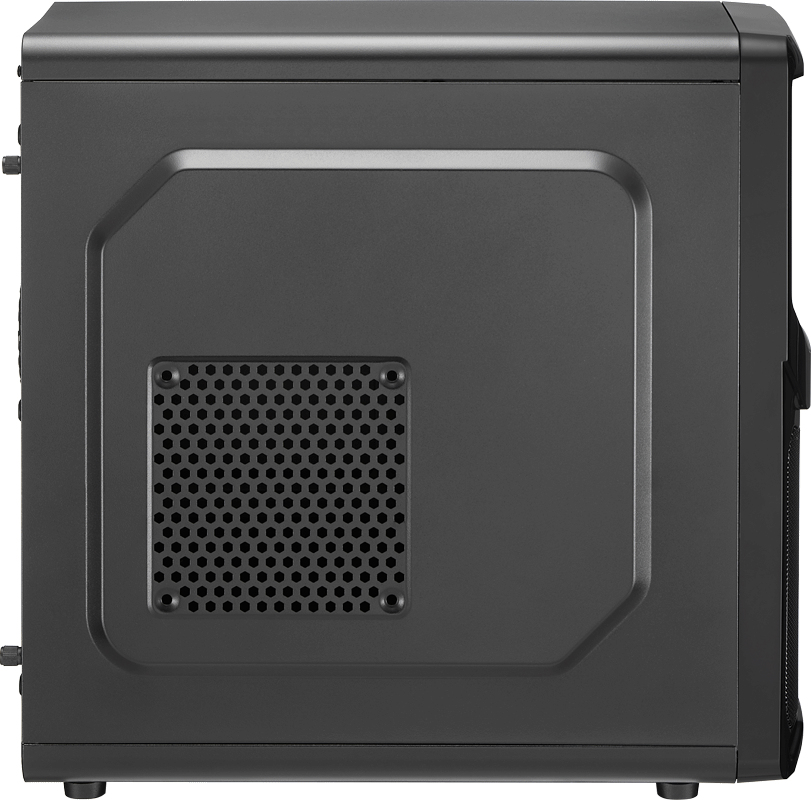

| Number of side fans supported (max) | 1 |
| Side fans diameters supported | 120 mm |

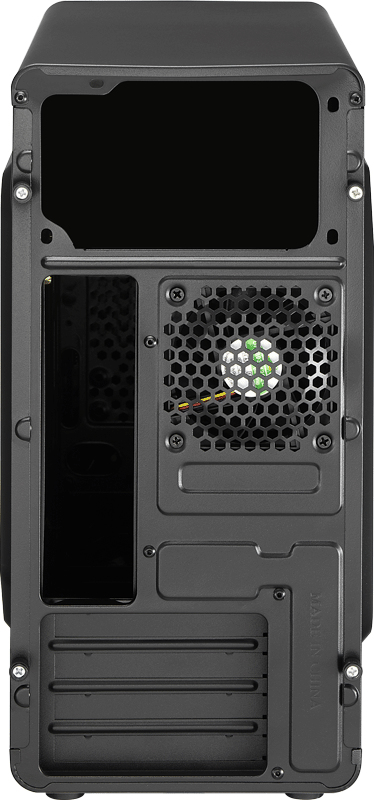

| Rear fans installed | 1x 80 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 80 mm |
| Cooling | Yes |
| Fan power consumption | 2.16 W |
| Fan rated current | 0.14 A |
| Fan rated voltage | 12 V |
| Fan speed | 1620 - 1980 RPM |
| Maximum airflow | 28.4 cfm |
| Noise level (high speed) | 21.6 dB |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SDHC, SDXC |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 355 mm |
| Depth | 170 mm |
| Height | 355 mm |
| Weight | 2.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 220 mm |
| Package depth | 410 mm |
| Package height | 420 mm |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross width | 114 cm |
| Pallet gross length | 114 cm |
| Pallet gross height | 12 cm |
Other features
| Specification | Value |
|---|---|
| Easy to customize | Yes |
| Mean time between failures (MTBF) | 30000 h |
