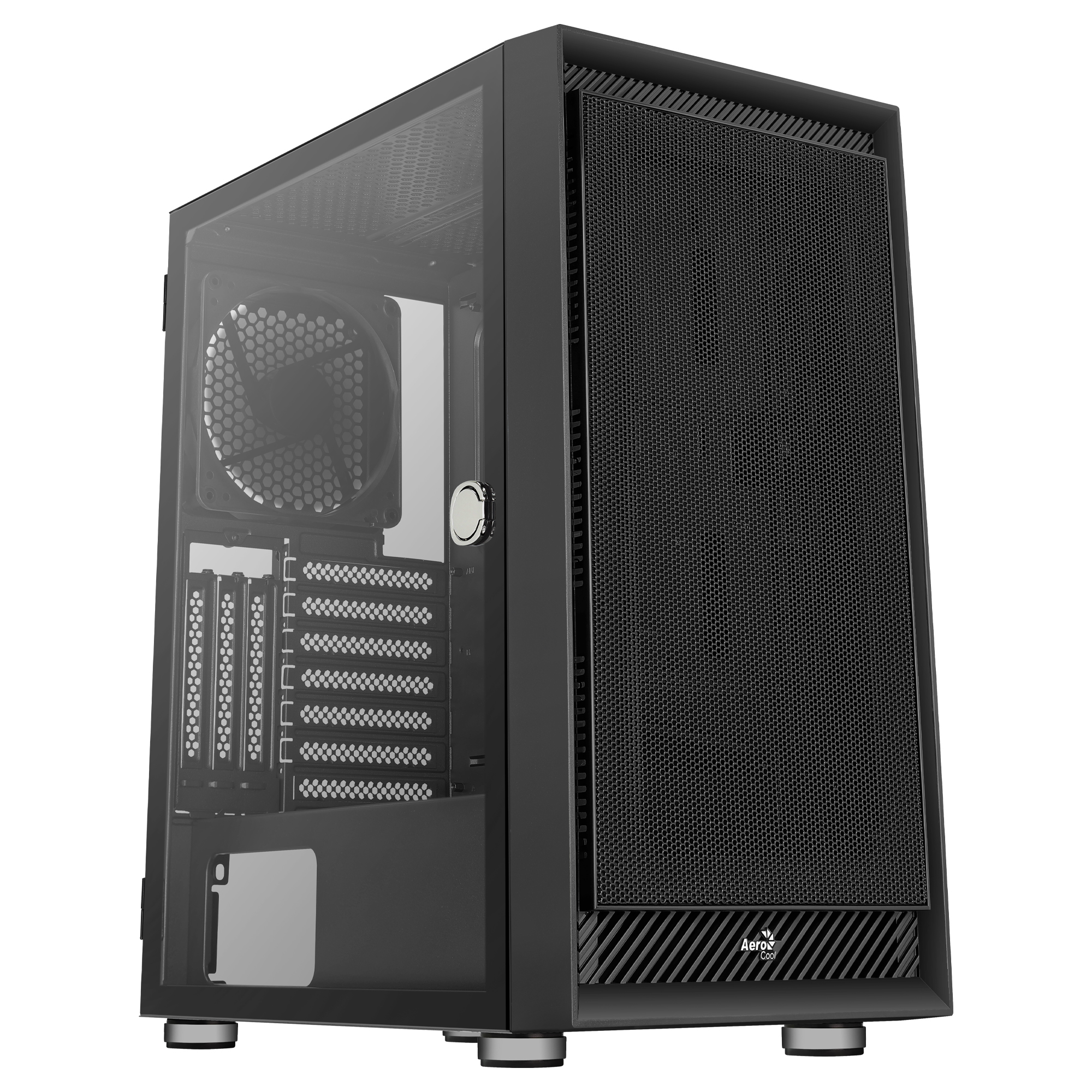

Graphite V1
Model Graphite V1Part no. GRAPHITEV1EAN 4710562759433
34 specifications
- TypeMidi Tower
- Weight5.27 kg
- ColourBlack
- Power supply includedNo
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
- Number of front fans supported (max)3
Overview
- Type
- Midi Tower
- Weight
- 5.27 kg
- Colour
- Black
- Power supply included
- No
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Number of front fans supported (max)
- 3
- Brand
- Aerocool
- Category
- Computer Case
- Model
- Graphite V1
- Part number
- GRAPHITEV1
- EAN / UPC
- 4710562759433
- Also known as
- Aerocool GRAPHITEV1 Computer Case Mesh Front Panel
Specifications
34 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | ABS, SPCC, Steel |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 4 |
| Number of expansion slots | 10 |
| Cable management | Yes |
| Maximum CPU cooler height | 18 cm |
| Maximum graphics card length | 34.8 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Front radiator sizes supported | 120,240,280,360 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,240 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| SSD form factor | 2.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 230 mm |
| Depth | 406 mm |
| Height | 460 mm |
| Weight | 5.27 kg |
| Material thickness | 0.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 6.28 kg |
