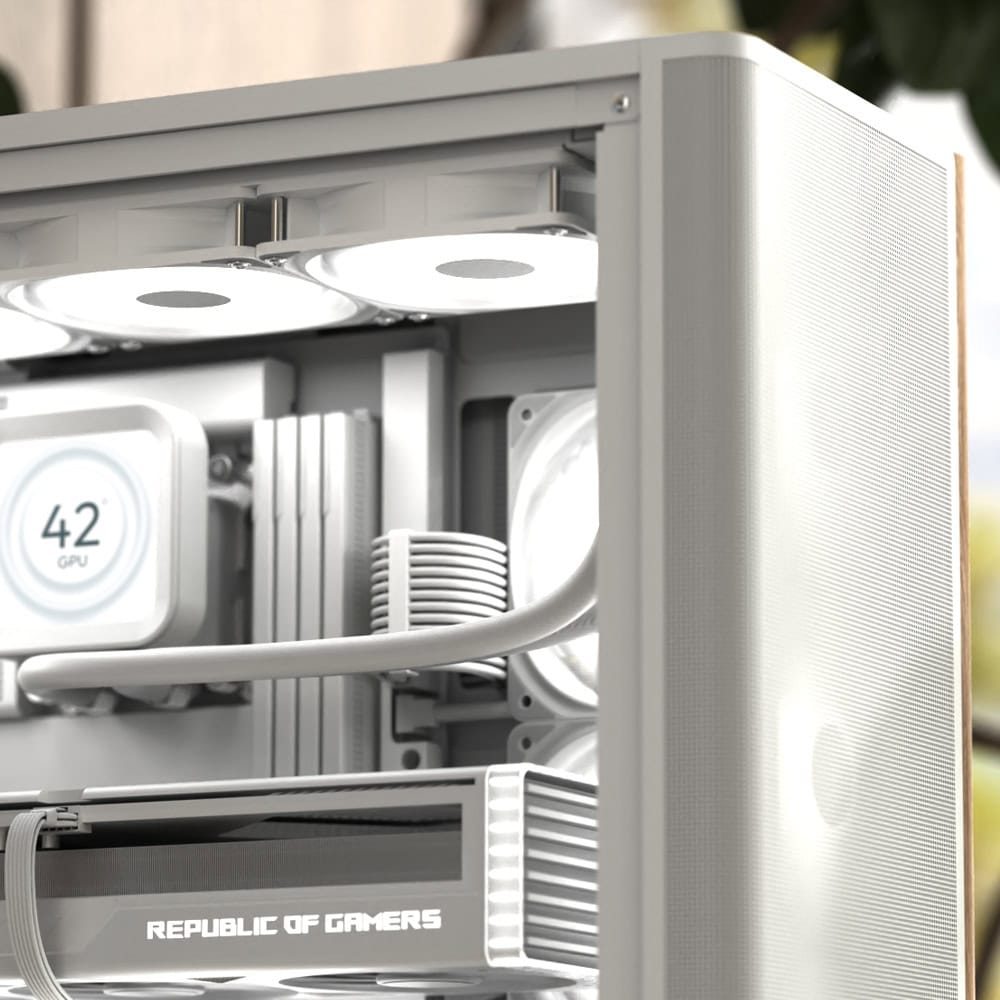

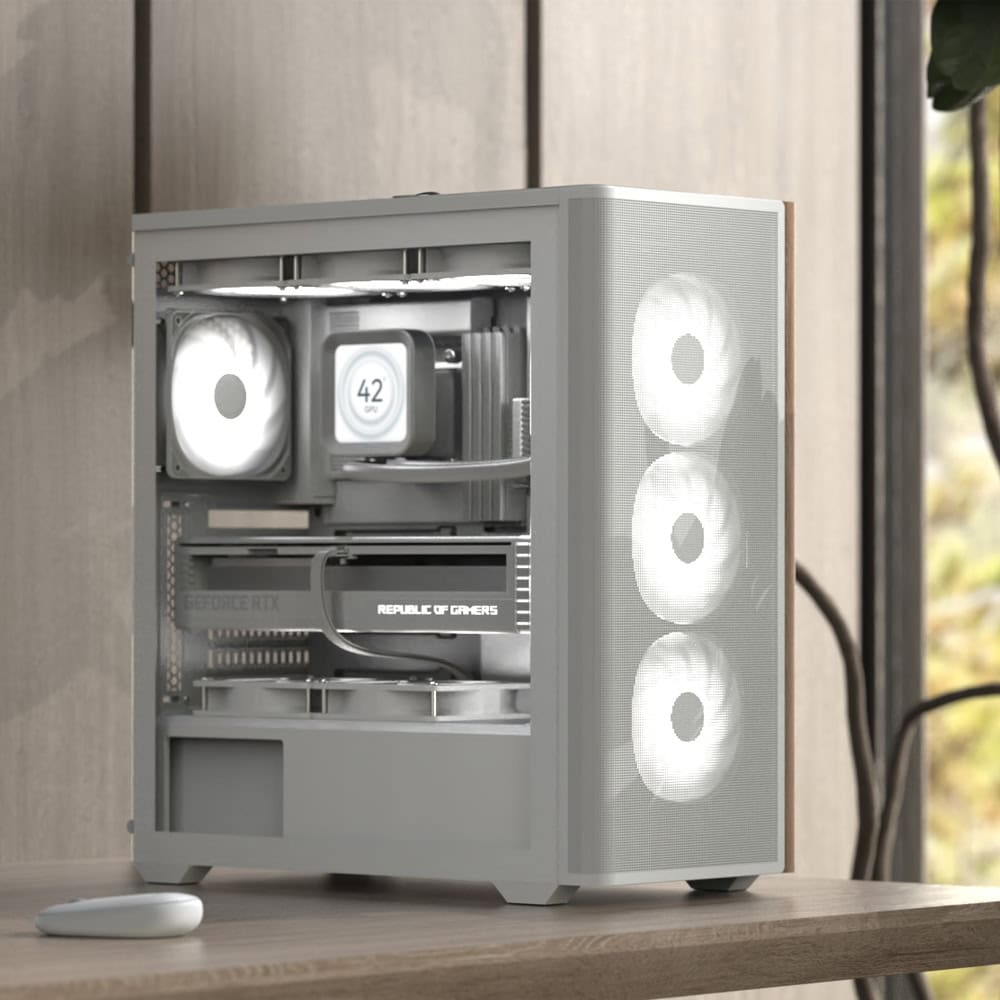

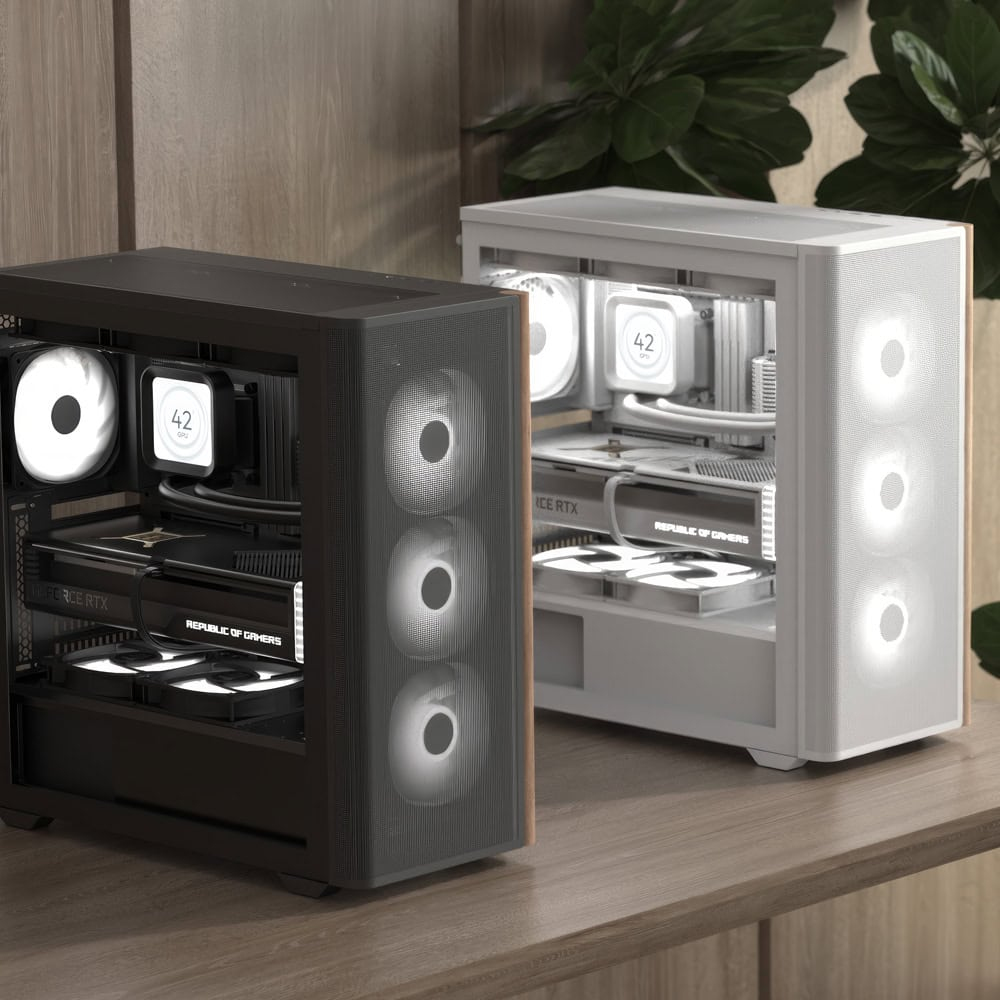

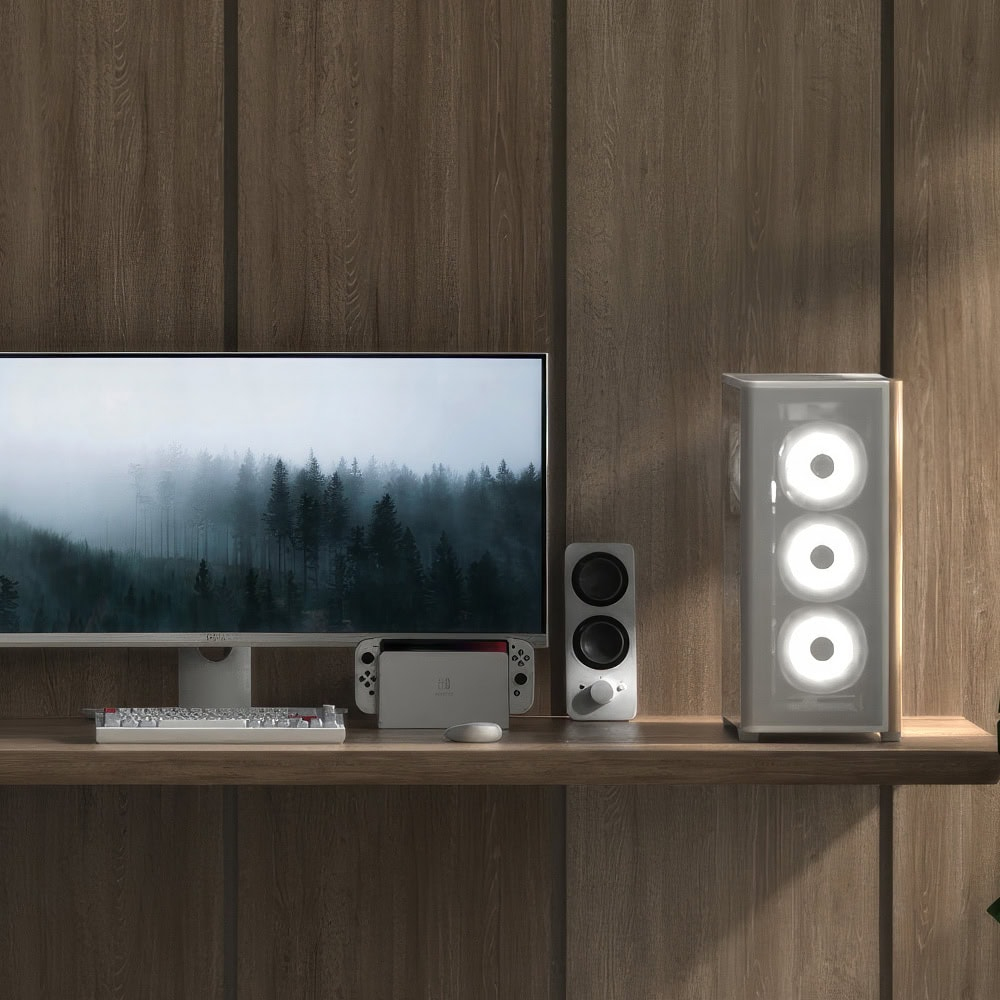

D501A Midi Tower Black, Wood
Model D501APart no. ACCM-DS01043.21EAN 4711099479719
50 specifications
- TypeMidi Tower
- ColourBlack, Wood
- Power supply includedNo
- USB 2.0 ports quantity0
- Number of front fans supported (max)3
- Supported HDD sizes2.5,3.5"
Overview
- Type
- Midi Tower
- Colour
- Black, Wood
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Number of front fans supported (max)
- 3
- Supported HDD sizes
- 2.5,3.5"
- Brand
- Aerocool
- Category
- Computer Case
- Model
- D501A
- Part numbers
- ACCM-DS01043.21, ACCM-MA01043.11, D501A-G-WT-V1
- EAN / UPC
- 4711099479719, 4711099479702
- Also known as
- Aerocool D501A Midi Tower Black, Wood
Specifications
50 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), SPCC, Wood |
| Product colour | Black, Wood |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 2 |
| Number of internal 3.5" bays | 2 |
| Number of expansion slots | 7 |
| Side window | Yes |
| Suitable for | Gaming |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| On/off button | Yes |
| Reset button | Yes |
| LED indicators | Yes |
| Maximum CPU cooler height | 17.1 cm |
| Maximum graphics card length | 40 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| Combo headphone/mic port | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Number of side fans supported (max) | 2 |
| Side fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 2 |
| Bottom fans diameters supported | 120 mm |
| Liquid cooling capability | Yes |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,140,240,280,360 mm |
| Pulse-width modulation (PWM) support | Yes |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 213 mm |
| Depth | 458.6 mm |
| Height | 476.5 mm |
| Material thickness | 0.5 mm |
