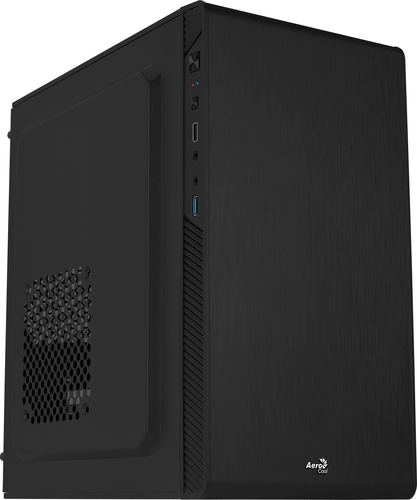

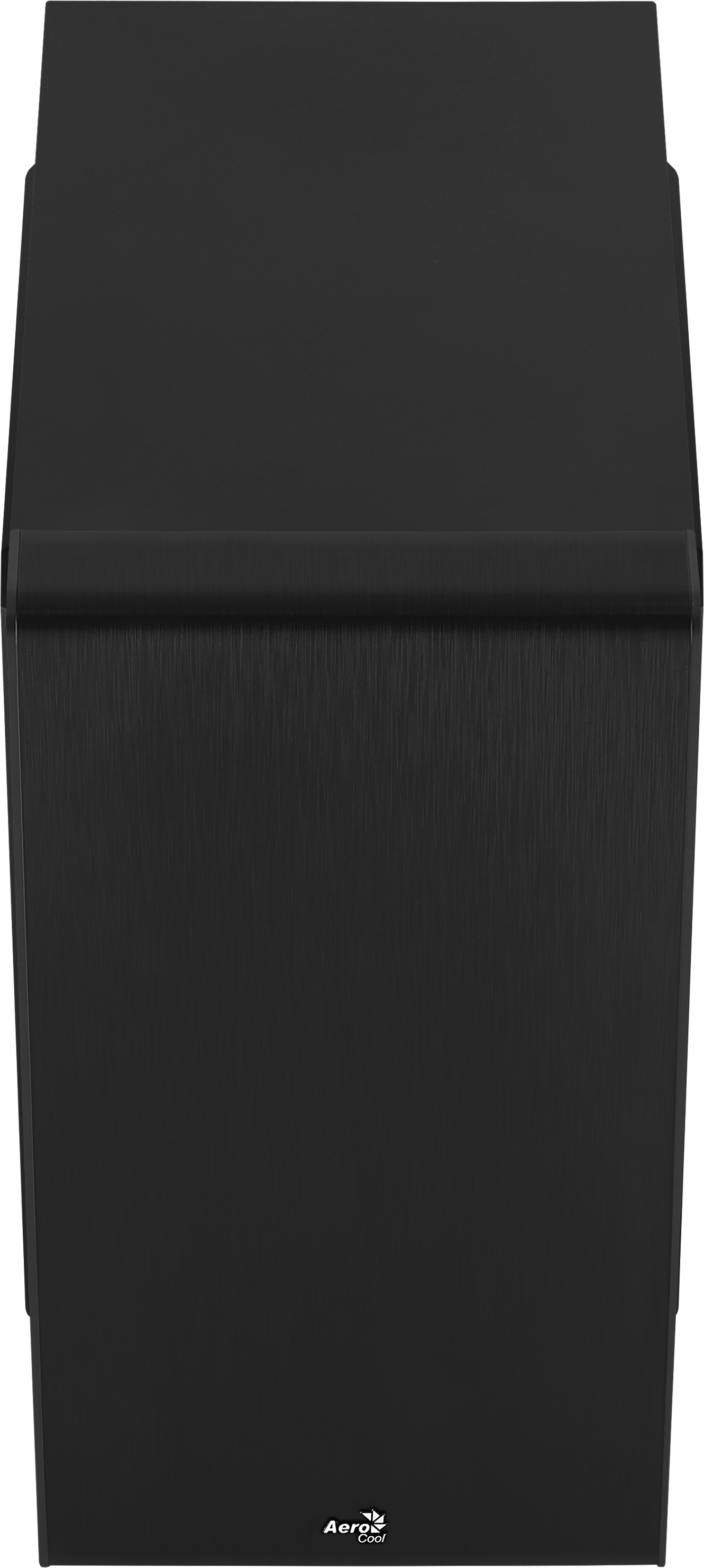

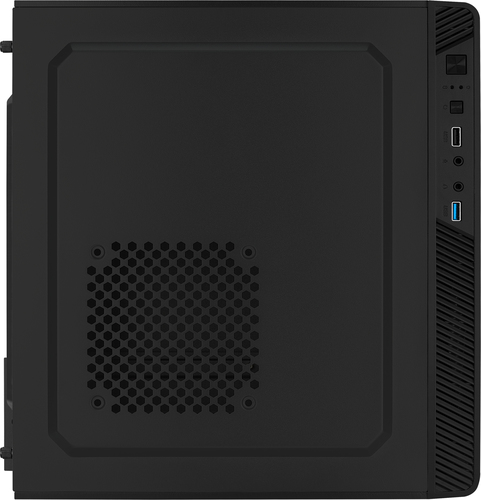

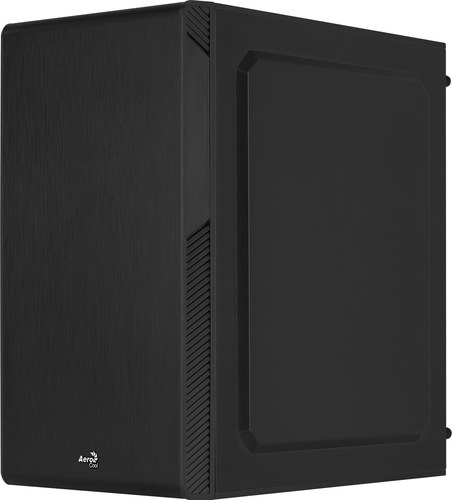

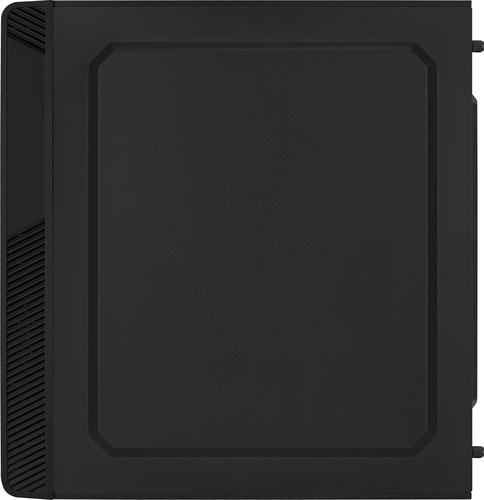

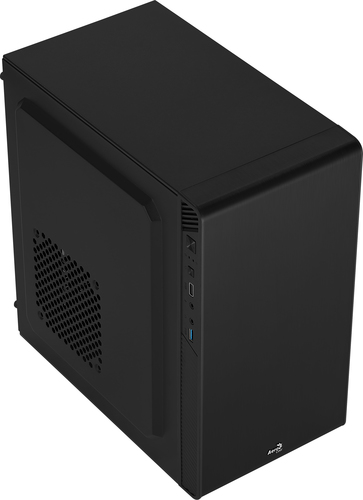

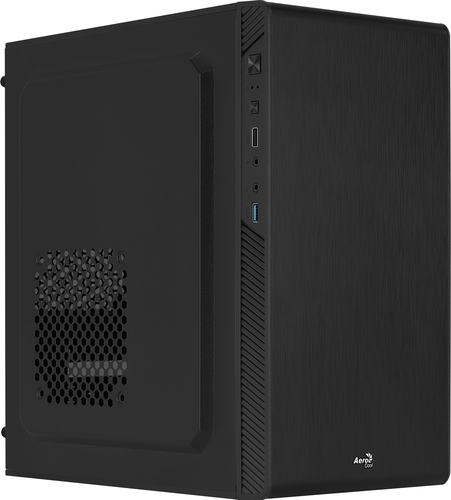

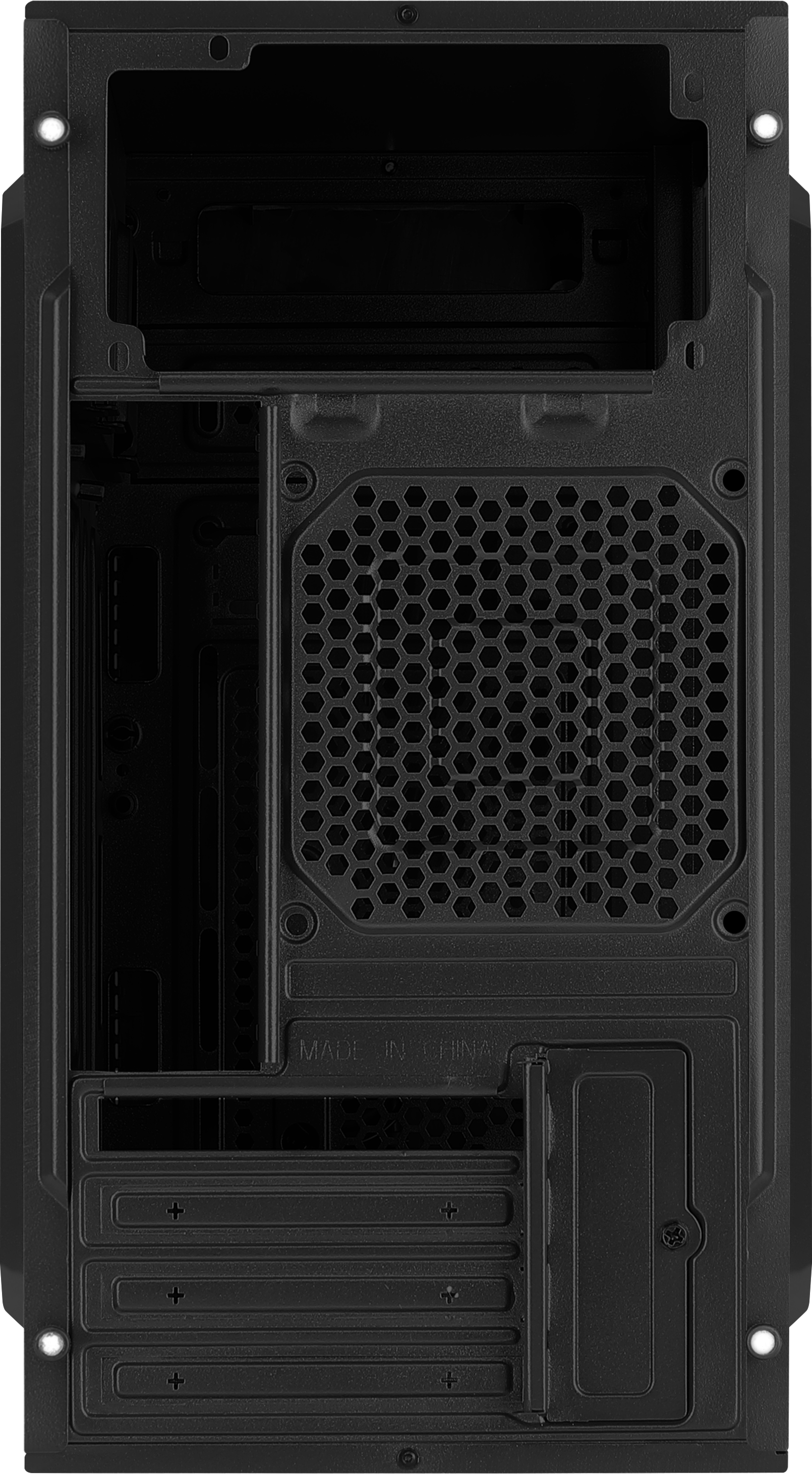

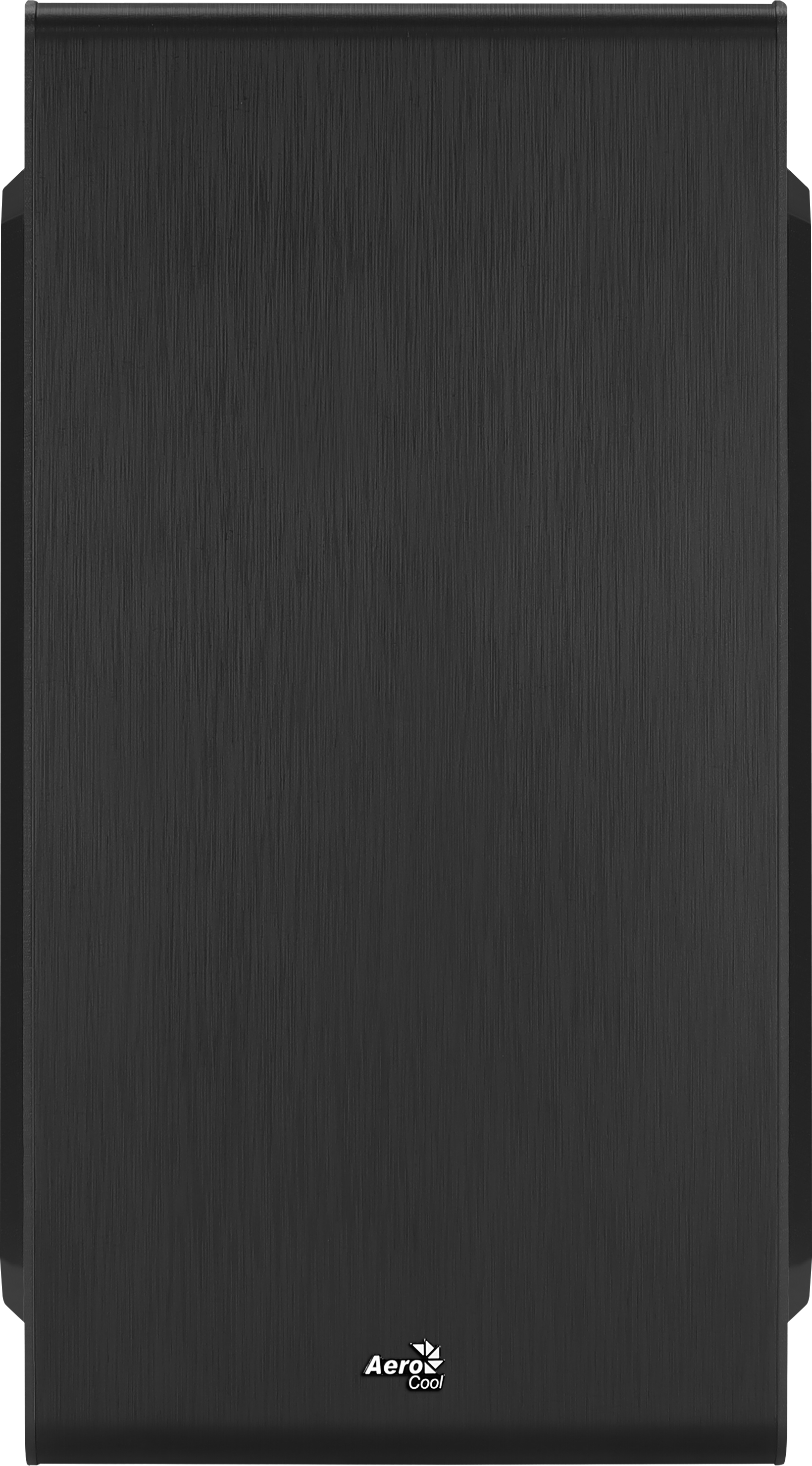

CS106 PC Case Micro ATX USB 3.0 Black
Model CS106EAN 4710562759365
33 specifications
- TypeMini Tower
- Weight2.14 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity1
- Number of front fans supported (max)2
Overview
- Type
- Mini Tower
- Weight
- 2.14 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 1
- Number of front fans supported (max)
- 2
- Brand
- Aerocool
- Category
- Computer Case
- Model
- CS106
- Part number
- CS106
- EAN / UPC
- 4710562759365
- Also known as
- Aerocool CS106 PC Case Micro ATX USB 3.0 Black
Specifications
33 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Mini Tower |
| Type | PC |
| Material | ABS, SPCC |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 1 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 4 |
| Side window | No |
| Maximum CPU cooler height | 16.7 cm |
| Maximum graphics card length | 28.6 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 2 |
| Front fans diameters supported | 120 mm |
| Number of side fans supported (max) | 1 |
| Side fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Liquid cooling capability | Yes |
| Front radiator sizes supported | 120 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 3.5" |
| SSD form factor | 2.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 199 mm |
| Depth | 340.6 mm |
| Height | 353 mm |
| Weight | 2.14 kg |
| Material thickness | 0.45 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.71 kg |
