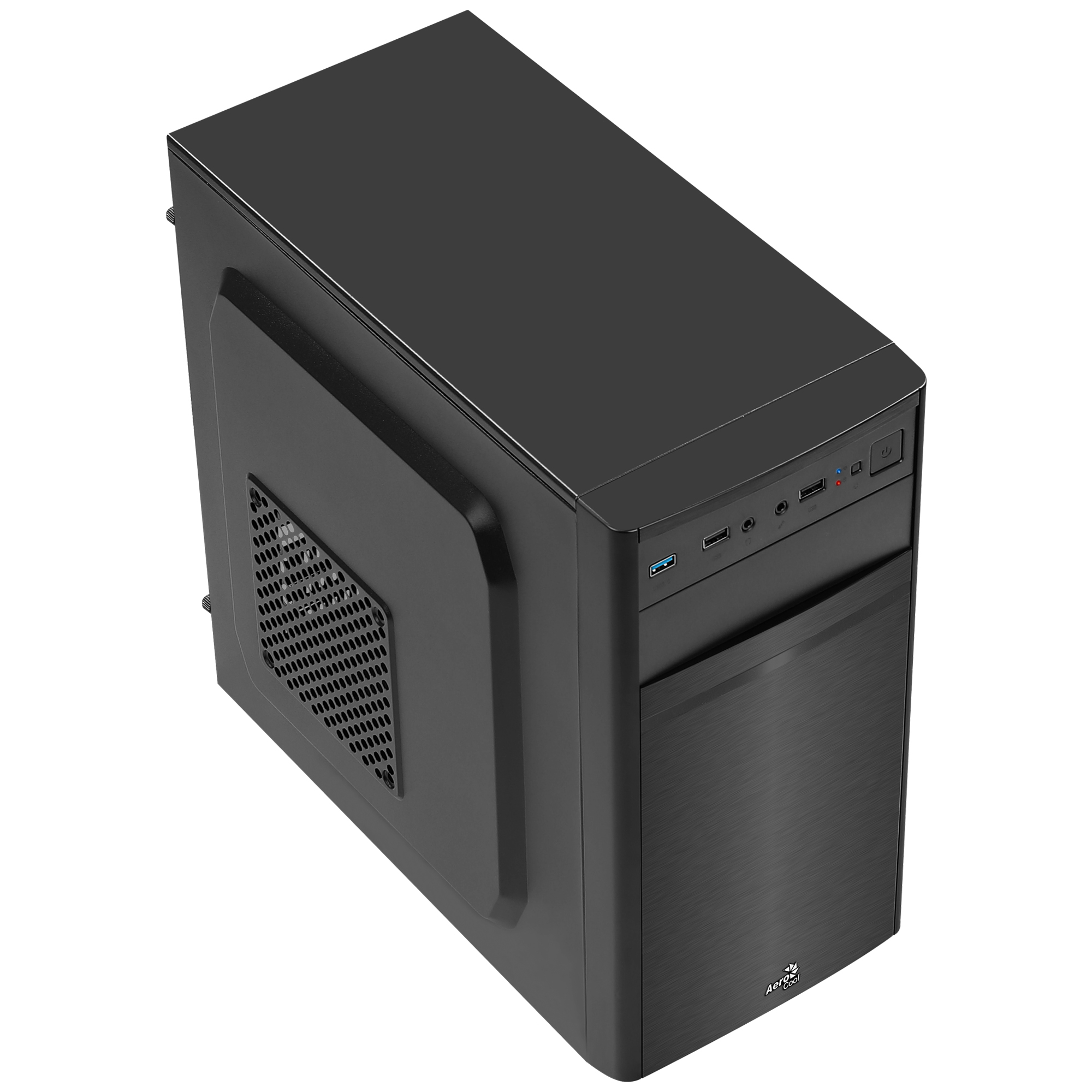

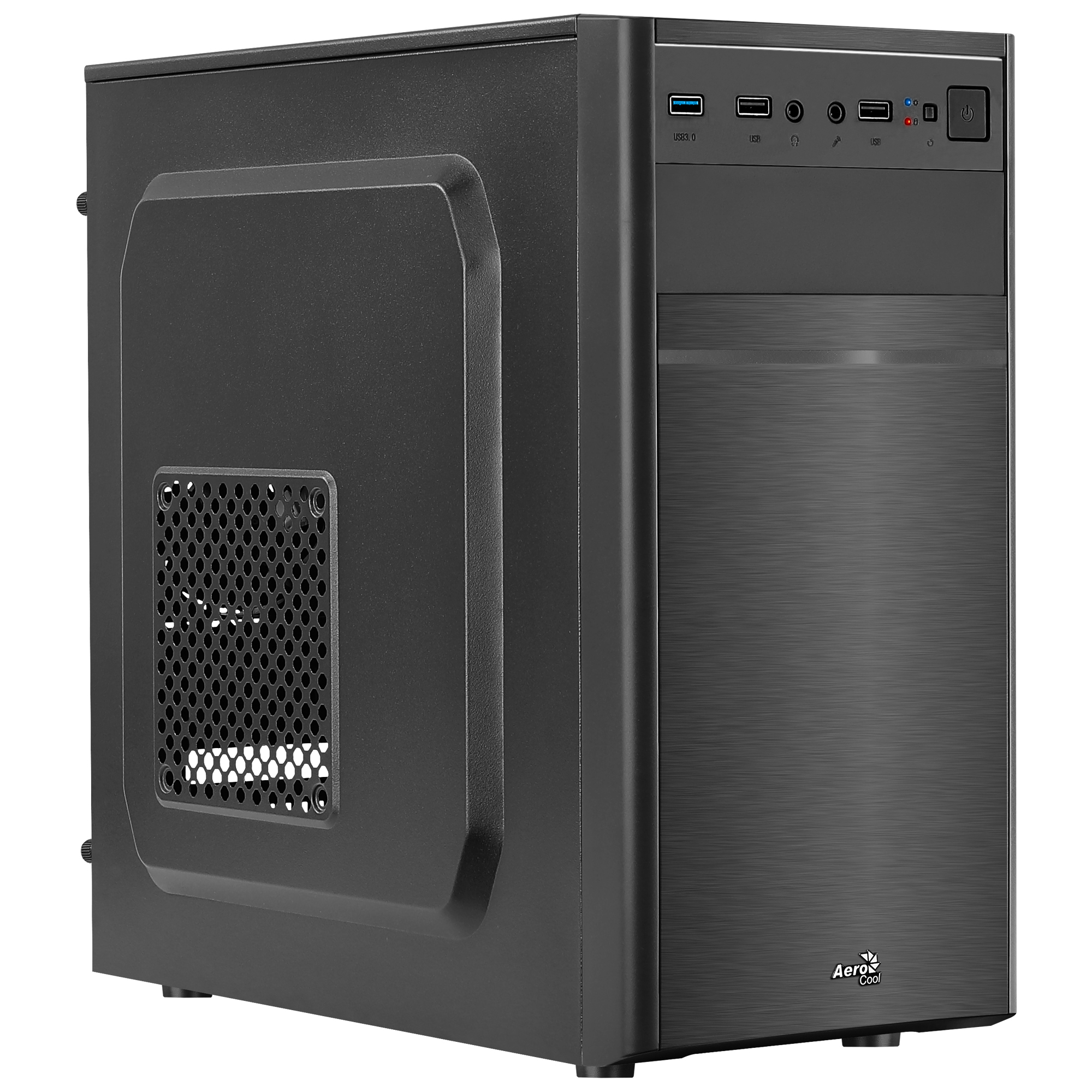

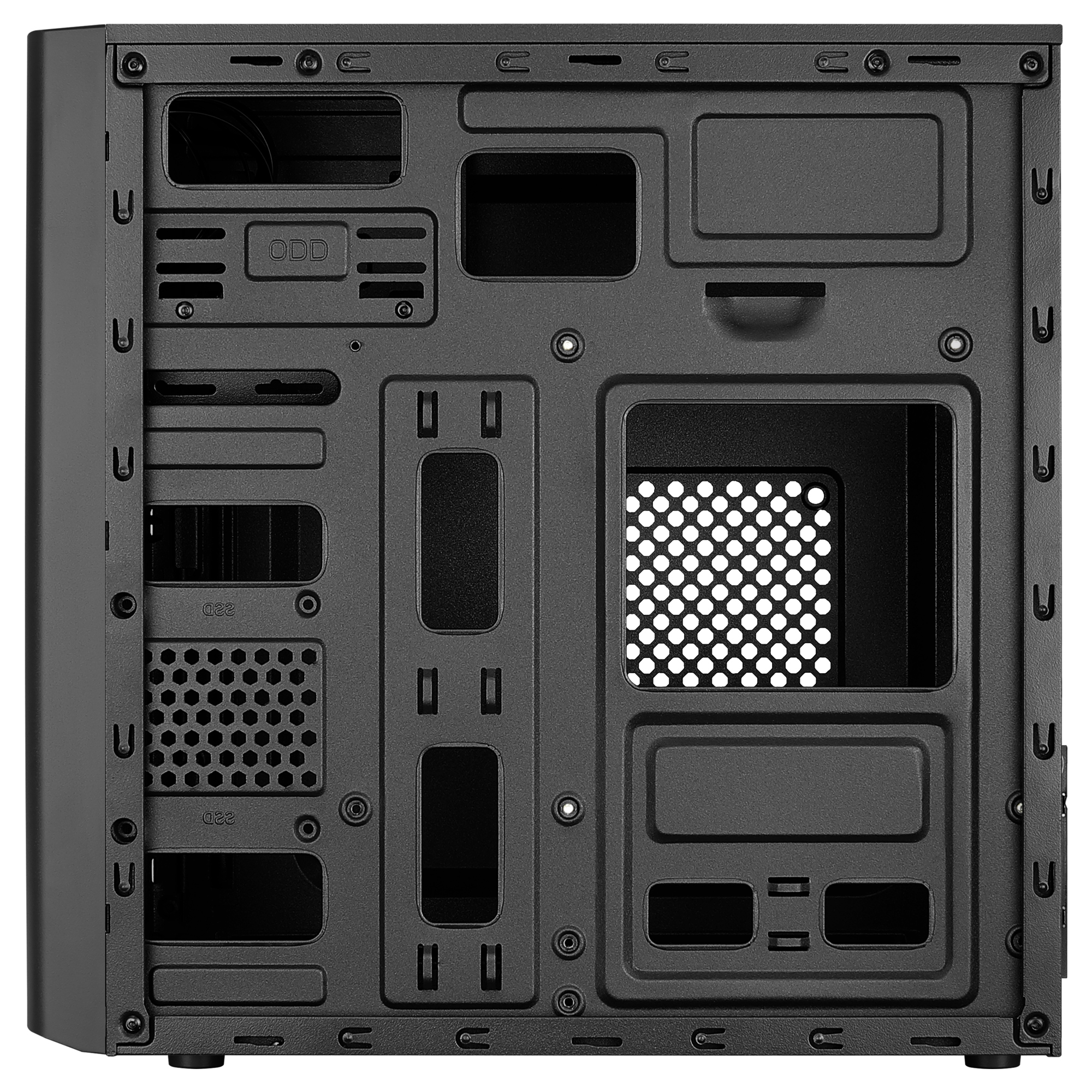

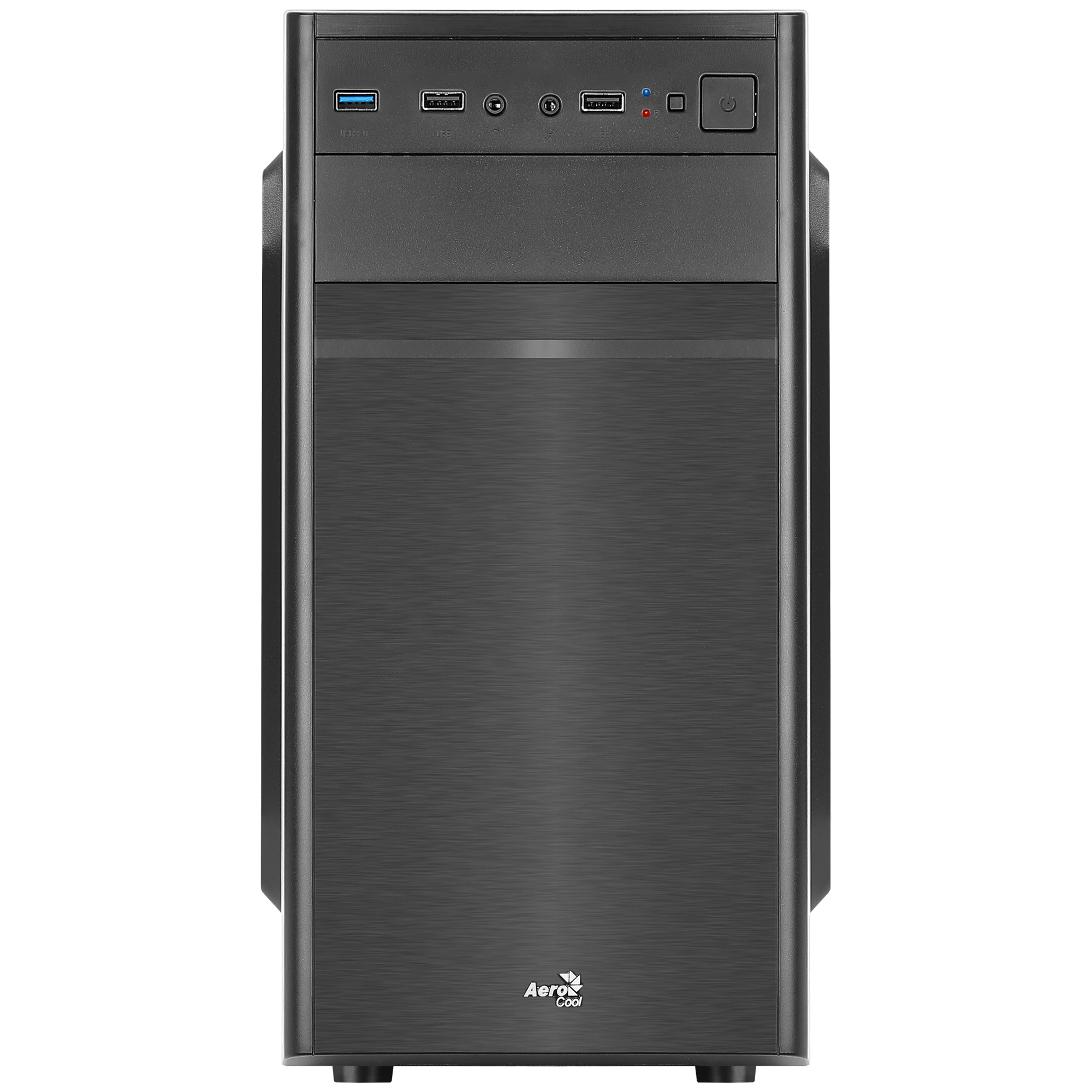

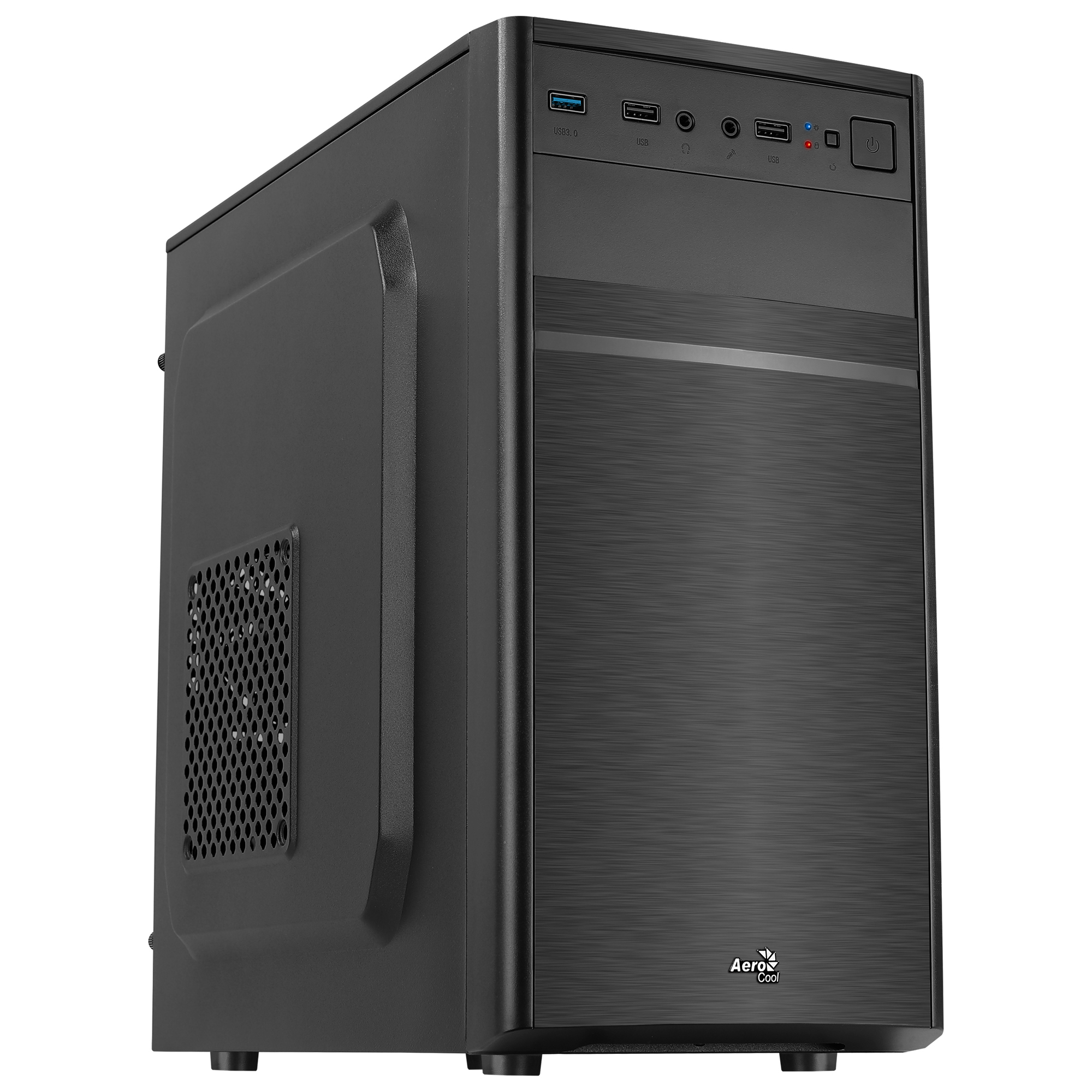

CS-103 Mini Tower Black
Model CS-103Part no. CS103EAN 4718009158665
35 specifications
- TypeMini Tower
- Weight2.15 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity2
- Number of front fans supported (max)1
Overview
- Type
- Mini Tower
- Weight
- 2.15 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 2
- Number of front fans supported (max)
- 1
- Brand
- Aerocool
- Category
- Computer Case
- Model
- CS-103
- Part numbers
- CS103, CS-103
- EAN / UPC
- 4718009158665
- Also known as
- Aerocool CS-103 Mini Tower Black
Specifications
35 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Mini Tower |
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), SPCC |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 1 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 4 |
| Side window | No |
| Cable management | Yes |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 15.6 cm |
| Maximum graphics card length | 32.2 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 120 mm |
| Number of side fans supported (max) | 1 |
| Side fans diameters supported | 120 mm |
| Rear fans installed | 1x 80 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 80 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5,5.25" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 199 mm |
| Depth | 357.6 mm |
| Height | 371 mm |
| Weight | 2.15 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.68 kg |
