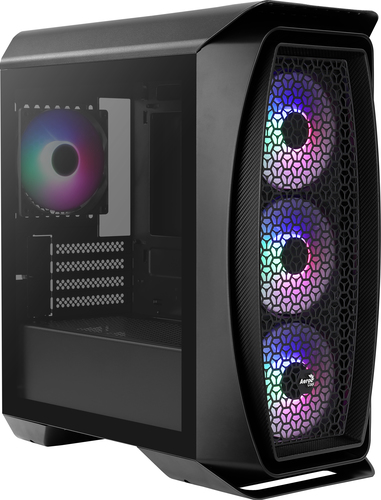

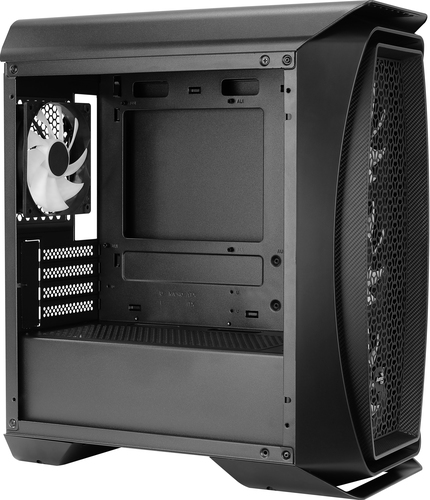

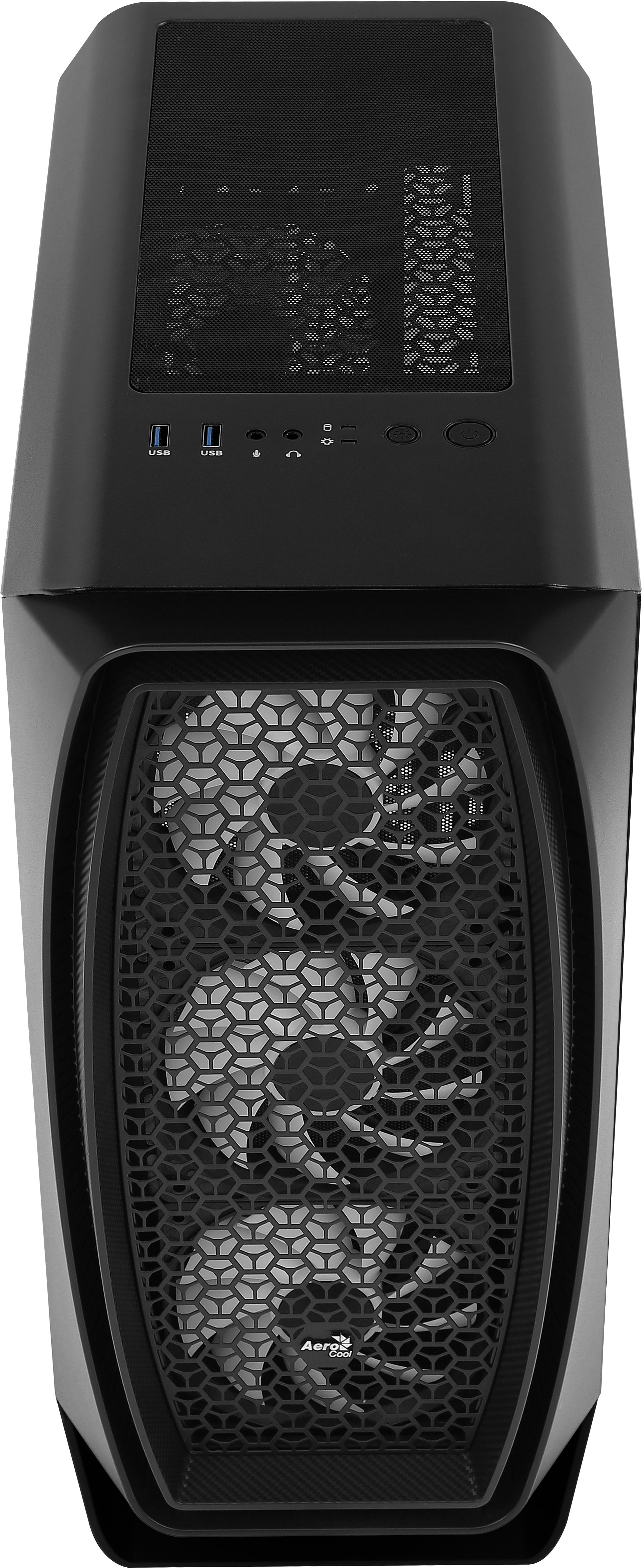

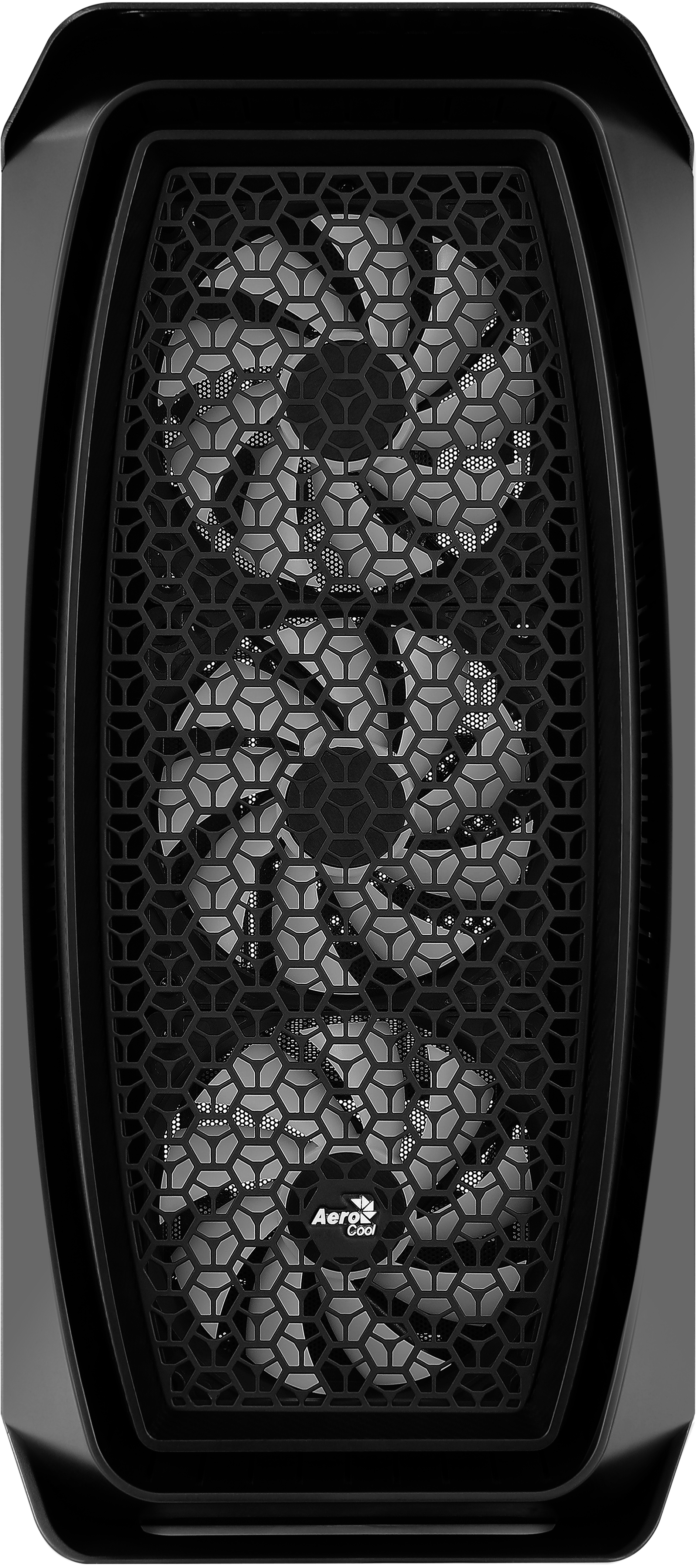

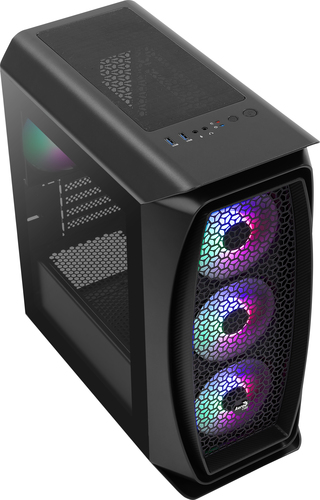

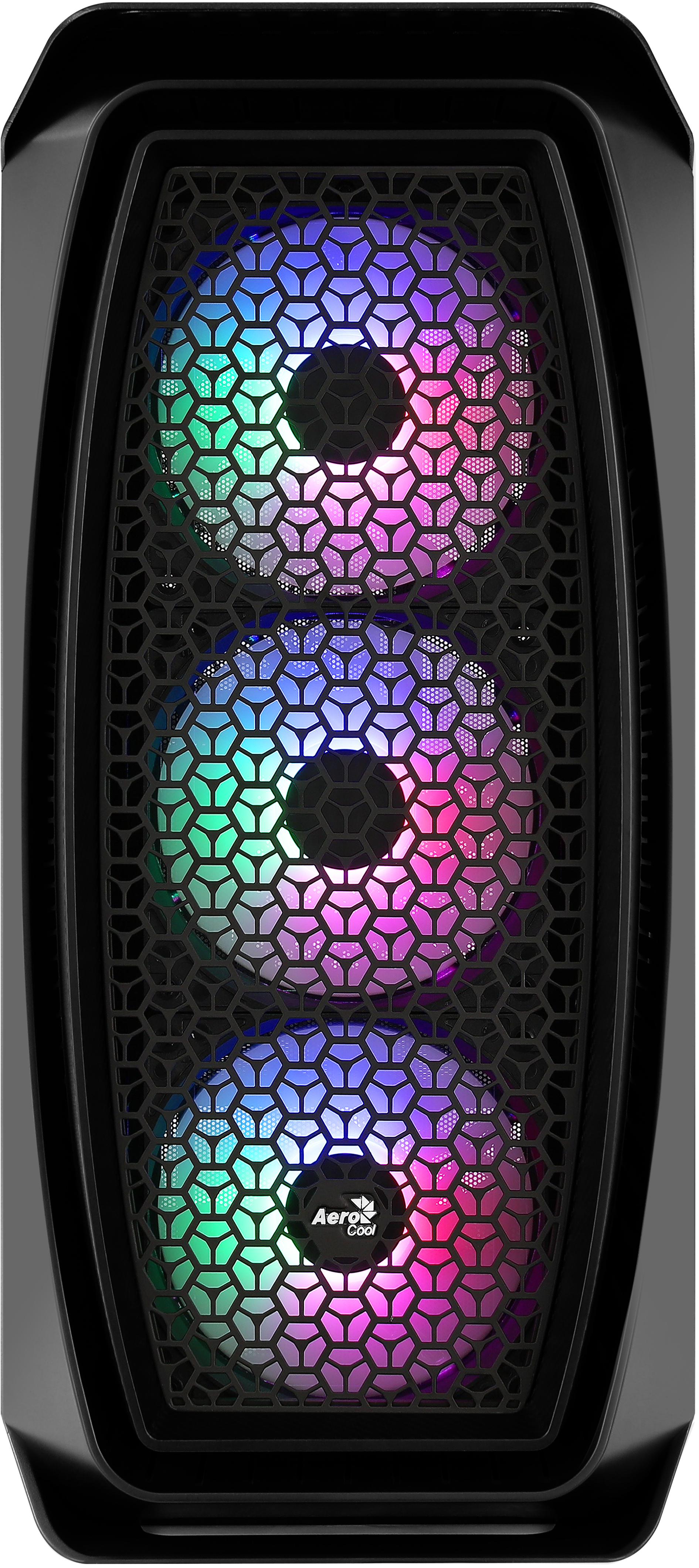

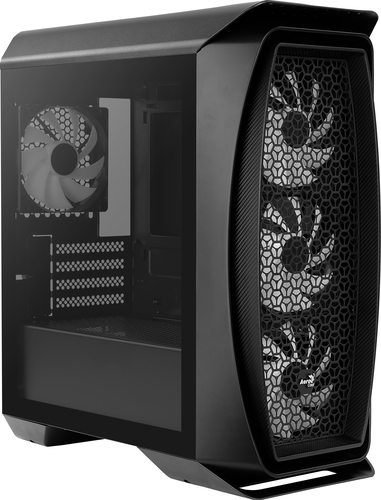

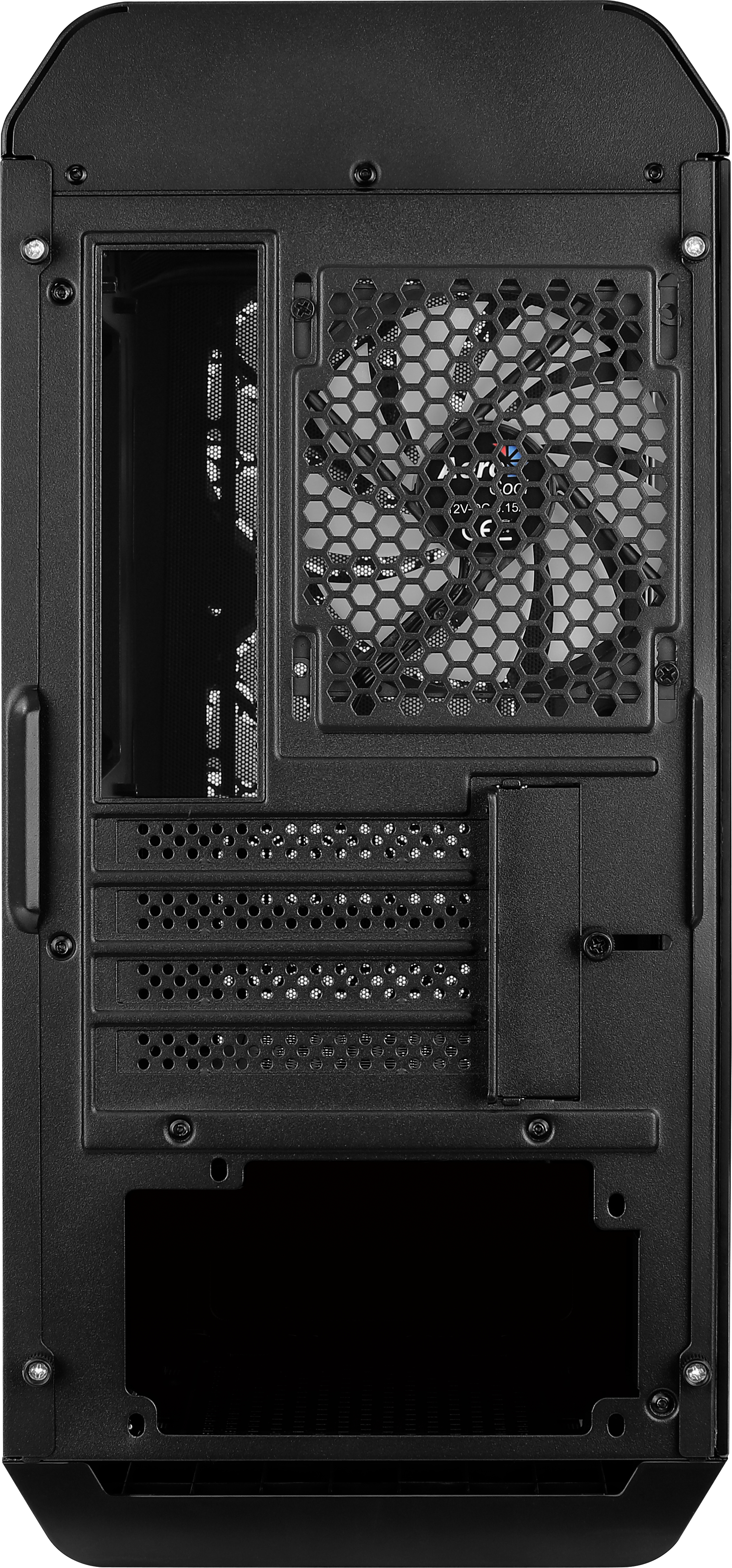

Aero One Mini Frost
Model Aero One Mini FrostPart no. AEROONEMINIFROSTBKEAN 4710562752380
40 specifications
- TypeMini Tower
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity0
- Front fans installed3x 120 mm
- Supported HDD sizes2.5,3.5"
Overview
- Type
- Mini Tower
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Front fans installed
- 3x 120 mm
- Supported HDD sizes
- 2.5,3.5"
- Brand
- Aerocool
- Category
- Computer Case
- Model
- Aero One Mini Frost
- Part numbers
- AEROONEMINIFROSTBK, AEROONEMINIFROSTWH
- EAN / UPC
- 4710562752380, 4710562752397
- Also known as
- Aerocool Aero One Mini Frost Mini Tower Black
Specifications
40 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Mini Tower |
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), SPCC |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 3 |
| Number of expansion slots | 4 |
| Side window | Yes |
| Illumination | Yes |
| Illumination colour | Blue, Green, Red |
| Illumination location | Front |
| Tempered glass panel(s) | Yes |
| Cable management | Yes |
| On/off button | Yes |
| LED indicators | Yes |
| Maximum graphics card length | 32.7 cm |
| Maximum PSU length | 16.6 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Number of HDDs supported | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 403 mm |
| Height | 459 mm |
| Material thickness | 0.7 mm |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross width | 120 cm |
| Pallet gross length | 100 cm |
| Pallet gross height | 12 cm |
